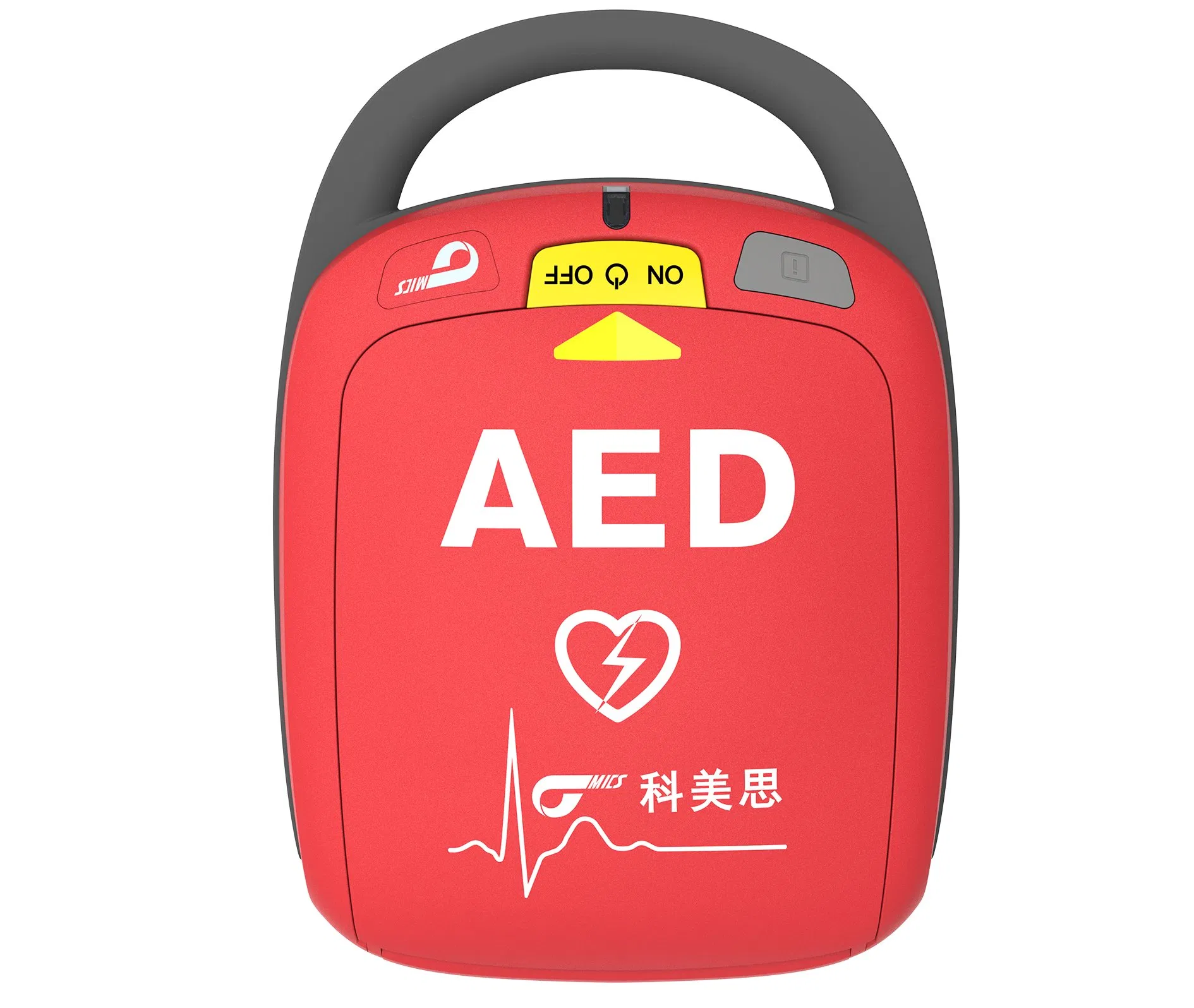

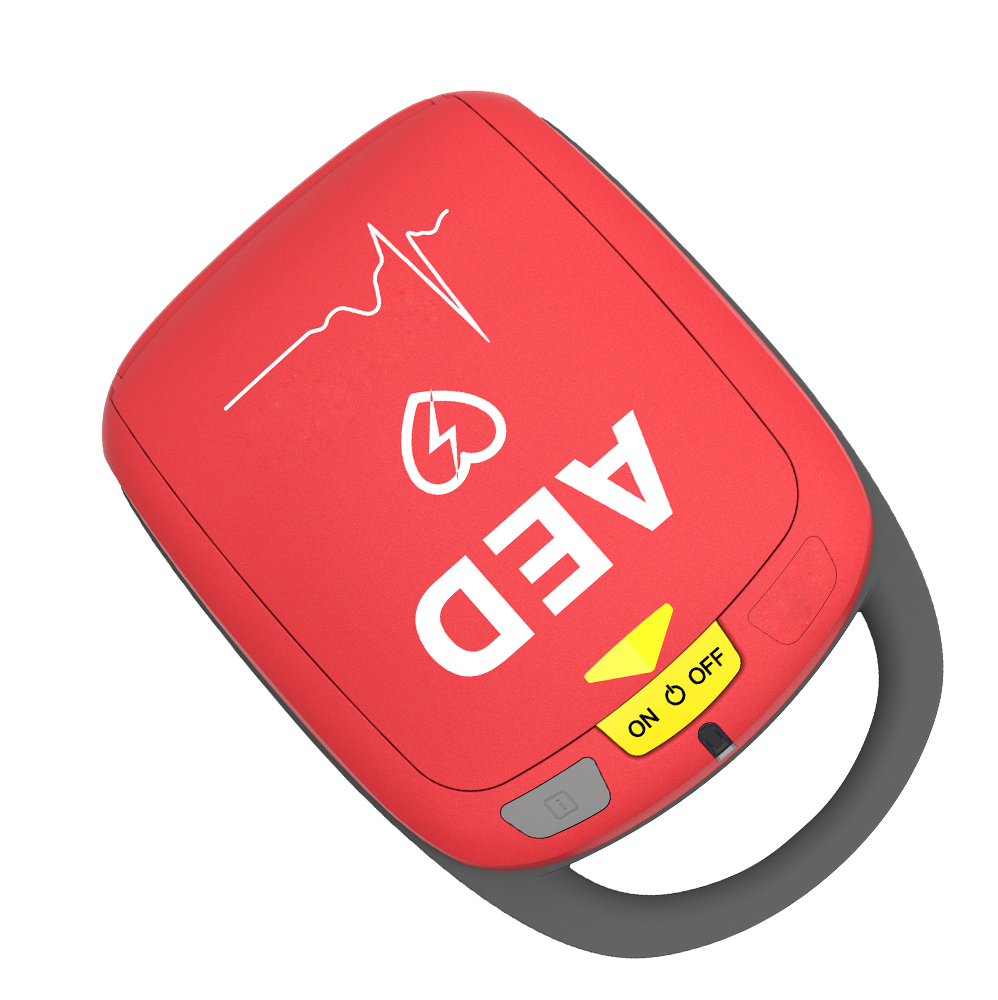

High Quality Automatic External Defibrillator (AED) with CE, ISO13485, Low Energy Bte
High Quality Automatic External Defibrillator (AED) with CE, ISO13485, Low Energy Bte
High Quality Automatic External Defibrillator (AED) with CE, ISO13485, Low Energy Bte
High Quality Automatic External Defibrillator (AED) with CE, ISO13485, Low Energy Bte
High Quality Automatic External Defibrillator (AED) with CE, ISO13485, Low Energy Bte
1 / 5
High Quality Automatic External Defibrillator (AED) with CE, ISO13485, Low Energy Bte
High Quality Automatic External Defibrillator (AED) with CE, ISO13485, Low Energy Bte
High Quality Automatic External Defibrillator (AED) with CE, ISO13485, Low Energy Bte
High Quality Automatic External Defibrillator (AED) with CE, ISO13485, Low Energy Bte
High Quality Automatic External Defibrillator (AED) with CE, ISO13485, Low Energy Bte

High Quality Automatic External Defibrillator (AED) with CE, ISO13485, Low Energy Bte

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Info.
Model NO.
Altai DP1
Certification
CE, MSDS, ISO13485, Nmpa, FSC
Color
Red
ECG Analysis
8.5 Second
Shock Output
150j (Adult), 50j (Pediatric)

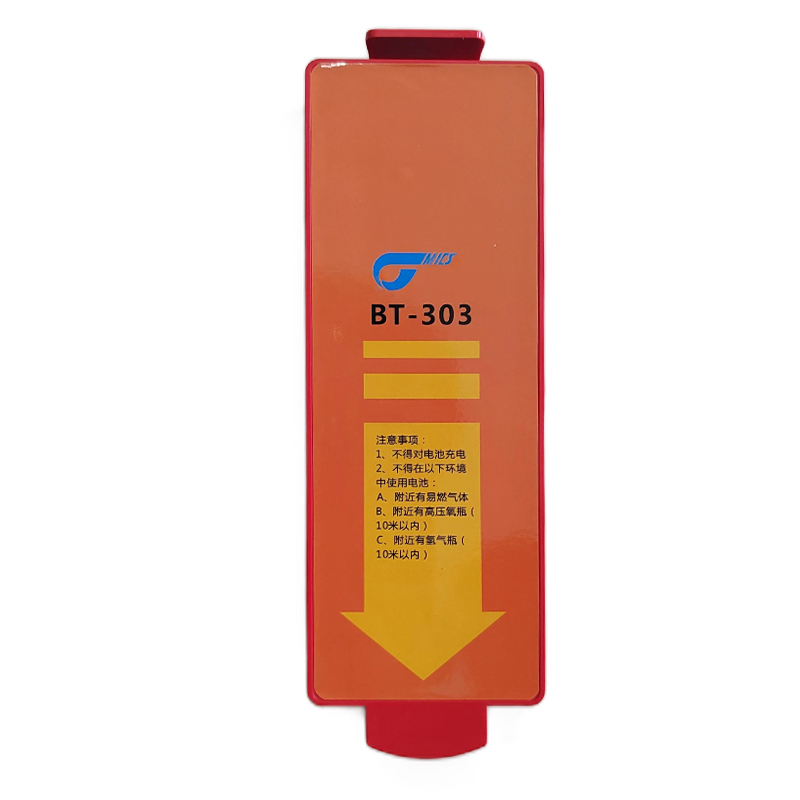

Battery Pack
Non Rechargeable Li-Mn Battery of 12V, 4.2 Ah
Dimensions
320*230*85 mm
Capacity
50,000 Sets/Year
📋 Product Description

Altai DP1: High Quality Automated External Defibrillator (AED)

  • Biphasic Truncated Exponential with low energy to minimize myocardial injury
  • Not rechargeable Li-MnO2 battery with high capacity supporting up to 400 shocks
  • Automatic recording of ECG data & around sounds throughout the complete operating
  • Preinstalled electrode pads with compatibility to adult and child
  • One step operating for cover open and power on at the same time
  • Daily selftest and automatic selftest upon power on
  • Available with adult mode and child mode
  • Automatic voice guide throughout the complete operation
  • Automatic indication of unit status
  • Alarm of low battery capacity and change of new one

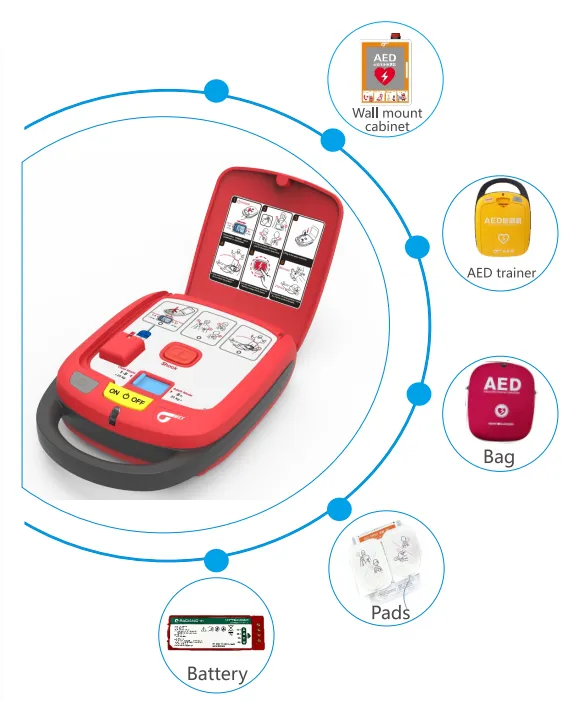

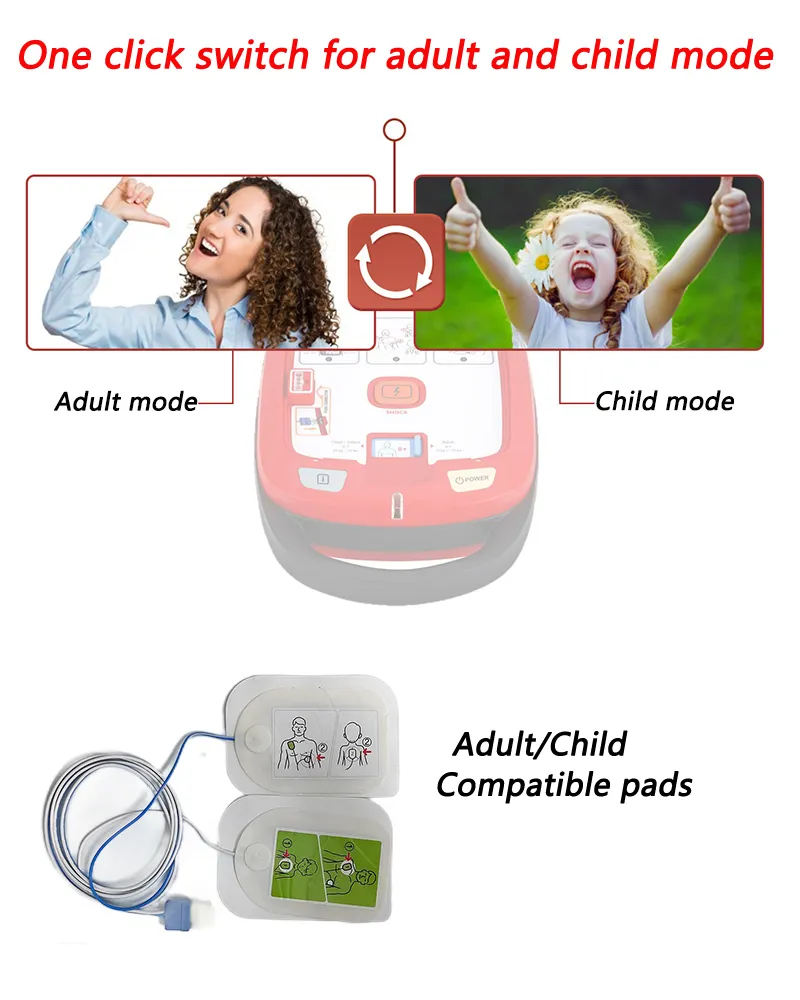

AED Device AED Operation
⭐ Our Advantages

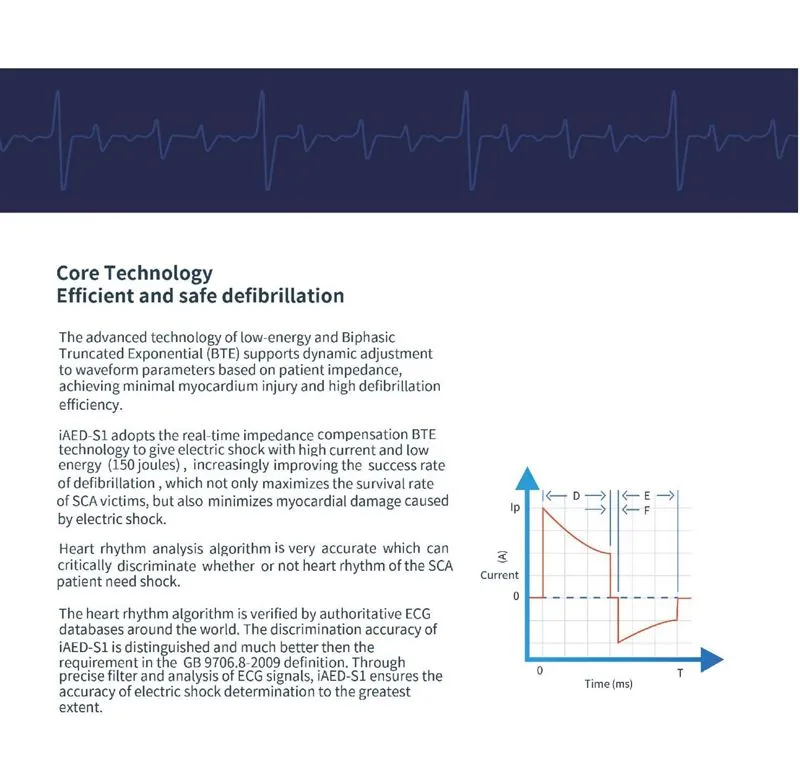

Advantage of Low Energy BTE:

  • Automatic compensation and adjustment of waveform as per load impedance
  • Shorter time in ECG analysis and shock preparation
  • Simultaneous ECG analysis and precharging
  • Higher success rate in defibrillating with minimum injury to myocardium
  • Better for rehabilitation and faster response

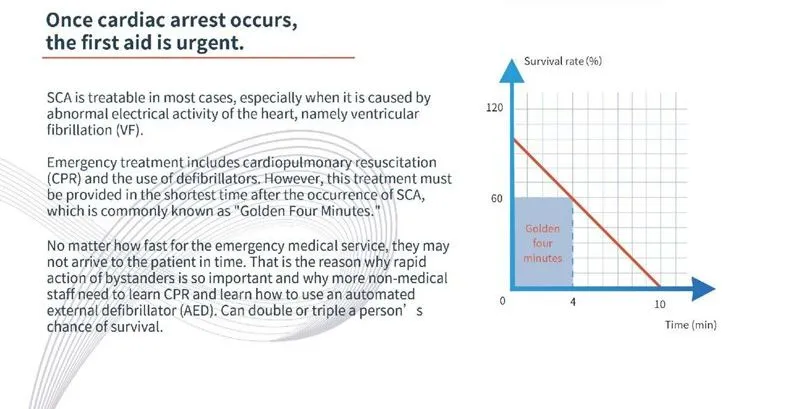

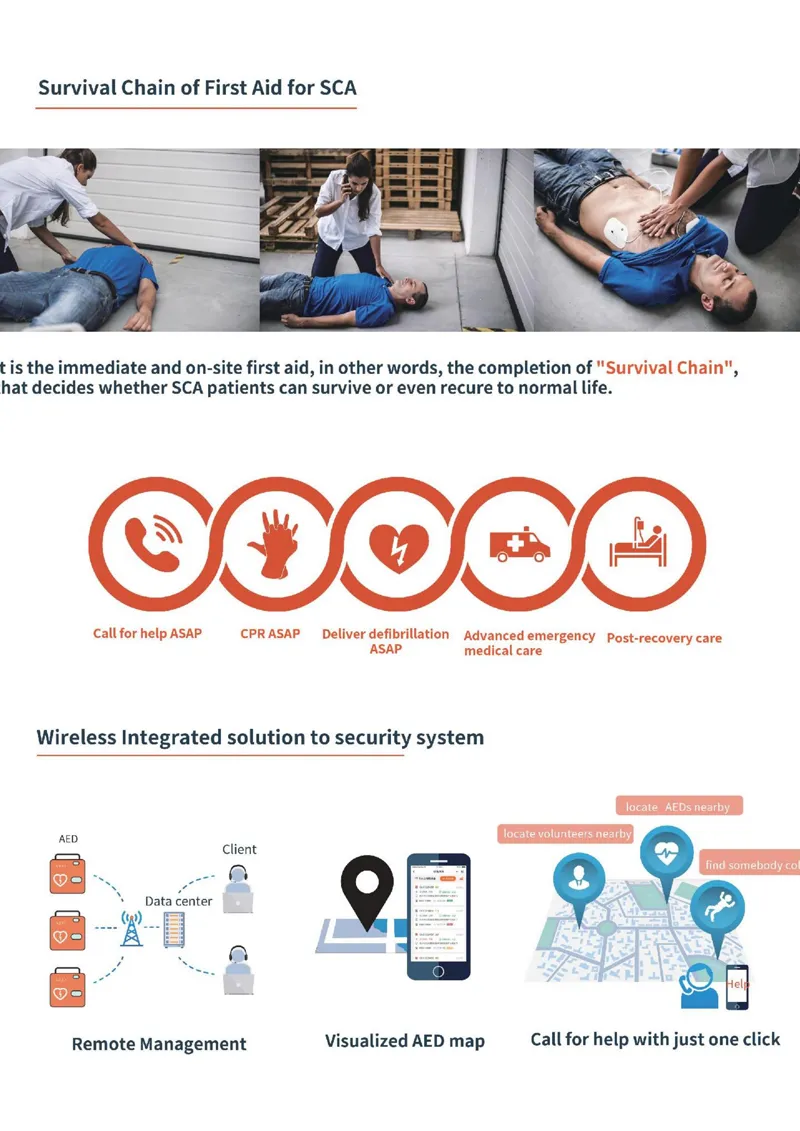

Advantage 1 Advantage 2 Advantage 3
⚙️ Product Parameters
ECG Analysis8.5 Second
Hi - Cap Charging8 Second
Shock Output150J (Adult), 50J (pediatric)
Data Storage40 Minute (built in memory)
Data TransferBluetooth
BatteryNon rechargeable Li-Mn battery 12V, 4.2Ah
Shock FrequencyNot less than 200 times
Standard KitMain unit, battery, 2x electrode pads, carry case
Net Weight1.9 Kg
📸 Detailed Photos

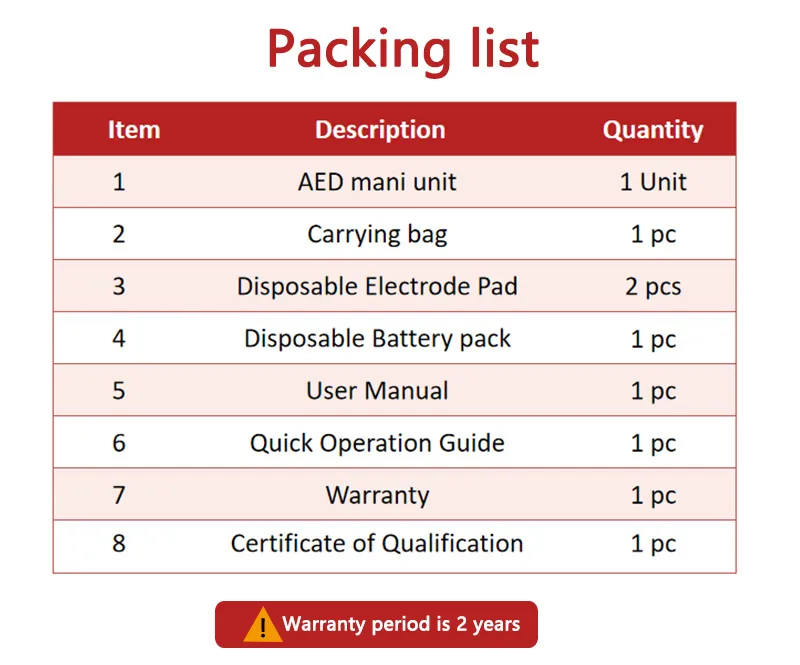

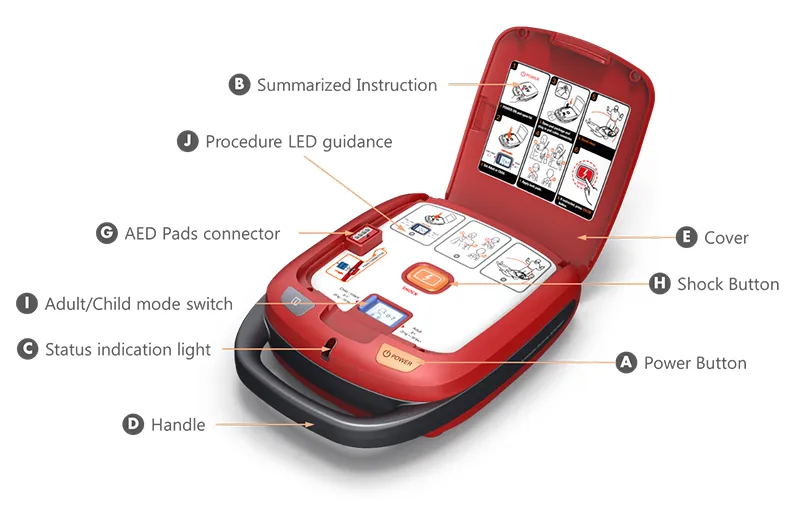

AED Detail View 1 AED Detail View 2
🏢 Production & Facilities
Factory 1 Factory 2 Factory 3

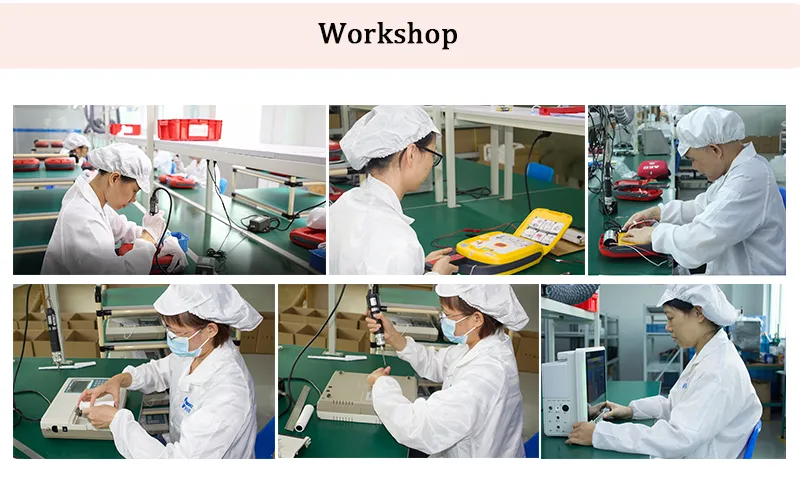

Workshop 1 Workshop 2 Workshop 3
❓ FAQ
Q1: Is the Altai DP1 battery rechargeable?
No, it uses a non-rechargeable high-capacity Li-MnO2 battery designed for long-term standby and up to 400 shocks.
Q2: Can this AED be used on children?
Yes, the Altai DP1 is compatible with both adult and pediatric modes using preinstalled universal electrode pads.
Q3: What certifications does the Altai DP1 have?
The device is certified with CE, ISO13485, MSDS, Nmpa, and FSC.
Q4: How does the device guide the user during an emergency?
The AED provides an automatic voice guide throughout the entire operation and features a one-step startup when the cover is opened.
Q5: How is data retrieved from the device?
Data can be transferred via Bluetooth, and there is optional PC software available for ECG data retrieve and download.
Q6: What is the benefit of the Low Energy BTE waveform?
It provides automatic compensation based on load impedance, ensuring faster analysis and shock delivery while minimizing injury to the heart muscle.
