🔴 Overview & Basic Info
Certification
CE, MSDS, ISO13485, Cfda, FSC
Shock Output
150j (Adult), 50j (Pediatric)
Data Storage
8 Second of Ecgs Before Shock
Battery
Non Rechargeable Li-Mn Battery
Data Communication
Bluetooth
📋 Product Description

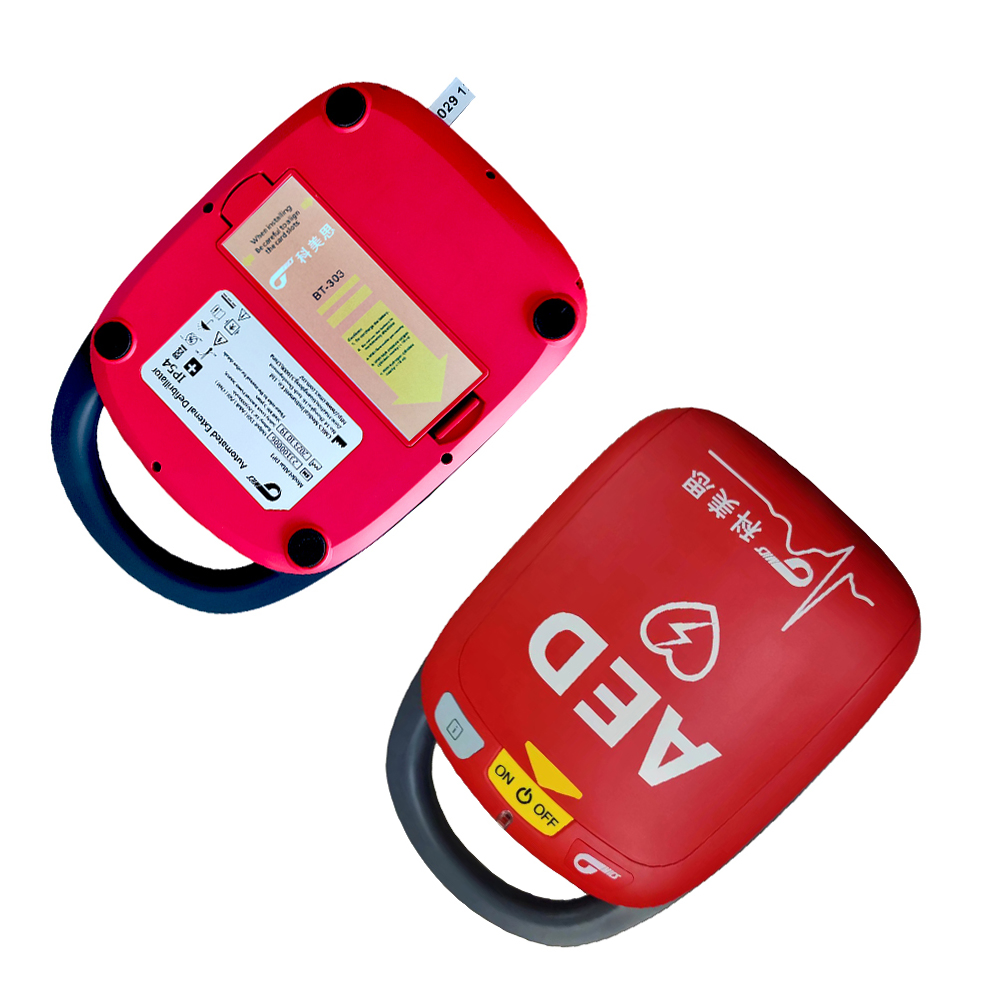

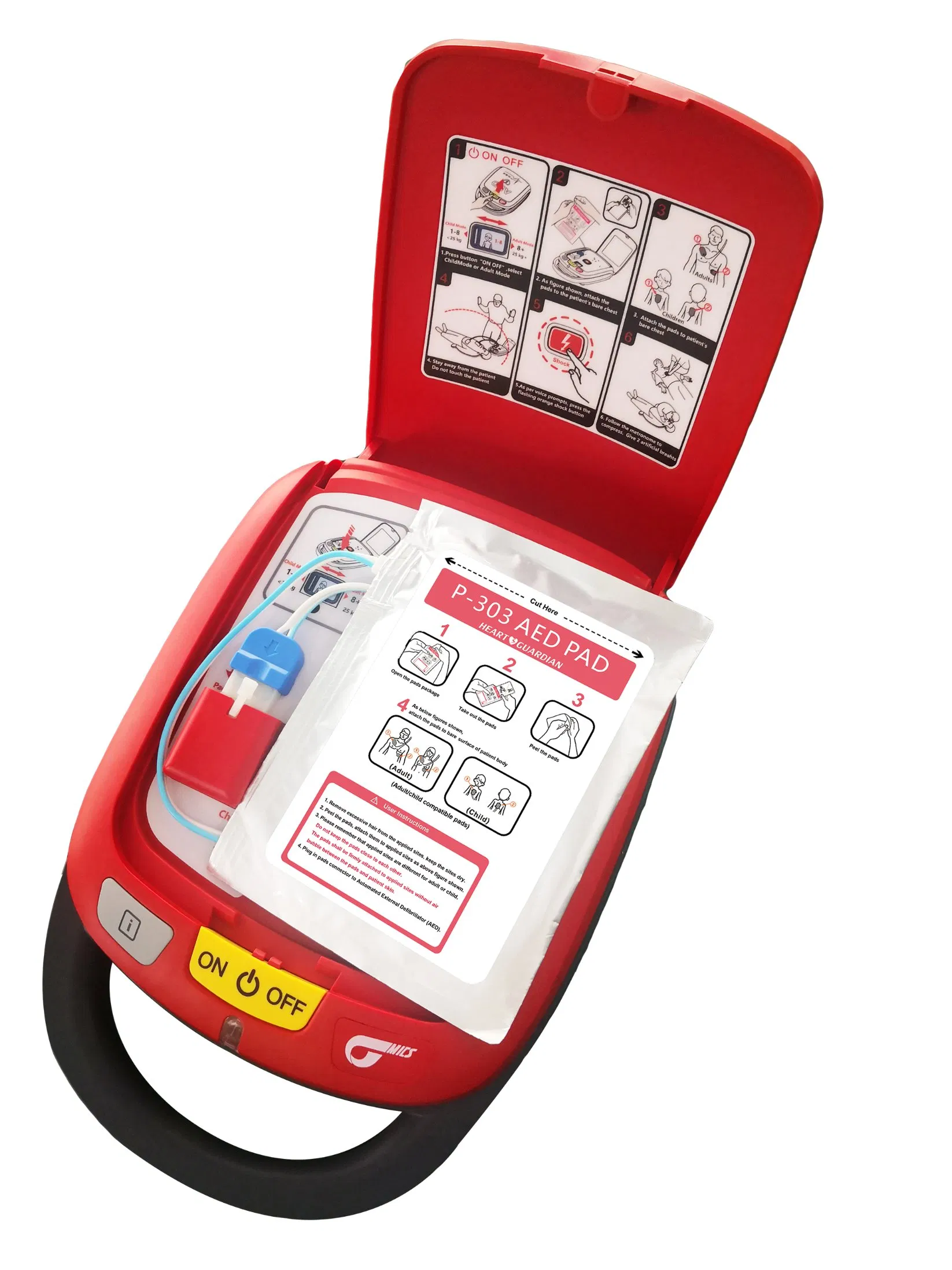

Altai DP1: Automatic External Defibrillator (AED)
Equipped with Low Energy BTE Technology and Adult/Pediatric Compatible Pads.
⚙️ Product Parameters
| ECG Analysis | 8.5 Second |
| Hi - Cap Charging | 8 Second |
| Shock Output | 150J (Adult), 50J(Pediatric) |
| Data Storage | 8 second of ECG waveforms before shock |

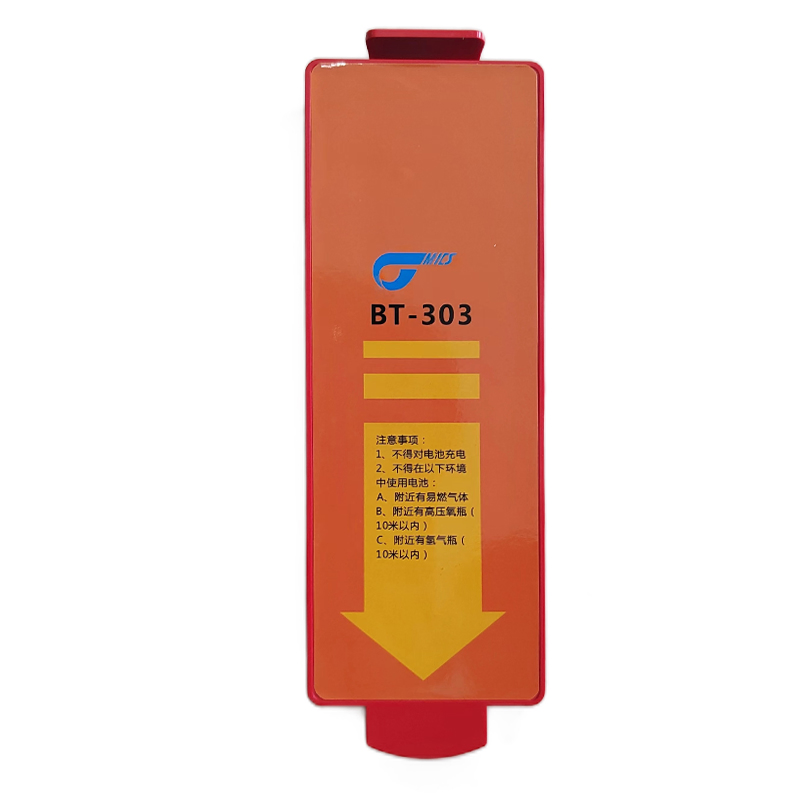

| Battery Pack | Non rechargeable Li-Mn battery of 12V, 4.2 Ah |
| Shock Frequency | Not less than 200 times |
| Net Weight | 1.9 Kg |

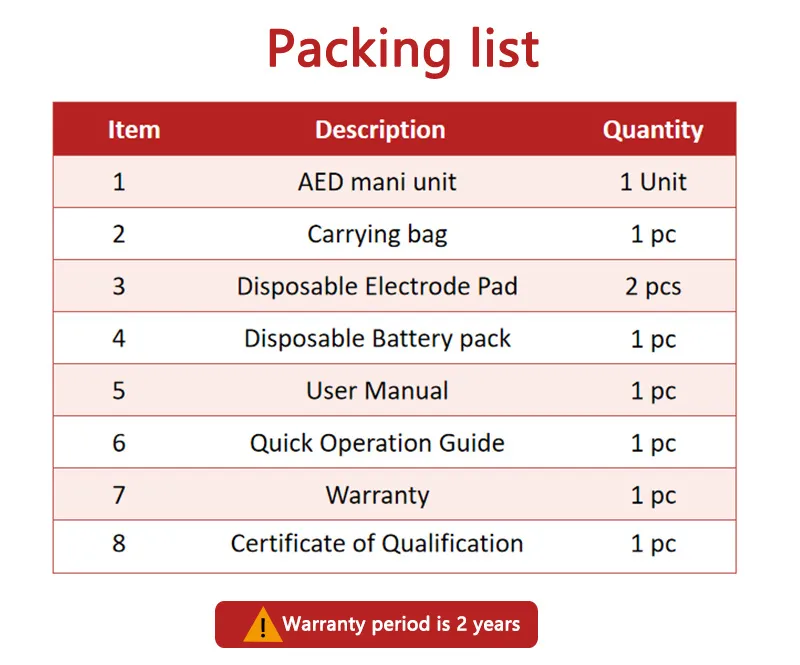

| Standard Configuration | 1 x main unit, 1 x battery pack, 1 x electrode pads (2pcs), 1x carry case |
⭐ Key Features
Biphasic Truncated Exponential (BTE) with low energy
High capacity battery supporting up to 400 shocks
Automatic recording of ECG and ambient sounds

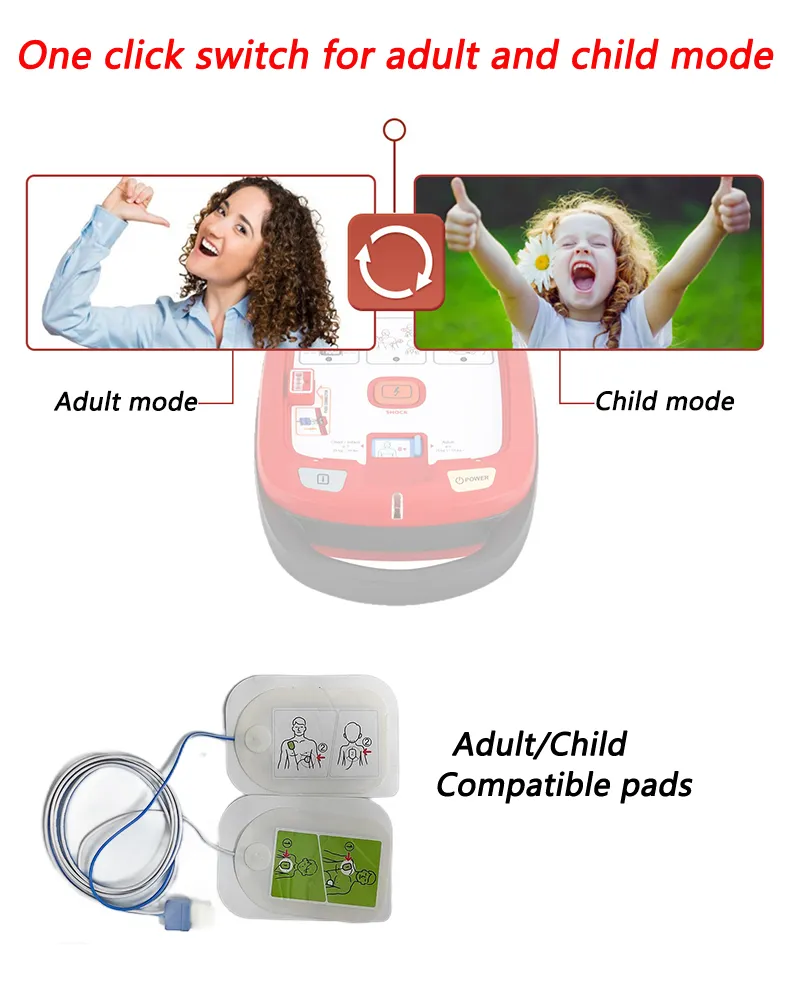

Preinstalled adult/child compatible electrode pads
One-step operation (Cover open and power on)
Daily self-test and automatic voice guidance
🚀 Advantage of Low Energy BTE
Automatic compensation for load impedance
Shorter analysis and shock preparation time
Simultaneous ECG analysis and precharging
Minimum injury to myocardium & better rehabilitation

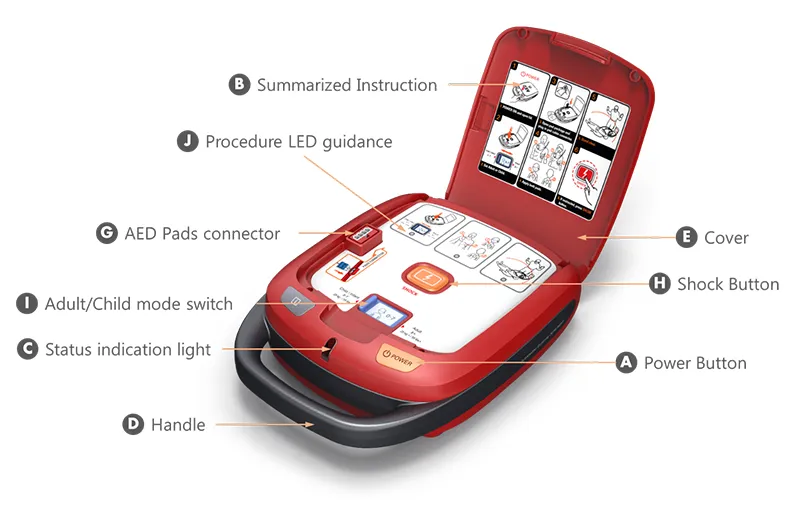

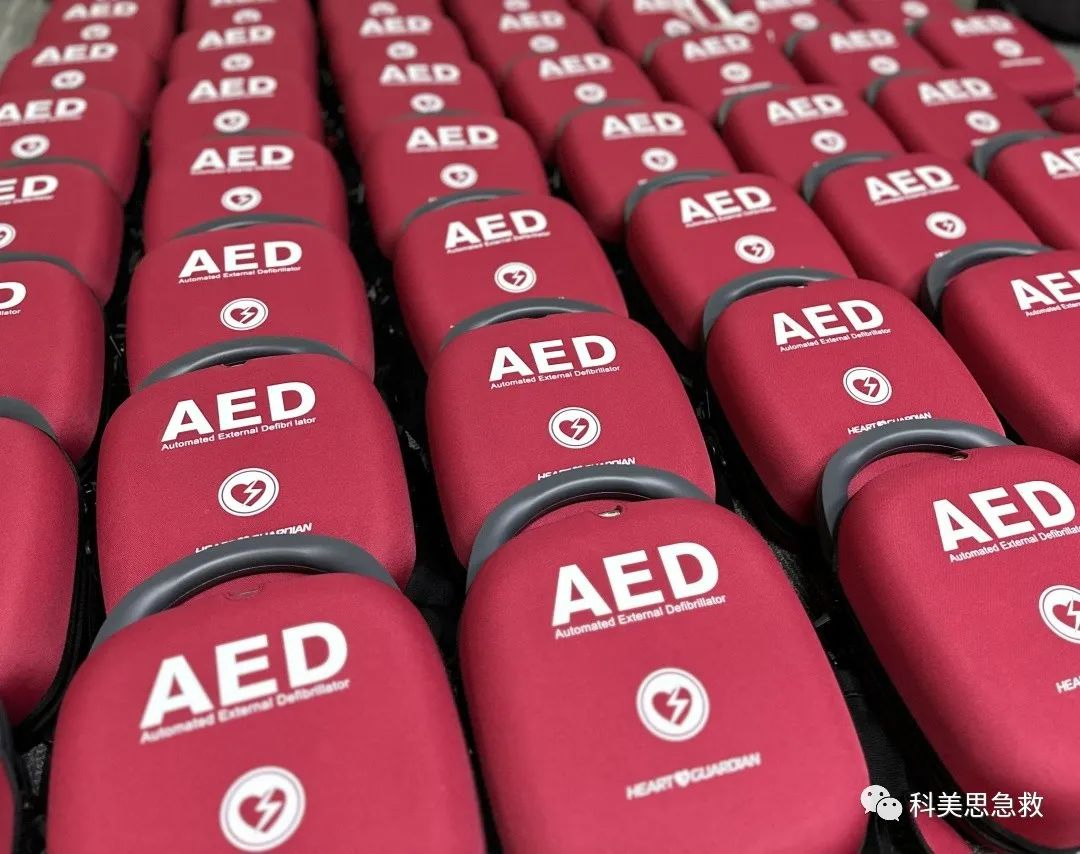

🖼️ Product Showcase

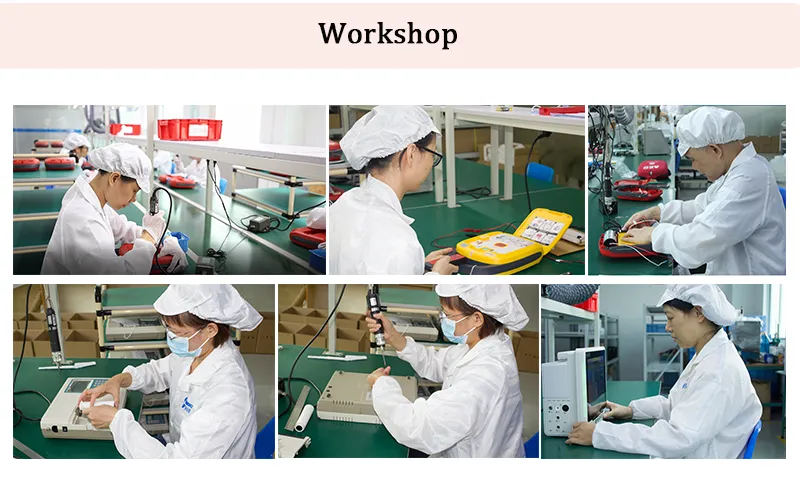

🏭 Professional Facility
❓ Frequently Asked Questions
Q1: Is the Altai DP1 suitable for children?
Yes, it features preinstalled electrode pads compatible with both adults and children, with an available child mode.
Q2: What is the benefit of Low Energy BTE?
It minimizes myocardial injury and provides faster response times while maintaining a high success rate in defibrillation.
Q3: How long does it take to analyze ECG?
The ECG analysis takes approximately 8.5 seconds, with a simultaneous charging time of about 8 seconds.
Q4: Does the device require manual testing?
No, the device performs automatic daily self-tests and an additional self-test upon power on to ensure readiness.
Q5: How can I retrieve data from the AED?
Data can be transferred via Bluetooth and managed using optional PC software for retrieval and download.
Q6: What certifications does the Altai DP1 hold?
The product is certified with CE, MSDS, ISO13485, Cfda, and FSC.
