Basic Specifications
| Model NO. | Altai DP1 |
| Certification | CE, MSDS, ISO13485, Cfda, FSC |

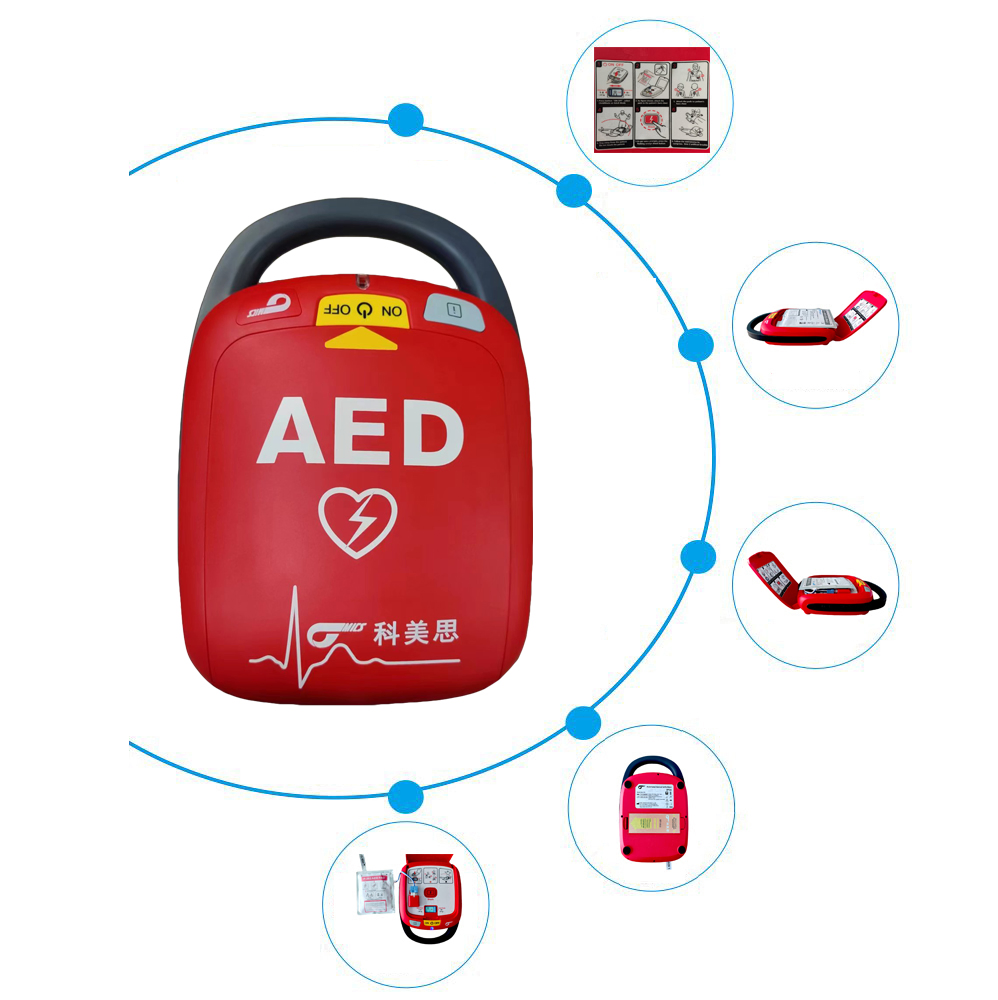

| Product Name | Automated External Defibrillator (AED) |
| ECG Analysis | 8.5 Second |
| Shock Output | 150J (Adult), 50J (Pediatric) |

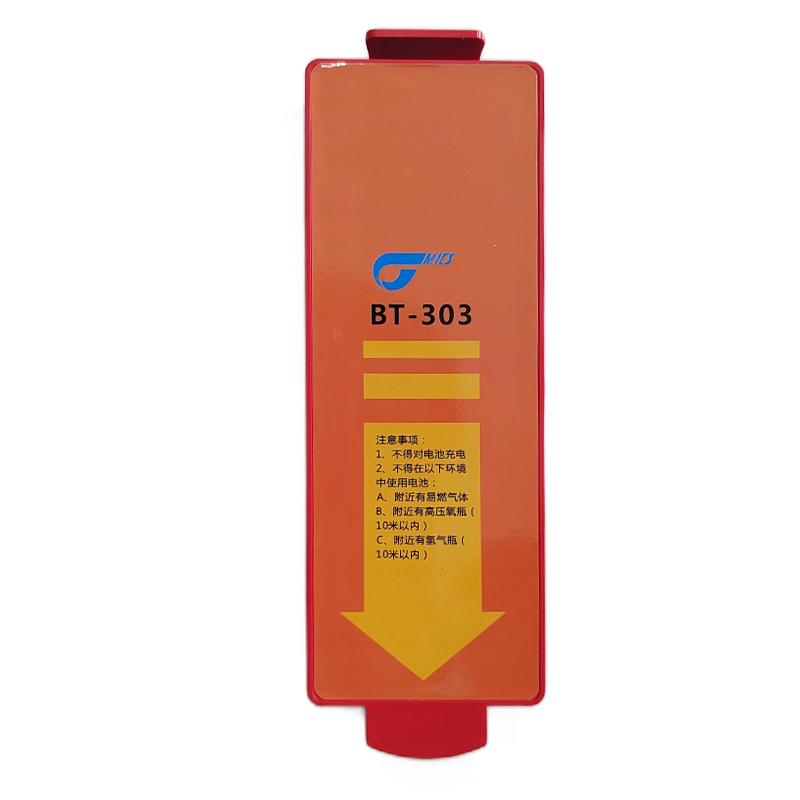

| Battery Pack | Non Rechargeable Li-Mn Battery (12V, 4.2Ah) |
| Shock Frequency | Not Less Than 200 Times |
| Weight | 1.9kg |
| Dimensions | 320*230*85 mm |
| Warranty | 5 Year (Except battery and Pads) |
Product Features
Biphasic Truncated Exponential (BTE) low energy technology
High capacity battery supporting up to 400 shocks
Automatic recording of ECG and ambient sounds

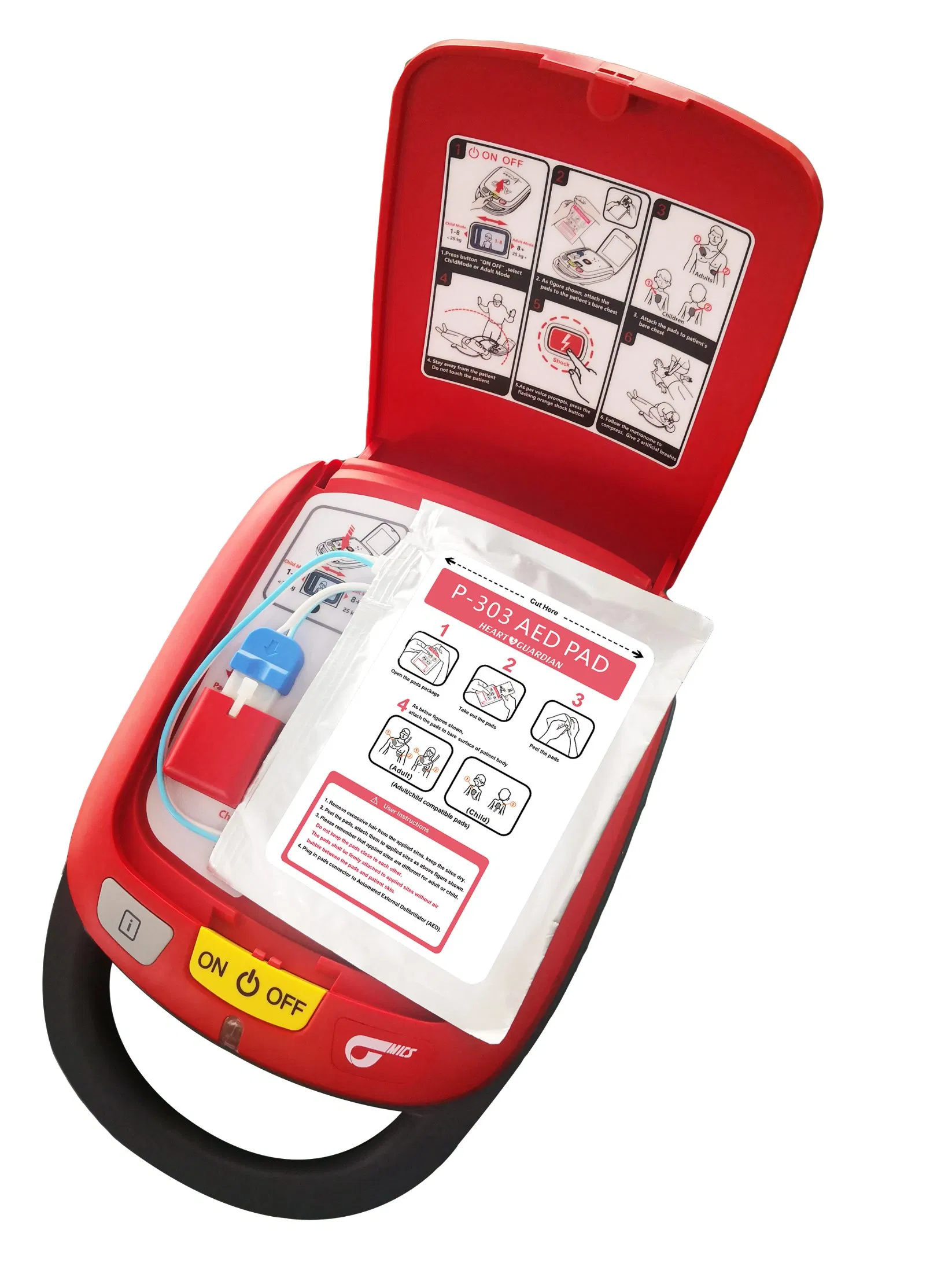

Preinstalled adult/child compatible electrode pads
One-step operation (Cover open and power on)
Daily and power-on automatic self-tests
Full automatic voice guidance throughout operation
Low battery and maintenance alarms
Technical Advantages
Automatic waveform compensation based on load impedance
Shorter analysis and shock preparation time
Higher success rate in defibrillation
Minimizes myocardial injury
Faster emergency response time
Product Gallery
Manufacturing and Quality Control
Frequently Asked Questions
Q1: Can the Altai DP1 be used on both adults and children?
Yes, the device features a dual-mode switch and is equipped with electrode pads that are compatible with both adult and pediatric patients.
Q2: How long does the battery last?
The non-rechargeable Li-Mn battery has a high capacity designed to support not less than 200 shocks (up to 400 depending on conditions). It has a long standby life suitable for emergency readiness.
Q3: Does the device perform self-maintenance checks?
Absolutely. The unit performs daily self-tests and an automatic self-test every time it is powered on to ensure it is always ready for emergency use.
Q4: Is it easy for a non-medical professional to use?
Yes, it features a one-step operation (powering on when the cover is opened) and provides full automatic voice guidance to lead the user through every step of the rescue process.
Q5: What data is recorded during an emergency?
The Altai DP1 automatically records ECG data and ambient sounds throughout the entire operation, which can be retrieved later via optional PC software.
Q6: What certifications does this AED have?
The product is fully certified with CE, ISO13485, and CFDA, meeting international medical safety and quality standards.
