Model NO.:Altai DP1
Certification:CE, MSDS, ISO13485, Nmpa, FSC
Color:Red
ECG Analysis:8.5 Second
Hi-Cap Charging:8 Second
Shock Output:150j Adult, 50j Pediatric
Battery:Non Rechargeable Li-Mn Battery (12V, 6ah)
Shock Frequency:up to 400 Times
Specification:320*230*85 mm
HS Code:9018110000

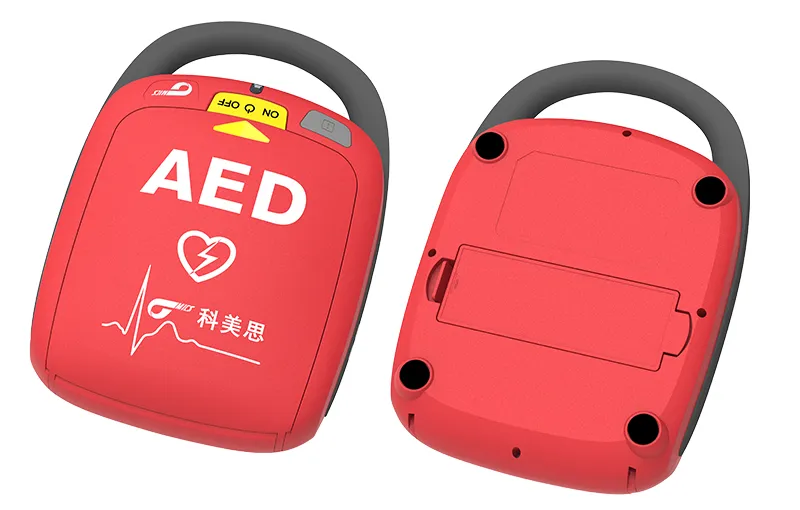

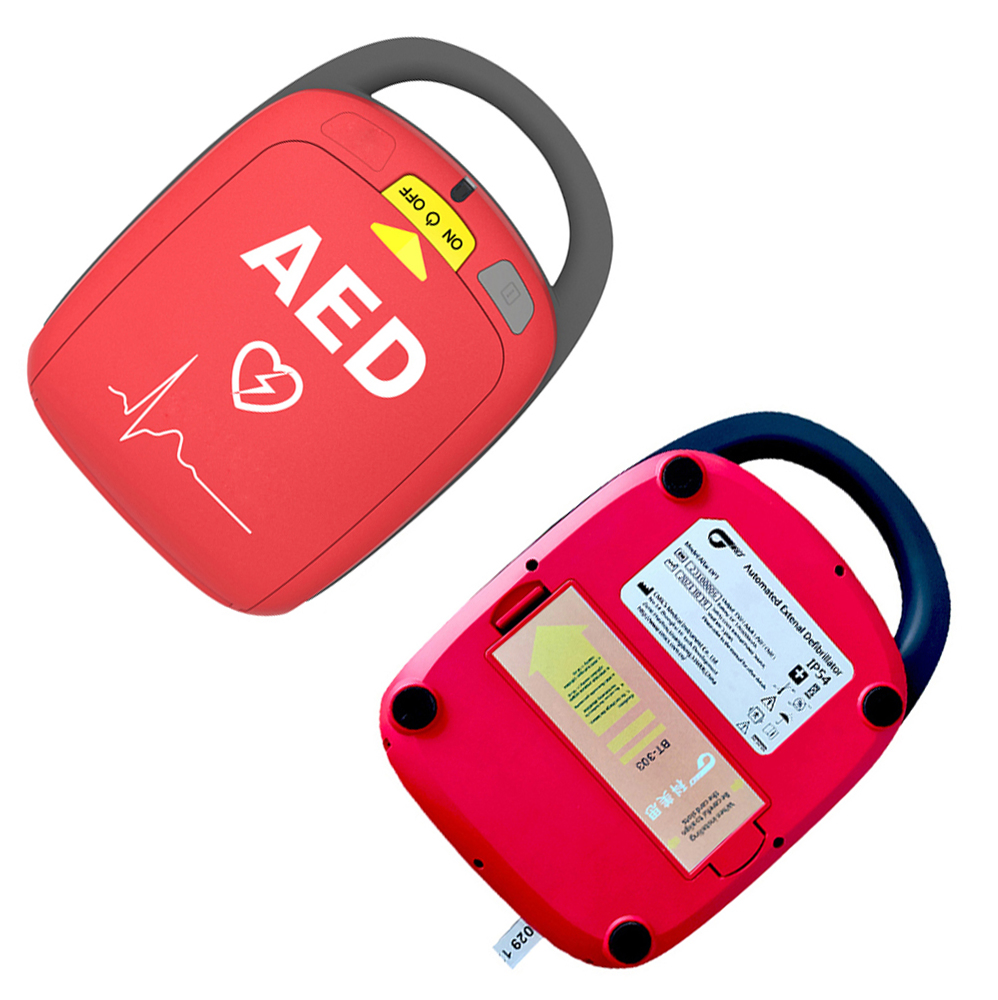

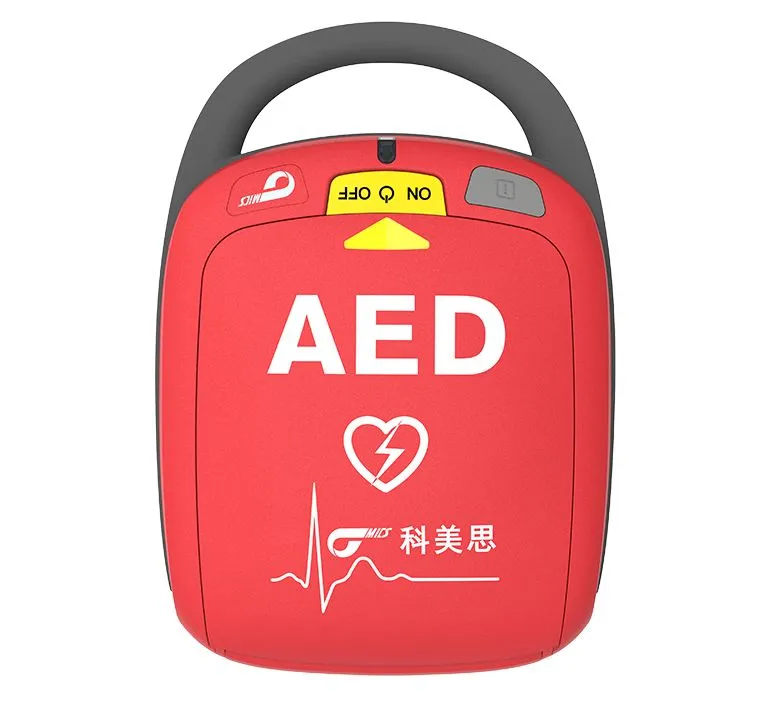

Altai DP1: First Aid Cardiology Automatic External Defibrillator (AED) with Low Energy Bte, Bluetooth
★ Features
- Biphasic Truncated Exponential with low energy to minimize myocardial injury
- Not rechargeable Li-MnO2 battery with high capacity supporting up to 400 shocks
- Automatic recording of ECG data & around sounds throughout the complete operating
- Preinstalled electrode pads with compatibility to adult and child

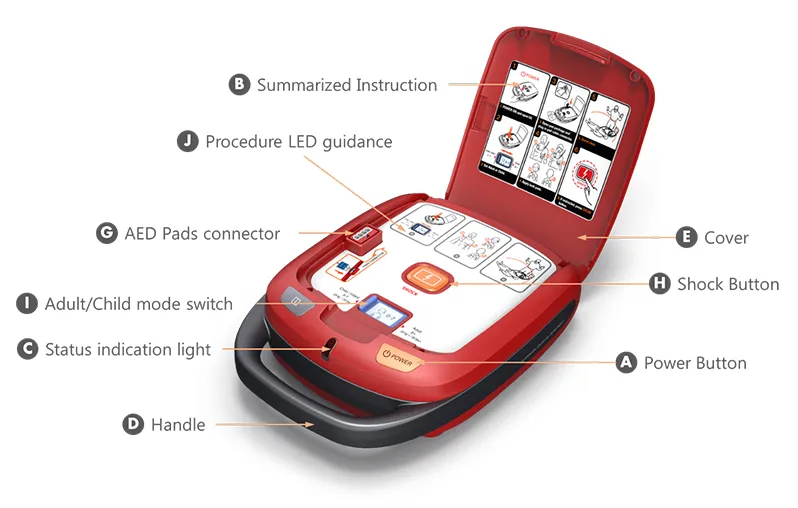

- One step operating for cover open and power on at the same time
- Daily selftest and automatic selftest upon power on

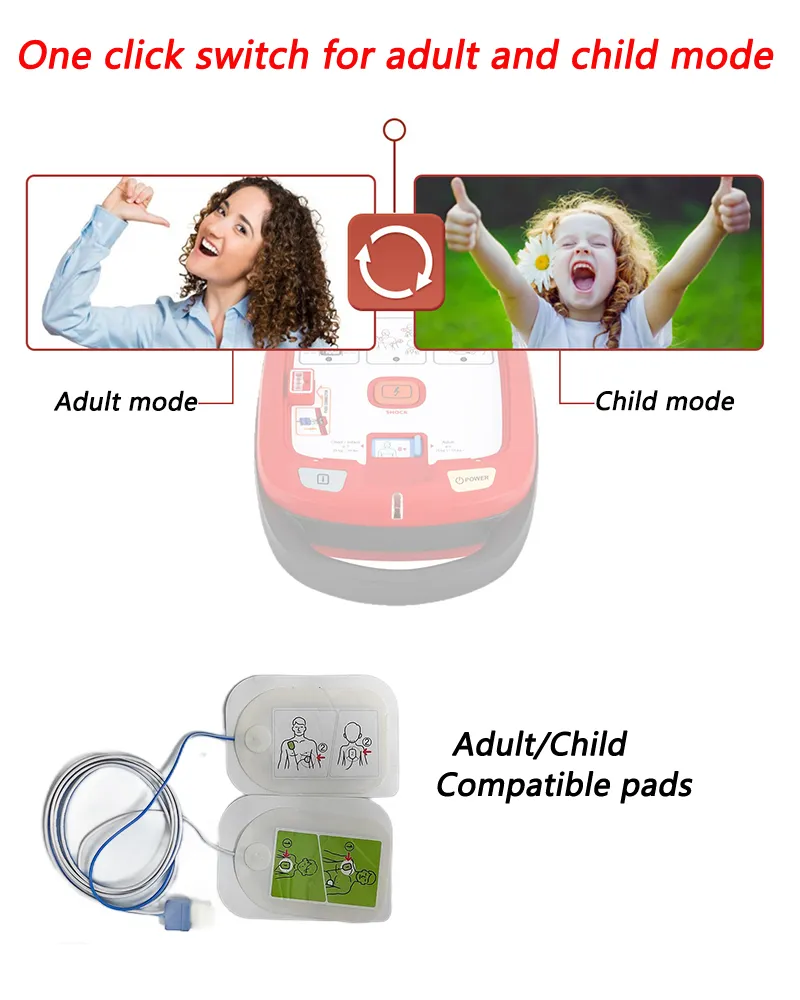

- Available with adult mode and child mode
- Automatic voice guide throughout the complete operation
- Alarm of low battery capacity and change of new one
★ Advantage of Low Energy BTE
- Automatic compensation and adjustment of waveform as per load impedance
- Shorter time in ECG analysis and shock preparation
- Simultaneous ECG analysis and precharging
- Higher success rate in defibrillating with minimum injury to myocardium
- Faster in response and better for rehabilitation
Frequently Asked Questions
How many shocks can the Altai DP1 deliver?
The high-capacity non-rechargeable Li-MnO2 battery supports no less than 400 shocks.
Does the device support both adult and pediatric patients?
Yes, it features both adult and child modes with preinstalled compatible electrode pads and appropriate shock outputs (150J for adults, 50J for children).
How long does ECG analysis take?
The device performs ECG analysis in approximately 8.5 seconds.
Is there a data recording feature?
Yes, the Altai DP1 automatically records up to 90 minutes of ECG data and ambient sounds during operation.
How is data transferred from the device?
The device utilizes Bluetooth for data transfer, and optional PC software is available for data retrieval and download.
What is the shelf life of the electrode pads?
The preinstalled electrode pads have a 6-year lifetime.
