Basic Info.
Model NO.:Altai DP1
Certification:CE, MSDS, ISO13485, FSC, Cfda
Product Name:Automated External Defibrillator (AED)
Shock Output:150j (Adult), 50j (Pediatric)
Battery:Non Rechargeable Li-Mn Battery
Weight:1.9 Kg
Specification:320*230*85 mm
Product Description

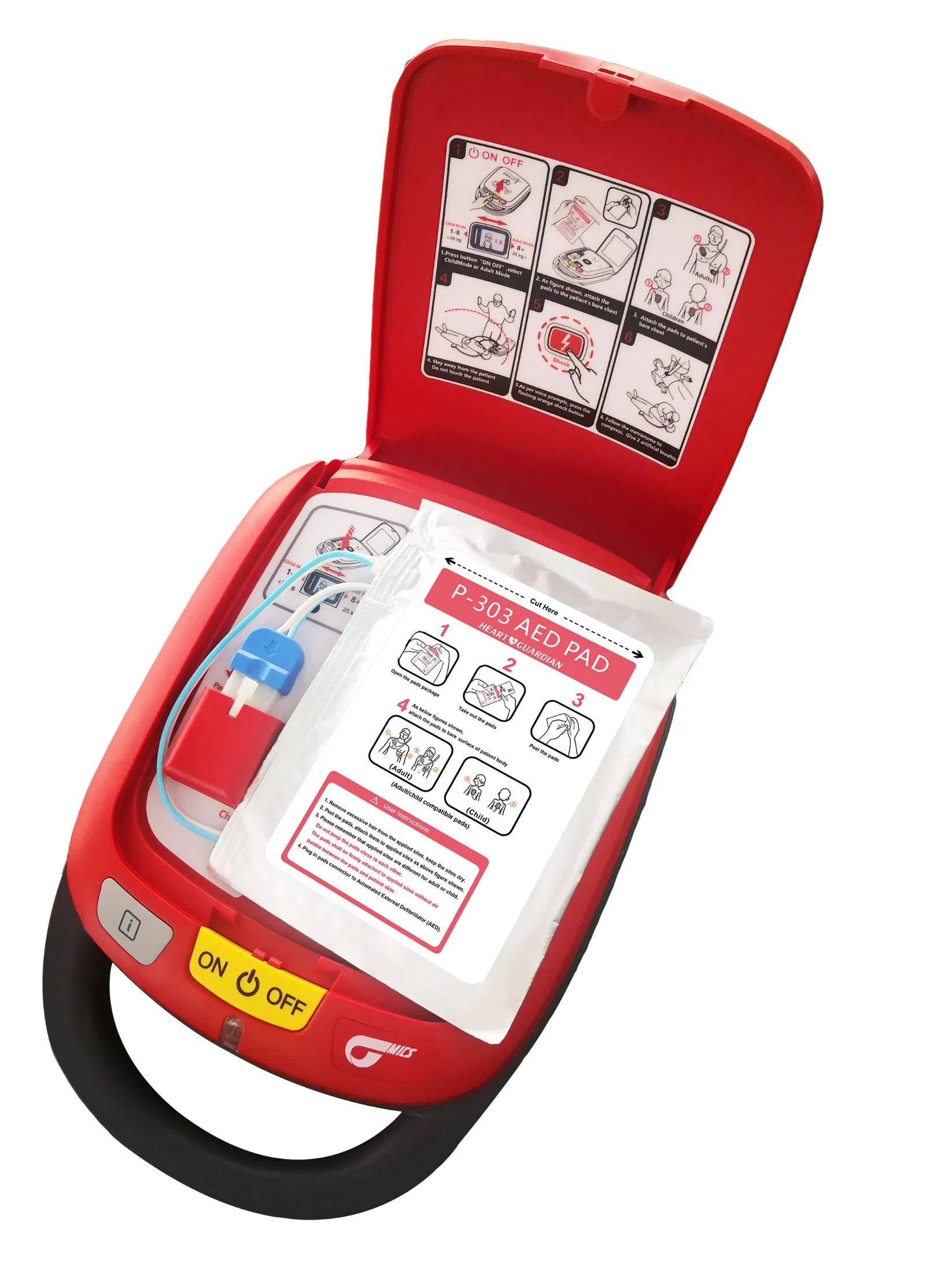

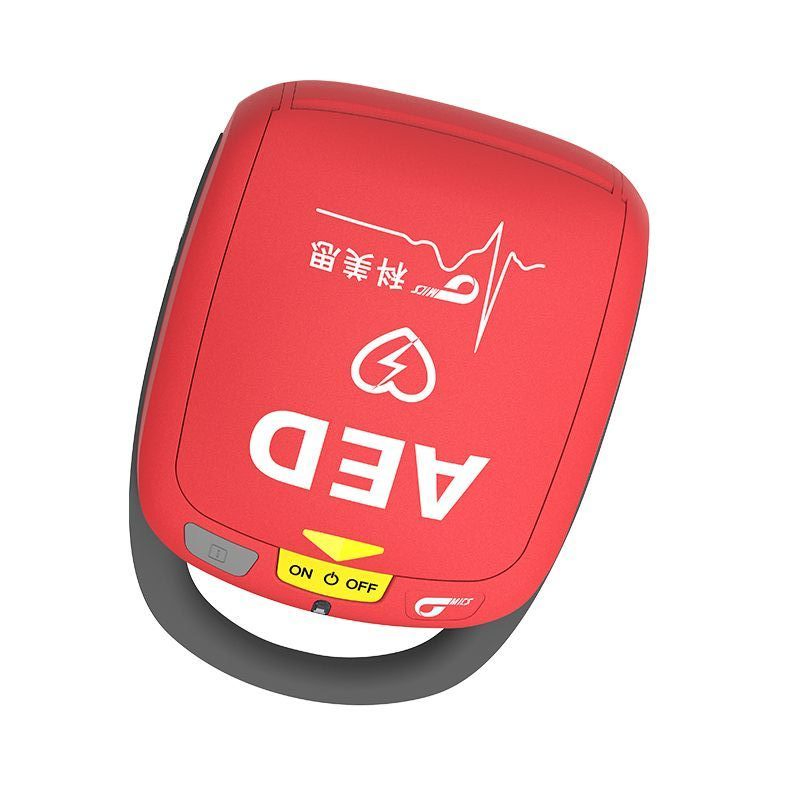

Altai DP1: Competitive Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads
| ECG Analysis | 8.5 Second |
| Hi - Cap Charging | 8 Second |
| Shock Output | 150J (Adults), 50J (Pediatric) |
| Data Storage | 40 Minute (built in memory) |
| Data Communication | Bluetooth |
| Control Buttons | Power, Analysis, Shock |

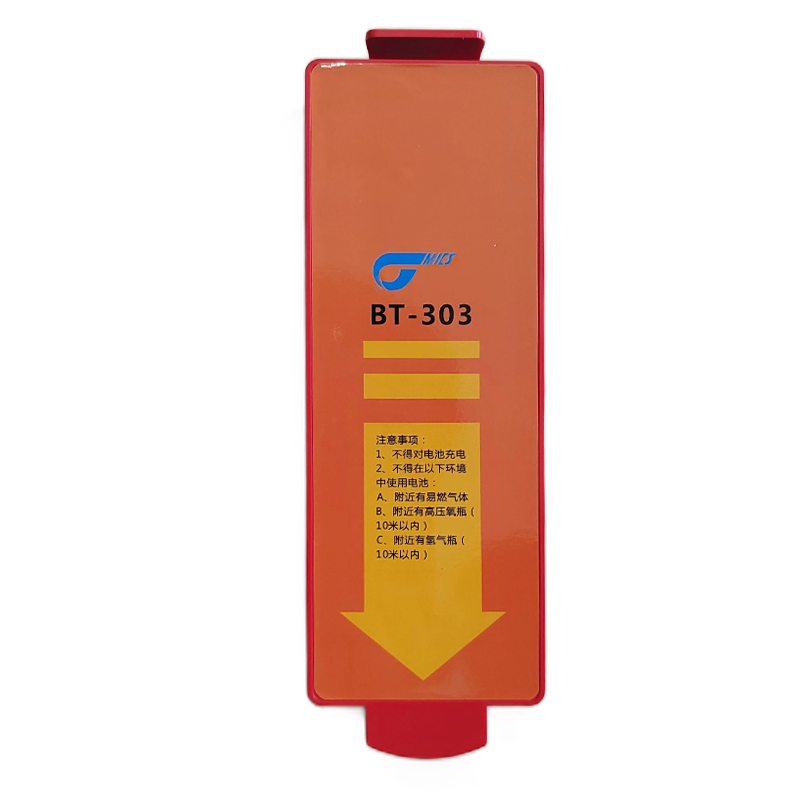

| Battery Pack | Non rechargeable Li-Mn battery of 12V, 4.2Ah |
| Electrode Pad | Disposable & adhesive electrode pads, adult/pediatric compatible |
| Warranty | 5 year (except battery pack and electrode pads) |
| Life Time | 10 year |

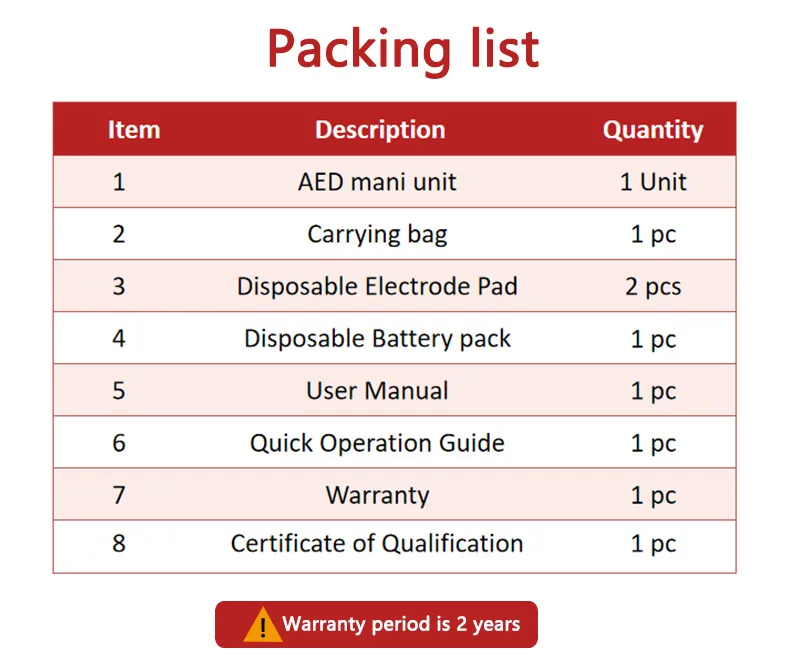

| Standard Configuration | 1 x main unit, 1 x battery pack, 1 x eletrode pads (2 pcs), 1 x carry case, 1 x user manual |
Key Features
Biphasic Truncated Exponential with low energy to minimize myocardial injury
High capacity Li-MnO2 battery supporting up to 400 shocks
Automatic recording of ECG data & ambient sounds

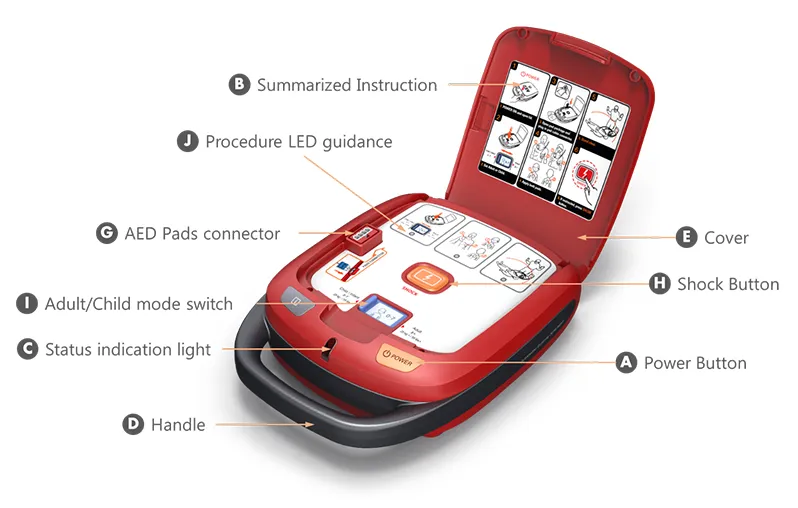

One step operating: cover open and power on simultaneously
Daily self-test and automatic self-test upon power on
Automatic voice guide throughout the complete operation
Advantage of Low Energy BTE
Automatic adjustment of waveform as per load impedance
Shorter time in ECG analysis and shock preparation
Higher success rate in defibrillating with minimum injury
Faster response and better for patient rehabilitation

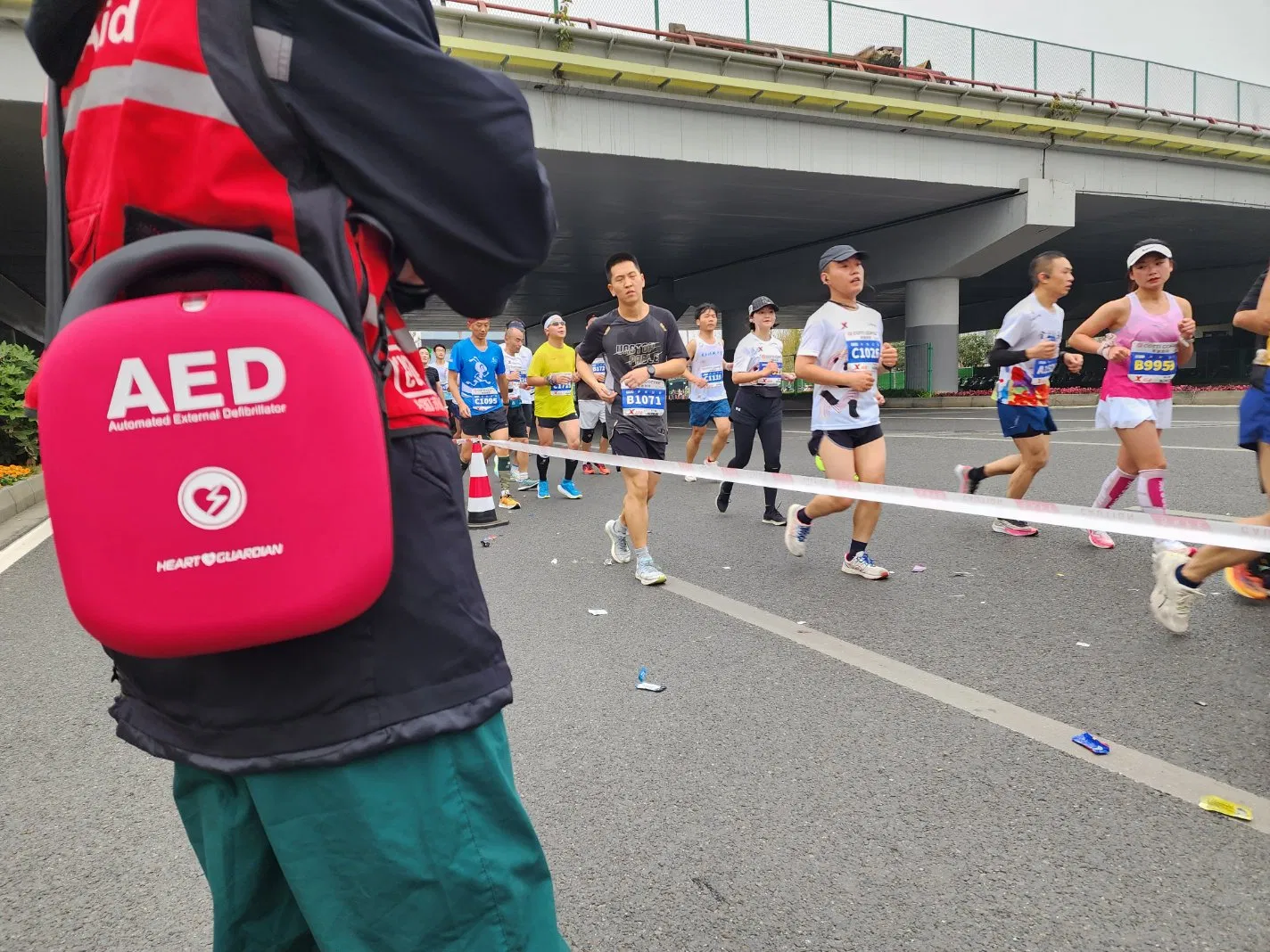

Product Display

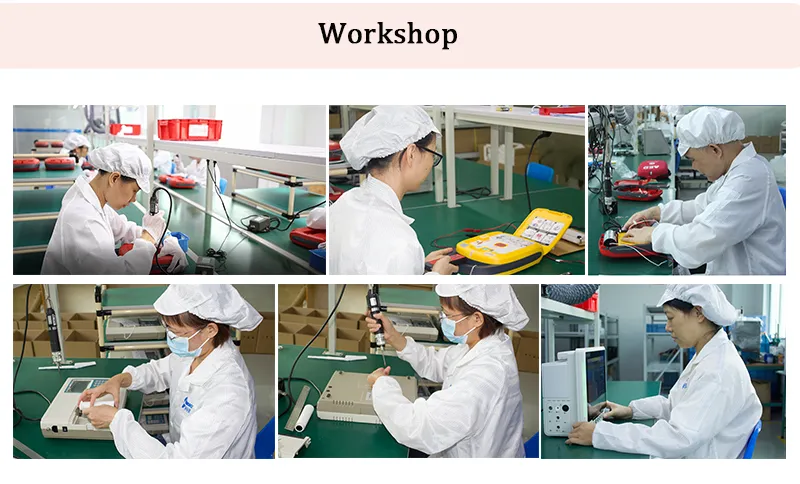

Production & Quality
Frequently Asked Questions (FAQ)
Q1: How long does the ECG analysis take for the Altai DP1?
A1: The ECG analysis is completed within 8.5 seconds, ensuring a rapid response during emergencies.

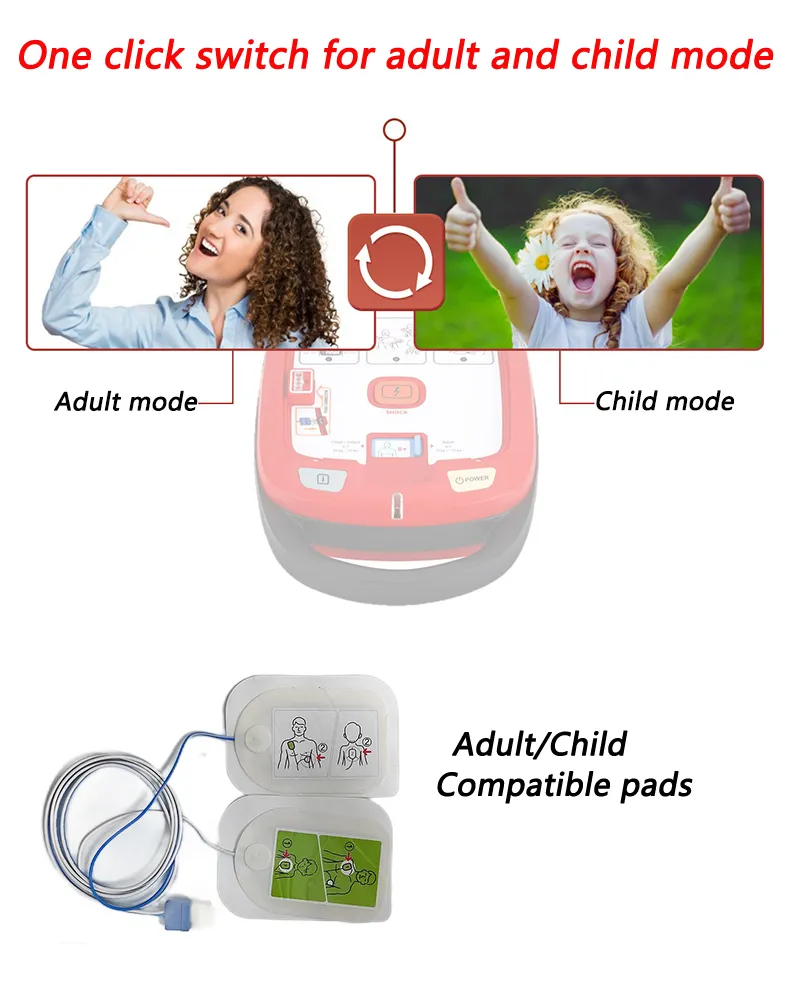

Q2: Can this AED be used for both adults and children?
A2: Yes, the Altai DP1 is compatible with both adult and pediatric patients, featuring specific shock outputs of 150J for adults and 50J for children.
Q3: What is the battery life and capacity?
A3: It uses a non-rechargeable Li-Mn battery that supports at least 200 shocks and has a high capacity for reliable standby use.
Q4: Does the device perform self-tests?
A4: Yes, the unit performs daily self-tests and an automatic self-test whenever it is powered on to ensure operational readiness.
Q5: What is the warranty period for the Altai DP1?
A5: The device comes with a 5-year warranty, excluding the battery pack and electrode pads.
Q6: Is data retrieval possible after use?
A6: Yes, the device has 40 minutes of built-in memory for data storage and supports Bluetooth communication for data retrieval.
