Technical Overview
Shock Output:
Max 150J (Adult), 50J (Child)
Battery:
Li-Mno2 (12V, 6000mAh)
Shock Capacity:
Up to 400 Times

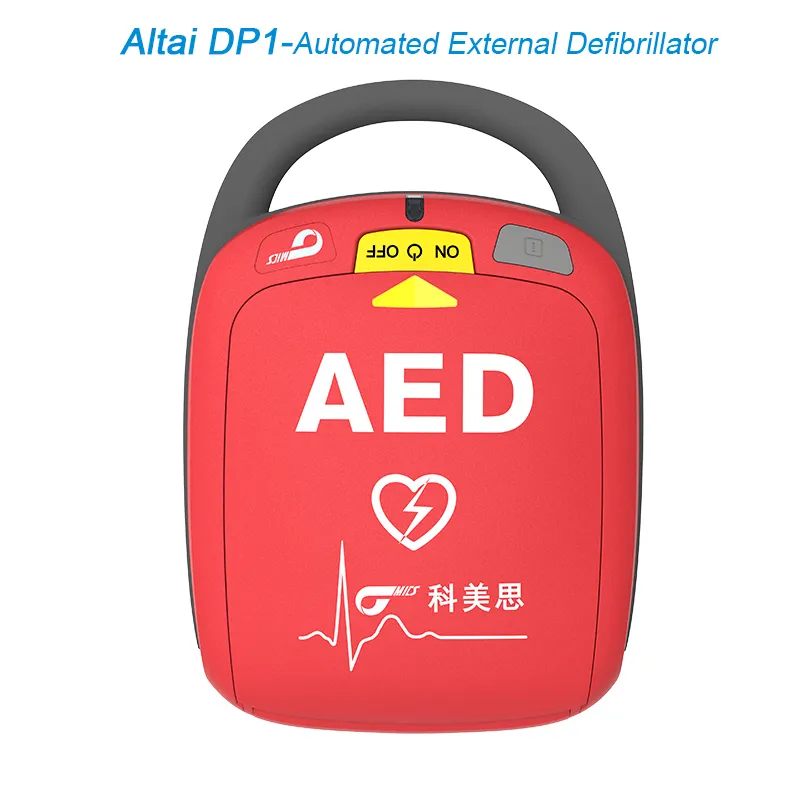

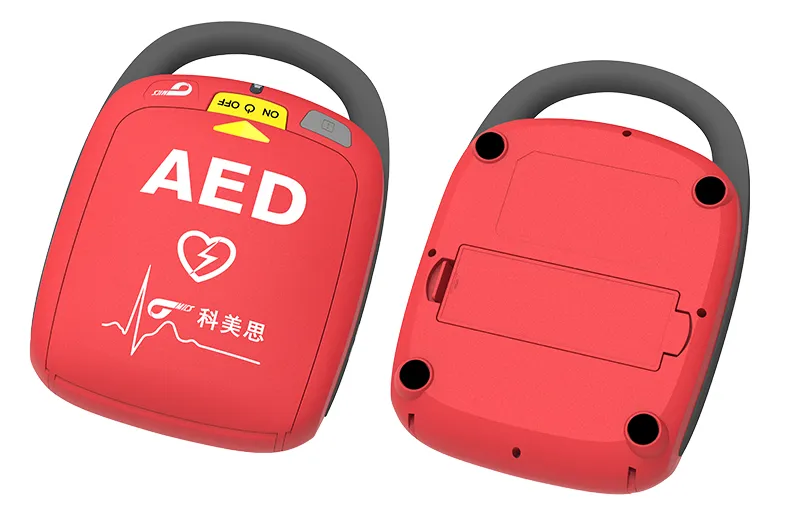

Cardiac Defibrillator (AED)
Professional Automatic External Defibrillator with Preinstalled Pads and Customized Language Support.
| ECG Analysis |
8.5 Second |

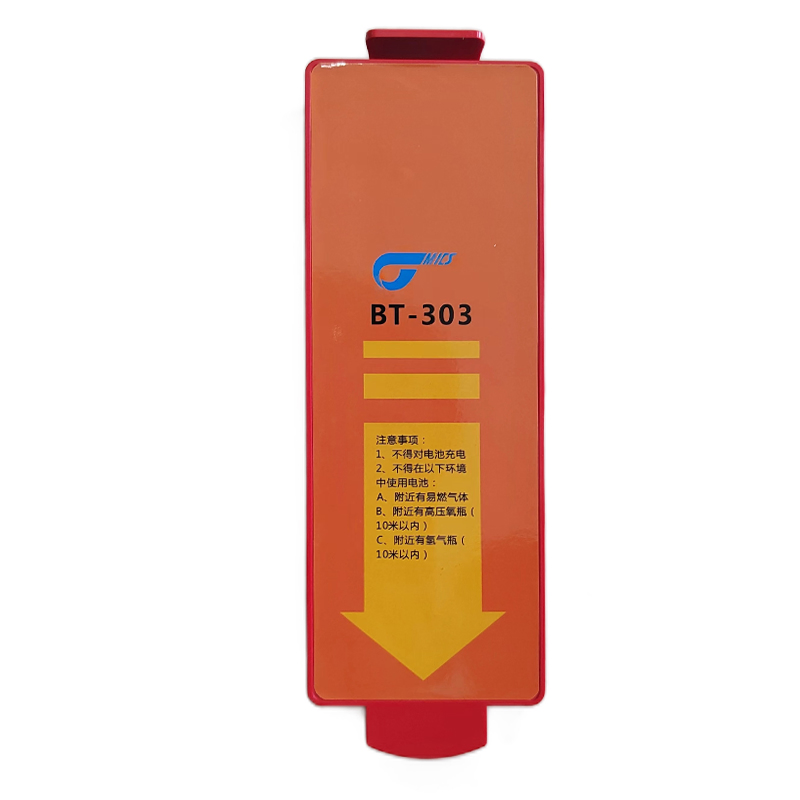

Battery Pack |
Non rechargeable Li-MnO2, 12V, 6000 mAh (4 year lifetime) |
| Hi-Cap Charging |
8 Second |
Shock Frequency |
Not less than 400 times |
| Shock Output |
50 J (child), 150 J (adult) |

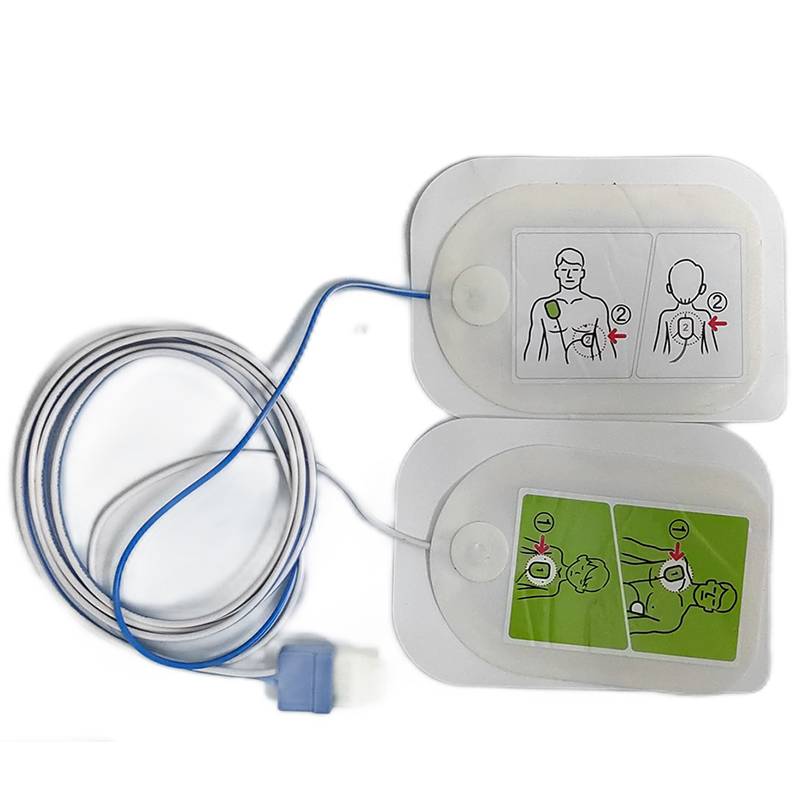

Electrode Pads |
Disposable, Adult/Pediatric compatible, Preinstalled (6 year lifetime) |
Key Features
Biphasic Truncated Exponential (BTE) low energy technology.
High capacity battery supporting up to 400 shocks.
Automatic recording of ECG data & ambient sounds.

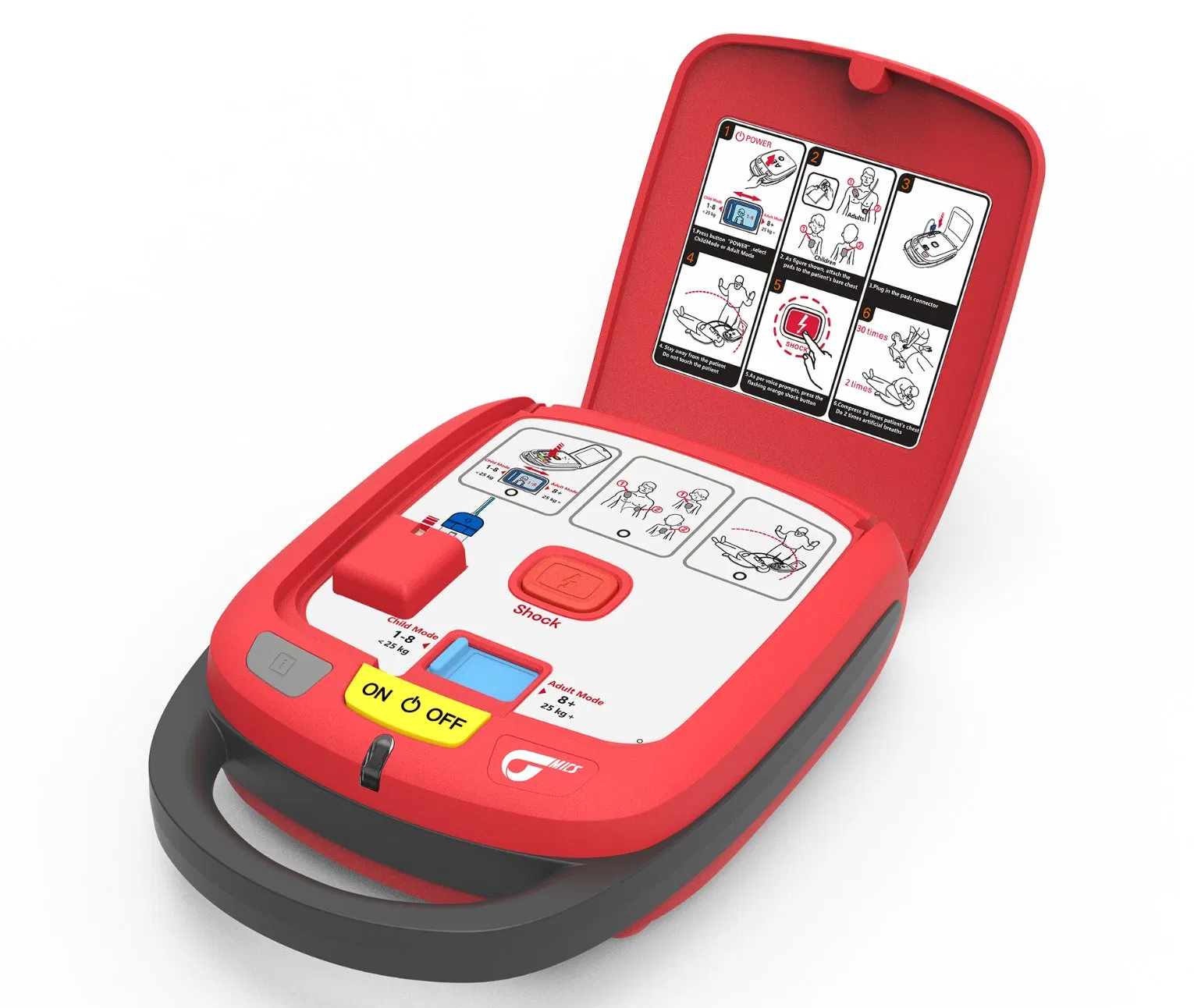

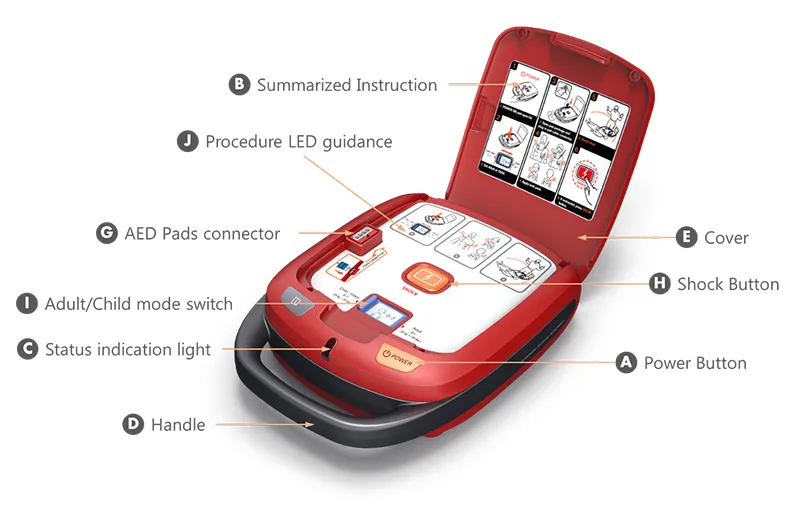

One-step operation: Power on when cover opens.
Daily self-test and automatic status indication.

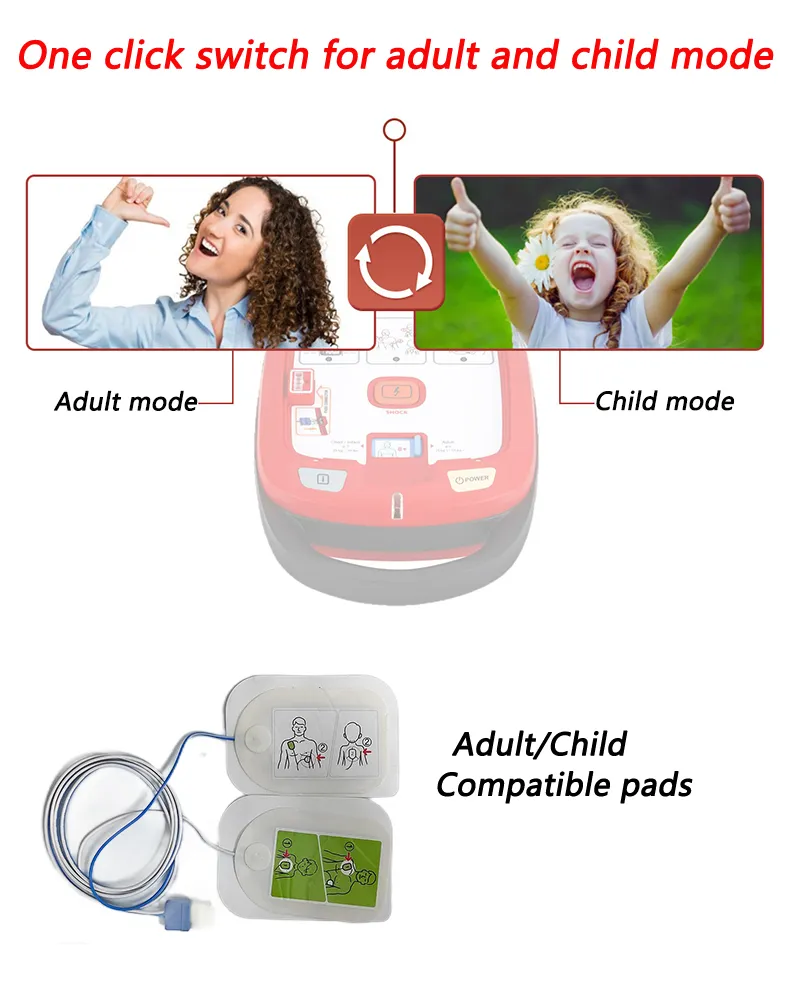

Dual modes: Adult and Child mode available.
Full automatic voice guidance throughout operation.
Advantages of Low Energy BTE
Automatic waveform adjustment based on load impedance.
Shorter analysis and shock preparation time.
Simultaneous ECG analysis and precharging.
Higher success rate with minimal myocardial injury.
Faster response and better rehabilitation outcomes.

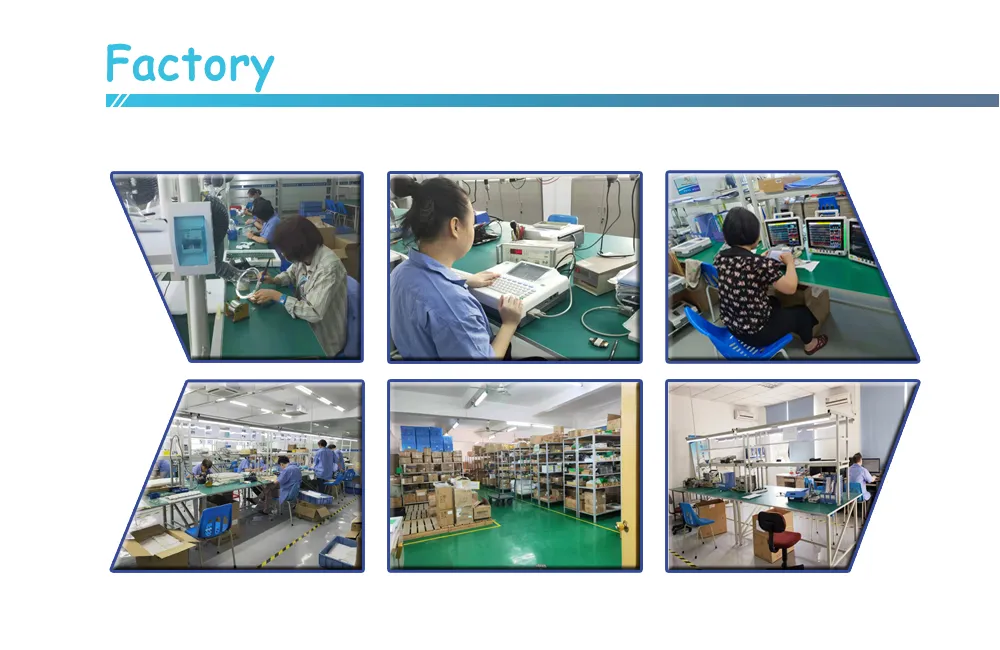

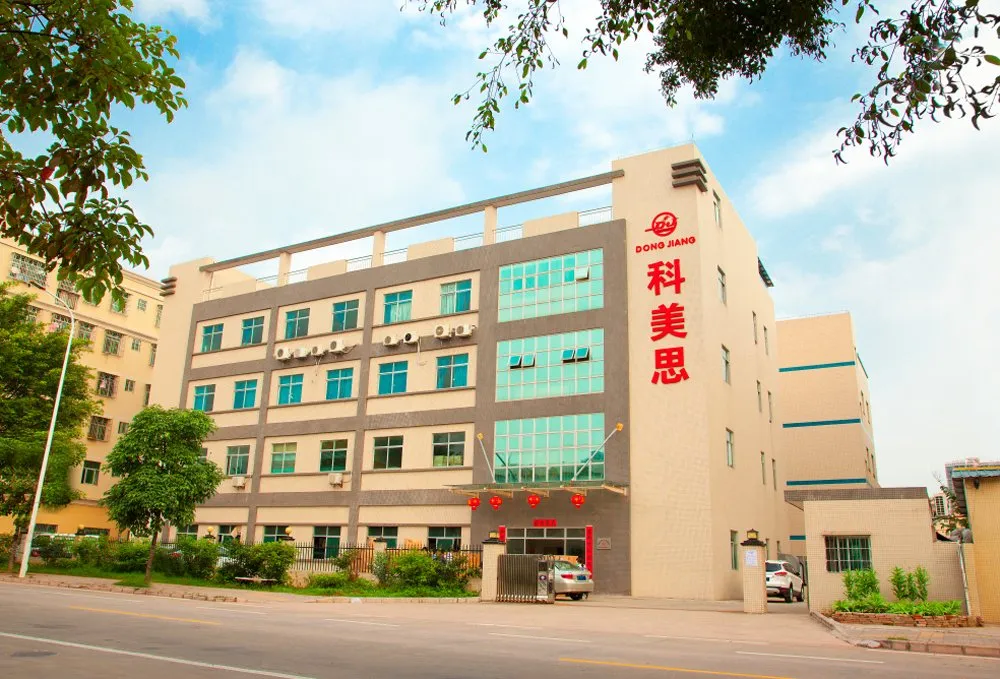

Production & Quality
Frequently Asked Questions
How many shocks can the battery provide?
The high-capacity non-rechargeable Li-MnO2 battery can support up to 400 shocks.
Is this AED suitable for children?
Yes, it features a child mode and comes with electrode pads that are compatible with both adults and children.
How long does it take to analyze and charge?
The ECG analysis takes approximately 8.5 seconds, and high-capacity charging takes only 8 seconds.
What languages are supported?
The device comes with English and Chinese voice guides as standard, but customized languages are available.
How is data retrieved from the device?
Data can be transferred via Bluetooth, and there is optional PC software for data download and review.
What is the lifespan of the pads and battery?
The electrode pads have a 6-year lifetime, and the battery pack has a 4-year lifetime.
