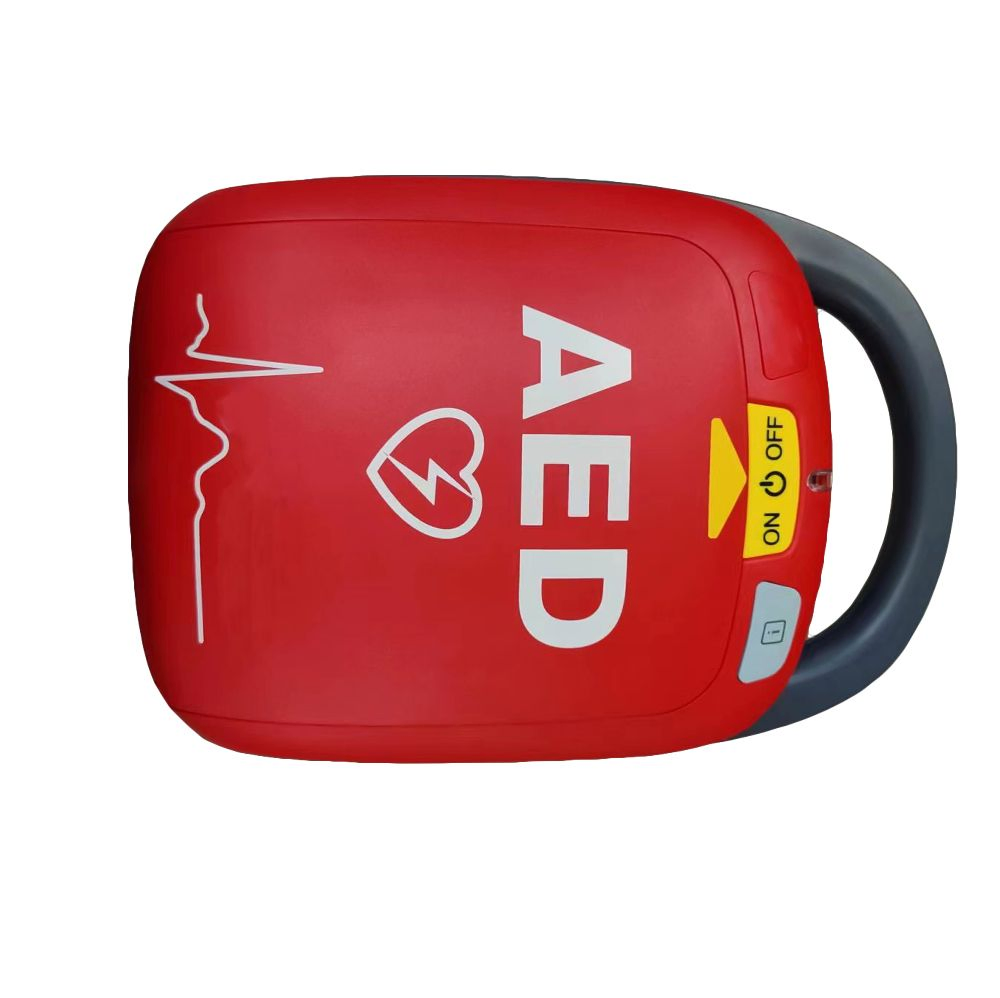

Original Manufactured Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads
Original Manufactured Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads
Original Manufactured Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads
Original Manufactured Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads
Original Manufactured Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads
1 / 5
Original Manufactured Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads
Original Manufactured Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads
Original Manufactured Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads
Original Manufactured Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads
Original Manufactured Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads

Original Manufactured Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.Altai DP1
CertificationCE, MSDS, ISO13485, Nmpa, FSC
Product NameAutomated External Defibrillator (AED)
ECG Analysis8.5 Second
Hi-Cap Charging8 Second
Shock Output150J (Adult), 50J (Pediatric)

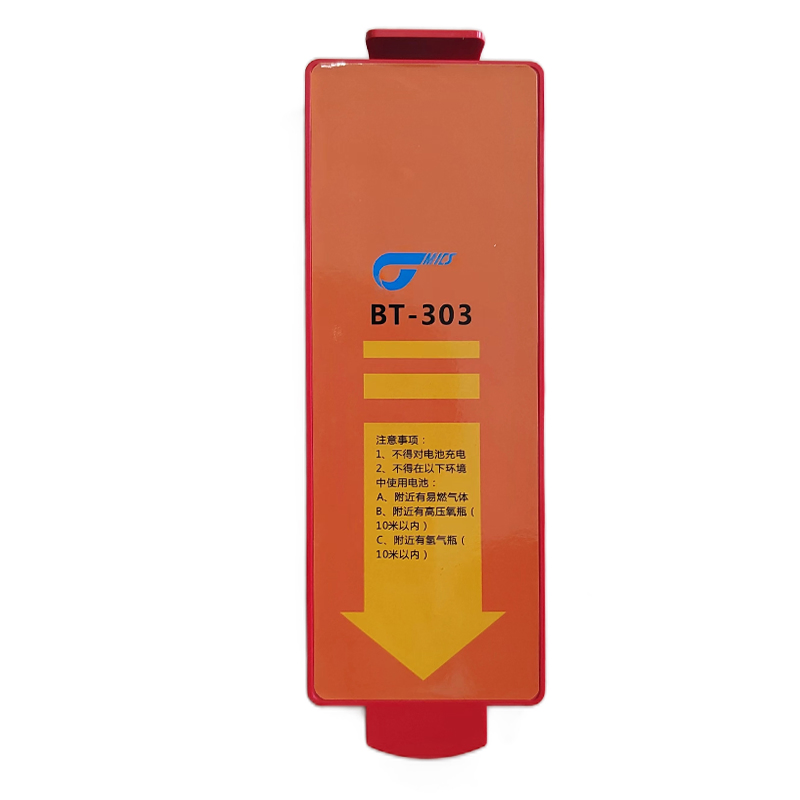

BatteryNon Rechargeable Li-Mn Battery of 12V, 4.2 Ah
Weight1.9 Kg
Dimensions320*230*85 mm
Product Description

Altai DP1: Original Manufactured Automatic External Defibrillator (AED) with Low Energy BTE, Adult/Pediatric Pads

Key Features
Biphasic Truncated Exponential (BTE) with low energy to minimize myocardial injury
High capacity Li-MnO2 battery supporting up to 400 shocks
Automatic recording of ECG data & ambient sounds
Preinstalled electrode pads compatible with both adults and children
One-step operation: power on when cover is opened
Daily self-test and automatic power-on self-test
Automatic voice guidance throughout the operation
Technical Parameters
Data Storage40 Minute (built-in memory)
Data TransferBluetooth
Shock FrequencyNot less than 200 times
Electrode PadsDisposable and adhesive, adult/pediatric compatible
Standard Configuration1x main unit, 1x battery pack, 1x electrode pads (2 pcs), 1x carry case
Optional ConfigurationStanding/wall mount cabinet, first aid kit, PC software
Advantage of Low Energy BTE
Automatic adjustment of waveform based on load impedance
Shorter time for ECG analysis and shock preparation
Higher success rate in defibrillation with minimum injury
Faster rehabilitation and response times
Product Showcase

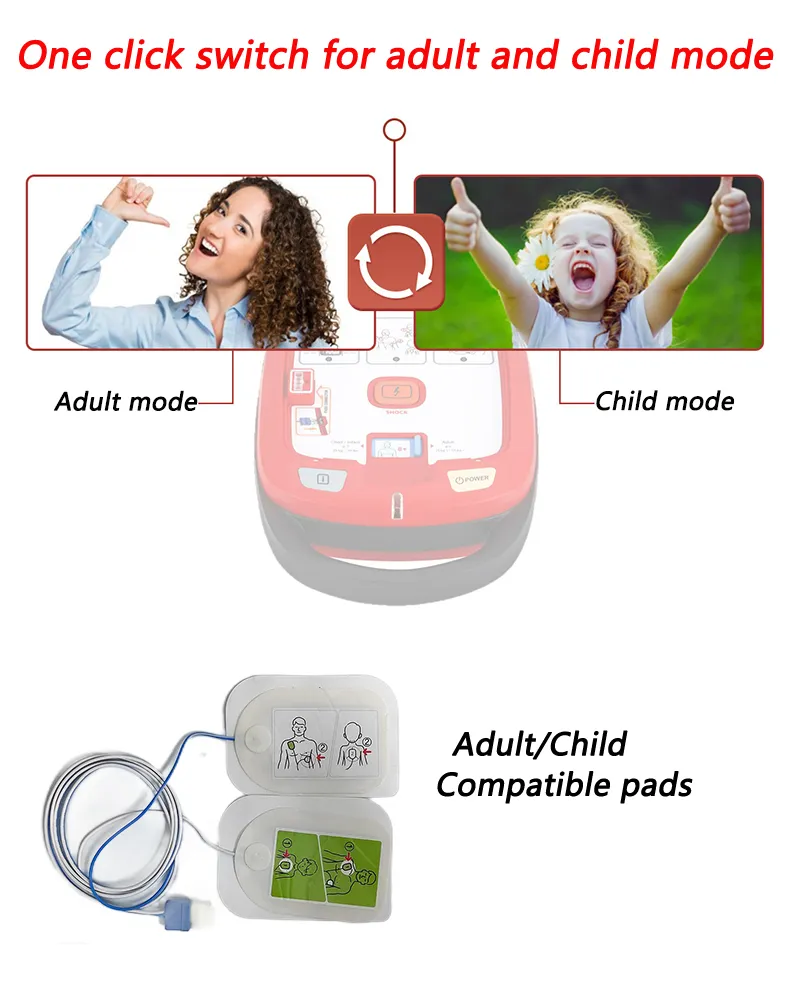

AED Product View 1

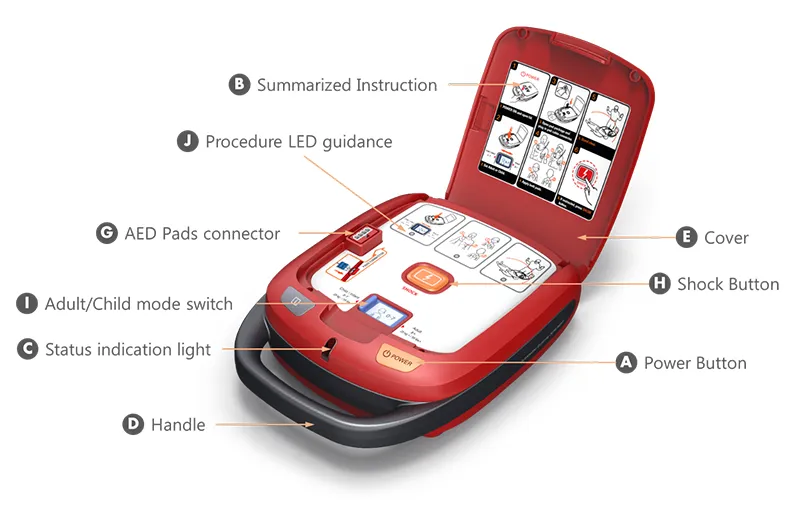

AED Product View 2

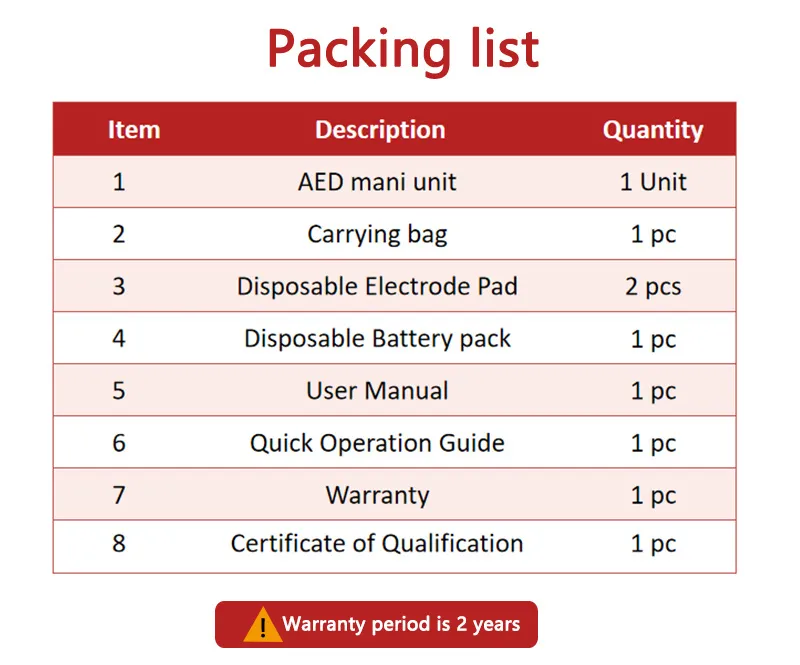

AED Product View 3
Production & Facility

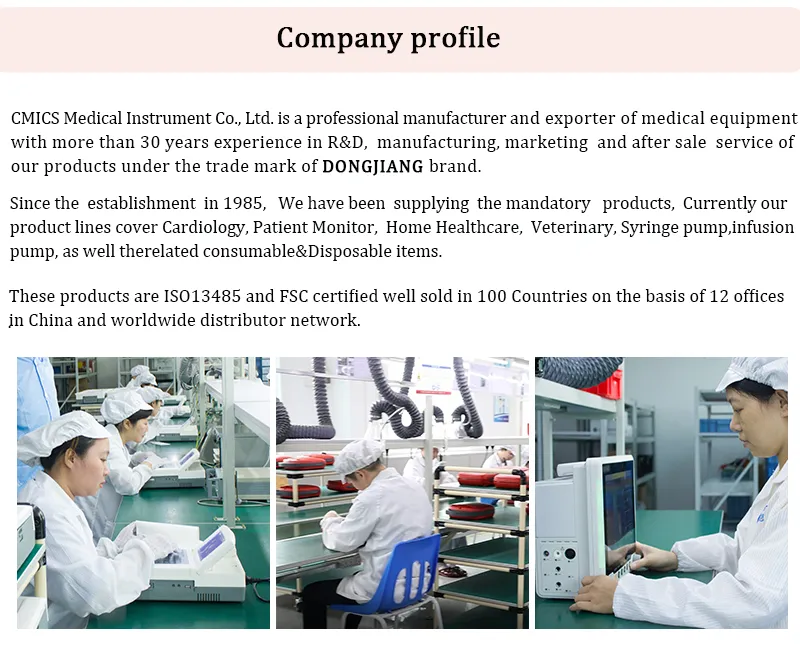

Facility 1

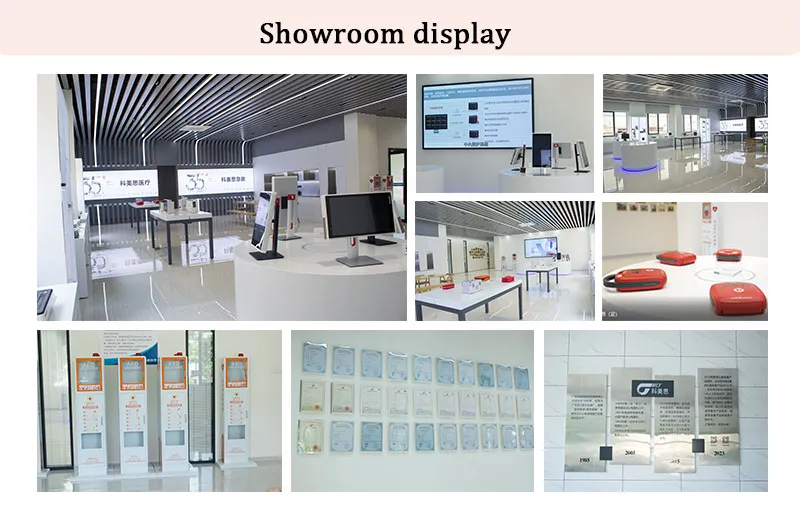

Facility 2

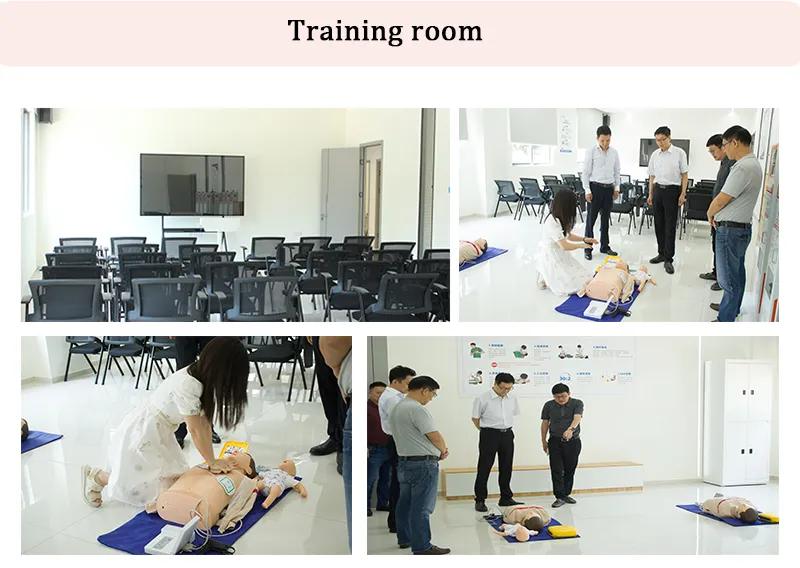

Facility 3

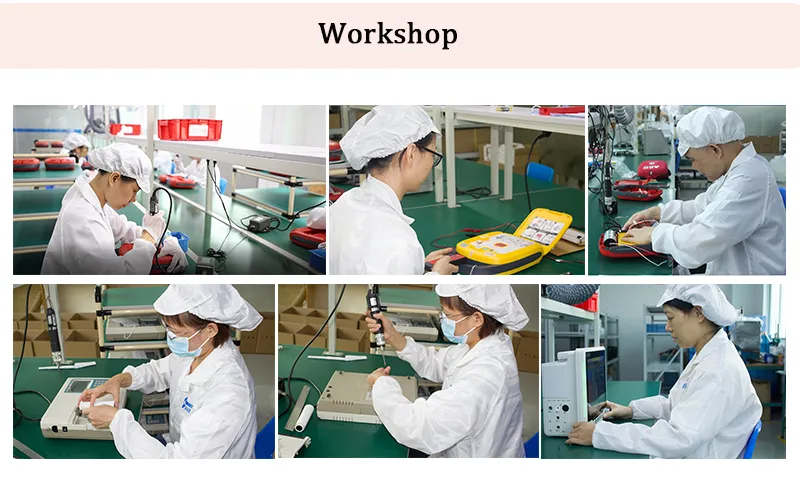

Facility 4
Facility 5
Facility 6
Frequently Asked Questions
Q1: How long does the ECG analysis take? The Altai DP1 completes ECG analysis in approximately 8.5 seconds.
Q2: Can this AED be used for both adults and children? Yes, it features both adult and child modes with compatible preinstalled electrode pads.
Q3: Is the battery rechargeable? No, it uses a non-rechargeable Li-Mn battery (12V, 4.2 Ah) designed for high capacity and reliability.
Q4: What is the energy output for a shock? The device delivers 150J for adults and 50J for pediatric patients.
Q5: How does the device assist the user during an emergency? It provides automatic voice guidance throughout the entire operation, from power-on to shock delivery.
Q6: How much data can the device store? The built-in memory can store up to 40 minutes of ECG data and ambient sounds.
