Overview & Basic Info
Product Name
Automatic External Defibrillator (AED)
Certification
CE, MSDS, ISO13485, Cfda, FSC
Shock Output
150j (Adult), 50j (Pediatric)
Shock Frequency
≥ 200 Times
Product Description

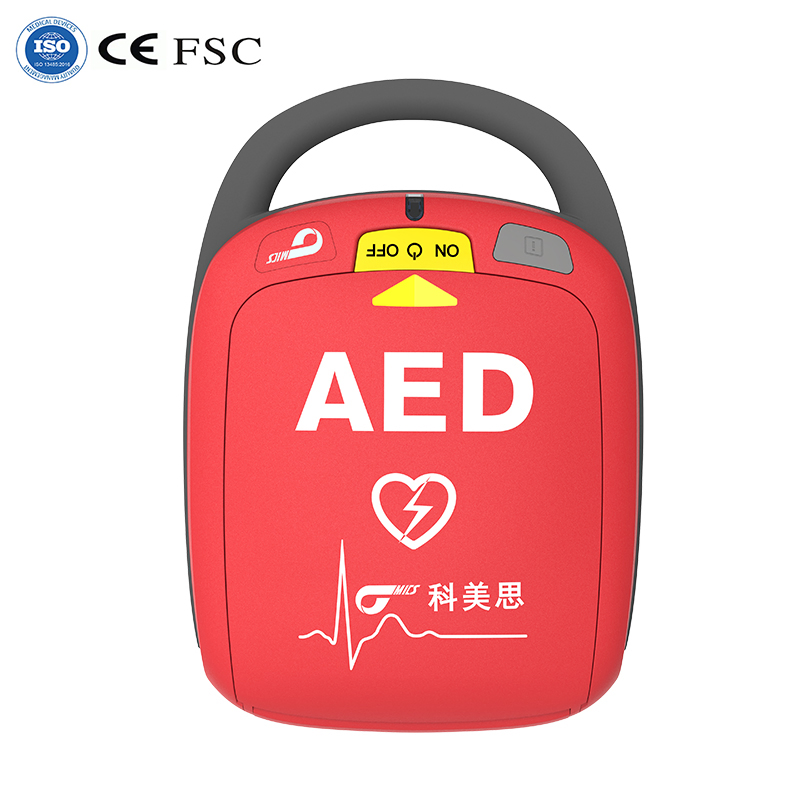

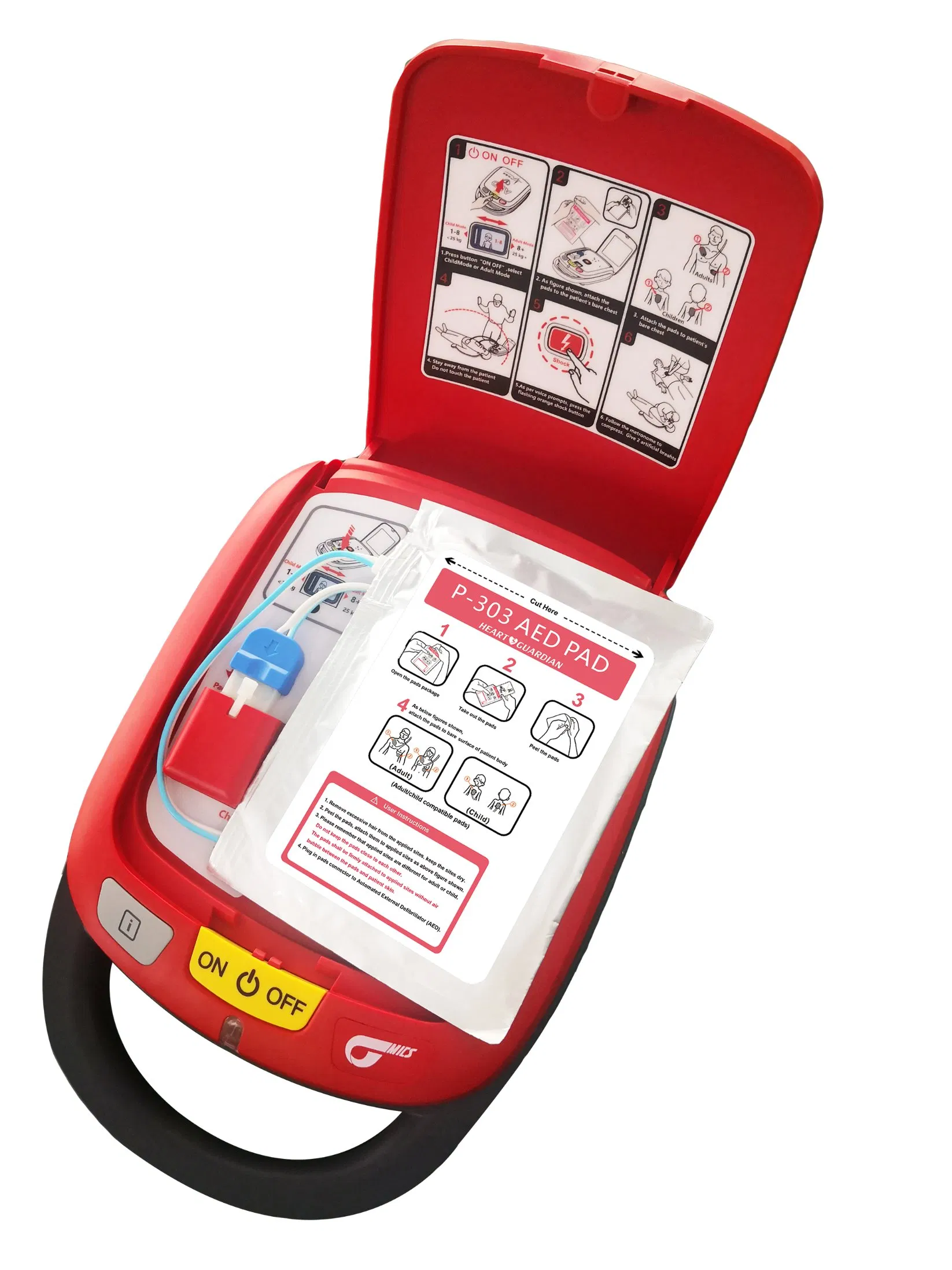

Altai DP1: First Aid Automatic External Defibrillator (AED) with Low Energy Bte, Bluetooth Connection
| ECG Analysis | 8.5 Second |
| Hi - Cap Charging | 8 Second |
| Shock Output | 150J (Adult), 50J (Pediatric) |
| Data Storage | 40 Minute (built in memory) |
| Data Transfer | Bluetooth Protocol |

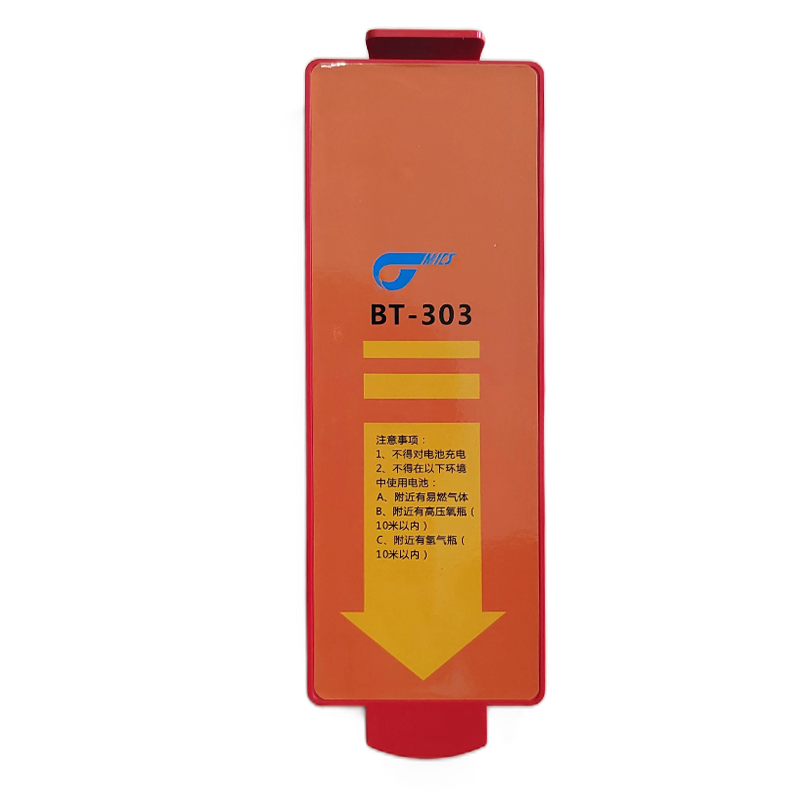

| Battery Pack | Non rechargeable Li-Mn battery of 12 V, 4.2 Ah |
| Electrode Pads | Disposable and adhesive, adult/pediatric compatible |

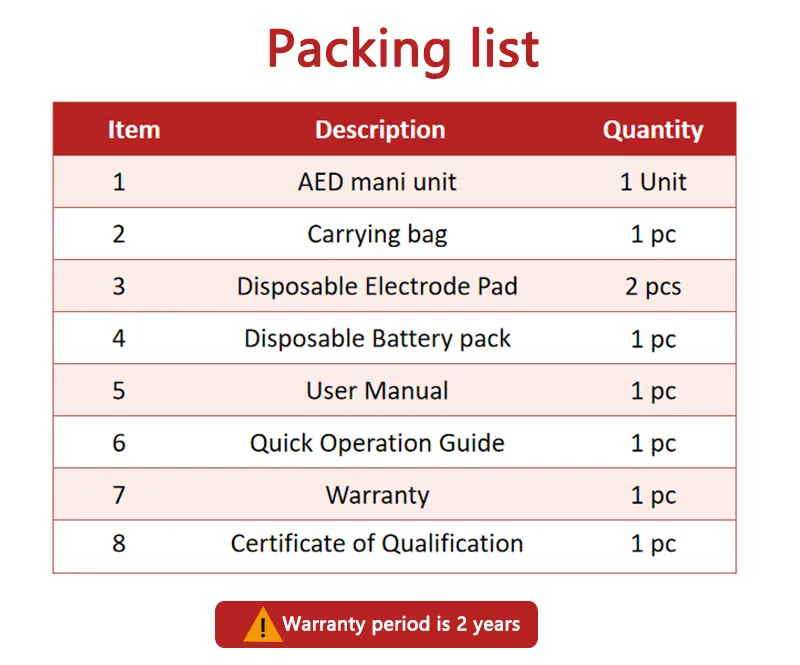

| Standard Config | 1xmain unit, 1xbattery pack, 1xelectrode pads (2 pcs), 1xcarry case |
Core Features
Biphasic Truncated Exponential (BTE) with low energy to minimize myocardial injury
High capacity battery supporting up to 400 shocks
Automatic recording of ECG data & ambient sounds
One step operating: cover open and power on simultaneously

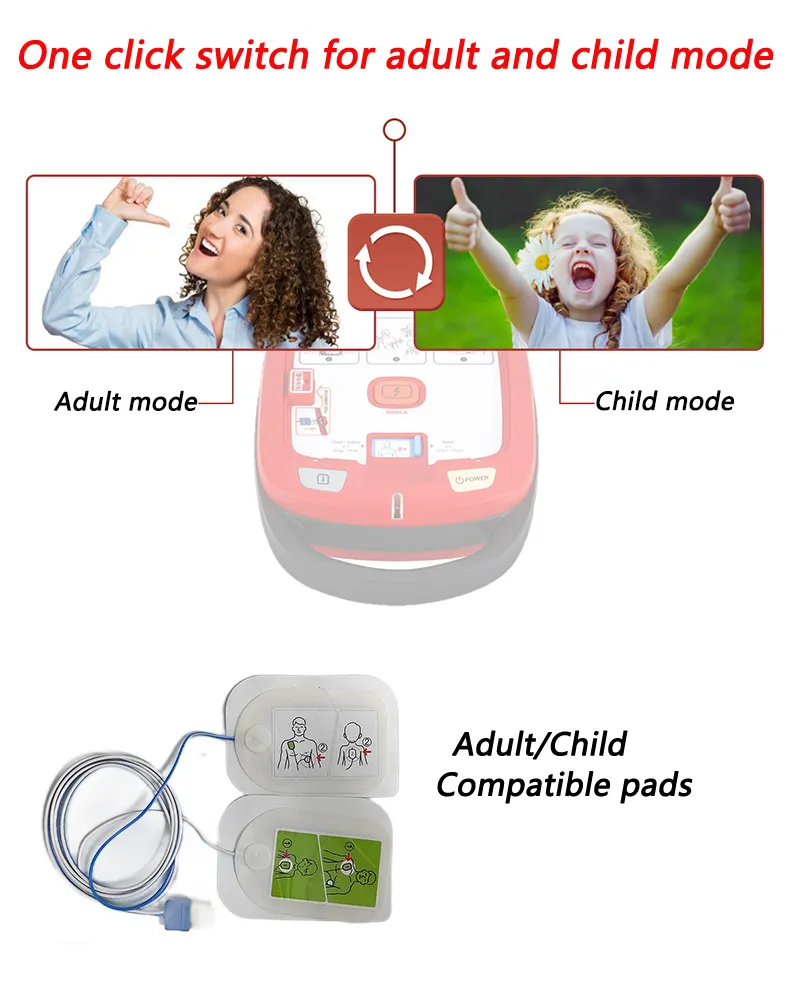

Preinstalled adult/child compatible electrode pads
Daily self-test and automatic power-on self-test
Automatic voice guide throughout operation
Bluetooth data retrieval and PC software support
Advantages of Low Energy BTE
Automatic compensation based on load impedance
Shorter time in ECG analysis and shock preparation
Simultaneous ECG analysis and precharging
Higher success rate in defibrillating with minimum myocardial injury
Faster response and better rehabilitation outcomes

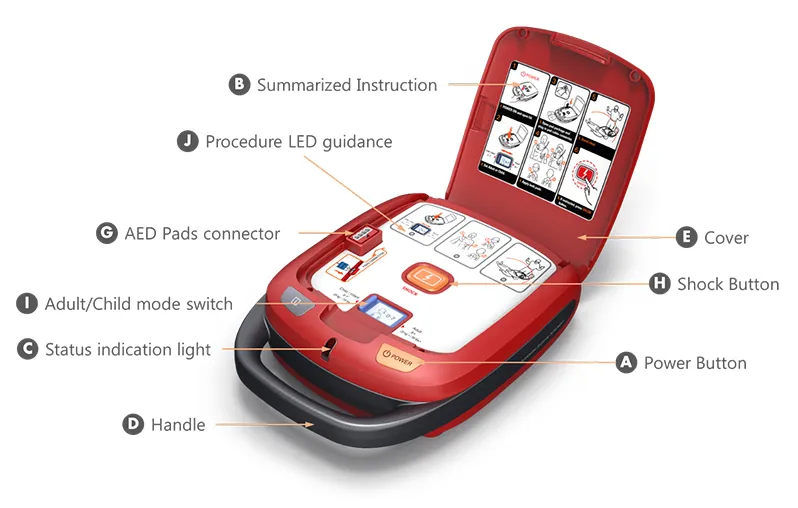

Product Visuals

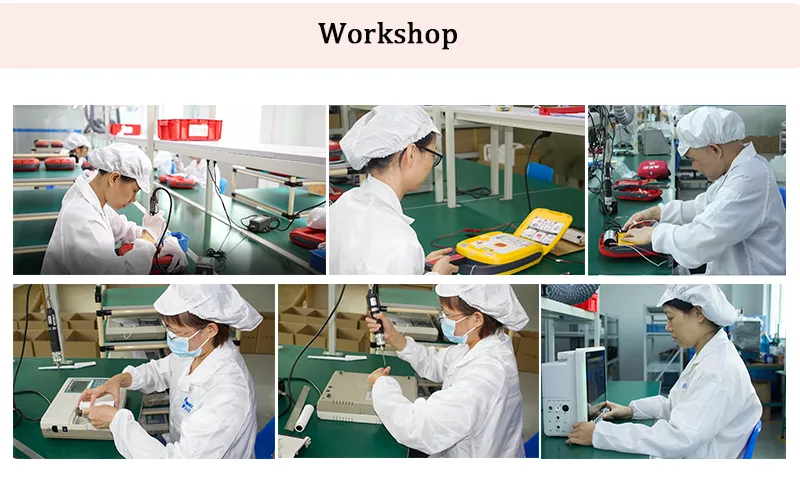

Facility & Quality Control
Frequently Asked Questions
Q: What is the benefit of the BTE technology in the Altai DP1?
A: The Biphasic Truncated Exponential (BTE) waveform uses lower energy levels to achieve successful defibrillation, which significantly reduces the risk of myocardial injury and improves patient rehabilitation.
Q: Are the electrode pads compatible for both adults and children?
A: Yes, the Altai DP1 features preinstalled electrode pads that are compatible with both adult and pediatric patients, allowing for quick response without changing pads.
Q: How many shocks can the battery provide?
A: The high-capacity Li-MnO2 battery is designed to support not less than 200 shocks, with some configurations reaching up to 400 shocks.
Q: Does the device perform self-tests?
A: Yes, the unit performs daily self-tests automatically and an additional self-test every time the power is turned on to ensure maximum reliability.
Q: How can data be retrieved from the AED?
A: The Altai DP1 records ECG data and ambient sounds during operation. This data can be transferred via Bluetooth and managed using the optional PC software.
Q: What certifications does the Altai DP1 hold?
A: The product is certified with CE, MSDS, ISO13485, CFDA, and FSC, ensuring it meets international medical safety standards.
