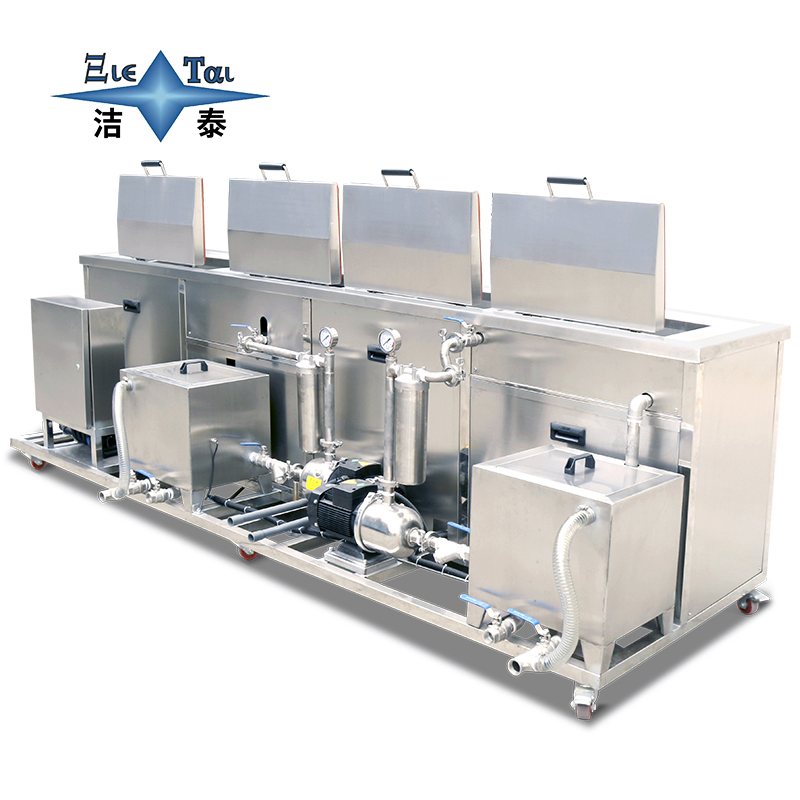

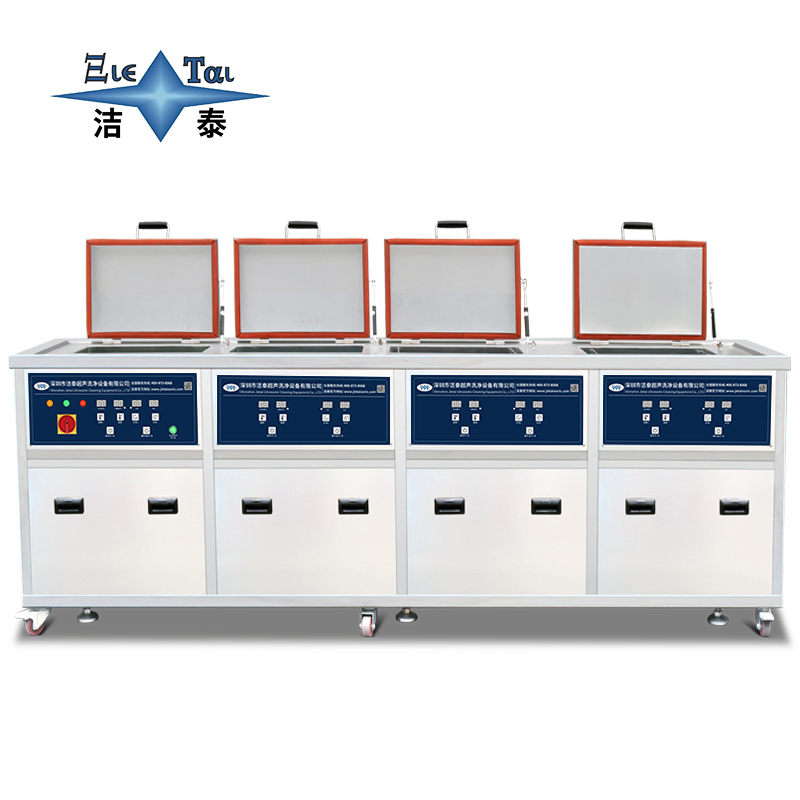

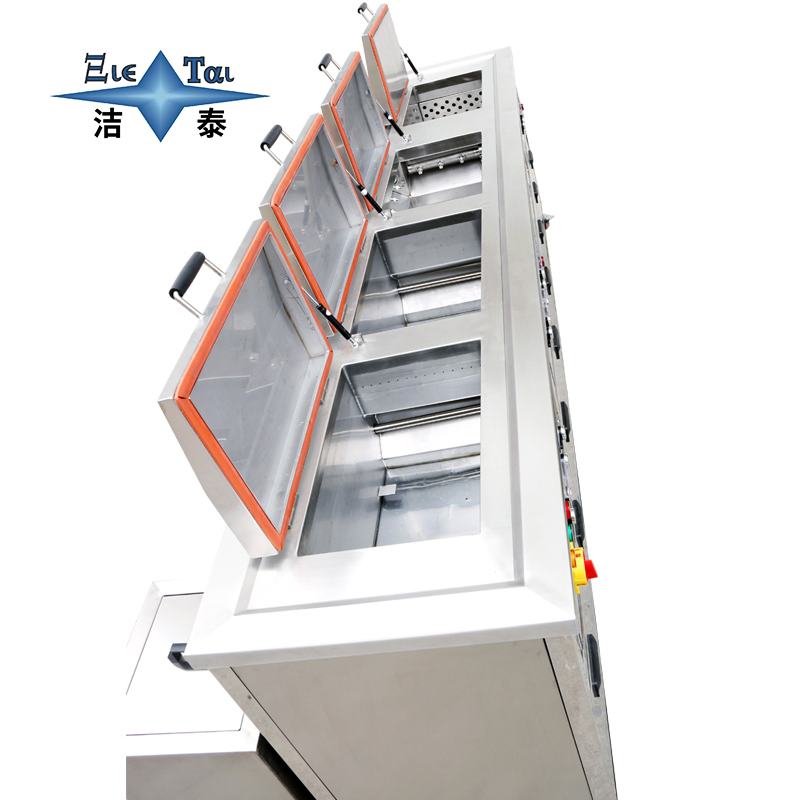

A comprehensive system for Cleaning, Filtration, Rinsing, High-Pressure Spraying & Drying. This 4-tank integrated system resolves residual stain issues in precision components, deep holes, and blind spots through a closed-loop workflow: deep decontamination → purified rinsing → targeted stripping → rapid drying.
Equipped with 28-130kHz multi-frequency ultrasonic (0.3-1.2W/cm²) to remove oil, iron filings, and welding slag. Includes 5-20μm circulating filtration to prevent secondary pollution.
Pure or deionized water rinsing with ±2℃ constant temperature. Removes residual cleaning fluid effectively, meeting strict industrial standards.
Features 0.3-0.8MPa adjustable pressure and 360° rotating spray arms. Cleans areas inaccessible to ultrasonic waves with customizable angles.
Hot air circulation (40-120℃) dries components in 3-15 minutes. Offers an 85% efficiency improvement over traditional methods, preventing oxidation and rust.
