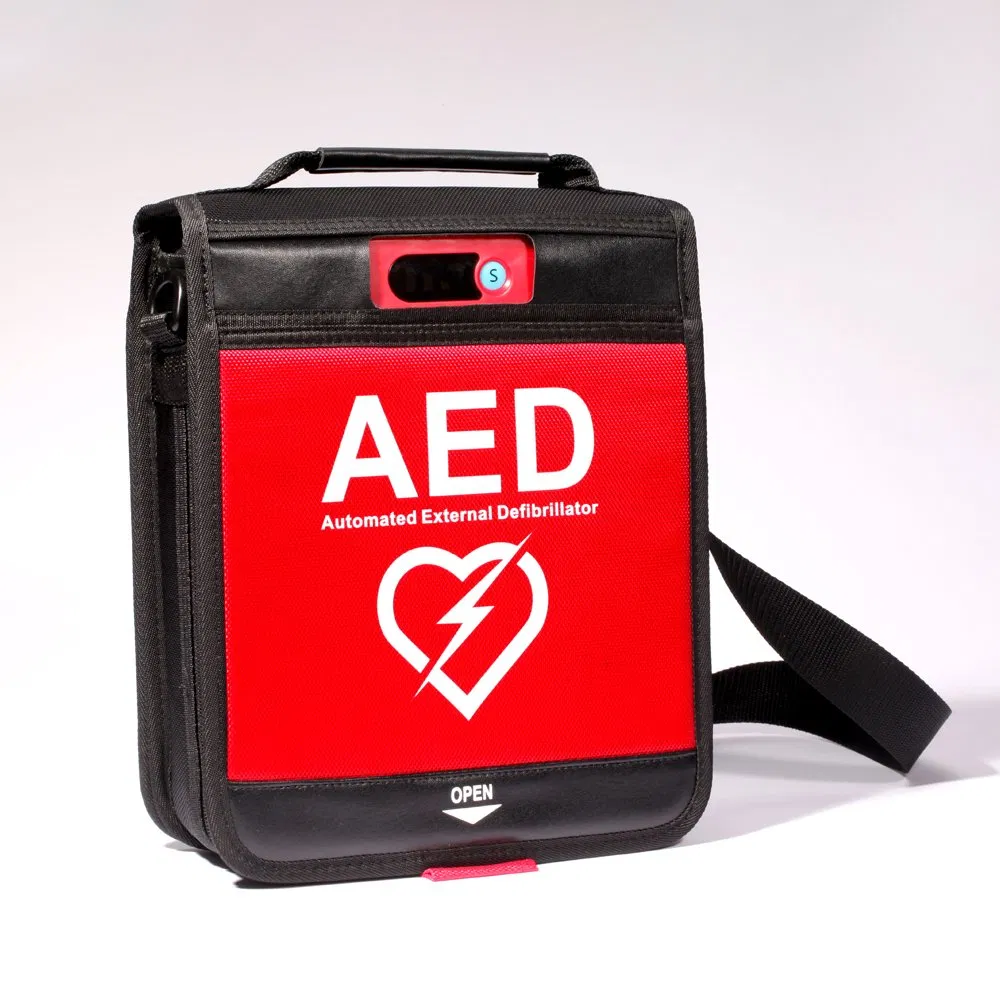

Qingdao Portable Cardiac Monitor Analyzer Automatic External Defibrillator Aed

1 / 4

Qingdao Portable Cardiac Monitor Analyzer Automatic External Defibrillator Aed

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Overview & Basic Info

Model NO.

A381

Certification

CE, FDA, ISO13485

Group

First-Aid Personnel

Waveform

Truncated Exponential Biphasic

Shock Time

9 Seconds (±10%)

Storage

Internal Memory

Weight

2kg (Including Battery)

Warranty

2 Years

📷 Detailed Photos

🛠️ Product Parameters

Defibrillator Specifications

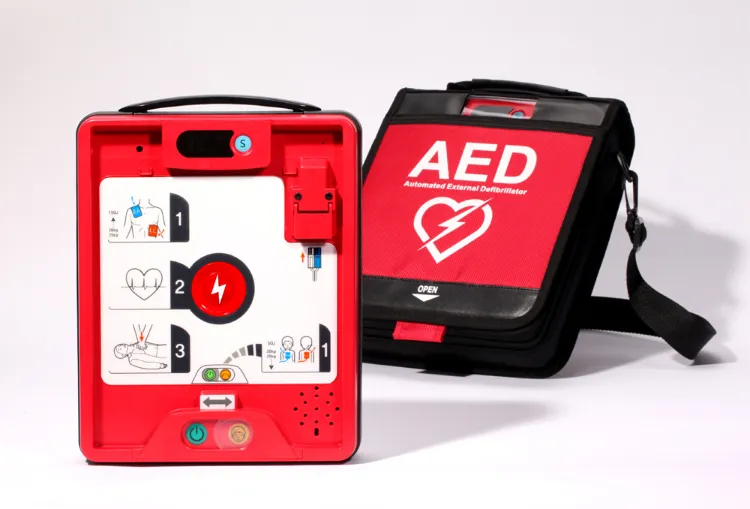

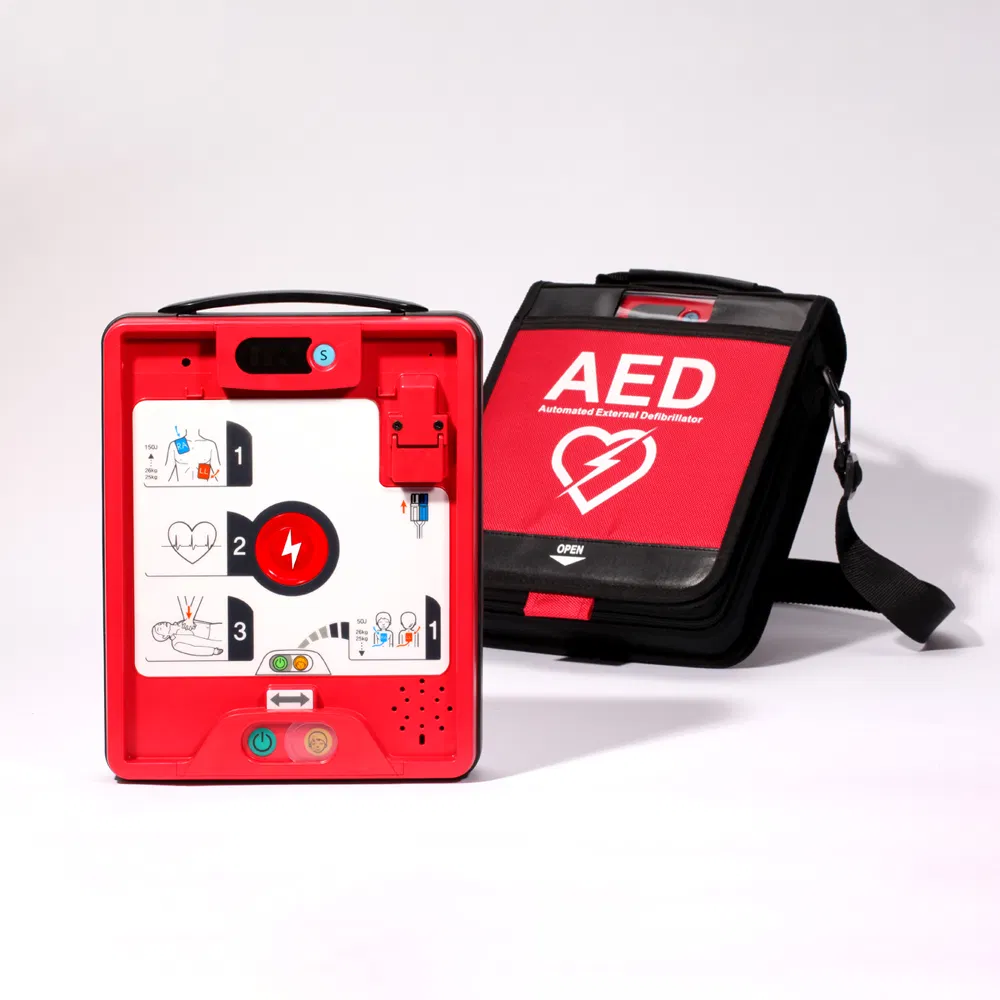

Products Name	Automated External Defibrillator (A381)

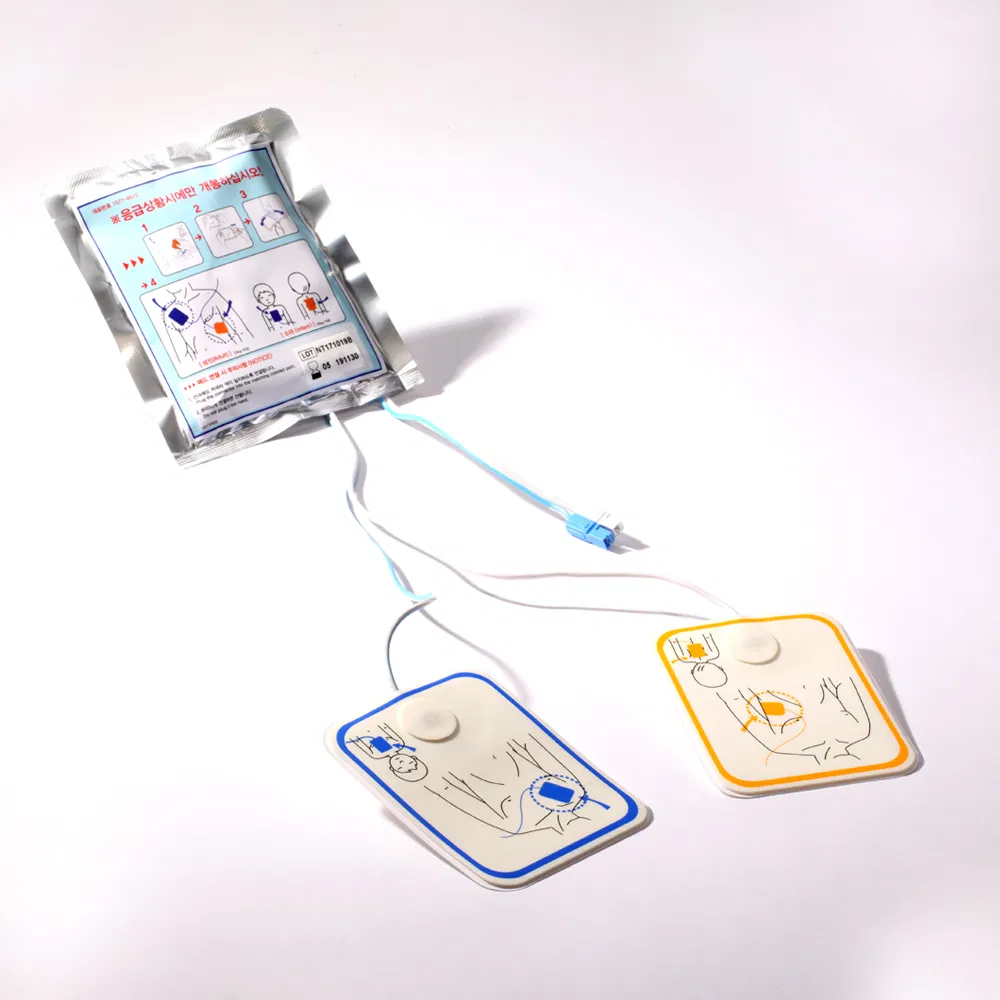

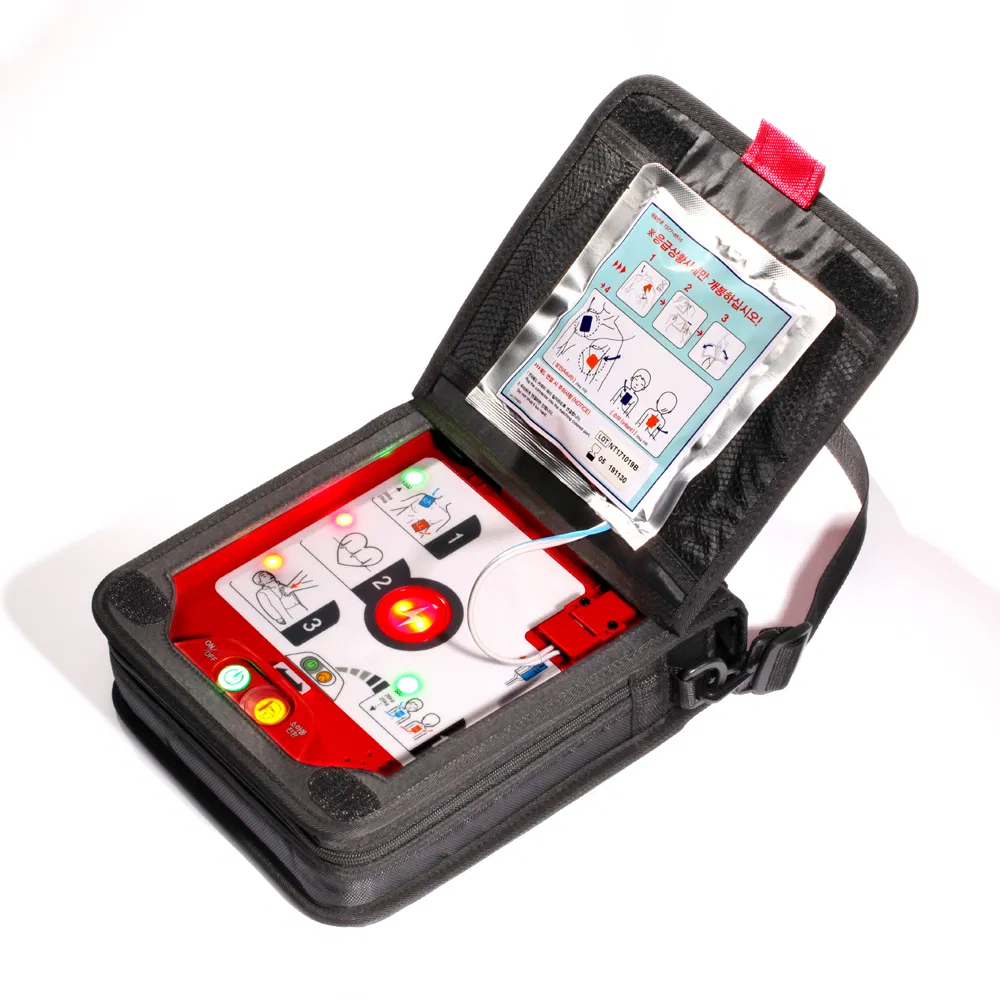

Set Configuration	Defibrillator, battery pack, sealed electrode pads, User Guide, Protective Carrying Case
Energy Output	150J (Adult), 50J (Pediatric)
Shock Method	Manual button (flashes when ready)
Physical & Environmental
Dimensions	8.0cm(H) x 22.0cm(W) x 28.2cm(D)
Water Resistance	IP55 per IEC 60529
Drop Test	1.5 meters per IEC 60068-2-32
ECG Analysis
Analysis Time	Approx. 7 seconds (Read: 5s, Analyze: 2s)
Shockable Rhythms	Ventricular fibrillation (VF) and Ventricular tachycardia (VT)

📝 Product Description

❓ Frequently Asked Questions

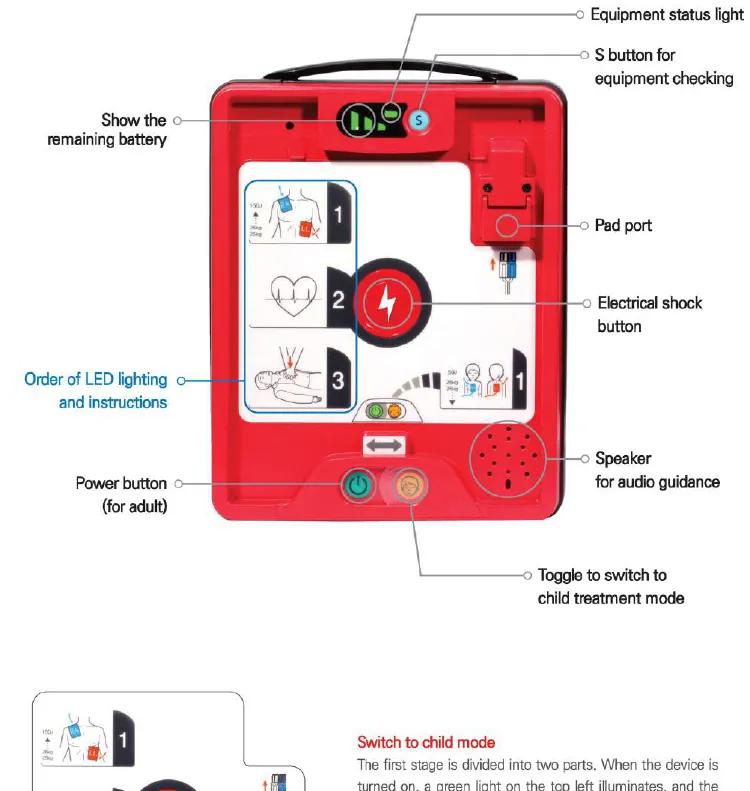

Can this AED be used on children?

Yes, it features an Adult/Child toggle button. The Child Mode delivers a 50J pediatric shock suitable for patients weighing less than 25kg (approx. 12 months to 8 years old).

What is the charging time for a shock?

The device has a rapid shock charge time of approximately 9 seconds (±10%).

How durable is the device for outdoor use?

The A381 is highly durable with an IP55 water resistance rating and has passed 1.5-meter drop tests per IEC standards.

What kind of data does the internal memory store?

It records ECG data, operation history (shocks delivered), ambient noise, and self-diagnostic results for retrieval via Bluetooth.

How does the device identify a shockable rhythm?

The device automatically evaluates the patient's ECG rhythm (Lead II) to detect ventricular fibrillation (VF) or ventricular tachycardia (VT) within about 7 seconds.

What is included in the standard set?

The set includes the defibrillator unit, battery pack, sealed electrode pads, user guide, and a protective carrying case.
