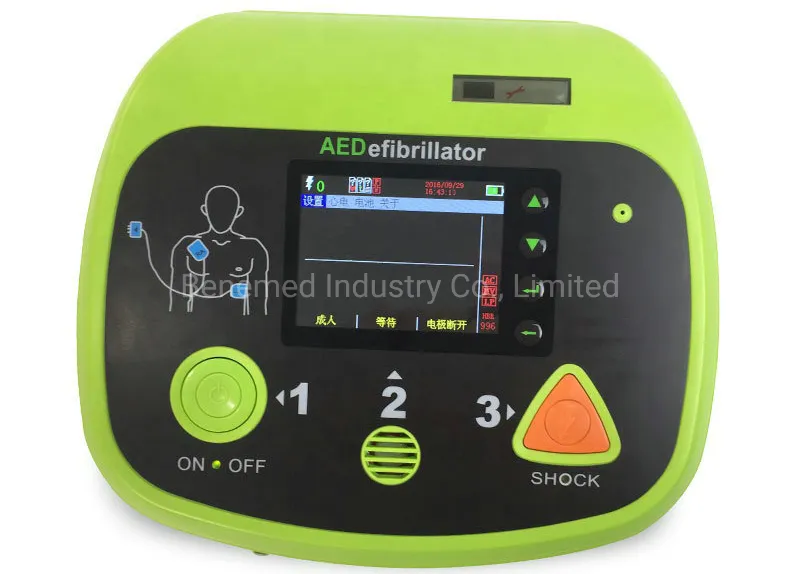

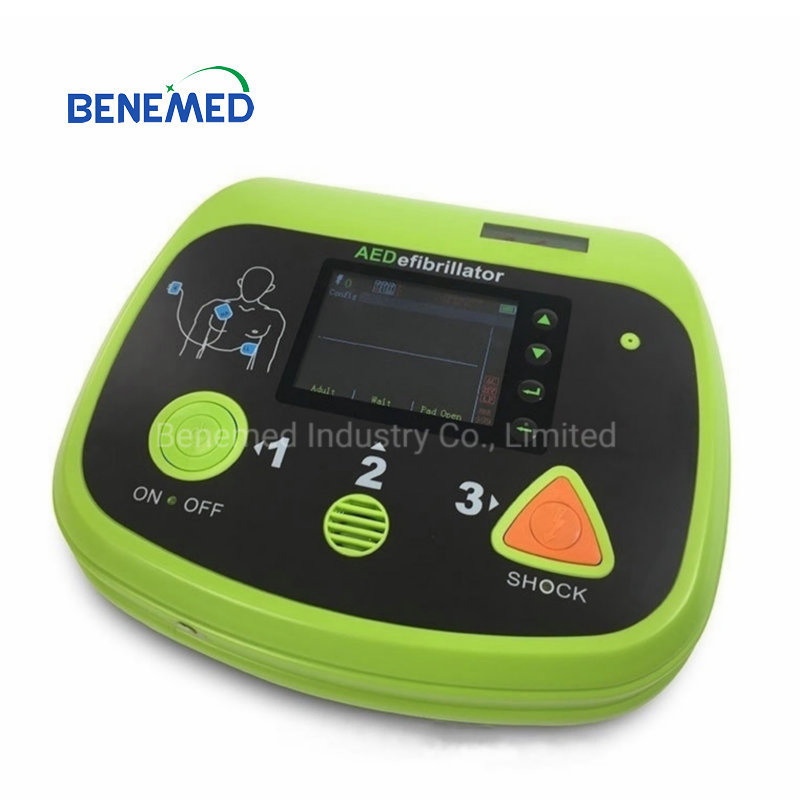

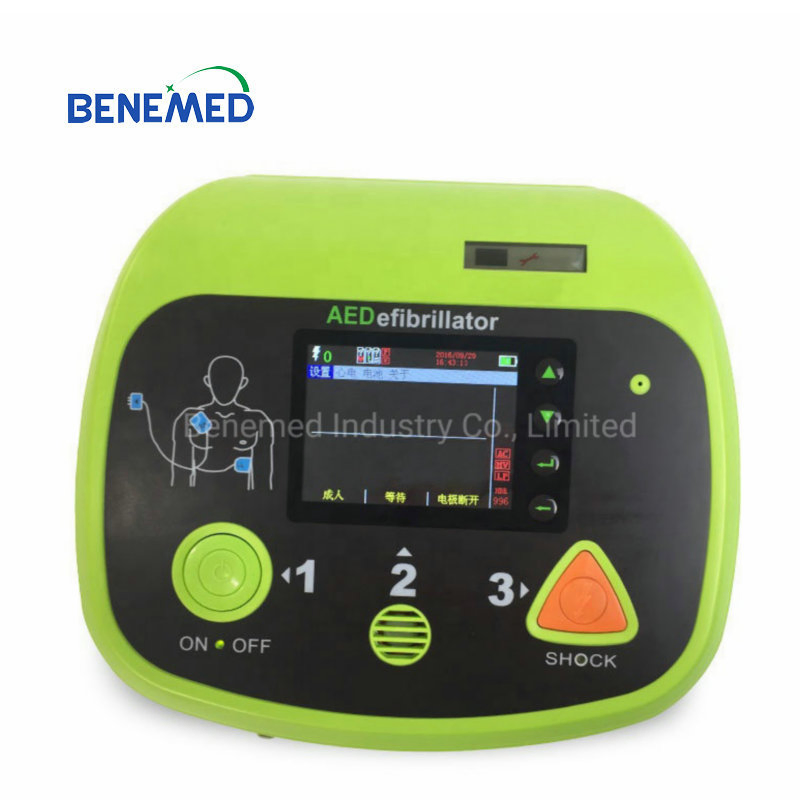

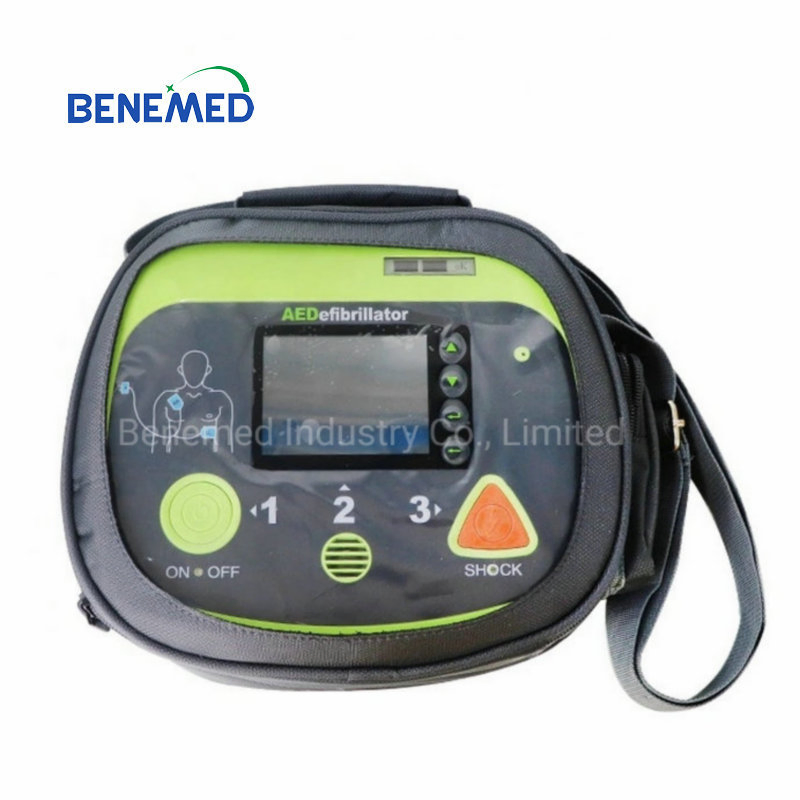

New Aed Defibrillator with LCD Display

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

Basic Information

Model NO.

AED-7000plus

Certification

CE, ISO13485

Group

All

Display

3.5 Inch

N.W.

1.5kg

Color

Green

Dimension

220*170*70mm

Transport Package

Carton with Foam Inside

Specification

First-Aid Devices

Origin

China

HS Code

9018199000

Production Capacity

500units/ Month

Product Description

New product Automatic External Defibrillator

Key Features

Three-step defibrillation process
Two-button operation
Extensive voice and visual prompts for the operator
Biphasic energy output

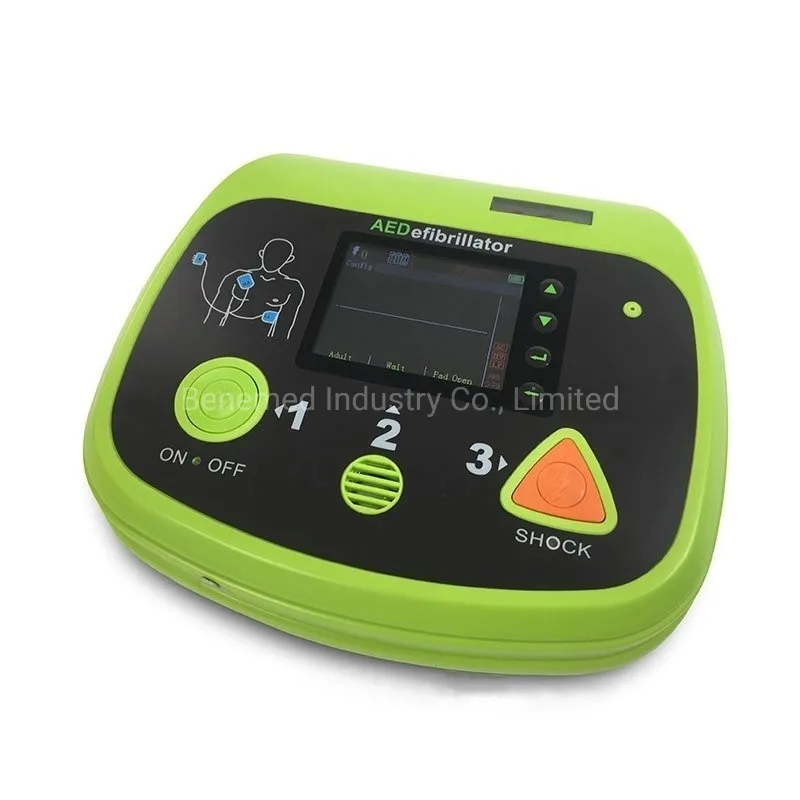

3.5 inch LCD display

Technical Specification

Category	Specification
Output	Biphasic Truncated exponential
Energy Sequence (Adult)	150/150/200(Default), 150/200/200, 200/200/200
Energy Sequence (Pediatric)	50/70/85(Default), 70/70/85, 70/85/85, 85/85/85
Charge Time	10 sec. to 200 J
Analysis Time	9 sec.
Max Time to Readiness	Less than 30 seconds (after 15 shocks)
Audible Prompts	19 audible prompts
Visual Prompts	LED/LCD

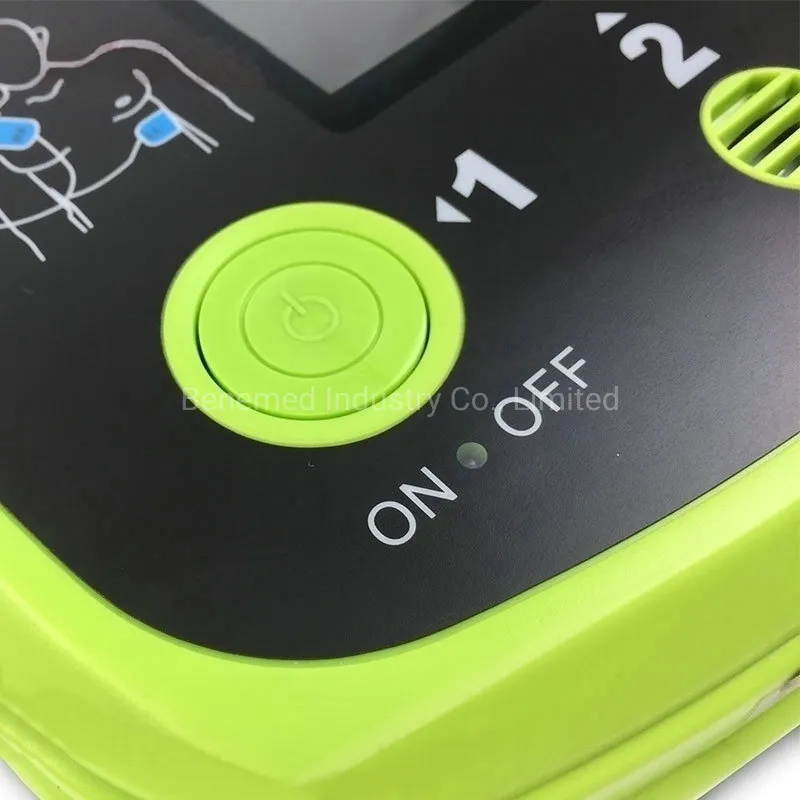

Controls	Six buttons - On/Off, Shock, and 4 software-configurable buttons
Output Accuracy	±15% (25 to 175Ω)
Maximum Voltage	1800±20V
Impedance Limits	20Ω to 200Ω

Frequently Asked Questions

Q1: How long does it take for the AED-7000plus to charge? A: The device takes approximately 10 seconds to charge to 200 Joules.

Q2: Can this AED be used on pediatric patients? A: Yes, it features a dedicated pediatric energy sequence starting from 50J up to 85J.

Q3: What kind of guidance does the device provide during an emergency? A: It provides 19 extensive audible voice prompts along with visual guidance on the 3.5-inch LCD display.

Q4: What certifications does the AED-7000plus hold? A: The product is certified with CE and ISO13485 medical standards.

Q5: Is the device portable enough for mobile first-aid? A: Yes, it is highly portable with a net weight of only 1.5kg and compact dimensions of 220*170*70mm.

Q6: What is the analysis time for heart rhythm detection? A: The device completes heart rhythm analysis within 9 seconds.
