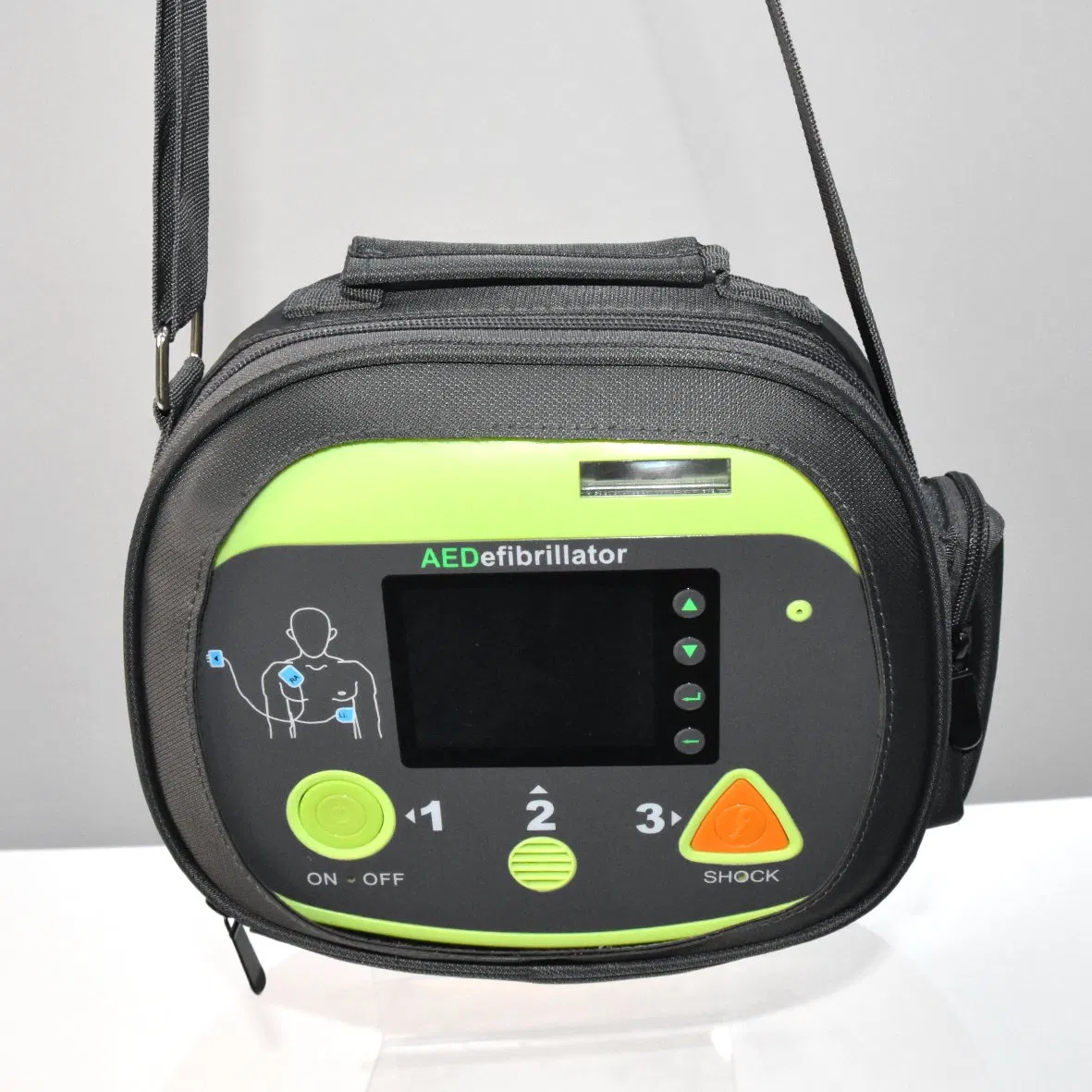

Automatic External Defibrillator Biphasic Output Defibrillator Aed Plus for First Aid

1 / 5

Automatic External Defibrillator Biphasic Output Defibrillator Aed Plus for First Aid

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Aed

Send Inquiry

Product Description

📋

Basic Info.

Model NO.

GP-AED7000 Plus

Certification

Transport Package

Standard Export Cartons

Specification

225*200*85mm

Trademark

ALL PRO/OEM

Origin

China, Shandong

🔍

Product Introduction

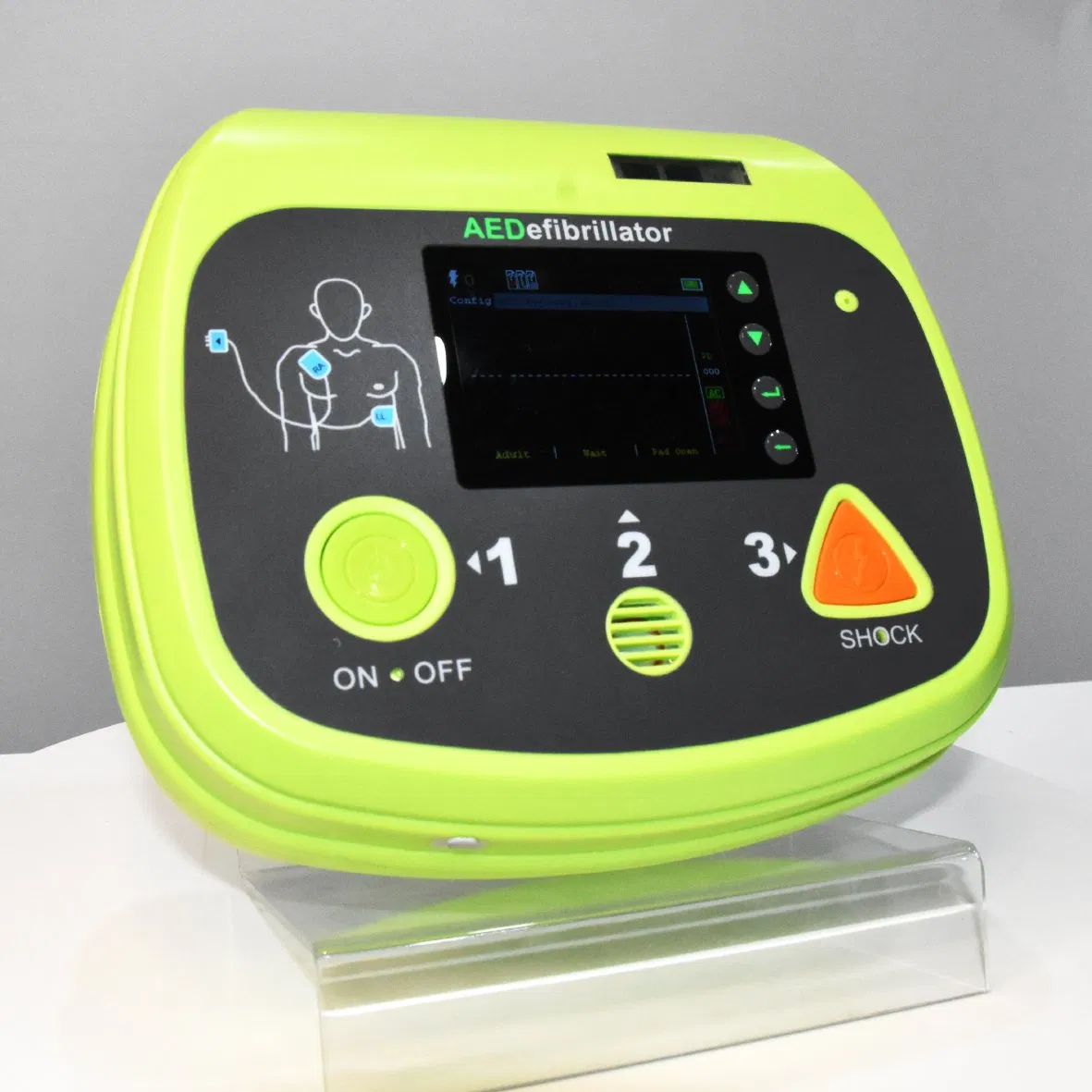

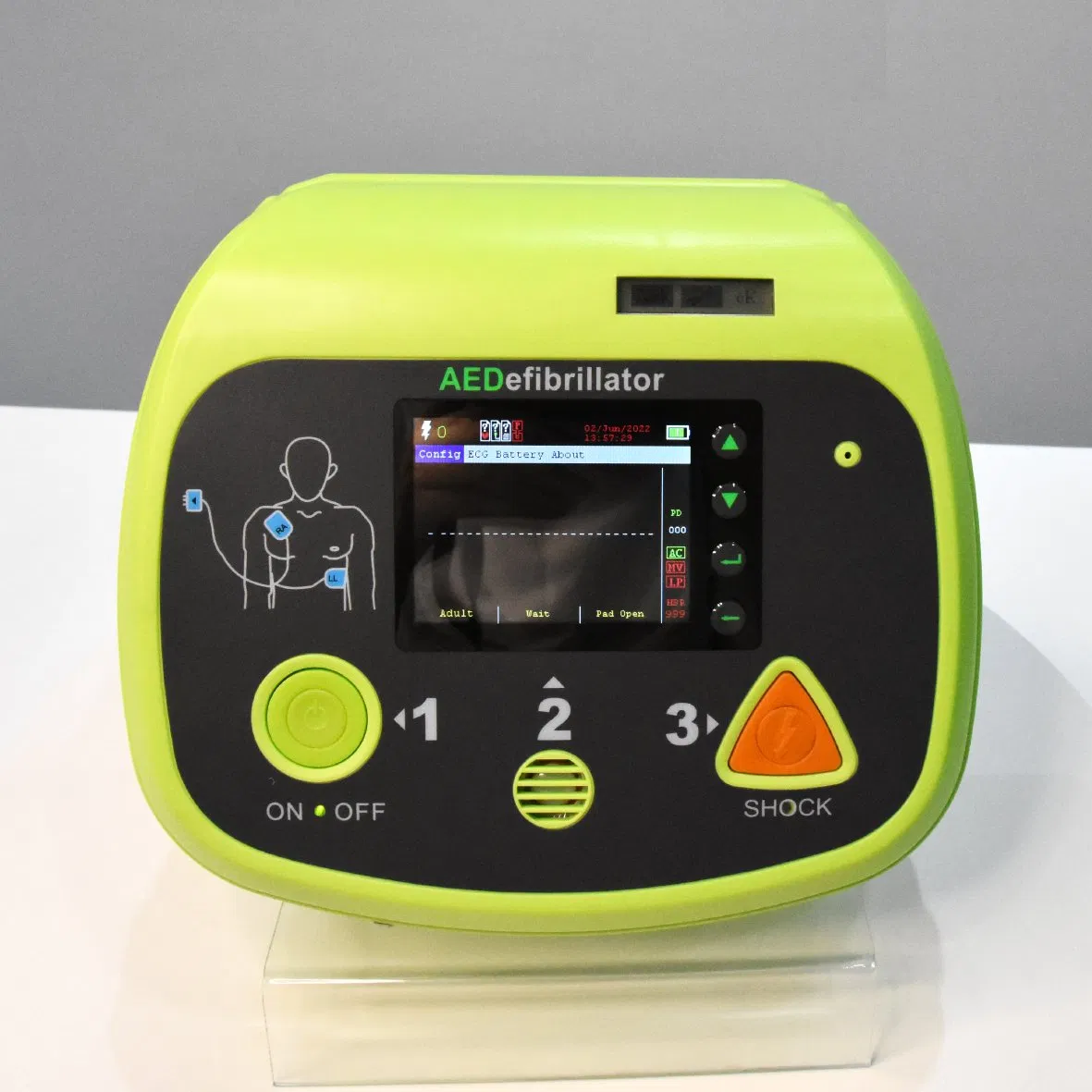

GP-AED7000 plus has professional automatic defibrillation technology, is a small and convenient device that can manually adjust defibrillation energy and electro cardio-gram monitoring functions.

Key Features

Intelligent biphasic technology: International mainstream energy models: 150 and 200J, rapid identification of electrocardiogram abnormalities, charge & discharge defibrillation.

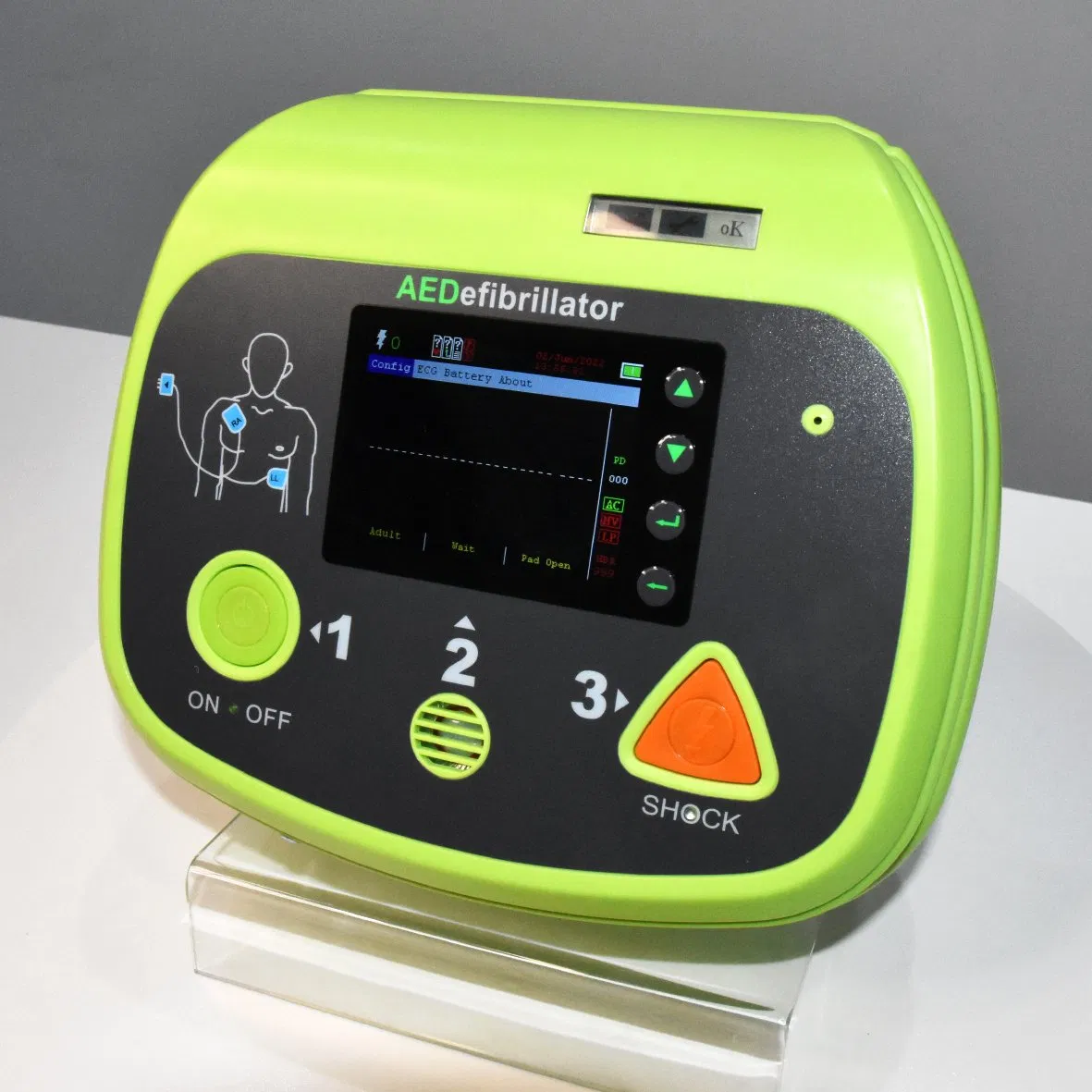

LCD display graphics interaction: ECG waveform display, energy can be manually activated or automatic adjustment, providing more choices for professional doctors.
Sturdy structure: ABS plastic, dustproof and waterproof to IP55; suitable for various harsh environments, ensuring normal defibrillation.
Durable battery: High capacity battery with five years standby work, reducing maintenance costs.
Regular self-checks: Monitor battery levels and perform system checks to ensure the AED is always ready for use.
Data Management: Employ a unique and stable system management approach to export patient data.

Technical Specification

Size	22520085mm
Weight	About 2.0kg
Working Humidity	Temperature: 0°C~40°C; Relative humidity: 95%(non-condensing)
Current Risk Level	Internal power supply BF type (according to GB9706.1/IEC60601-1)
Altitude	-91m to 4573m
Pressure	70kPa~106kPa
Power Supply	Lithium Battery, 12V, 2800mAh

Defibrillation Character

Waveform	Biphasic
Energy Sequence	Adult: (150, 150, 200) J
Charging Time	Less than 8 seconds to maximum energy (with battery used < 15 times)

Frequently Asked Questions

What is the standby time of the GP-AED7000 Plus battery?

The high-capacity lithium battery is designed for durability and can support up to five years of standby work.

Is this AED suitable for harsh environments?

Yes, it features a sturdy ABS plastic structure and is IP55 rated for dustproof and waterproof protection.

Does the device show ECG waveforms?

Yes, the device includes an LCD display for graphics interaction and ECG waveform monitoring.

What is the energy output for defibrillation?

It uses intelligent biphasic technology with an energy sequence of 150J, 150J, and 200J for adults.

How long does it take to charge for a shock?

The device can reach maximum charging energy in less than 8 seconds when the battery is in optimal condition.

Does the AED perform self-maintenance checks?

Yes, it performs regular self-checks to monitor battery levels and system status, ensuring it is always ready for emergency use.
