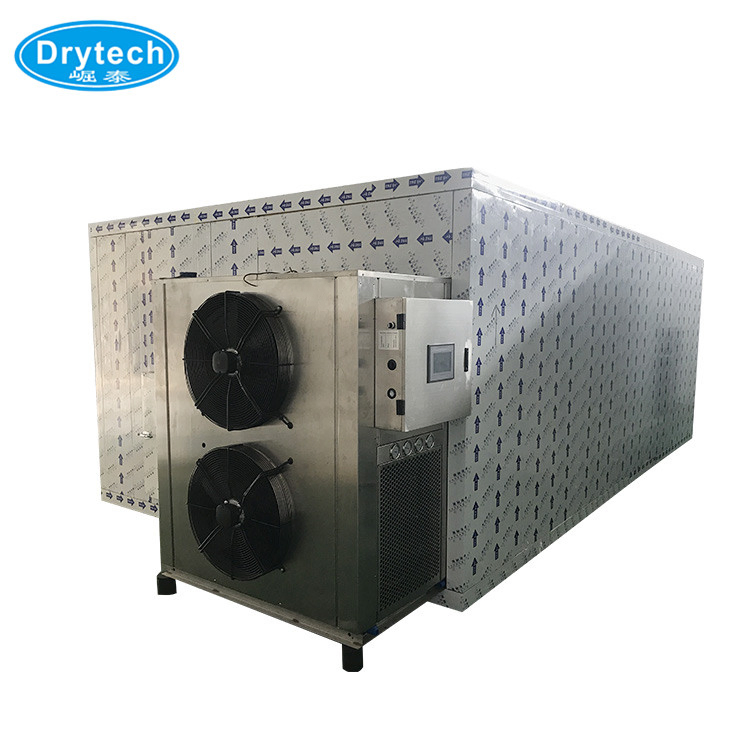

Manufacturer Industrial Wooden Crafts Ceramics Fig Red Chilli Red Pepper Sludge Agriculture Products Industrial Materials Mango Fruit Hpd Dry Machine

1 / 5

Manufacturer Industrial Wooden Crafts Ceramics Fig Red Chilli Red Pepper Sludge Agriculture Products Industrial Materials Mango Fruit Hpd Dry Machine

Customization:	Available
After-sales Service:	Online Service
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

DT600HD

Type

Dryer

Voltage

380V

Power

19.8kw

Function

Cooling+Drying+Dehumidity

Trolley Quantity

24PCS

Tray Quantity

382PCS

Drying Capacity

1500kgs

Technology

Air Source Heat Pump

Production Capacity

1200 Sets / Year

Product Description

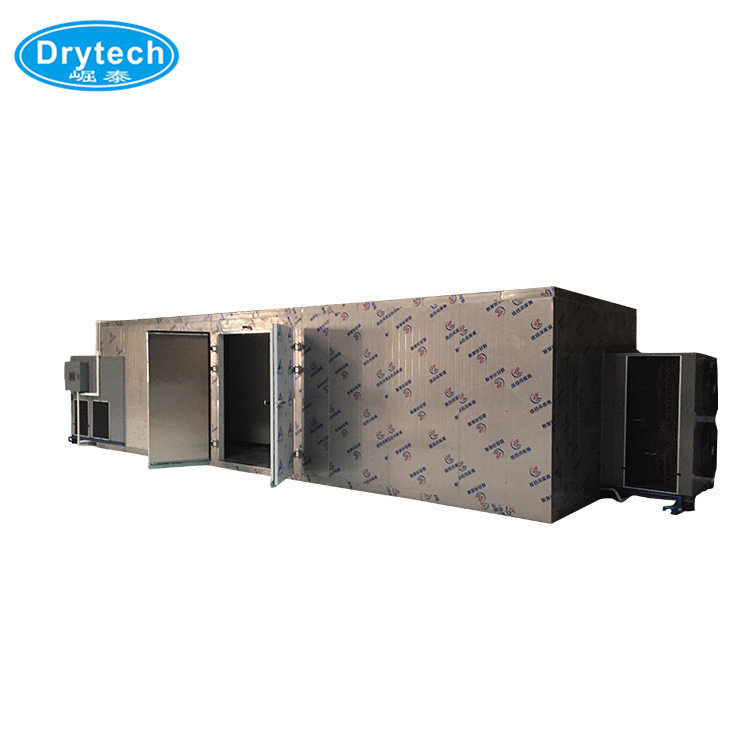

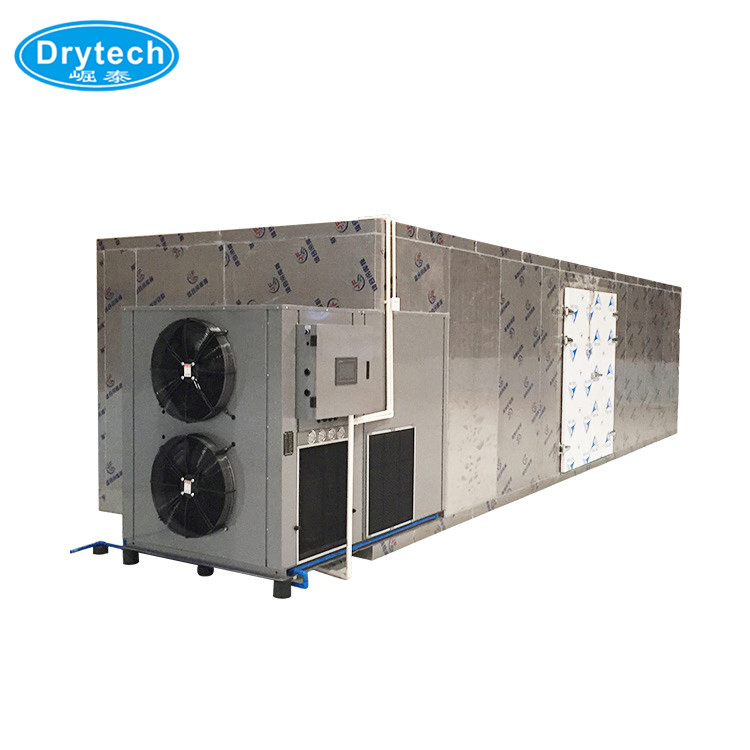

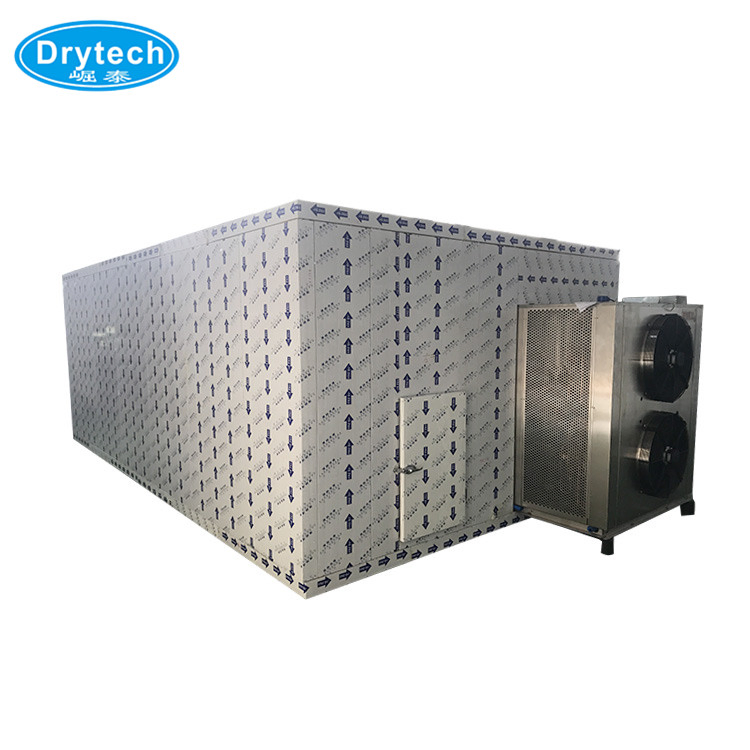

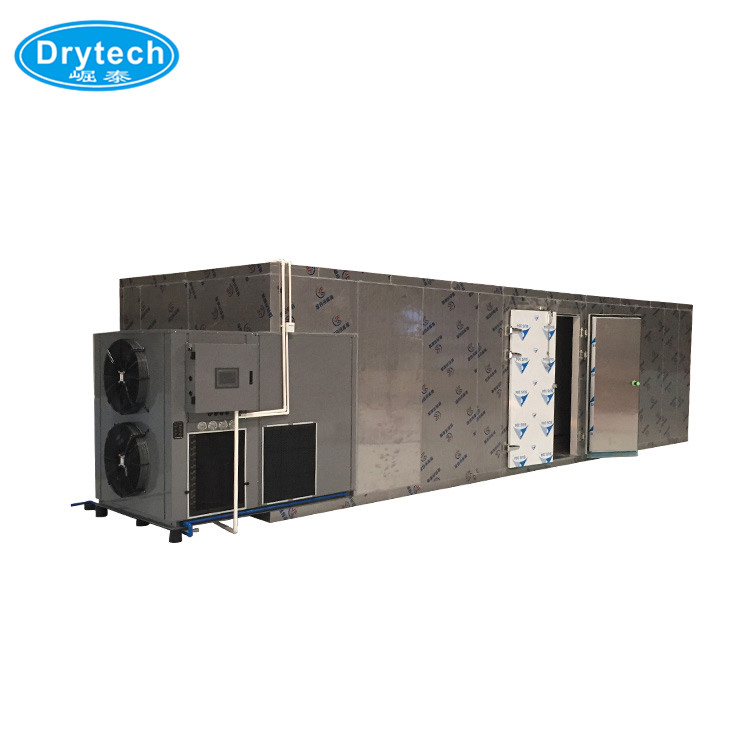

Industrial Heat Pump Drying Machine

This dryer takes advantage of the reversed Carnot principle, absorbing the heat from around and sending it to the materials to be dried. Controlled by a touch screen controller with adjustable temperature and low electric consumption.

⚡ No MOQ and Customized Support

Drying + Dehumidify + Cooling Function

PLC + Touch Screen Control | 7-10 Days Delivery Time

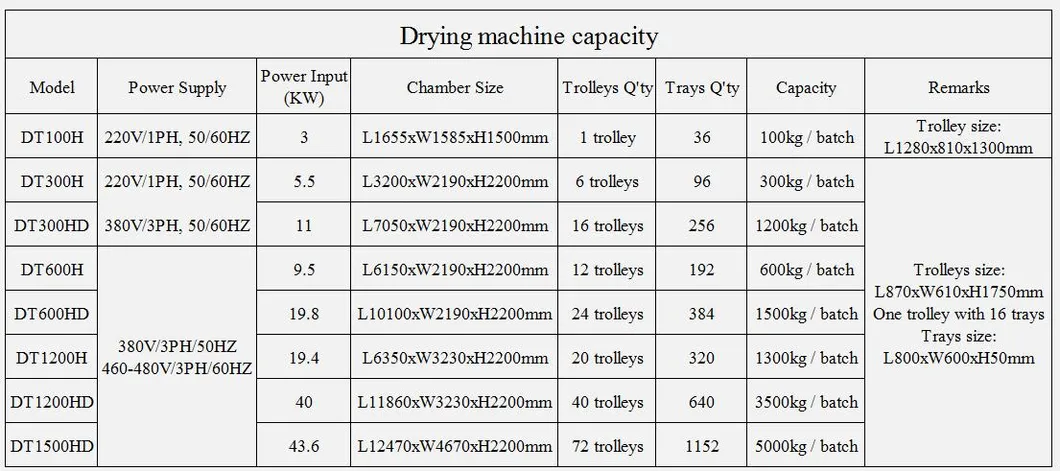

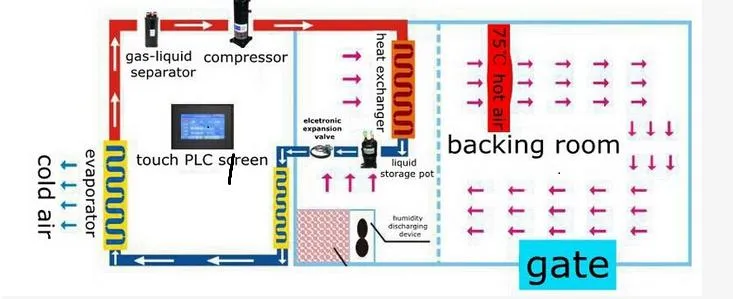

Working Principle & Parameters

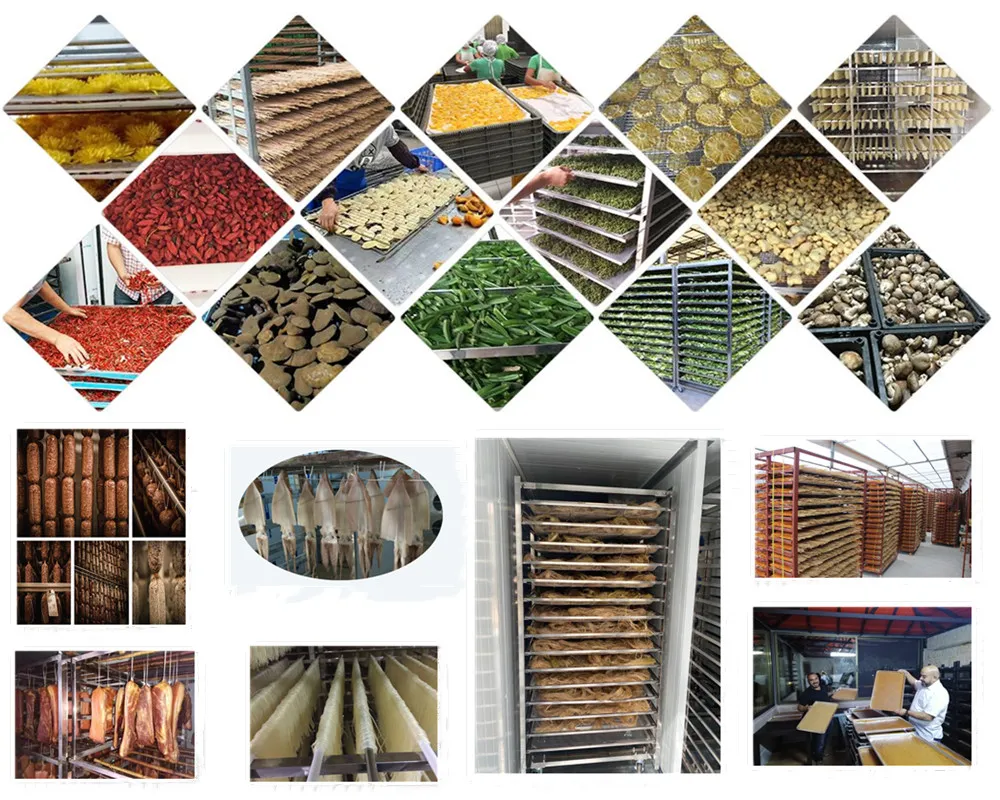

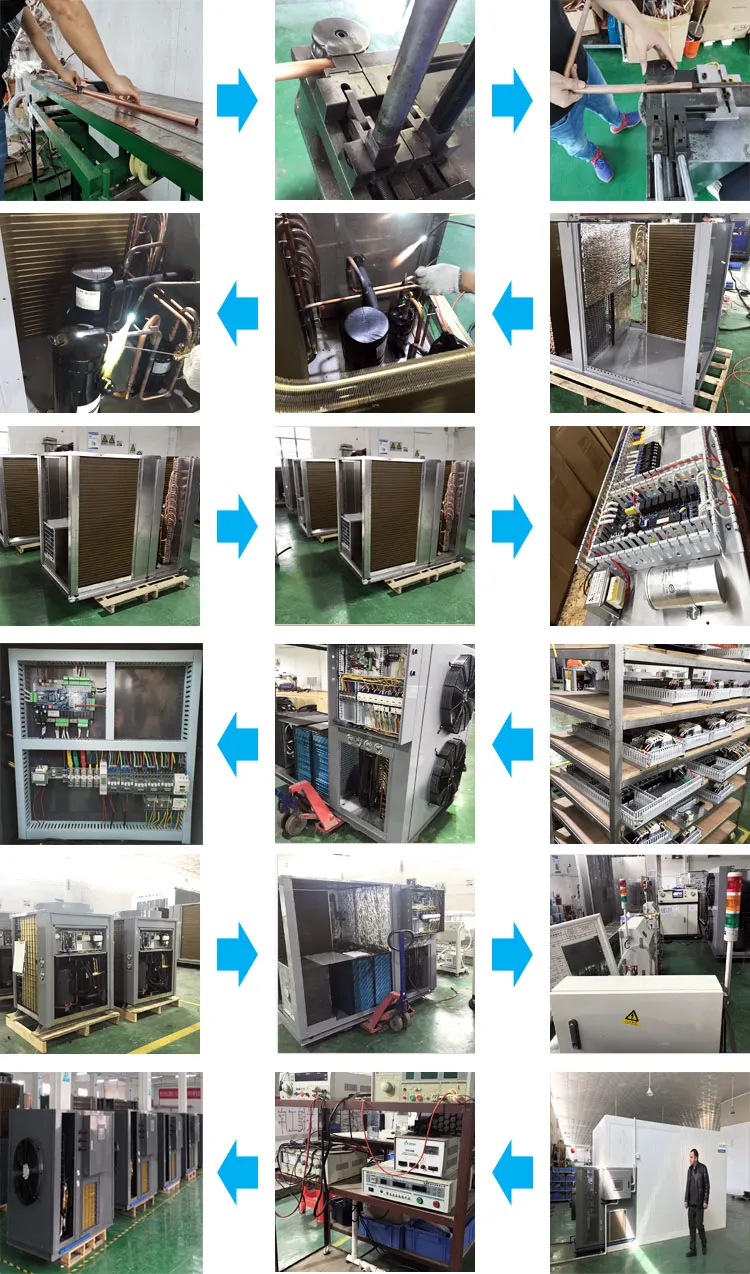

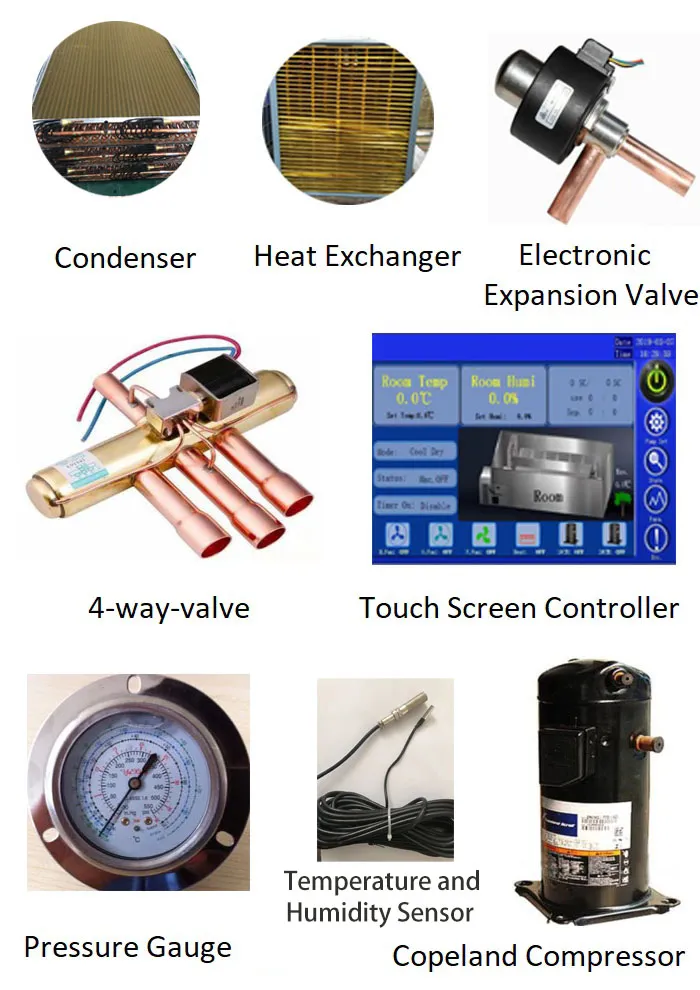

Our Projects & Components

Based on advanced manufacturing technology from Europe and the United States, our system operates without pollution and with extremely low energy consumption.

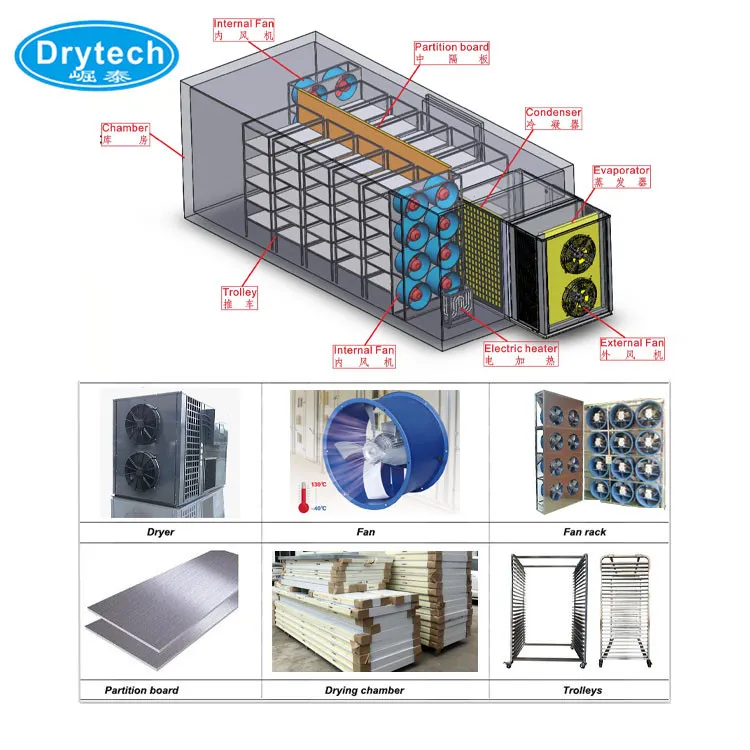

Packing and Shipping

Our Services

Technical Service: Capacity calculation, professional refrigeration and electronic technical support for installation and operation.

After-Sales Service: One year's warranty, technical support for maintenance, and economic spare parts supply.

Frequently Asked Questions

What are the main working modes of the drying machine?

There are three modes: Drying (fast temperature rise), Drying + Dehumidify (moisture discharge), and Cooling (down to 10°C).

What causes high pressure protection?

Common causes include circulating fans not working, blocked hot air due to overcrowding of trays, or electronic expansion valve issues.

How to handle low pressure protection?

Check for gas leaks, ensure the refrigerant is suitable for cold weather, or adjust the electronic expansion valve opening.

What should I do if the temperature sensor shows an error?

The temperature sensor should be replaced with a new one to ensure accurate readings and machine operation.

Why is the moisture discharging too slowly?

This is usually caused by a damaged dehumidify fan, controller malfunctions, or power issues with the fan.

What are the standard payment terms?

We accept T/T, L/C (for container orders), and Western Union (for samples and parts).
