Hospital Aed Automated External Defibrillator with ECG SpO2
Hospital Aed Automated External Defibrillator with ECG SpO2
Hospital Aed Automated External Defibrillator with ECG SpO2
Hospital Aed Automated External Defibrillator with ECG SpO2
Hospital Aed Automated External Defibrillator with ECG SpO2
1 / 5
Hospital Aed Automated External Defibrillator with ECG SpO2
Hospital Aed Automated External Defibrillator with ECG SpO2
Hospital Aed Automated External Defibrillator with ECG SpO2
Hospital Aed Automated External Defibrillator with ECG SpO2
Hospital Aed Automated External Defibrillator with ECG SpO2

Hospital Aed Automated External Defibrillator with ECG SpO2

Customization: Available
Certification: CE, FDA
Group: Middle-aged and Old
Send Inquiry

Product Description

i

Basic Specifications

Model NO.:DM7000
Package:Carton
Trademark:POWEAM
Origin:China
Capacity:5000units/Month
★

Product Description

Hot Sale Automatic External Defibrillator ( DM7000 )

The DM7000 AED biphasic defibrillator with monitor function is designed to meet clinical requirements from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).

Display Parameters • Type: 8 inch high resolution LCD display
• Sweep Speed: 25mm/sec
• Info: HR, Lead/Pads, On/Off Alarm, SpO2, AED Functions, Delivered Energy.
Defibrillator Features • Waveform: Biphasic
• Charge Time: Less than 7 seconds with new battery
• Energy Display: Selection and delivered energy monitor
• Impedance Range: 0-250 ohms
ECG Monitoring • Connection: 5-lead/3-lead ECG cable or paddles
• Lead Selection: I, II, III, AVR, AVL, AVF, V
• Heart Rate: 20-300BPM with user-selectable alarms
SpO2 & Recorder • SpO2 Range: 30~100% (Accuracy ± 2% between 80%~90%)
• Recorder: 50mm thermal paper, high-resolution printing
• Speed: 12.5mm/sec, 25mm/sec, 50mm/sec
Operational Modes • AED Mode: Auto analyze and charge X3 with voice prompts
• Manual Mode: Energy selection from 2 to 360 Joules
• Synchronized Mode: Defibrillator pulse syncs to patient's R-wave
📷

Product Gallery

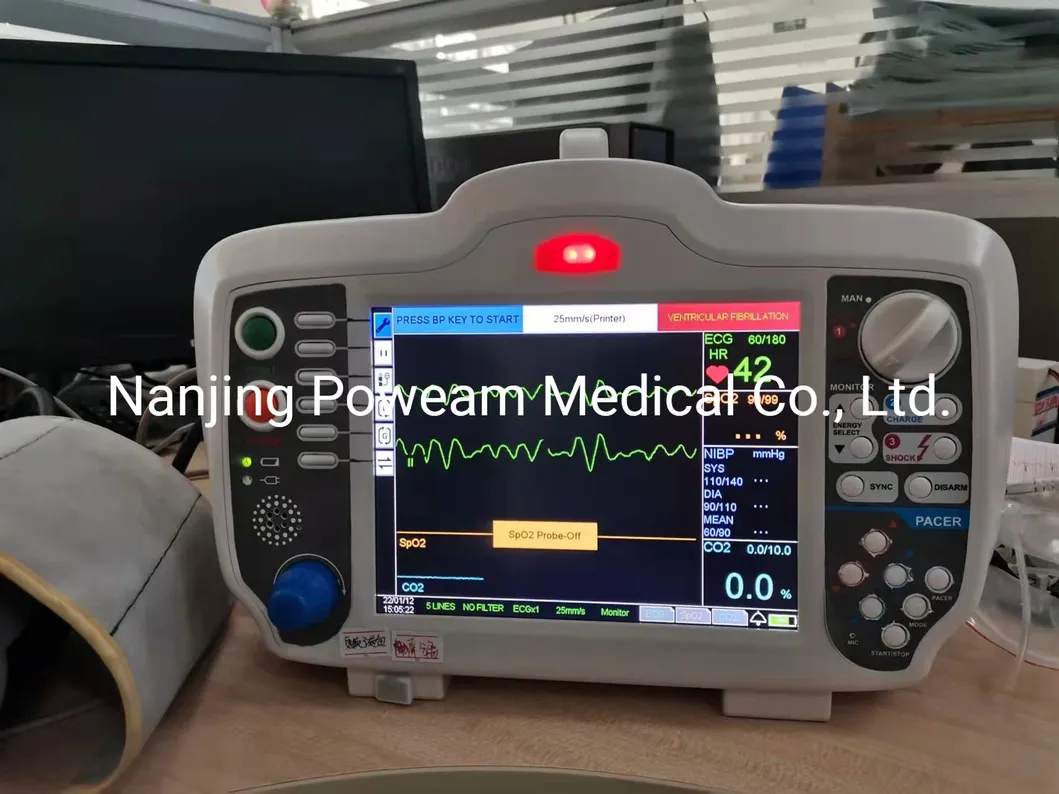

Defibrillator view 1

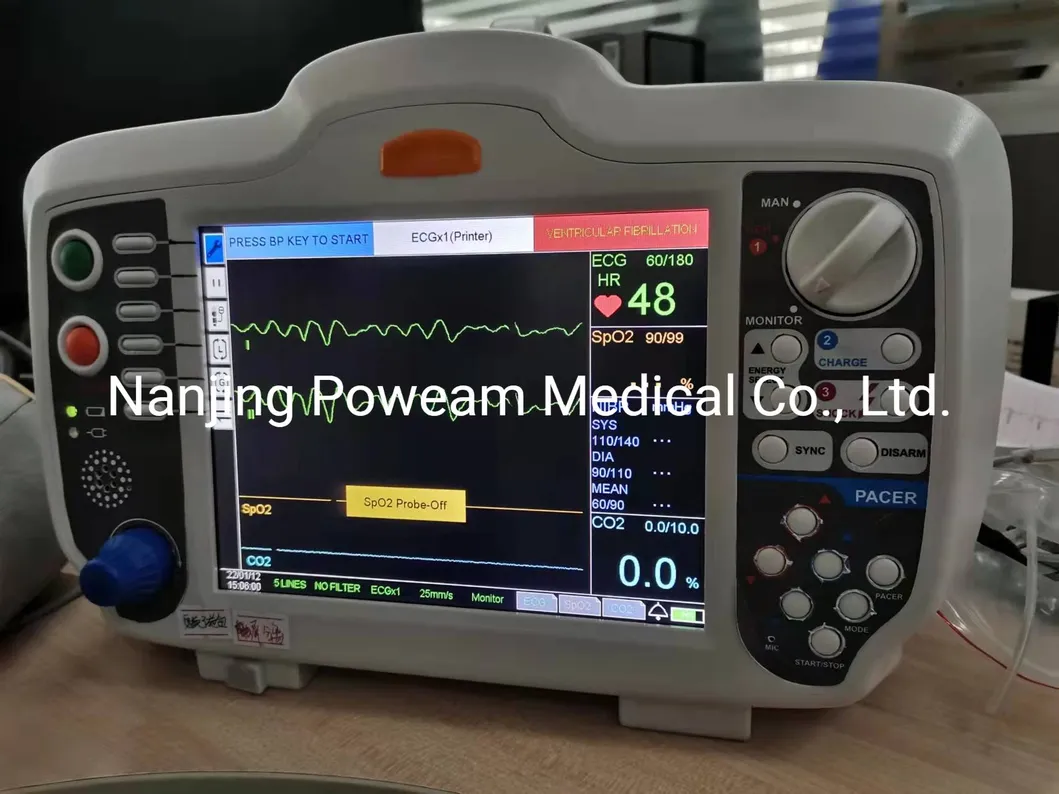

Defibrillator view 2

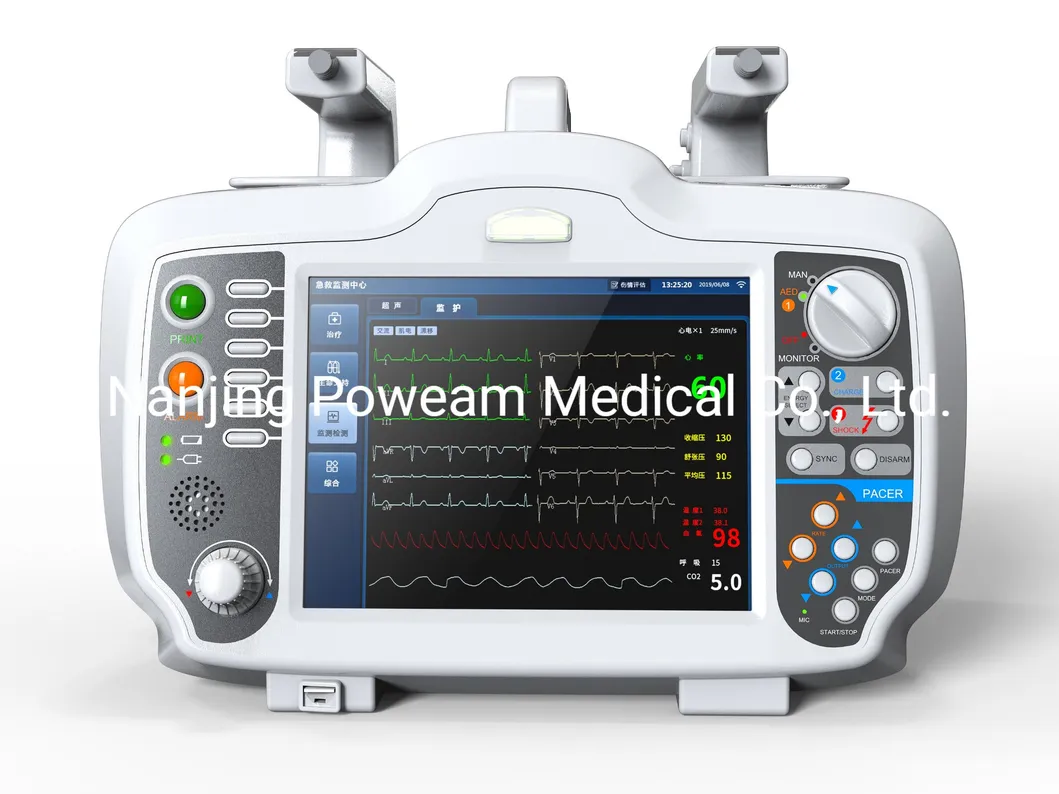

Defibrillator view 3

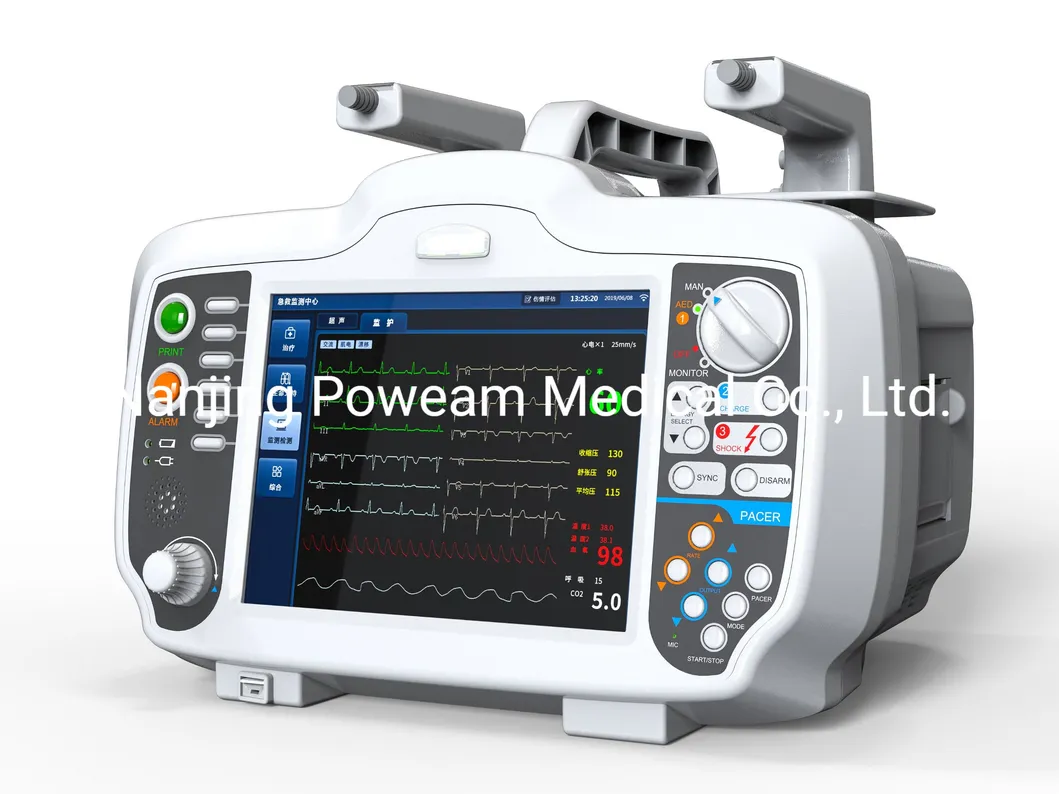

Defibrillator view 4
Defibrillator view 5

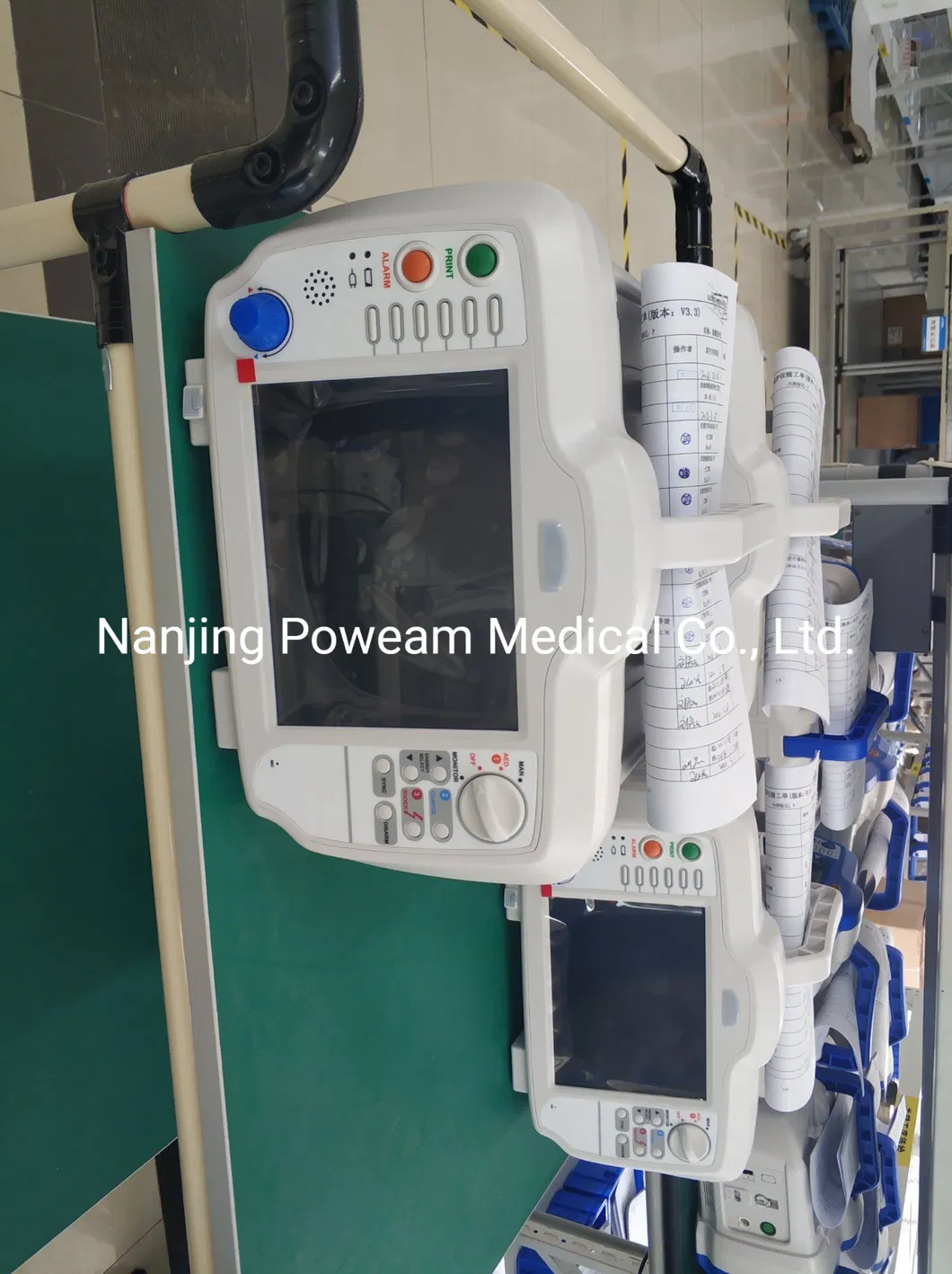

Defibrillator view 6

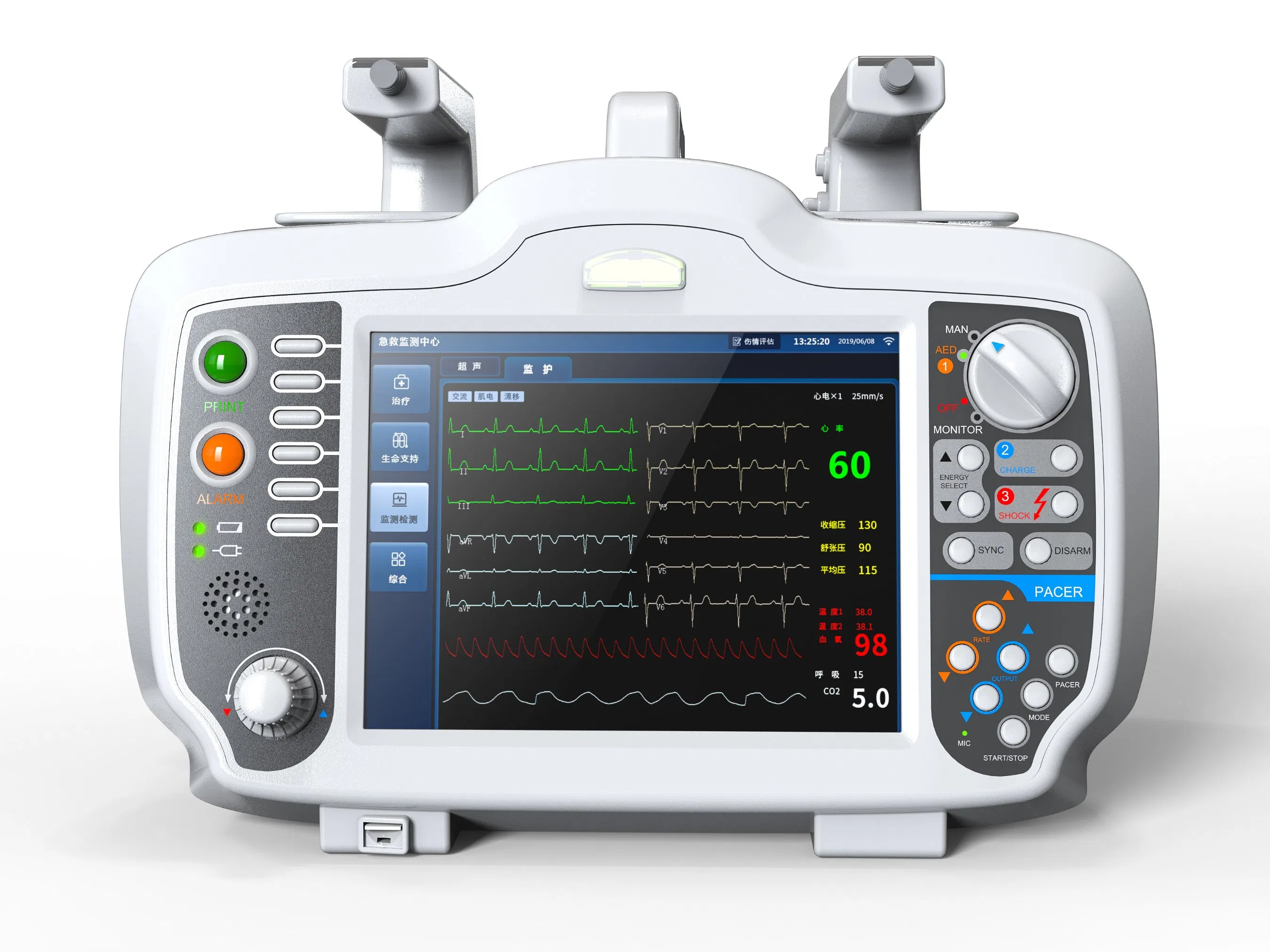

Interface display
Usage scenario
?

Frequently Asked Questions

Q1: What is the maximum energy level of the DM7000?
The DM7000 offers manual energy selection up to 360 Joules for advanced resuscitation needs.
Q2: How fast can the device charge for a shock?
The system charges to its maximum energy in less than 7 seconds using a new, fully charged battery.
Q3: Does the device support both AED and Manual modes?
Yes, it features both an automated AED mode with voice prompts and a full Manual mode for professional clinical use.
Q4: What parameters can the 8-inch screen monitor?
The high-resolution screen displays Heart Rate (HR), ECG leads, SpO2 levels, AED prompts, and delivered energy data.
Q5: What is the battery life during continuous monitoring?
A fully charged Ni-MH battery provides at least 3 hours of continuous ECG monitoring or up to 60 maximum energy discharges.
Q6: Are the rhythm prompts audible?
Yes, the device provides both visual screen prompts and clear voice instructions to guide the user during shockable rhythms.
