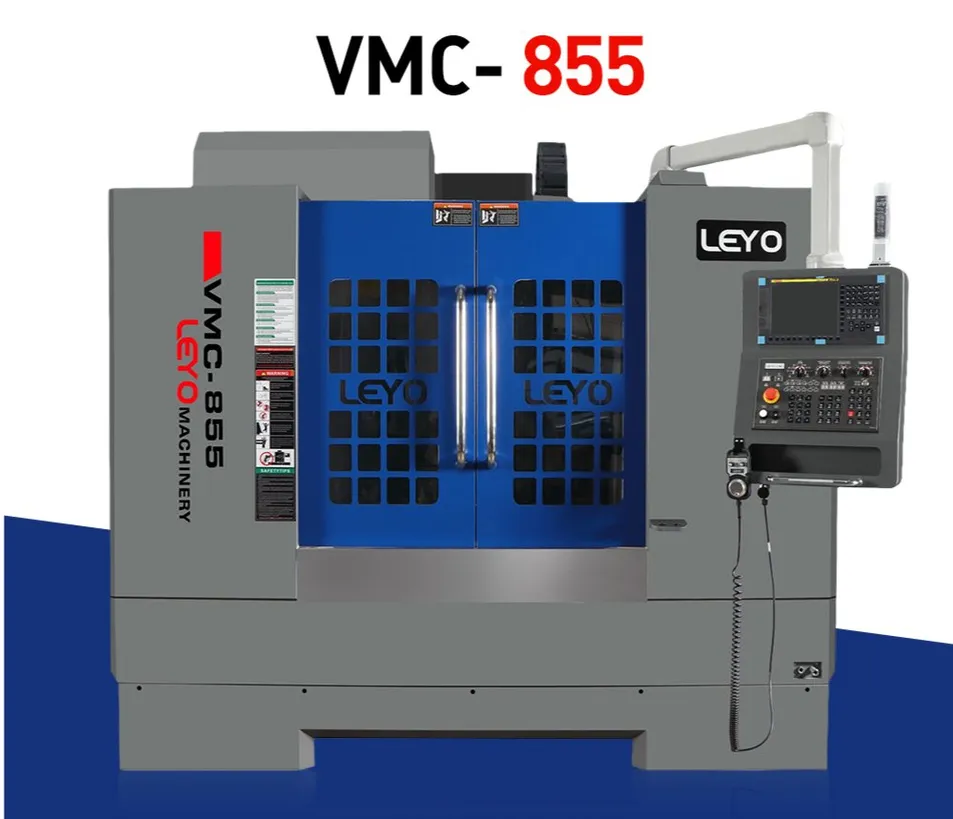

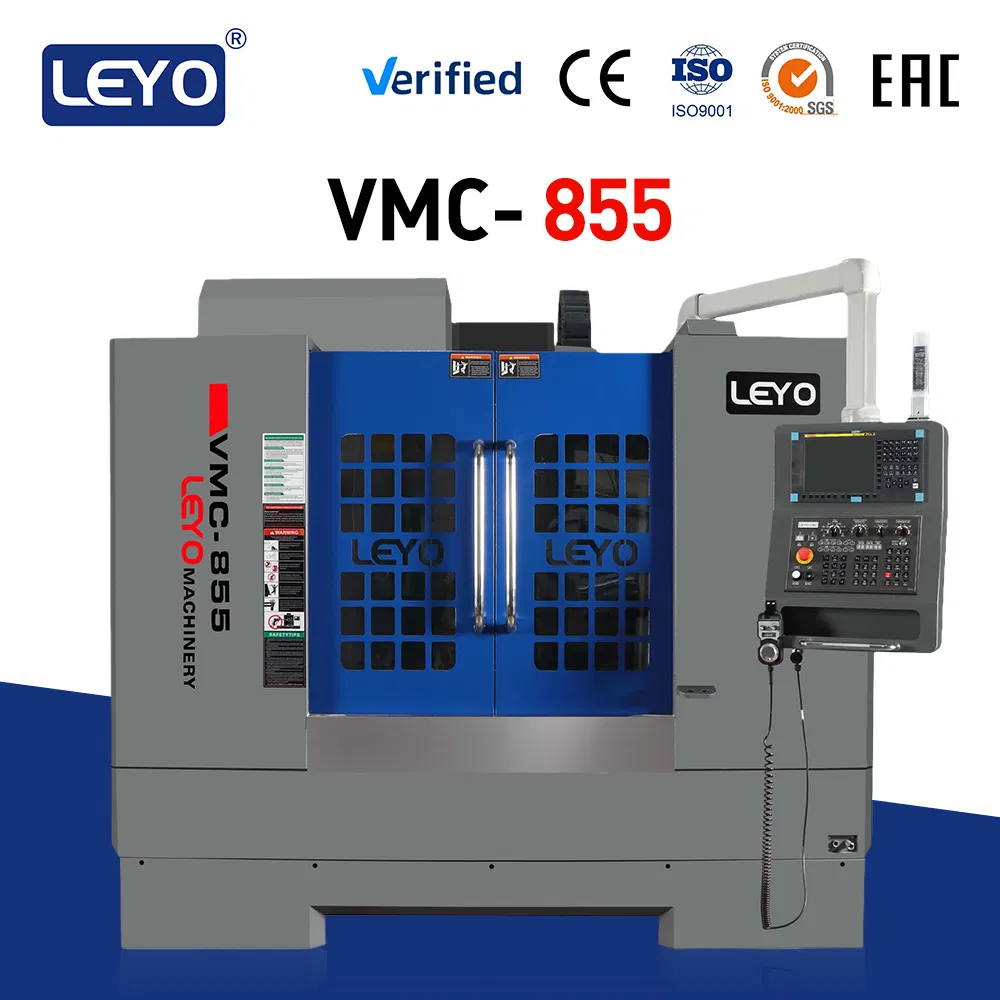

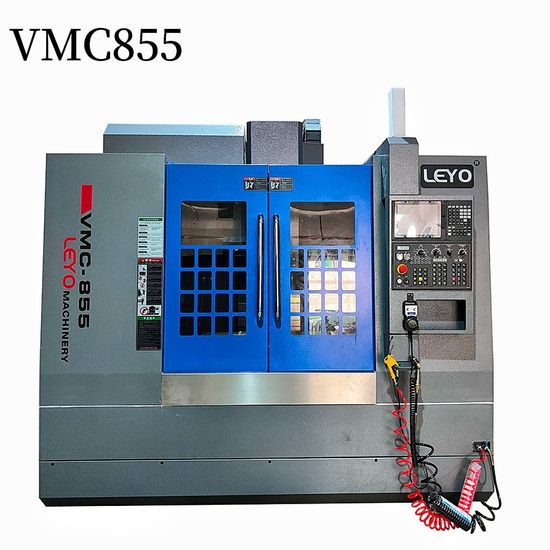

High Precision VMC 855 CNC Vertical Milling Machine
The VMC855 machining center emphasizes robustness with all key components like the base, column, and worktable saddle crafted from high-quality gray cast iron via advanced resin sand casting. The dense and uniform metallographic structure undergoes secondary artificial aging to eliminate internal stress, ensuring precision. The column’s bottom A-frame bridge structure integrates with a wide box-type base for stable support, effectively suppressing vibration during cutting for optimal surface finish and tool life.
🚀 Key Applications:
| Items | Unit | VMC650 | VMC850 | VMC855 | VMC1060 |
| X/Y/Z Travel | mm | 600/400/450 | 800/500/500 | 800/550/550 | 1000/600/600 |
| Rapid Speed | m/min | 48/48/48 | 48/48/48 | 48/48/48 | 36/36/36 |
| Table Size | mm | 700*420 | 1000*500 | 1000*550 | 1100*600 |
| Max Load | kg | 300 | 800 | 800 | 1000 |
| Spindle Speed | rpm | 12000+ | 8000/10000/12000/15000 | ||
1. Warranty: 13 months after B/L date. Free replacement parts for quality issues under normal operation.
2. Quick Response: Expert technical support available 24/7.
3. Online Support: Instant solutions via video and digital instruction.
