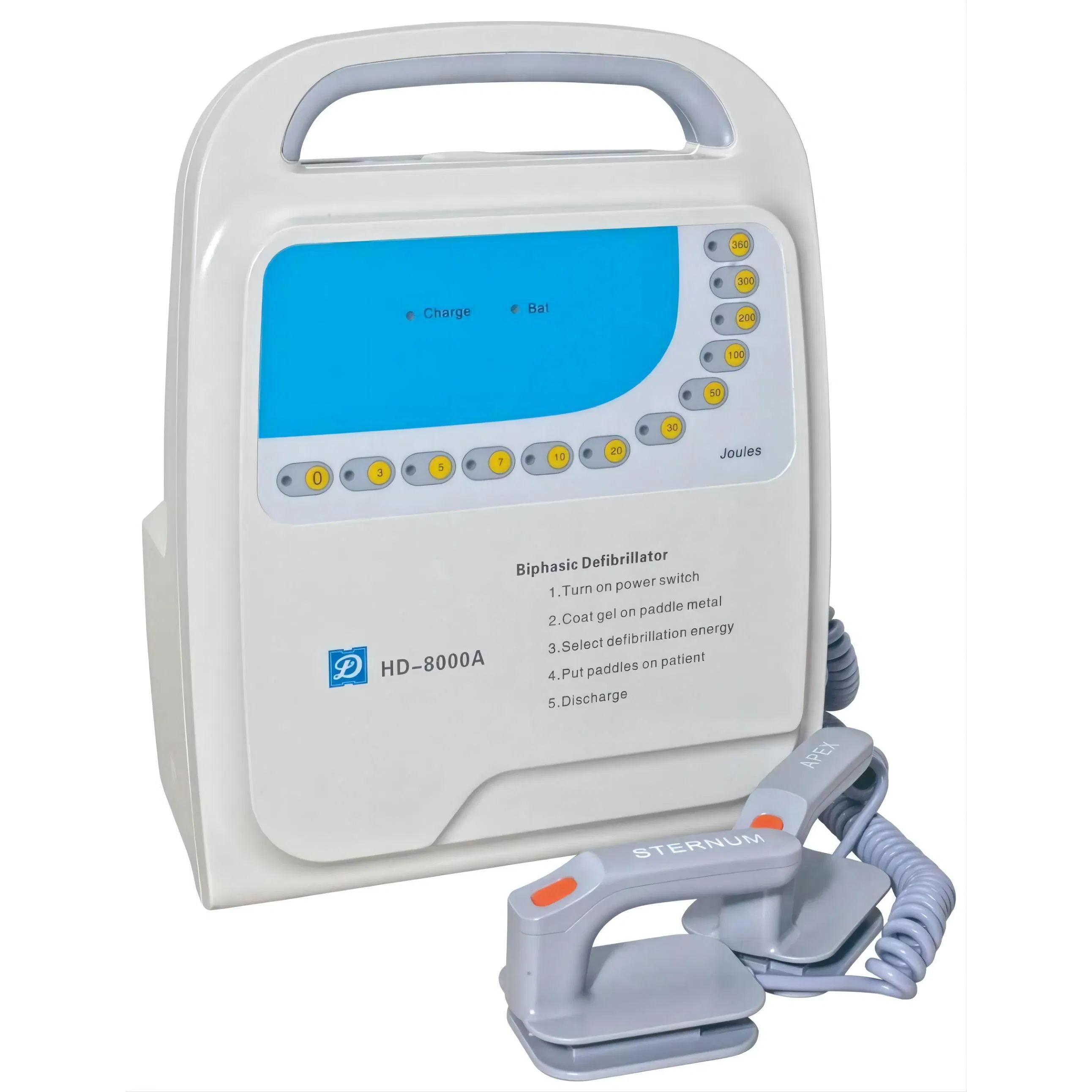

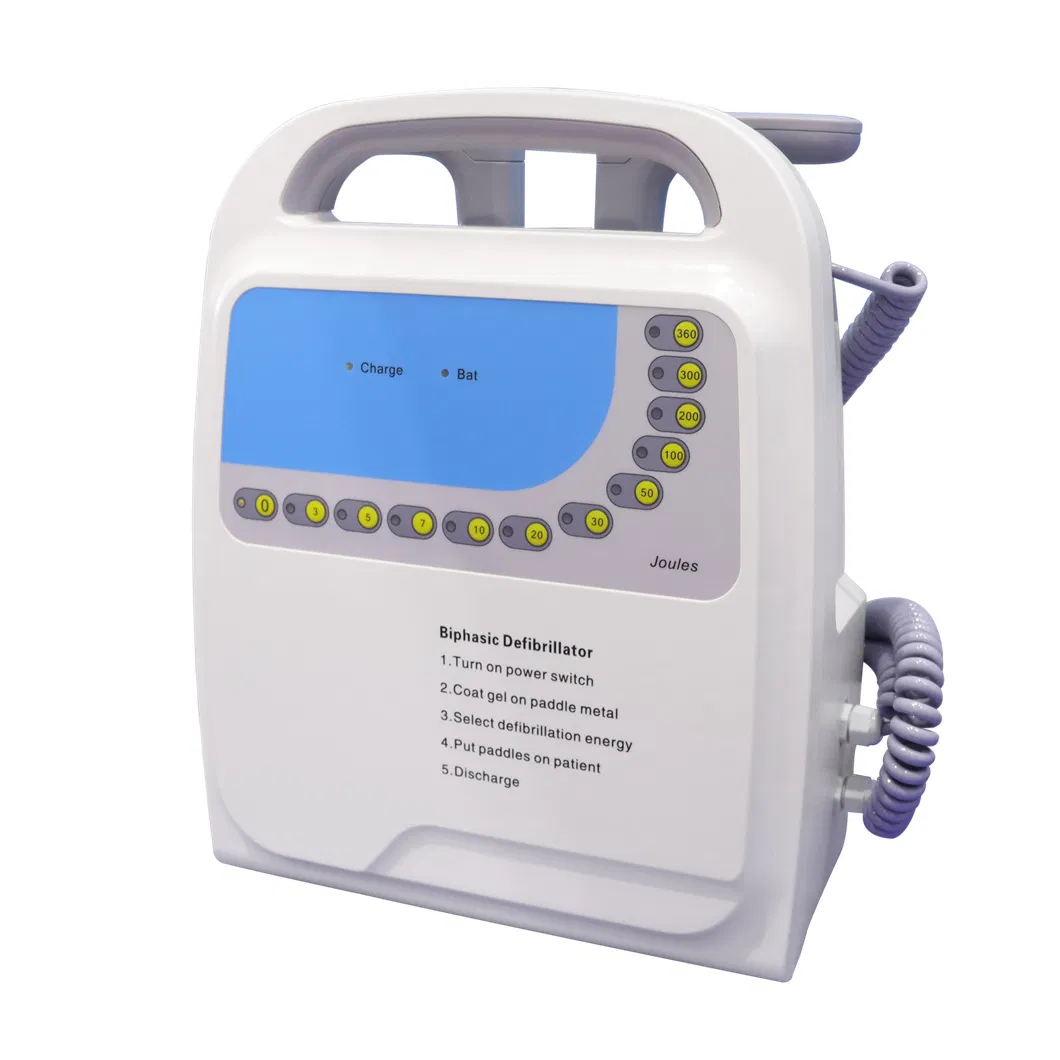

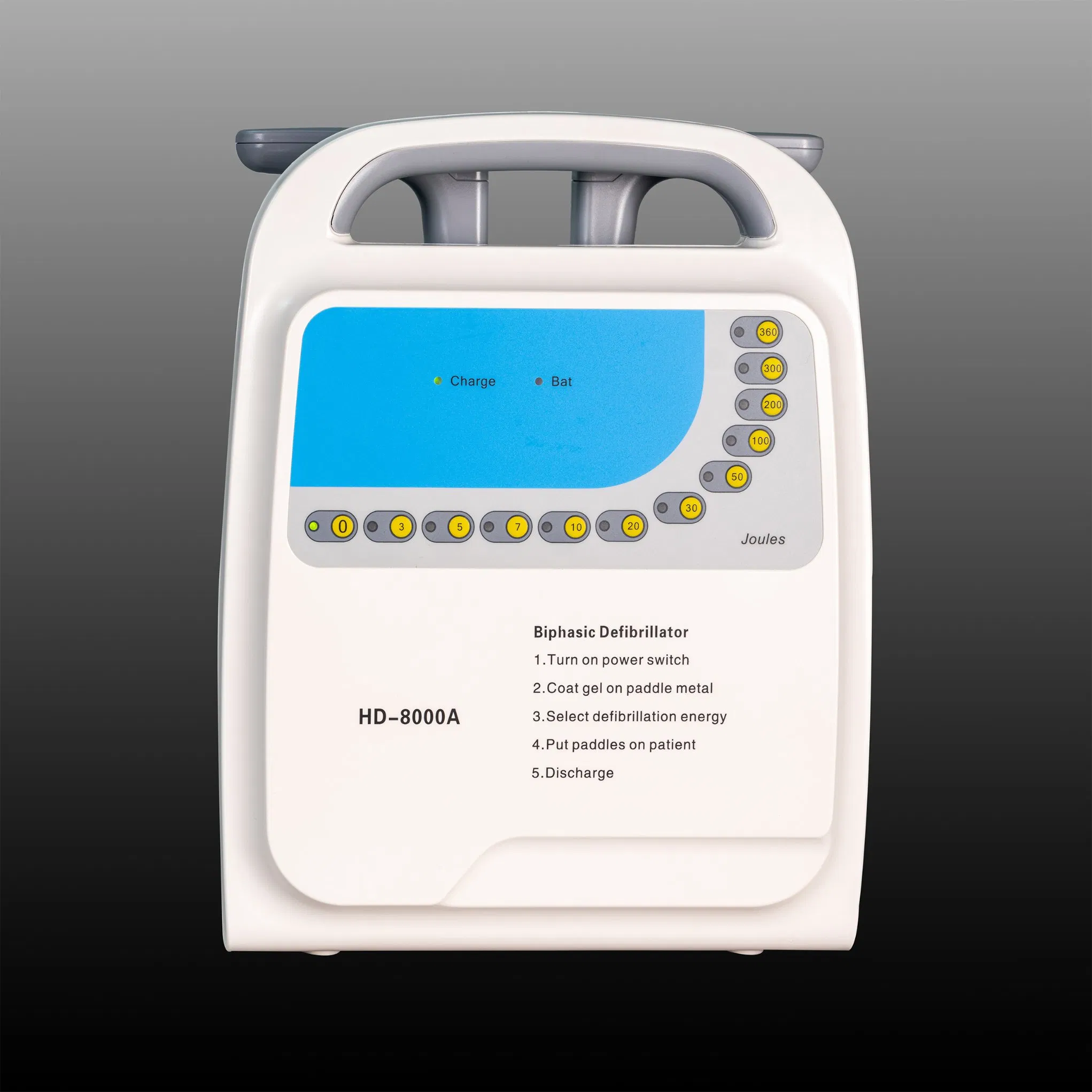

HD-8000A Biphasic Defibrillator Manual External Asynchronous Defibrillation Portable

1 / 5

HD-8000A Biphasic Defibrillator Manual External Asynchronous Defibrillation Portable

Customization:	Available
Material:	Metal, Plastic, Steel
Application:	Travel, Hospital, Vehicle, Factory, Office

Send Inquiry

Product Description

⭐ Overview - Basic Info

Model NO.

HD-8000A

Type

Defibrillator

Certification

CE, FDA, ISO13485

Defibrillator Type

Manual Synchronized Asynchronized

AC Power Supply

100V-240V 50Hz/60Hz

Feature

Reusable

📋 Product Description

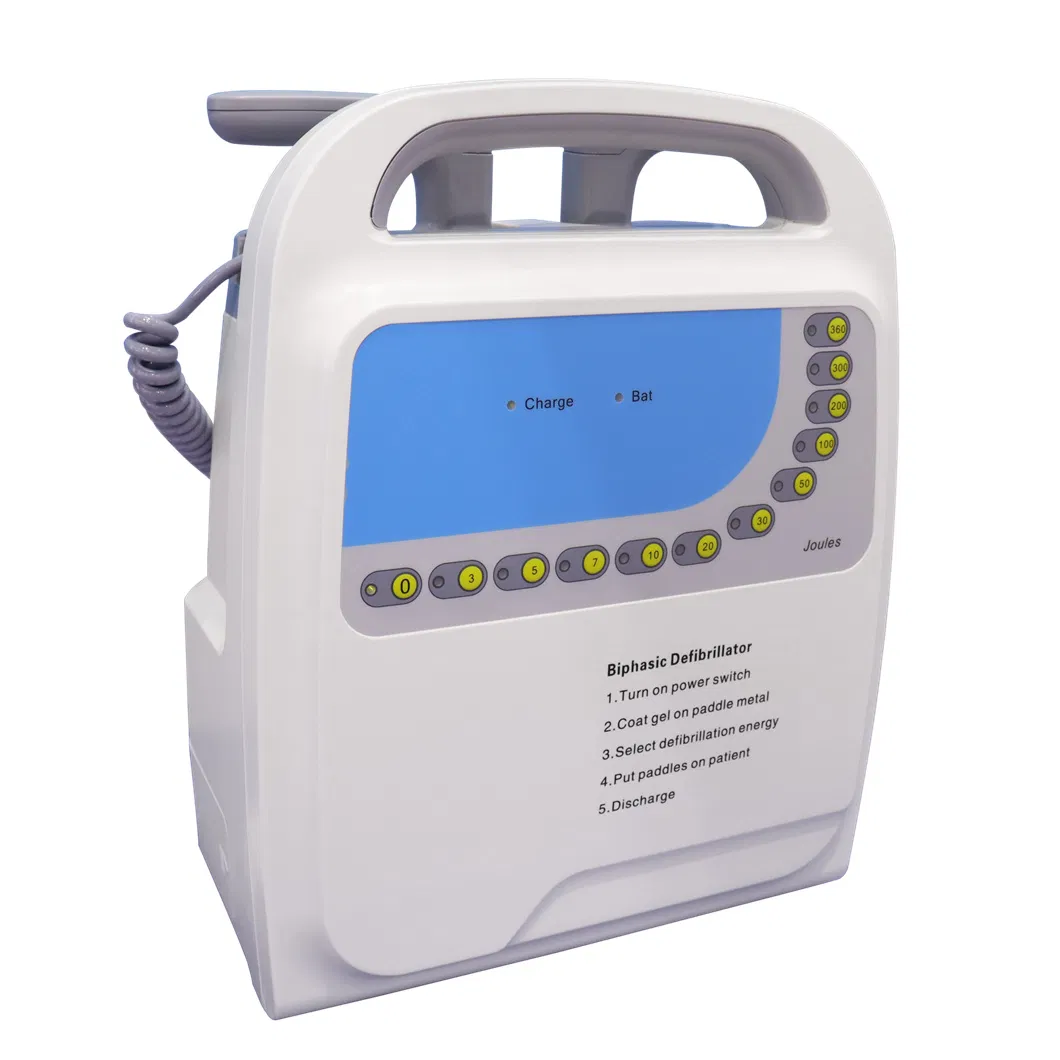

HD-8000A Biphasic Defibrillator

Automated External AED Portable Solution

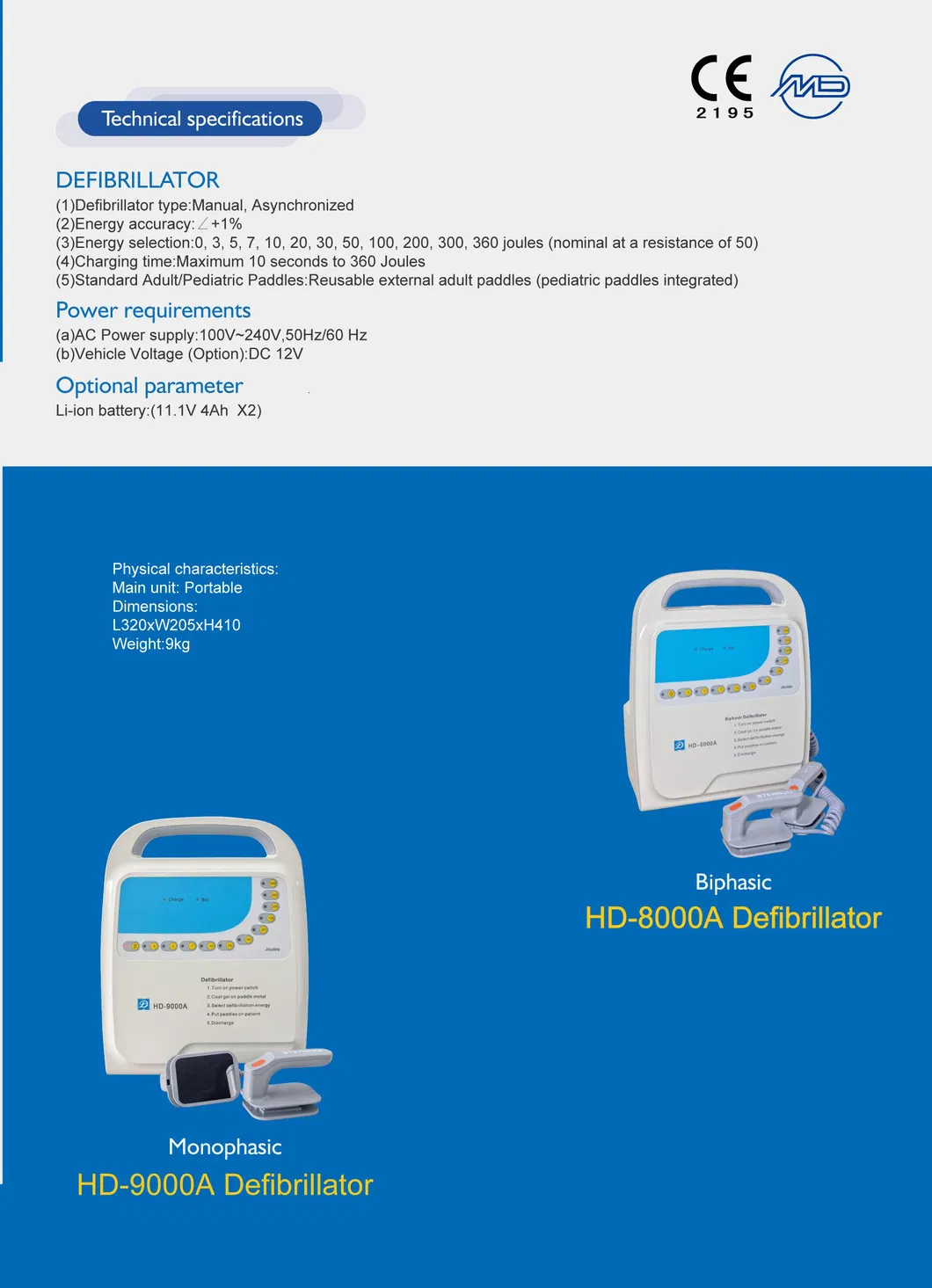

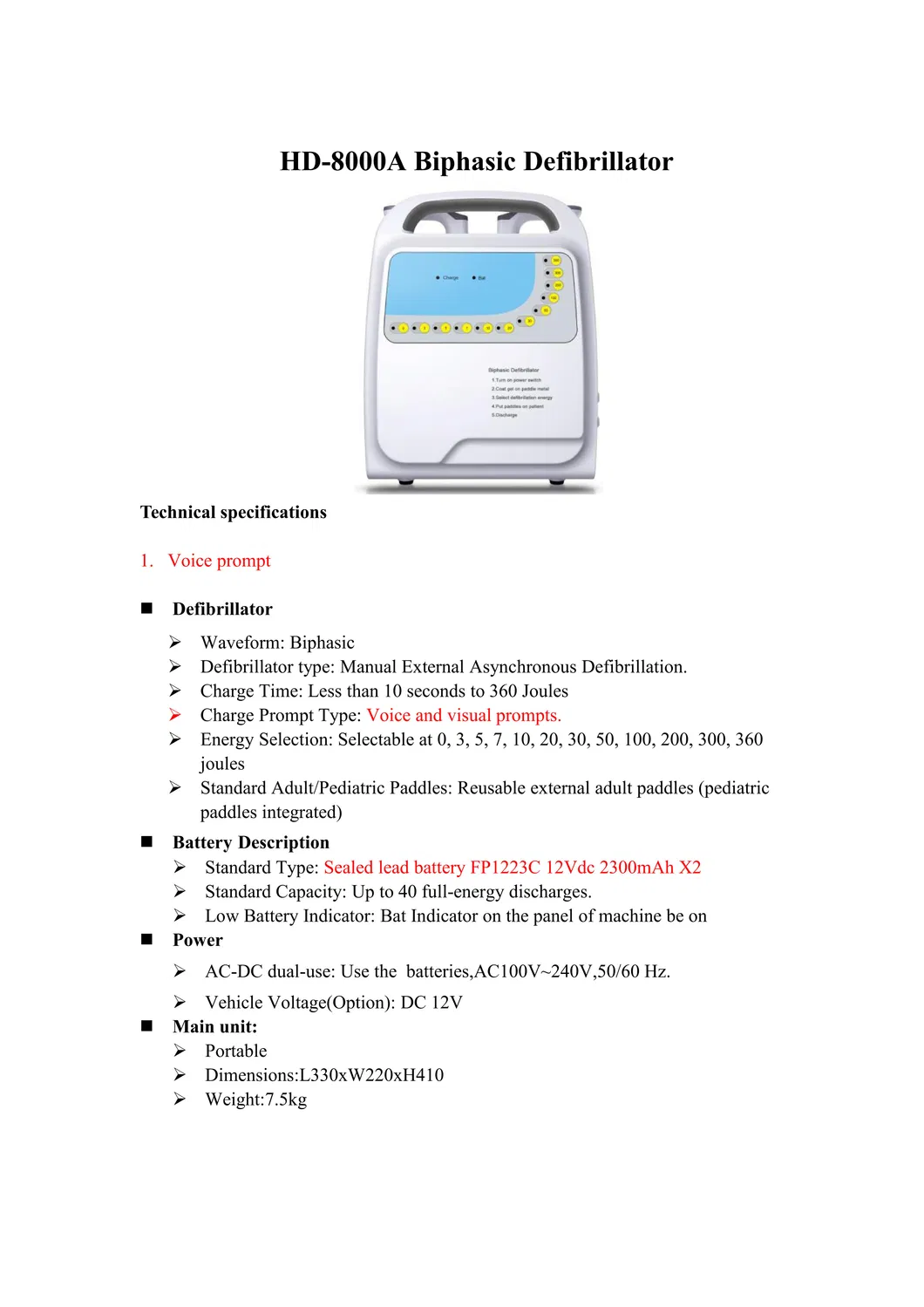

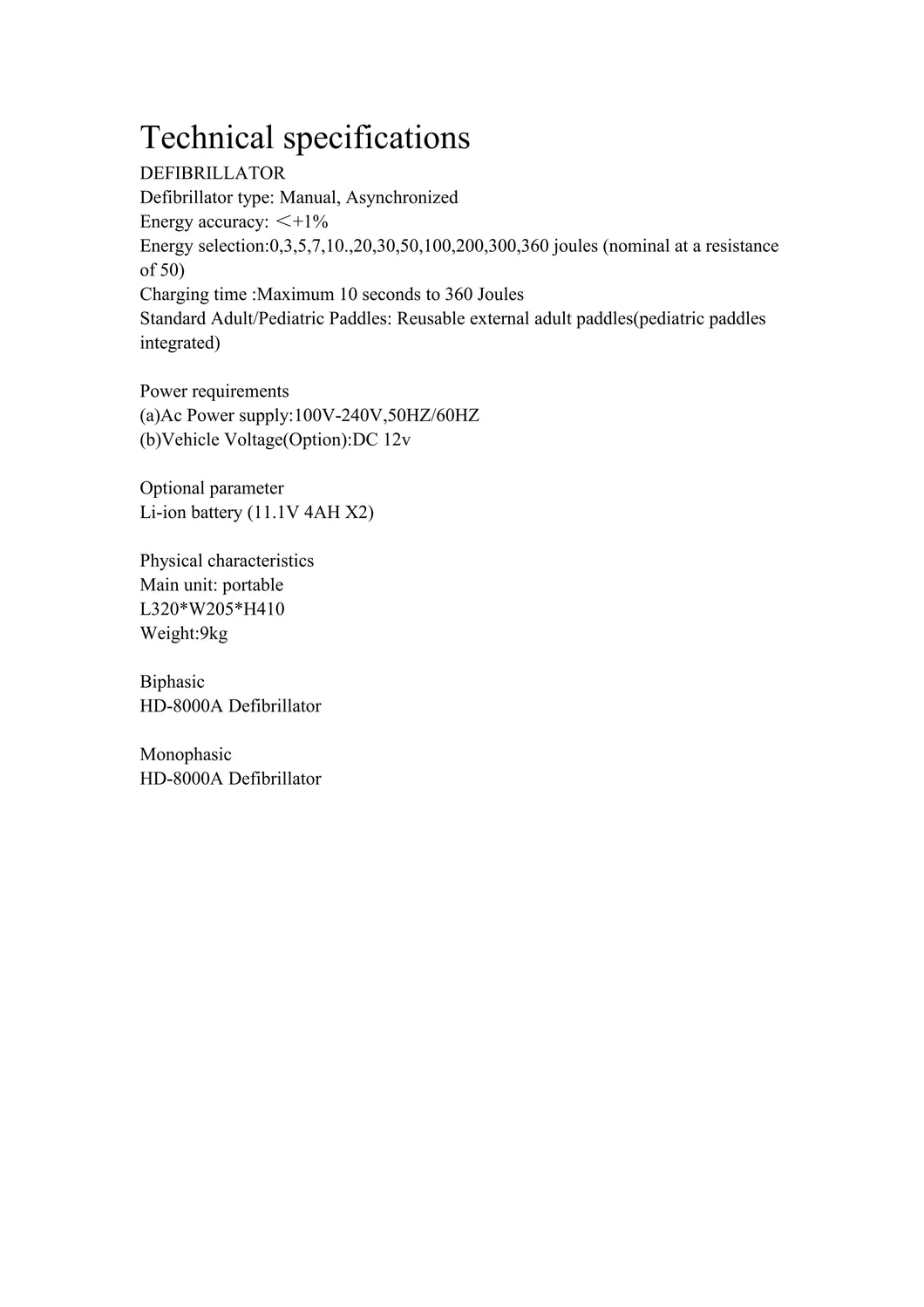

Technical Specifications
Defibrillator Type	Manual, Synchronized, Asynchronized
Charging Time	Maximum 10 Seconds To 360 Joules

DEFIBRILLATOR Details

Energy accuracy: <+1%
Energy selection: 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules
Standard paddles: Reusable external adult paddles (pediatric integrated)

Power & Battery

AC Power supply: 100v-240v, 50hz/60hz
Battery type: Rechargeable lead-acid battery (12v 2.0ah *2)
Capacity: 120-min monitoring or 35 discharges at 360 joules

Monitoring Parameters

Display: 7-inch high resolution true-color graphic (480*234)

ECG: I, II, III, AVR, AVL, AVF, V1-V6; S-T segment and Arrhythmia analysis

NIBP: Manual/Automatic/Stat modes; Adult/Pediatric/Neonatal support

SpO2: 0-99% range; Pulse range 0-255bpm

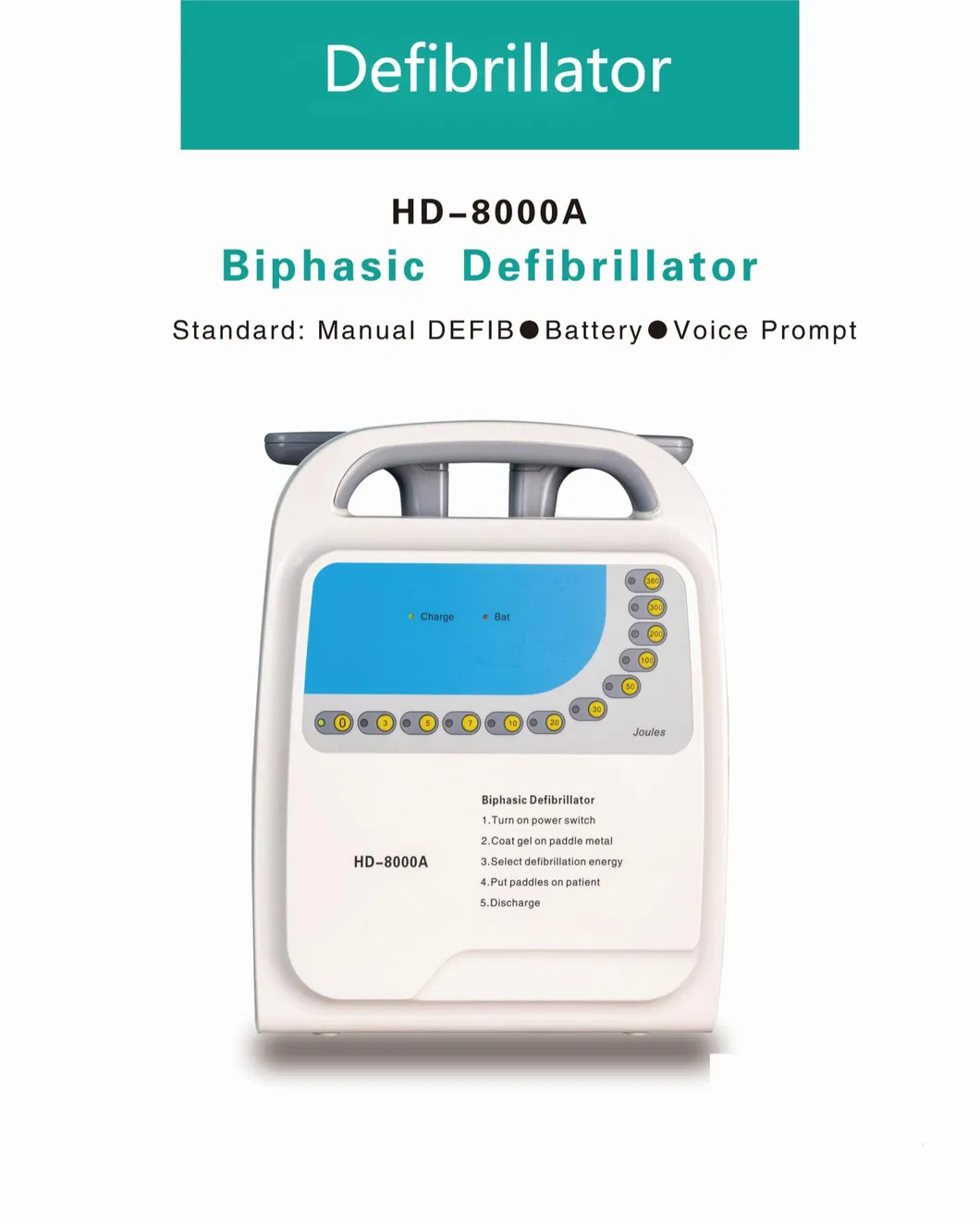

📸 Detailed Photos

⚙️ Specifications

🔄 Other Models

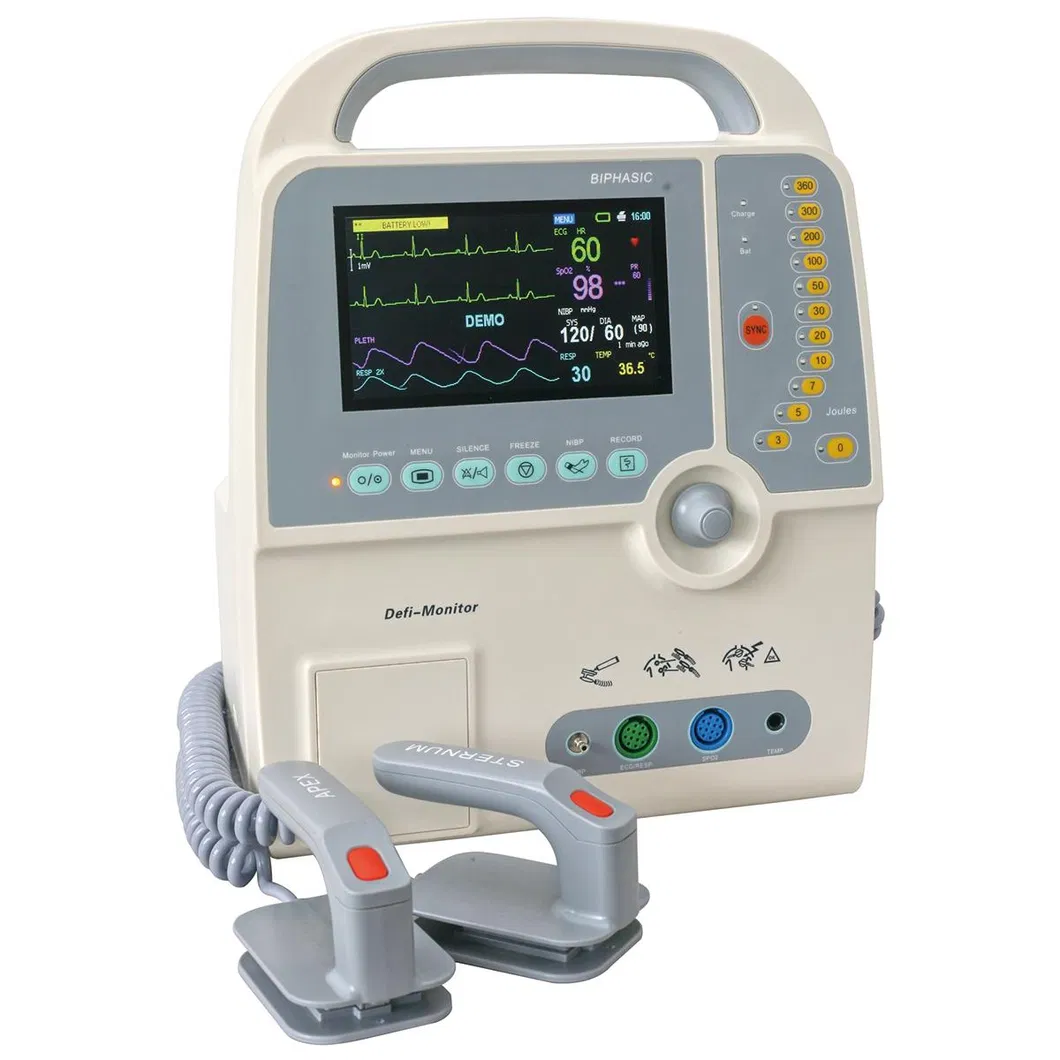

HD-8000C

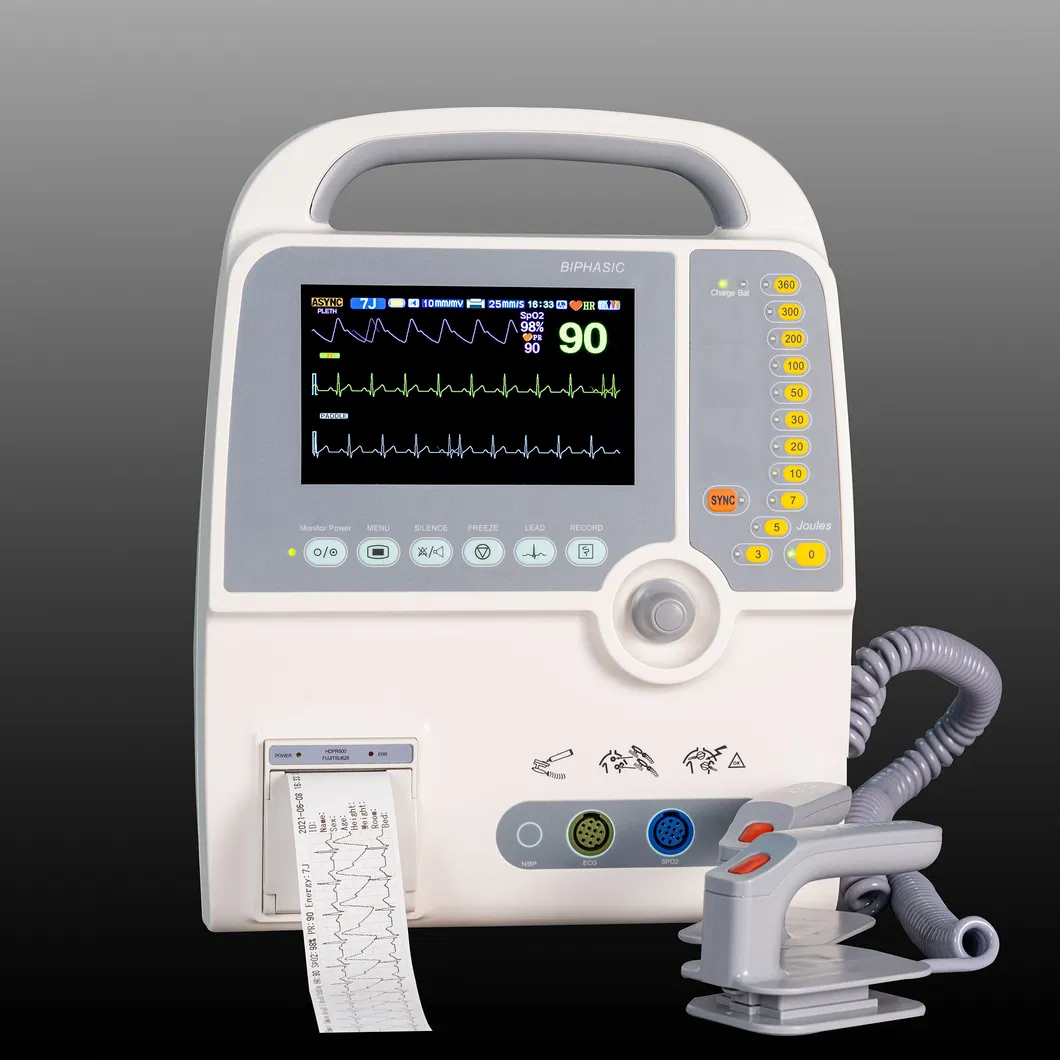

HD-8000D

Defi 5S

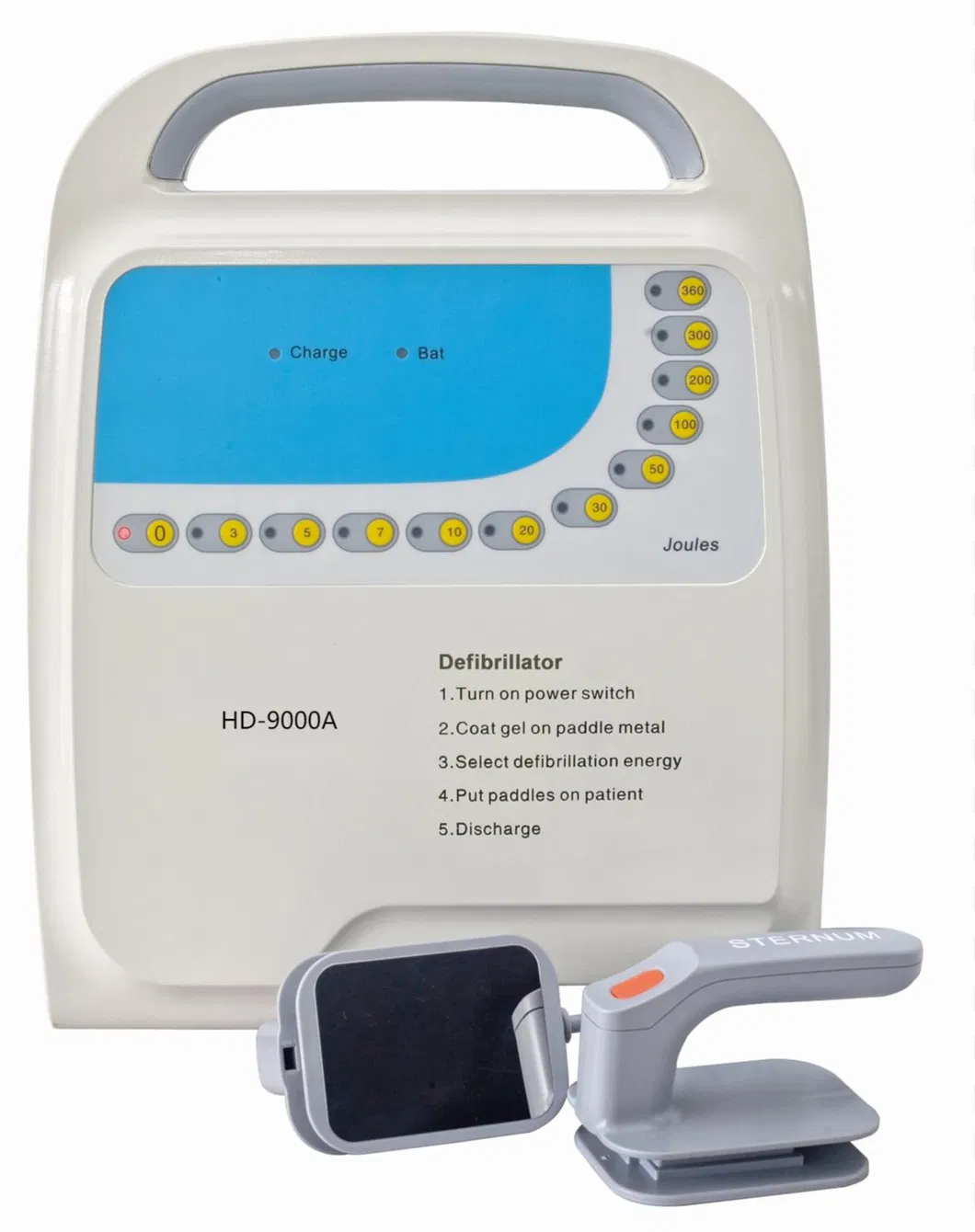

HD-9000A

👥 Customer Photos

❓ Frequently Asked Questions

1. What is the maximum energy level of the HD-8000A?

The device offers selectable energy levels up to a maximum of 360 Joules, which can be reached in less than 10 seconds.

2. Does it support both adult and pediatric patients?

Yes, it comes with standard reusable external adult paddles that have integrated pediatric paddles for versatile emergency use.

3. What monitoring parameters are included?

The standard configuration includes ECG, Respiration (RESP), SpO2, Temperature, Pulse Rate (PR), NIBP, and the Defibrillator function.

4. How long does the battery last?

A fully charged battery provides 120 minutes of continuous monitoring or up to 35 discharges at the maximum 360 Joules level.

5. Is the display clear for emergency situations?

Yes, it features a 7-inch high-resolution true-color graphic LCD screen with a resolution of 480*234 for clear data visualization.

6. Can this device be used in a vehicle?

The device supports standard AC power (100V-240V), and there is an option for DC 12V vehicle voltage support.
