Basic Information
Model NO.
GP-AED7000 Plus
Transport Package
Standard Export Cartons
Specification
225*200*85mm
Introduction
The GP-AED7000 plus features professional automatic defibrillation technology. It is a compact and convenient device that allows for manual adjustment of defibrillation energy and includes electrocardiogram (ECG) monitoring functions.
Core Features
◈
Intelligent Biphasic Technology
International mainstream energy models: 150J and 200J. Rapid identification of ECG abnormalities for efficient charge and discharge defibrillation.
◈

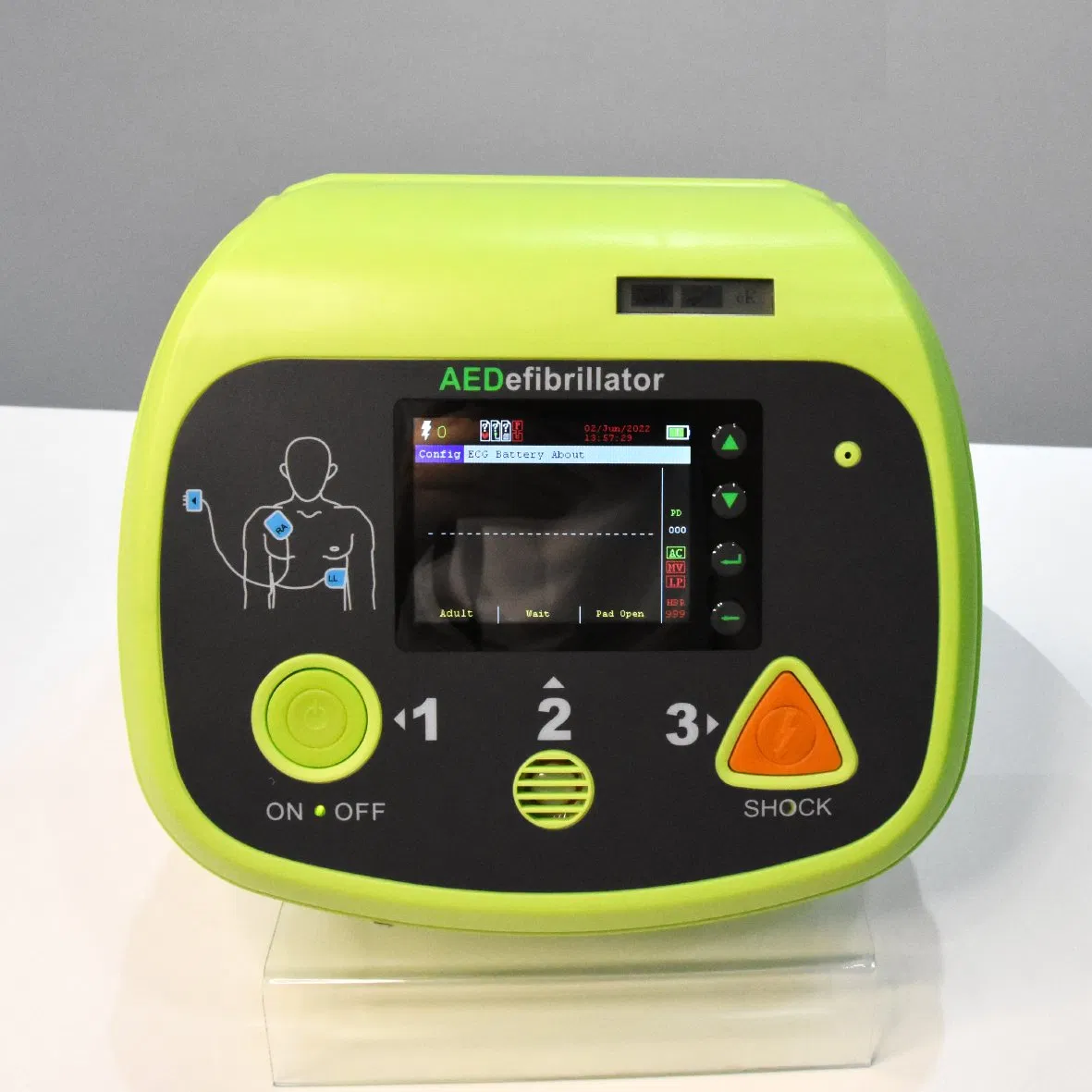

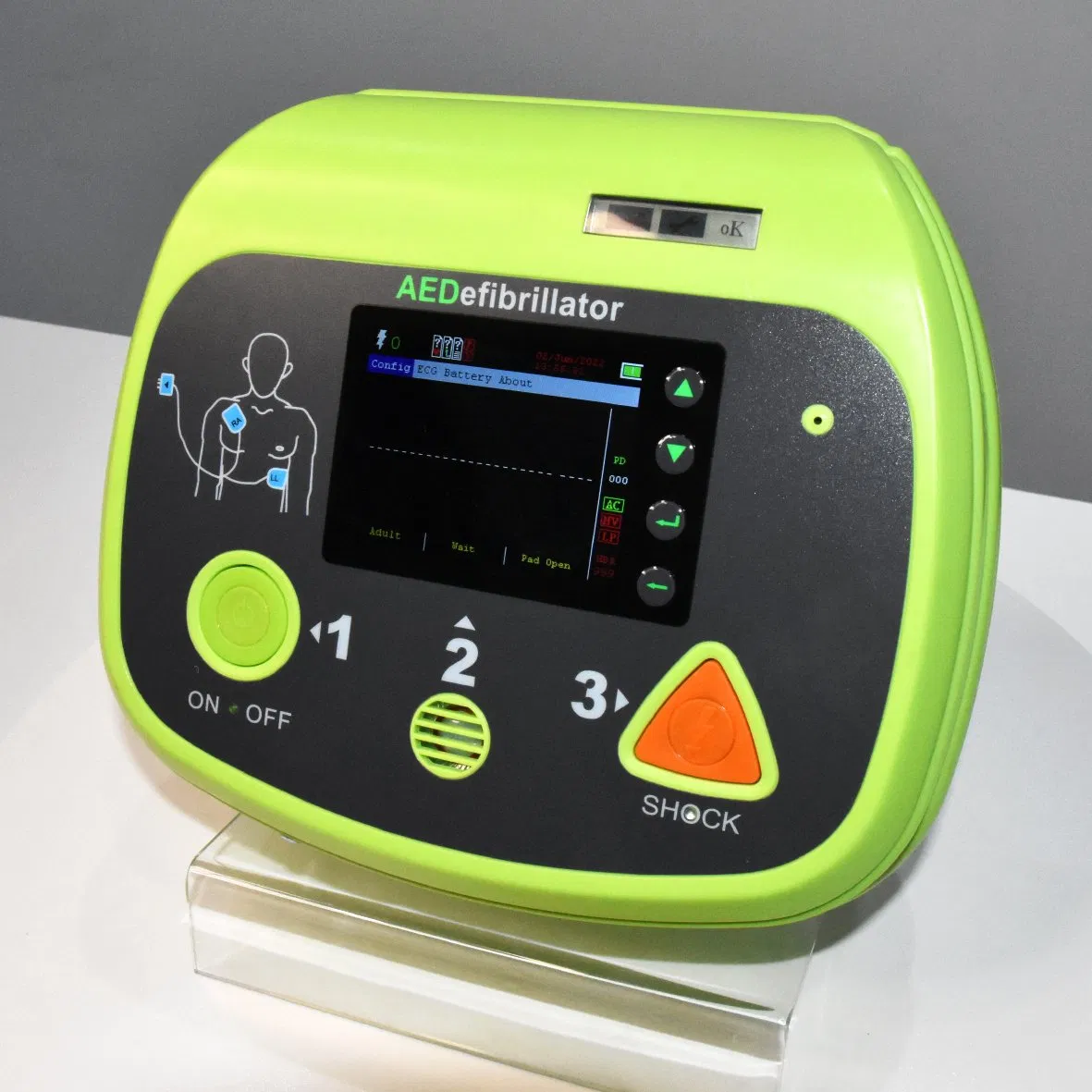

LCD Display Graphics Interaction
Displays ECG waveforms. Energy settings can be manually activated or automatically adjusted, offering versatility for professional medical staff.
◈
Sturdy and Durable Structure
Constructed with ABS plastic, rated IP55 for dust and water resistance. Built to withstand harsh environments.
◈
High Capacity Battery
Durable battery providing up to five years of standby life, significantly reducing long-term maintenance costs.
◈
Regular Self-Checks
Automatically monitors battery levels and performs system checks to ensure the AED is always ready for emergency use.
Technical Specifications
| Size |
225*200*85mm |
| Weight |
About 2.0kg |
| Working Humidity |
Temperature: 0°C~40°C; Relative humidity: 95% (non-condensing) |
| Current Risk Level |
Internal power supply BF type (GB9706.1/IEC60601-1) |
| Altitude & Pressure |
-91m to 4573m; 70kPa~106kPa |
| Power Supply |
Lithium Battery, 12V, 2800mAh |
Defibrillation Characteristics
| Waveform |
Biphasic |
| Energy Sequence |
Adult: (150, 150, 200) J |
| Charging Time |
Less than 8 seconds to maximum energy (with battery used < 15 times) |

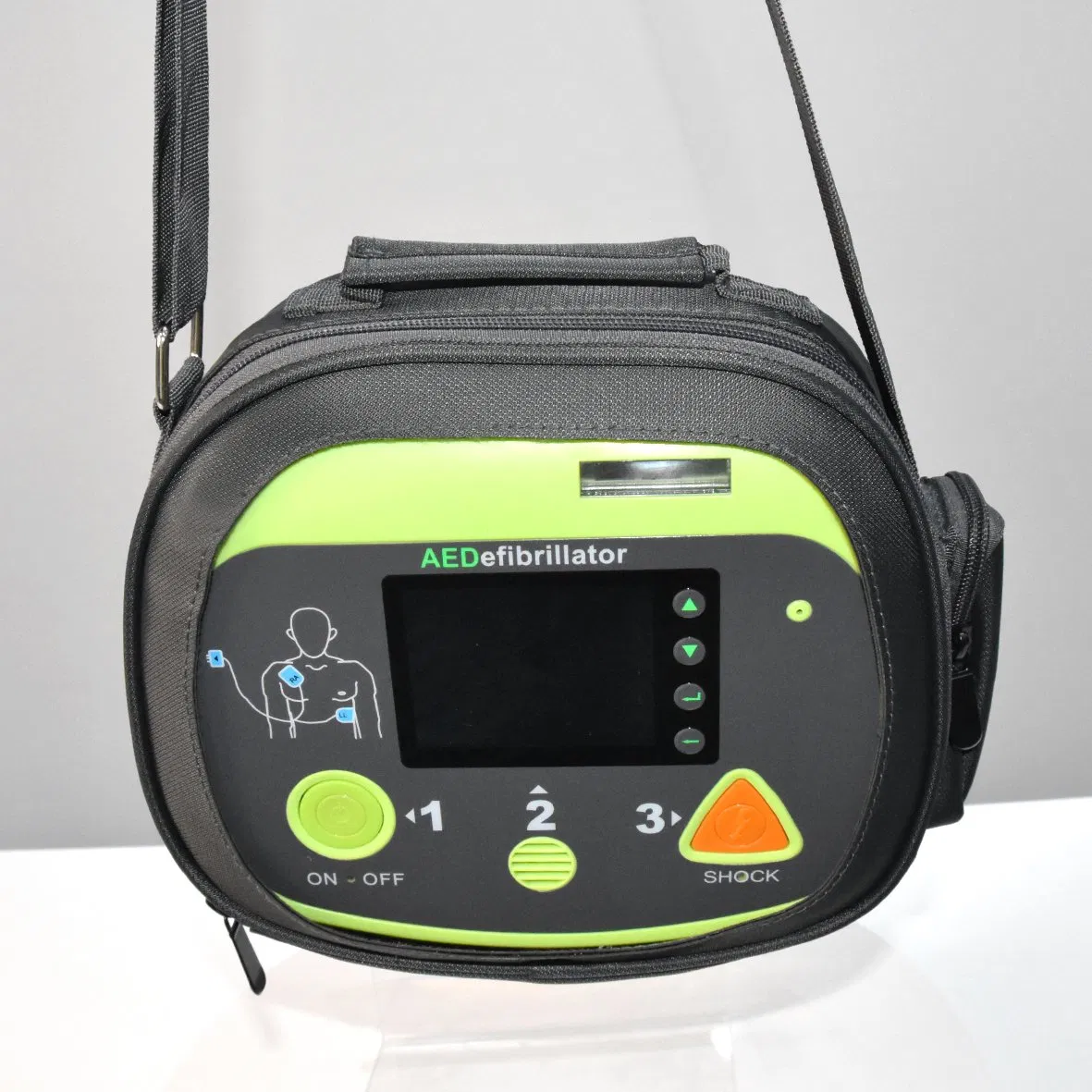

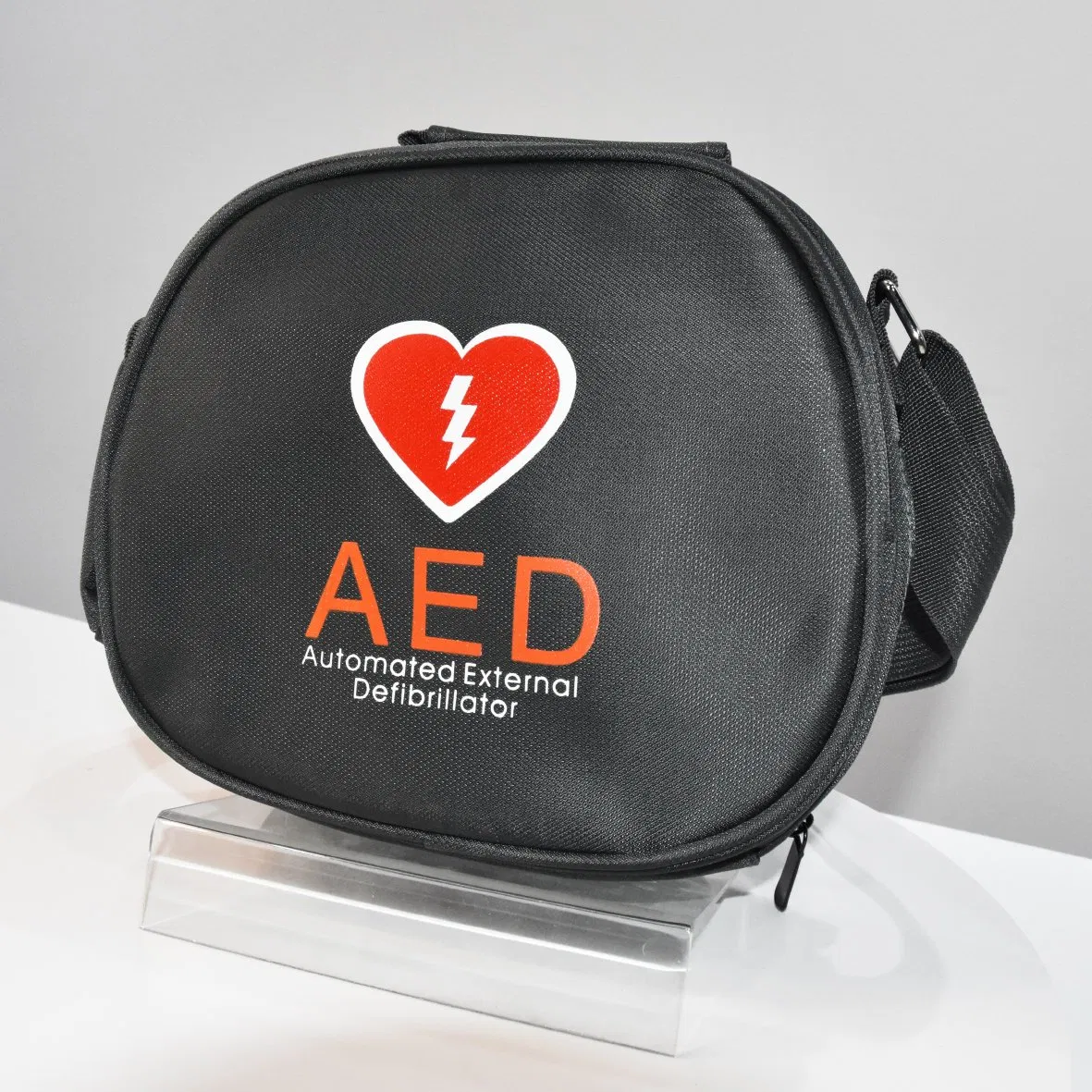

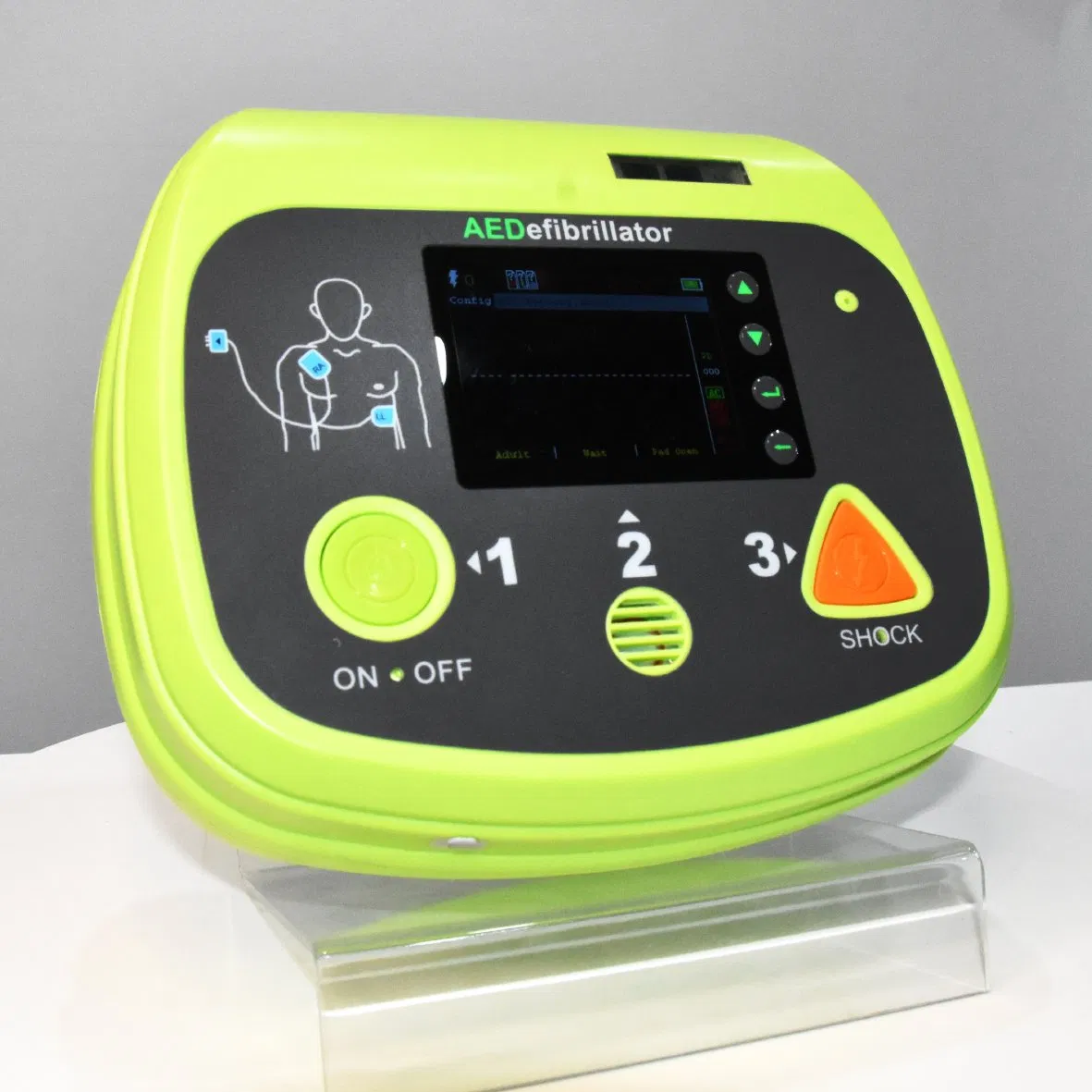

Product Presentation
Frequently Asked Questions
What is the standby life of the GP-AED7000 Plus battery?
The high-capacity lithium battery is designed for a strong standby life of up to five years, minimizing maintenance requirements.
Is this device suitable for outdoor or harsh environments?
Yes, the device is made of sturdy ABS plastic and has an IP55 rating, making it dustproof and waterproof for various challenging conditions.
How fast can the device charge for defibrillation?
The GP-AED7000 Plus can reach maximum charging energy in less than 8 seconds when the battery has been used fewer than 15 times.
Can doctors manually adjust the energy levels?
Yes, the LCD graphics interface allows for manual energy activation or automatic adjustment, providing flexibility for professional medical use.
What type of waveform technology does it use?
The device utilizes intelligent Biphasic technology, which is the international mainstream standard for heart protection during defibrillation.
Does the device perform self-maintenance checks?
Yes, it performs regular system self-checks and monitors battery levels automatically to ensure it is always ready for emergency use.
