Medical Instruments Automated External Defibrillator Factory Biphasic Portable Defibrillator

1 / 5

Medical Instruments Automated External Defibrillator Factory Biphasic Portable Defibrillator

Customization:	Available
Certification:	CE, FDA
Group:	Adult Pediatric

Send Inquiry

Product Description

Basic Specifications

Model NO. DM7000

Transport Package Carton

Trademark POWEAM

Origin China

Production Capacity 500PCS/Month

Product Description

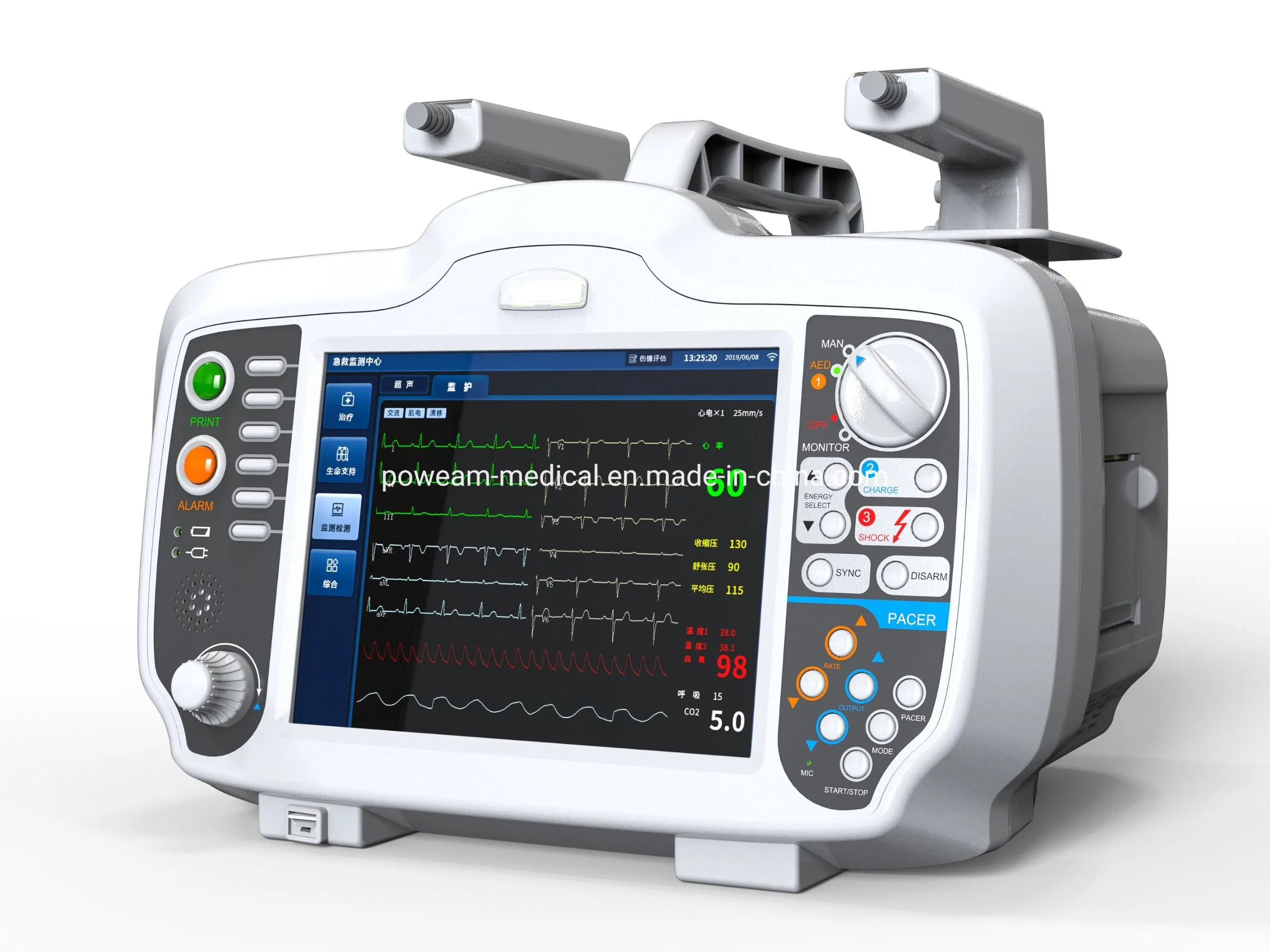

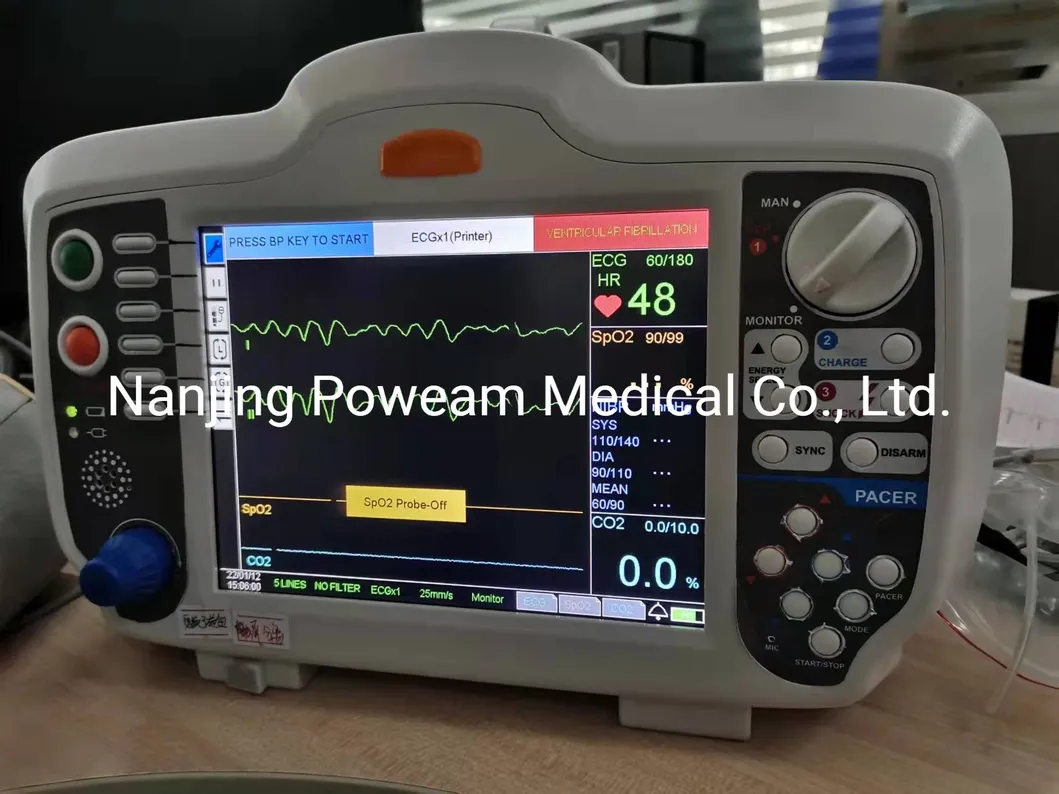

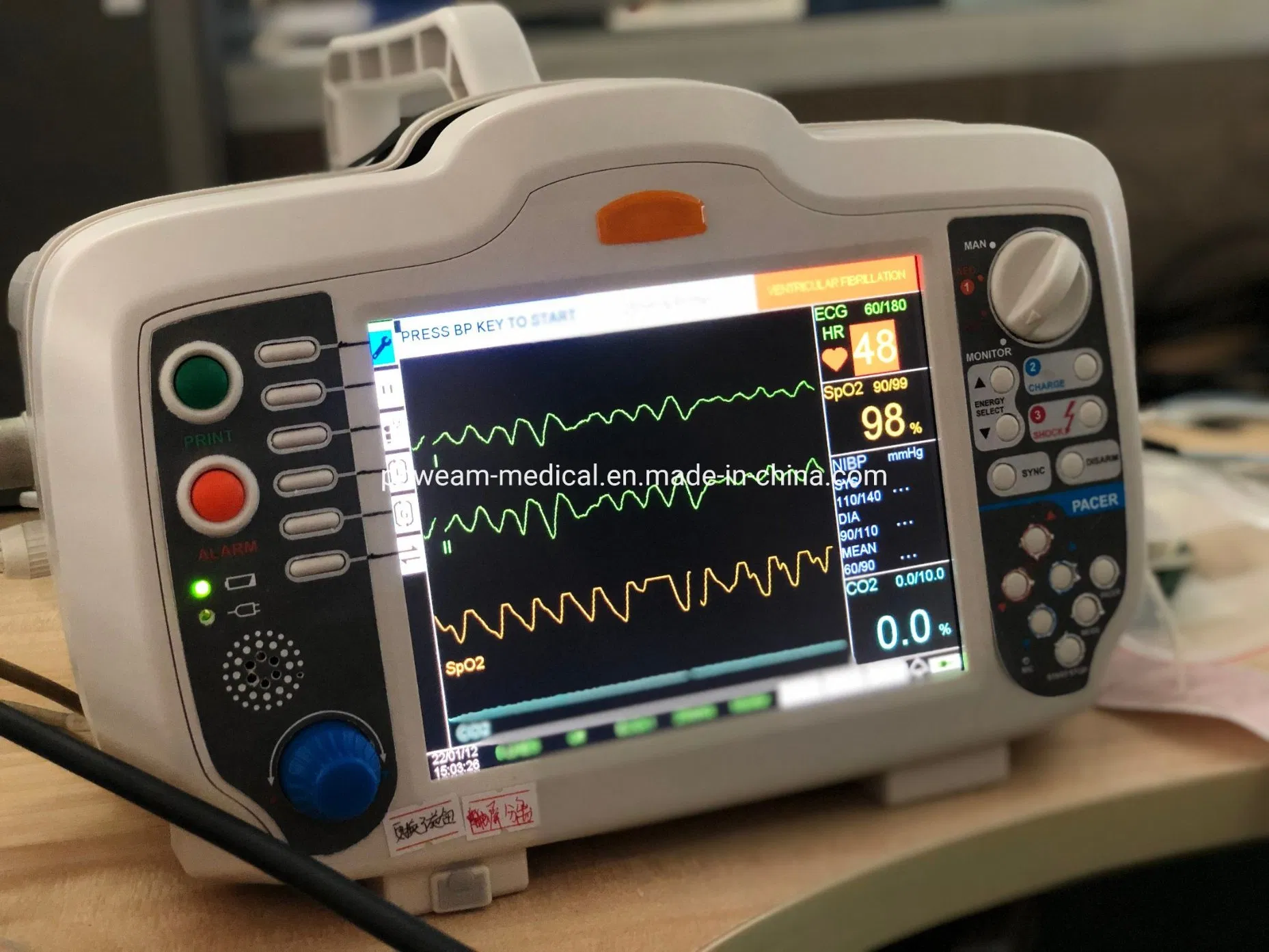

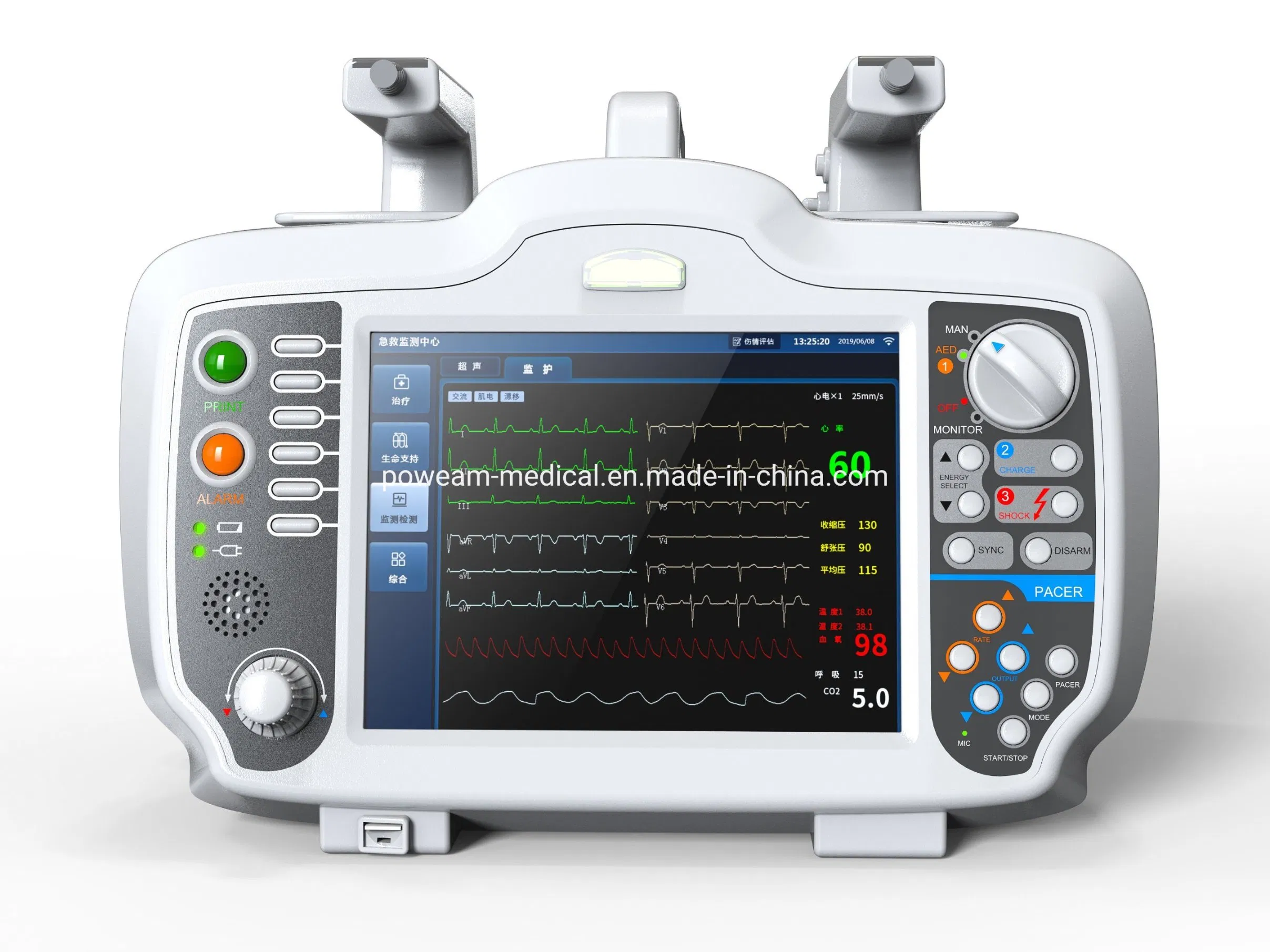

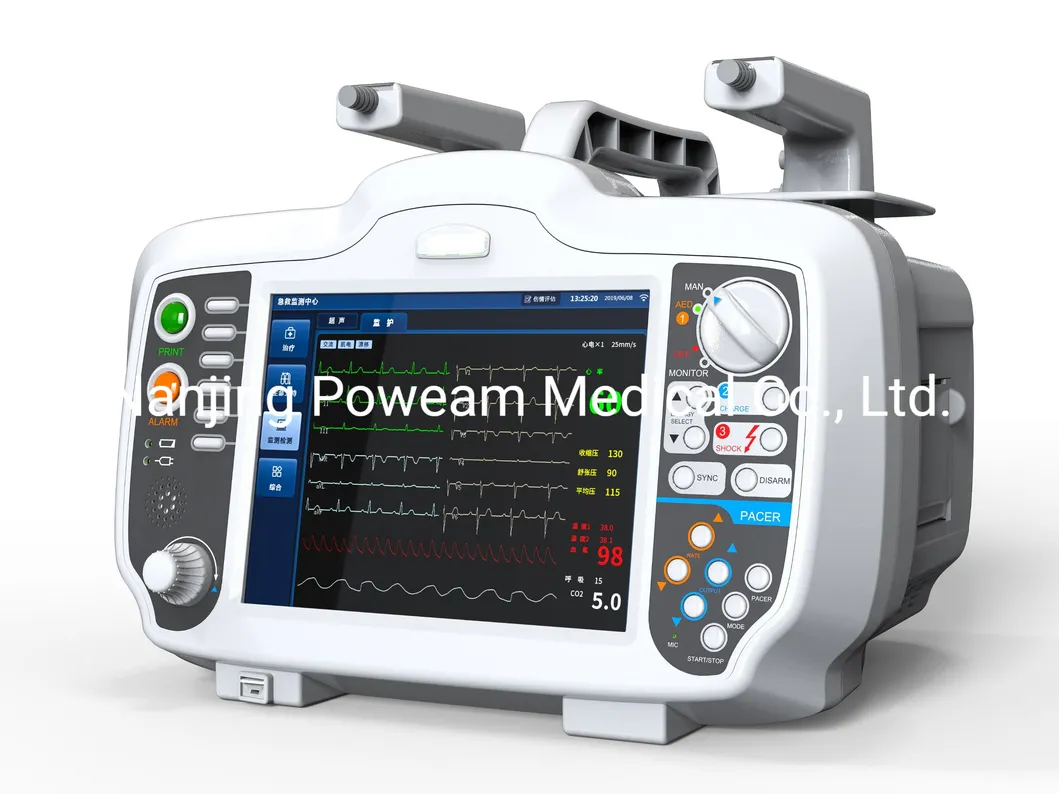

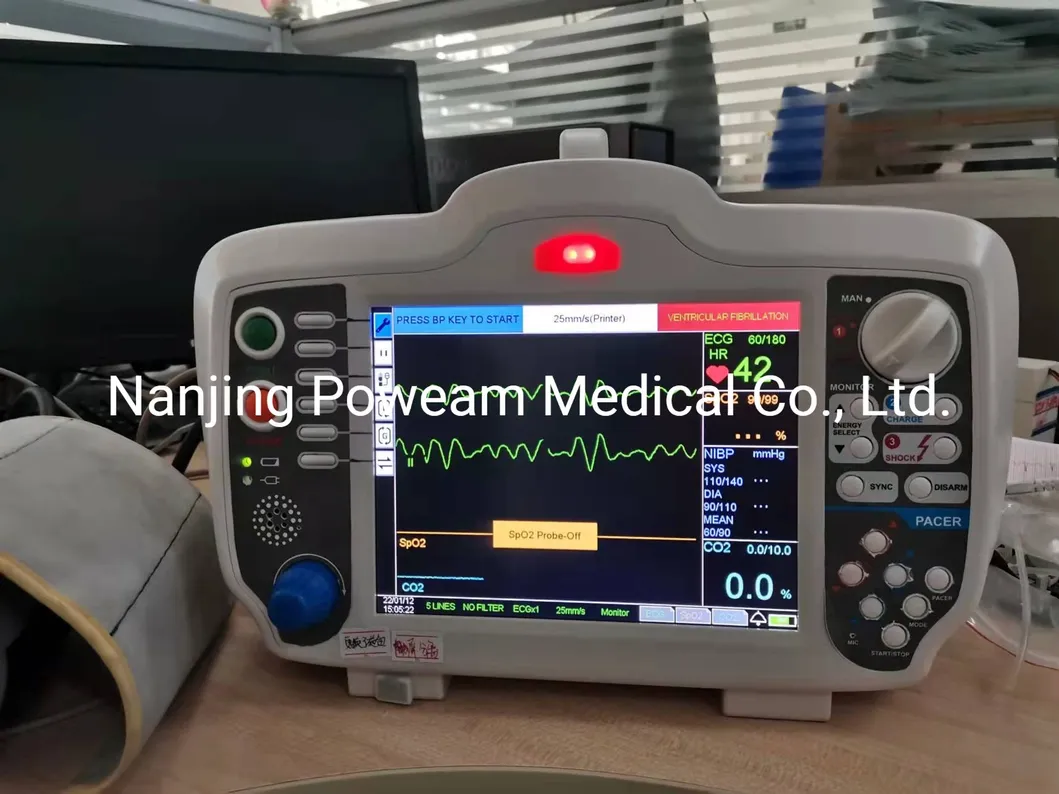

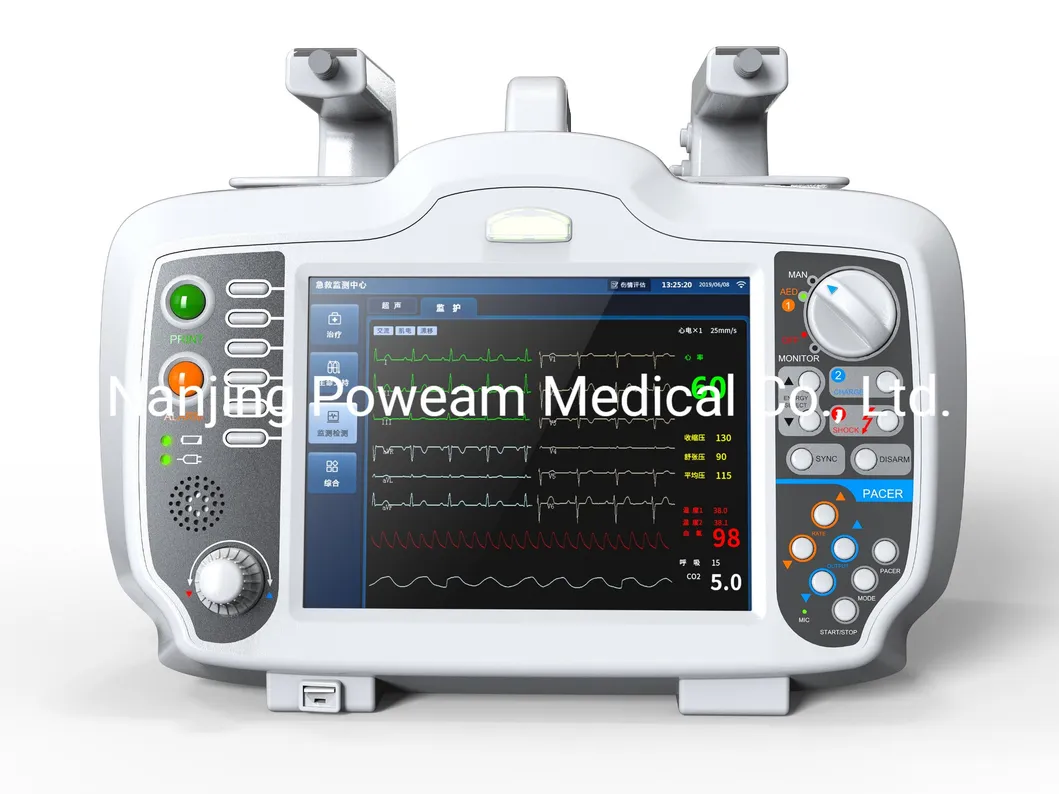

Hot Sale Automatic External Defibrillator Monitor ( DM7000 )

The DM7000 AED biphasic defibrillator monitor is designed to meet all clinical requirements, ranging from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).

DISPLAY

Type: 8 inch high resolution LCD display
Sweep Speed: 25mm/sec
Information: HR, Lead/Pads, On/Off Alarm, SpO2, AED Functions and Prompts, Alarm Selection and Limits, Delivered Energy.

DEFIBRILLATOR

Waveform: Biphasic
Charge Time: Less than 7 seconds with a new fully charged battery.
Energy Display: Monitor indicates both selected and delivered energy.
Charge Prompt: Voice and visual prompts.
Electrode Impedance: 0-250 ohms.

ECG MONITORING

Connection: 5-lead or 3-lead ECG cable, paddles.
Lead Selection: I, II, III, AVR, AVL, AVF, V.
Heart Rate: 20-300 BPM with User-selectable Alarms.
Smart Alarms: Beeper/voice prompts indicate shockable rhythm.

AED MODE

Function: Auto analyze and charge X3 with programmable auto energy level selection.
Shockable Rhythms: Ventricular fibrillation (>=200UV), ventricular tachycardia (>=140bpm), and QRS complex wave duration (>=140ms).

RECORDER & BATTERY

Recorder: 50mm high-resolution thermal printer. Manual or automatic modes.
Battery: Rechargeable Ni-MH 12V. Provides 60 discharges at max energy or 3 hours of continuous ECG monitoring.

Standard Configuration: AED, MANUAL, ECG

Optional Modules: SPO2 / NIBP / CO2 / Touch Screen

Available Colors: Blue, Grey, White

Frequently Asked Questions

What is the charging time for the DM7000?

The DM7000 charges to maximum energy in less than 7 seconds when using a new, fully charged battery.

Does the device support both AED and Manual modes?

Yes, the standard assembly includes both AED and Manual modes, along with ECG monitoring capabilities.

How long does the battery last during continuous use?

A fully charged battery supports at least 60 discharges at maximum energy or a minimum of 3 hours of continuous ECG monitoring.

What energy levels can be selected in manual mode?

In manual mode, users can select energy levels of 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, and 360 joules.

Is synchronized defibrillation available?

Yes, the device features a Synchronized Mode that synchronizes the defibrillator pulse with the patient's R-wave, displaying a "SYNC" message on the monitor.

Can I add optional features like NIBP or CO2?

Yes, SPO2, NIBP, CO2, and a touch screen are available as optional modules for the DM7000 monitor.
