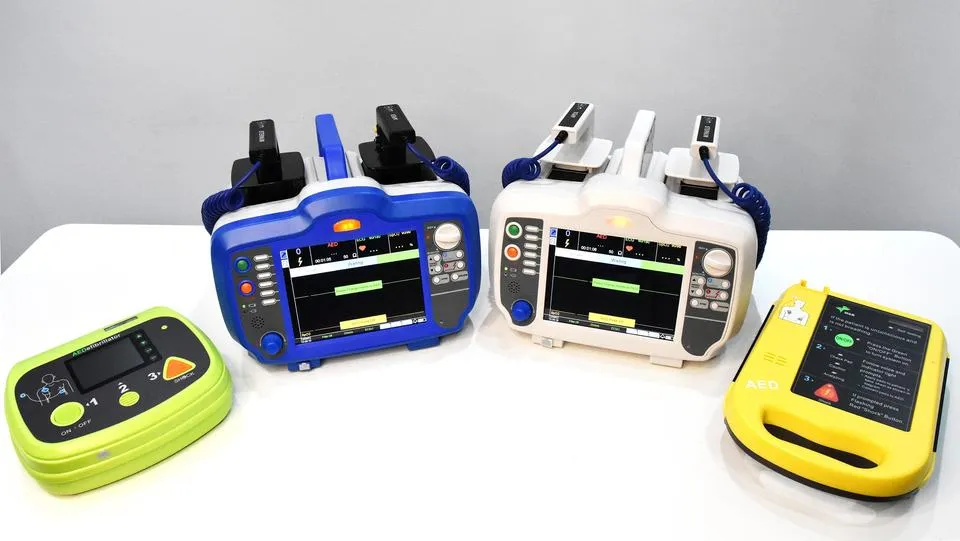

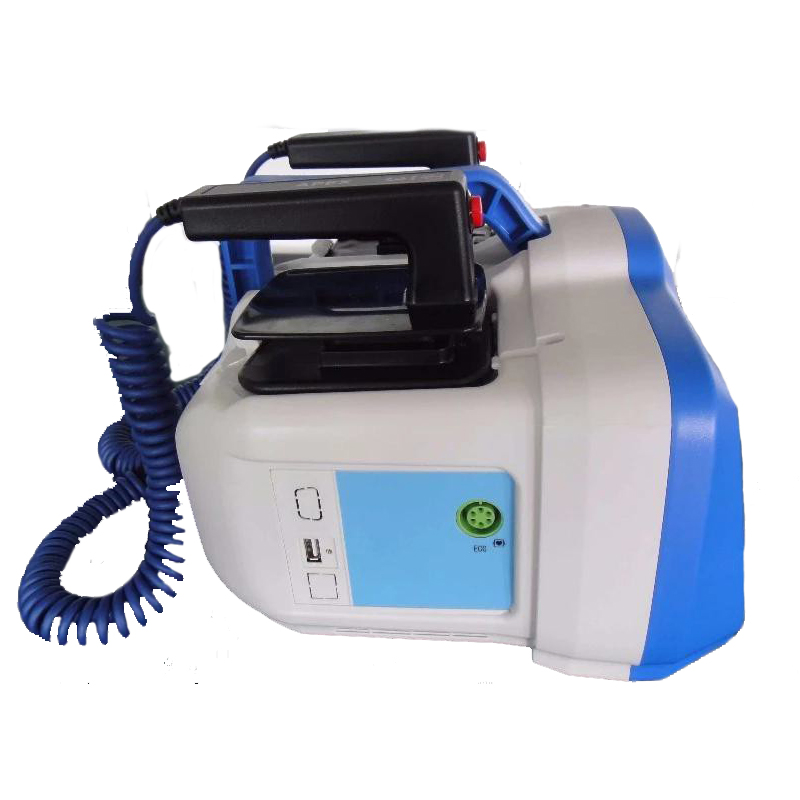

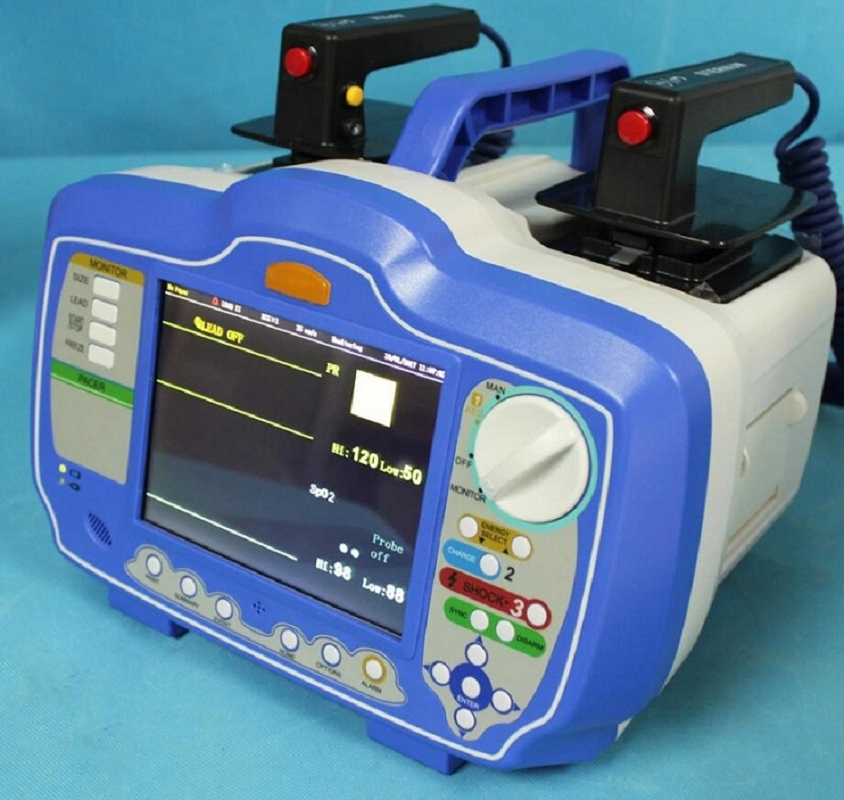

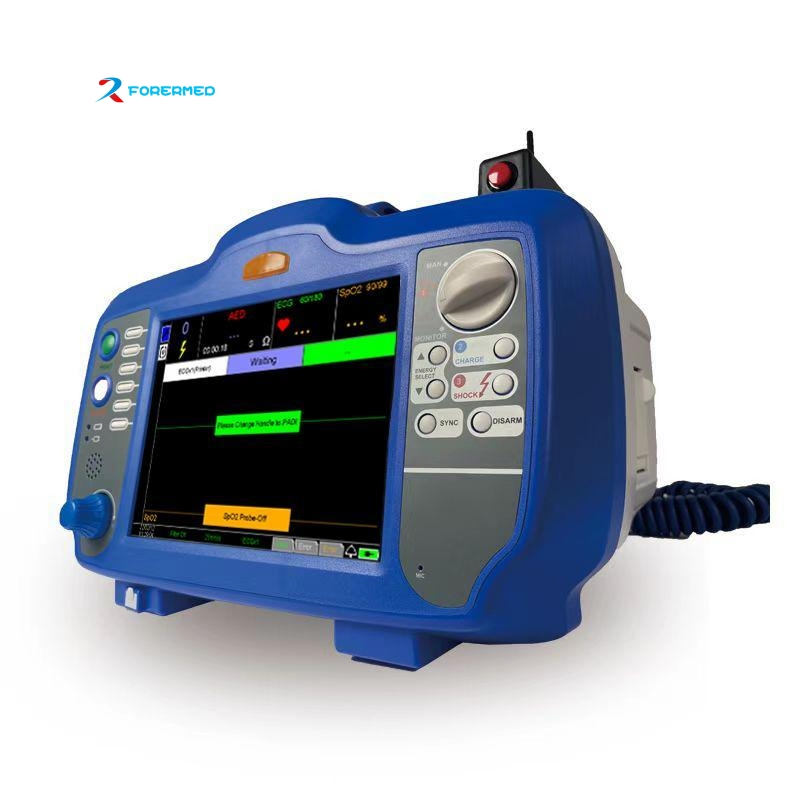

The YJ-D9000 is a professional biphasic defibrillator-monitor designed for emergency medical use.
Measurement Range: 30~100% (±2% between 80%~90%)
Alarm: User-set high/low limits
Accuracy: High precision within 12 sec response time.
Supports 3-lead or 5-lead ECG cables.
Display: I, II, AVR, AVL, AVF, V.
Heart Rate: 20-300 BPM.
Adult/Child/Neonatal modes available.
Systemic Pressure Range: 30~270 mmHg (Adult).
Accurate mean pressure tracking.
| Category | Parameter | Details |
|---|---|---|
| Display | Screen Type | High-resolution 8-inch display |
| Sweep Speed | 25mm/sec | |
| Information | HR, Lead/Pads, SpO2, AED Prompts | |
| Defibrillator | Waveform | Biphasic |
| Charge Time | Less than 7 seconds (fully charged) | |
| Energy Display | Selected and delivered energy monitor | |
| Battery | Type | Rechargeable Ni-MH, 12V |
| Operating Time | 60 discharges or 3 hours ECG monitoring |
A1: The YJ-D9000 utilizes a Biphasic waveform, which is the current clinical standard for effective defibrillation with lower energy levels.
A2: With a new fully charged battery, the device can charge to maximum energy in less than 7 seconds.
A3: Yes, it features an AED mode with programmable auto energy selection, voice prompts, and visual screen prompts.

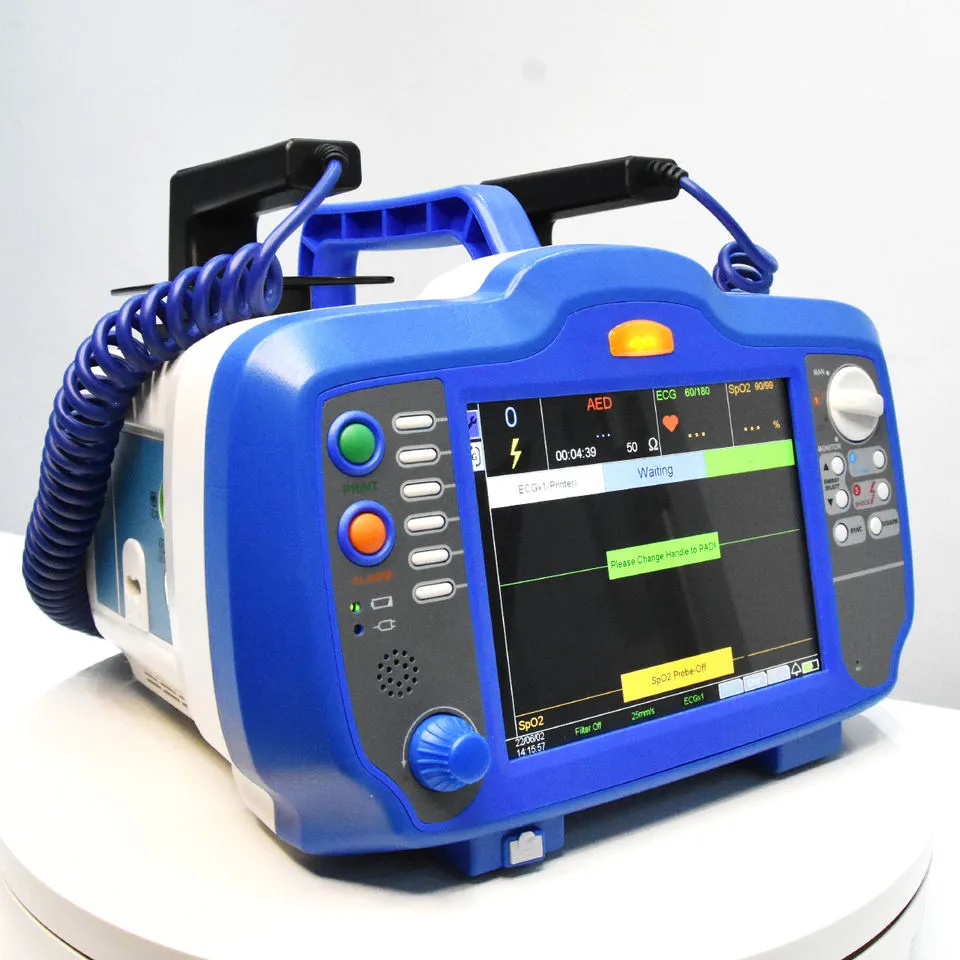

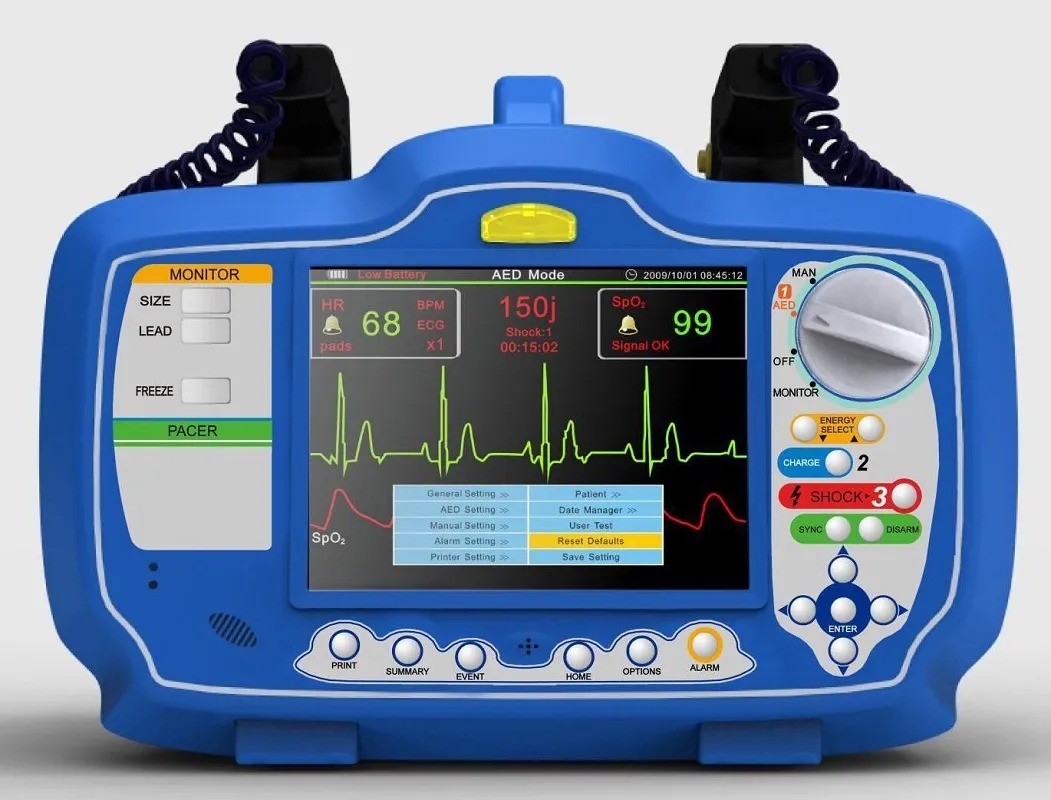

A4: In addition to ECG monitoring (3-lead or 5-lead), the device offers optional modules for SpO2 (Pulse Oximetry) and NIBP (Non-Invasive Blood Pressure).

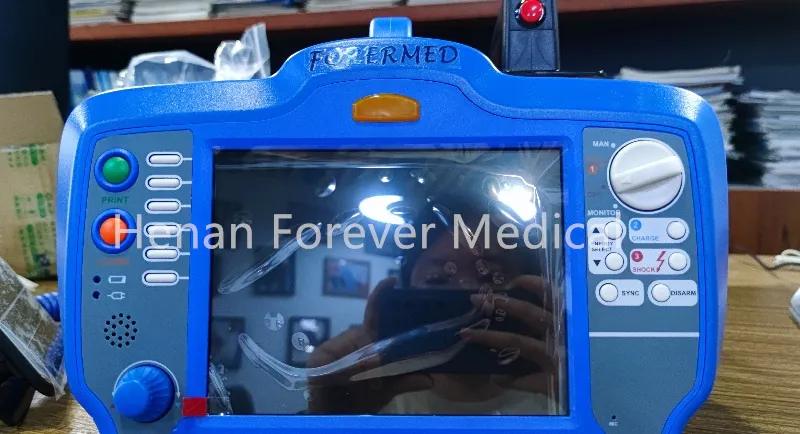

A5: Absolutely. It features a high-resolution 8-inch diagonal display that provides clear visibility of Heart Rate, SpO2, and AED functions.
A6: The rechargeable 12V Ni-MH battery provides enough power for 60 full-energy discharges or a minimum of 3 hours of continuous ECG monitoring.
