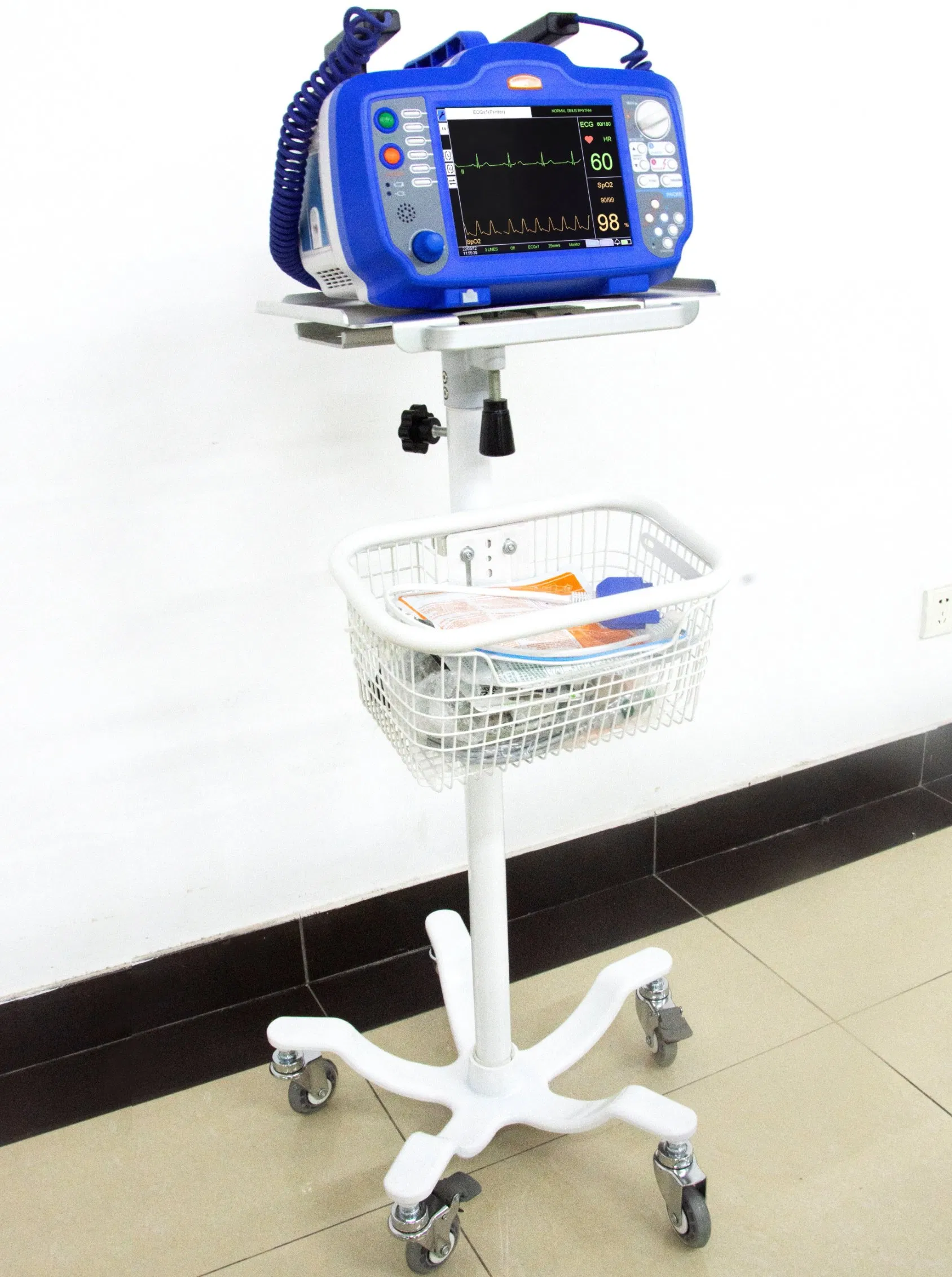

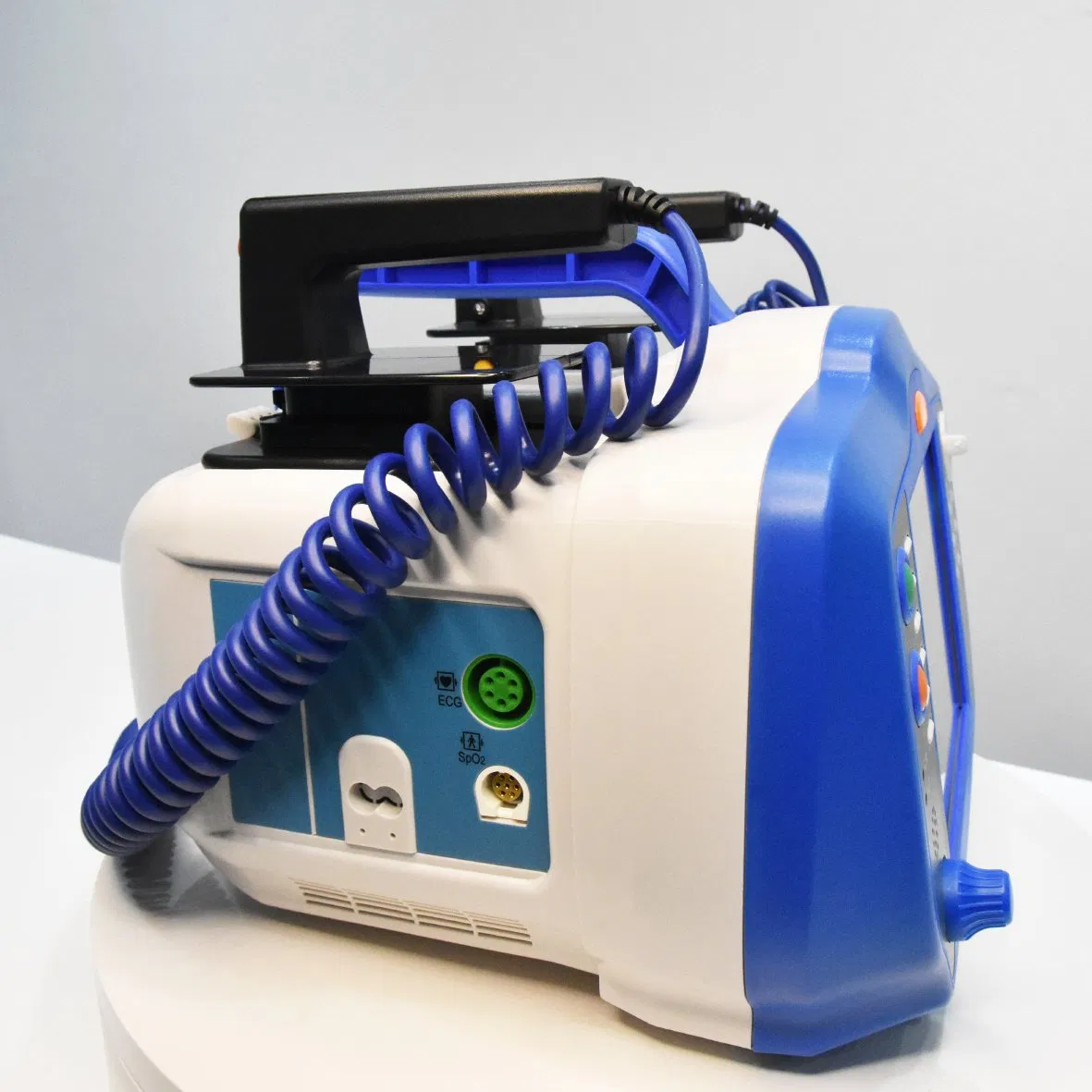

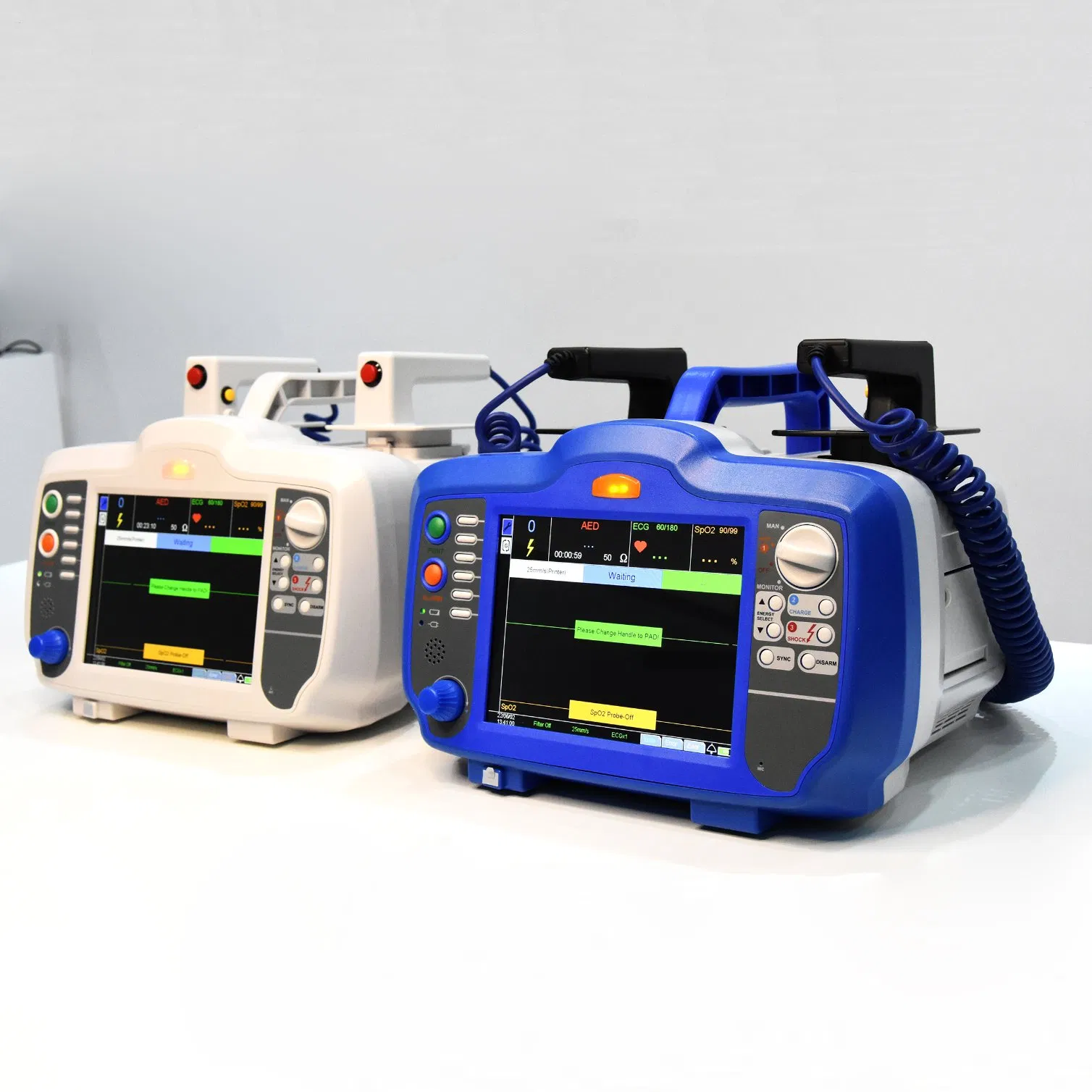

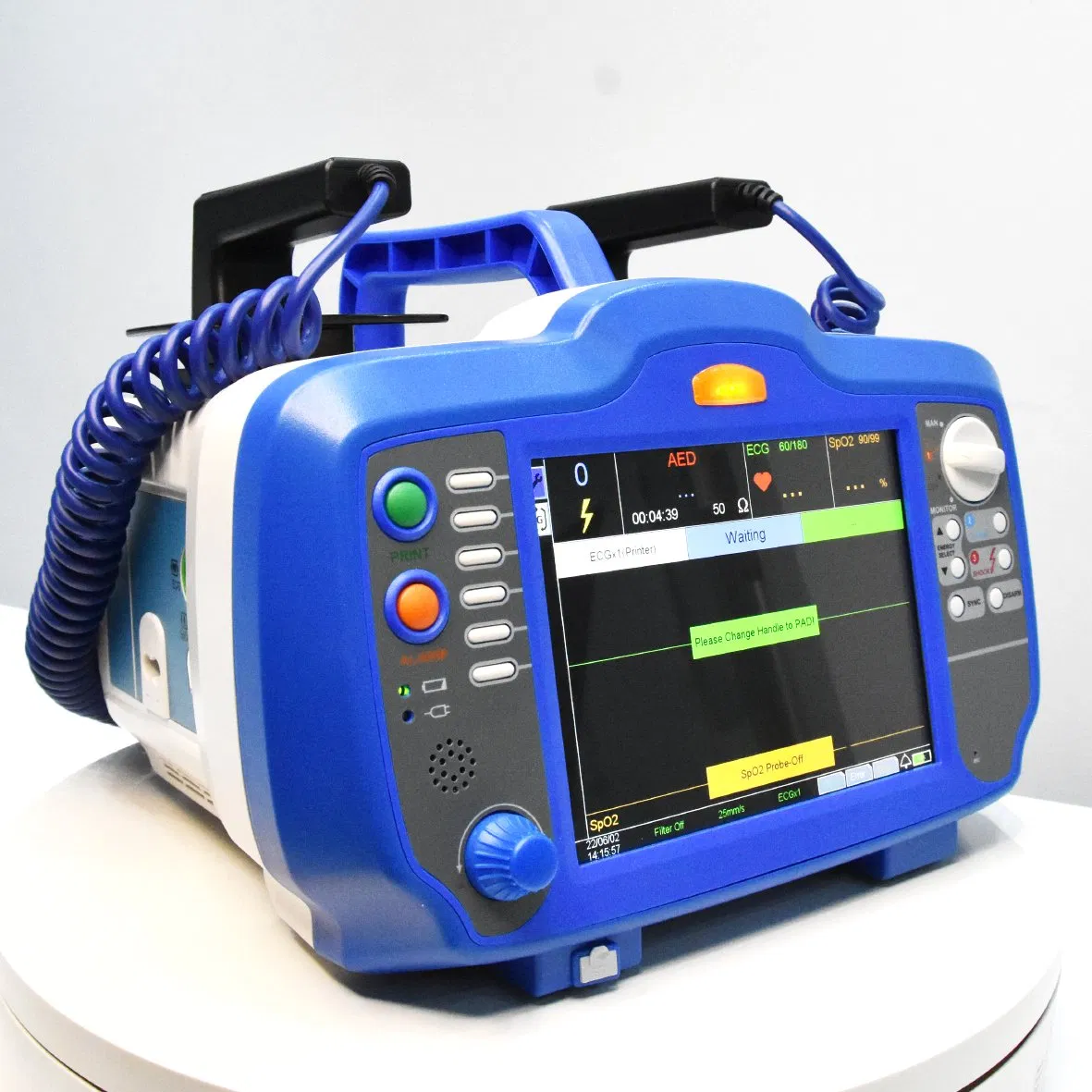

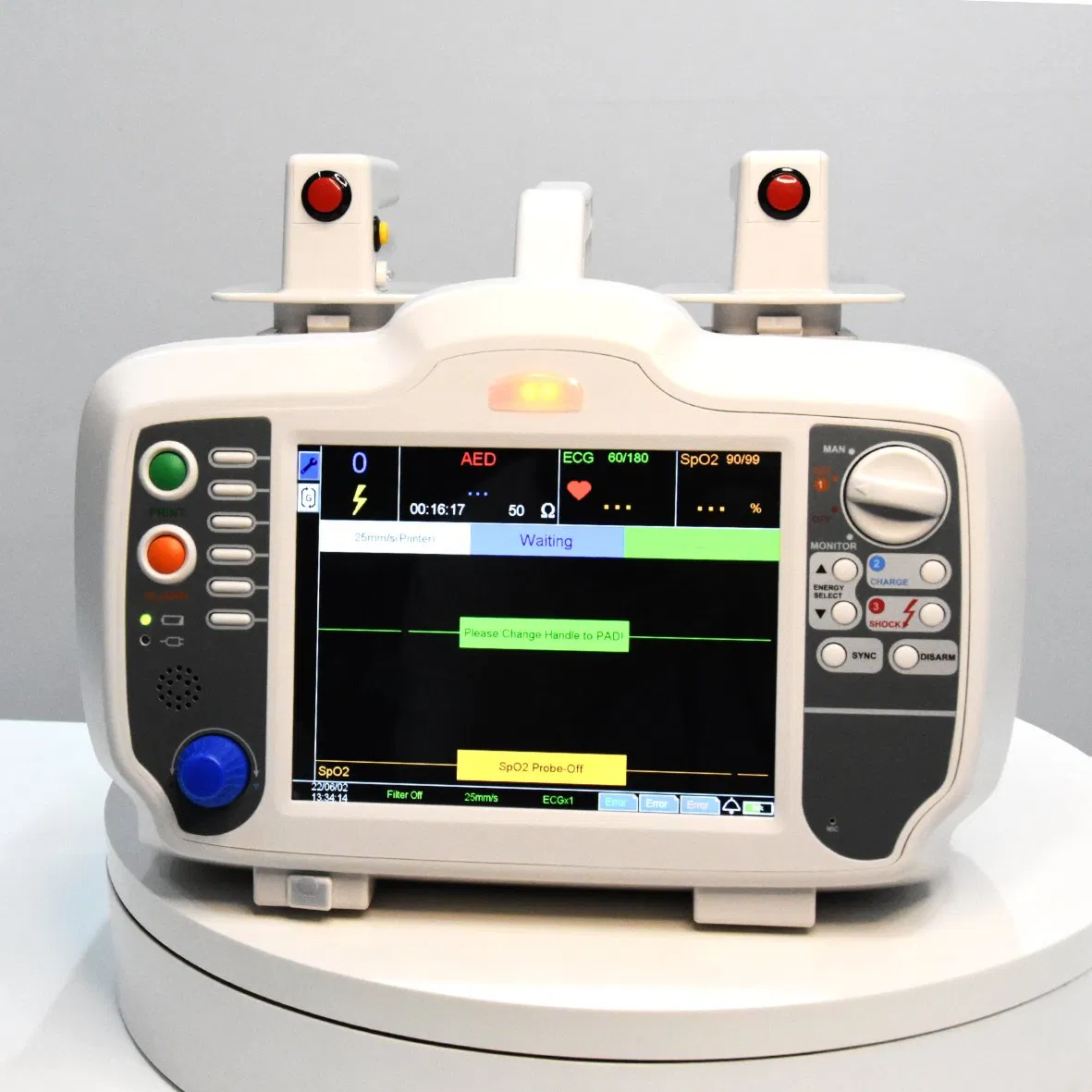

Aed Defibrillator Monitor with LCD Display for Ambulance
Aed Defibrillator Monitor with LCD Display for Ambulance
Aed Defibrillator Monitor with LCD Display for Ambulance
Aed Defibrillator Monitor with LCD Display for Ambulance
Aed Defibrillator Monitor with LCD Display for Ambulance
1 / 5
Aed Defibrillator Monitor with LCD Display for Ambulance
Aed Defibrillator Monitor with LCD Display for Ambulance
Aed Defibrillator Monitor with LCD Display for Ambulance
Aed Defibrillator Monitor with LCD Display for Ambulance
Aed Defibrillator Monitor with LCD Display for Ambulance

Aed Defibrillator Monitor with LCD Display for Ambulance

Customization: Available
Classification: Biochemical Apparatus
Type: Defibrillator Monitor
Send Inquiry

Product Description

Basic Information

Model NO.GP-DM7000
CertificationCE, ISO13485
GroupAll People
Transport PackageStandard Export Cartons
SpecificationElectricity
TrademarkALL PRO/OEM
OriginChina

Product Description

Defibrillator Monitor

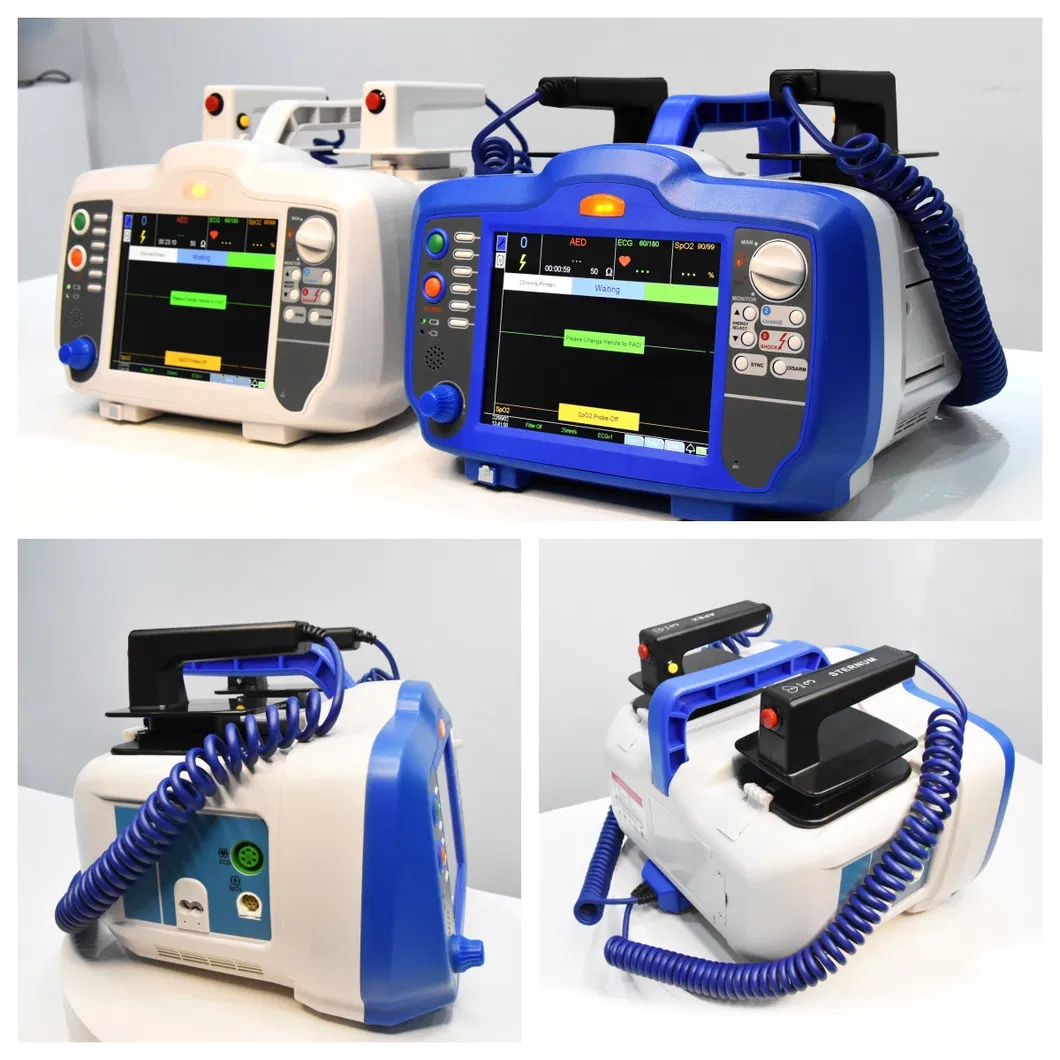

AED Display

Introduction

Monitor Mode:
ECG, SpO2 (optional), NIBP (optional), and ETCO2 (optional) measurements.
AED Mode:
Automatically adjusts defibrillation energy sequence, displays shocks, process, ECG waveforms, and analysis results.
Manual & Pacer Mode:
Adjustable energy from 2J to 360J. Offers demand pacer and independent pacer modes with adjustable rates.
Convenient Printing:
One-click printing for ECG and monitoring info. Portable handle design for emergency environments.

General Specifications

Size (L*W*H)330mm*240mm*180mm
WeightAbout 5.0kg
Altitude-91m to 4573m
Power SupplyNI-MH 12V 3800mAh and AC power supply
Working HumidityTemperature: 0°C~40°C; Humidity: 95% (non-condensing)
Risk LevelDefib: BF Type; ECG: CF Type

Defibrillation Parameter

WaveformBiphasic
Energy (Manual)2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 J
Energy (AED)150J, 200J (Sequence programmable)
Charging TimeLess than 8 seconds to maximum energy
Analysis Time7 seconds

Frequently Asked Questions

Q: What is the maximum energy level for manual defibrillation?
A: The GP-DM7000 supports a wide range of energy levels from 2J up to 360J in manual mode.
Q: Does this device support AED mode?
A: Yes, it features an AED mode that automatically analyzes ECG and guides the user through the defibrillation process.
Q: How fast can the device charge to maximum energy?
A: It takes less than 8 seconds to reach the maximum charging energy when using a functional battery.
Q: What monitoring parameters are optional?
A: While ECG is standard, SpO2, NIBP, and ETCO2 measurements are available as optional configurations.
Q: Is the device portable for ambulance use?
A: Yes, it weighs approximately 5.0kg and features an integrated handle design specifically for transport and emergency environments.
Q: What certifications does the GP-DM7000 have?
A: The product is certified with CE and ISO13485 standards for medical equipment.
