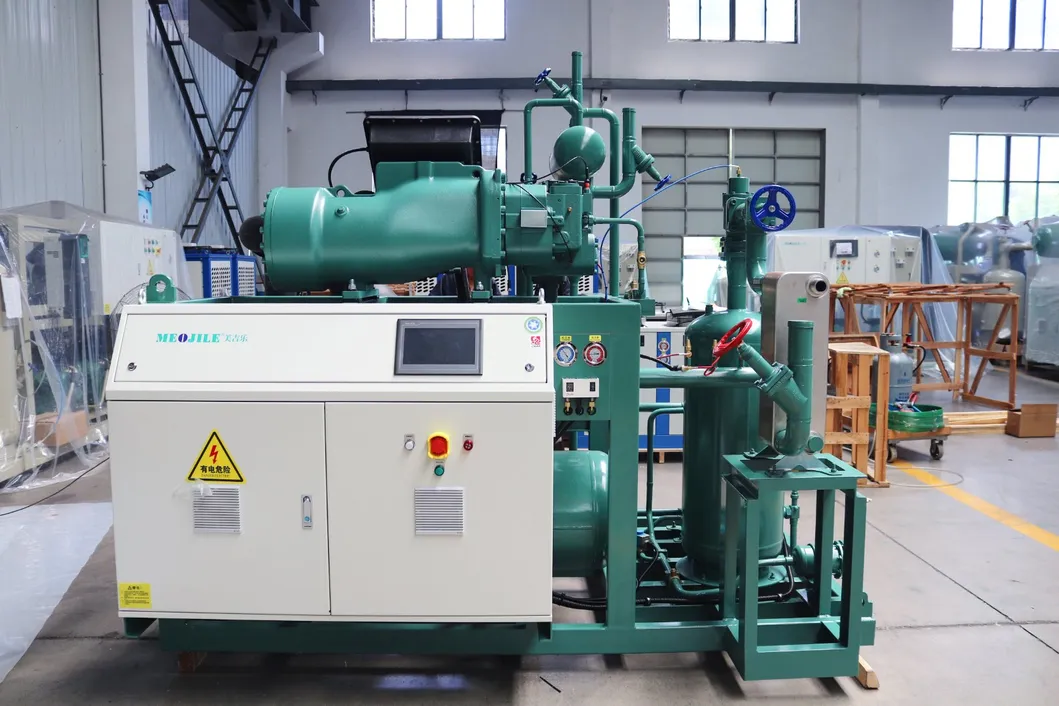

110HP Condensing Industrial Air Refrigeration Unit with Screw Compressor for Cold Room

1 / 5

110HP Condensing Industrial Air Refrigeration Unit with Screw Compressor for Cold Room

Customization:	Available
After-sales Service:	Oversea Aftersales Is Available
Warranty:	12 Months

Send Inquiry

Product Description

📊 Overview

Model NO.

MBZLGF- 110(L)JY

Principle

Screw Compressor

Application

Ice Maker, Balst Freezer, Low Temp. Rooms

Performance

Low Noise, Variable Frequency, Explosion-Proof

Material

Cast Iron

Voltage

380V/50Hz

Refrigerant

R404A. R507A. R22

Cooling

Air Cooled, Water Cooled

Temp Range

-40~0 Degree

Package

Wooden Casing

⚙️ Product Description

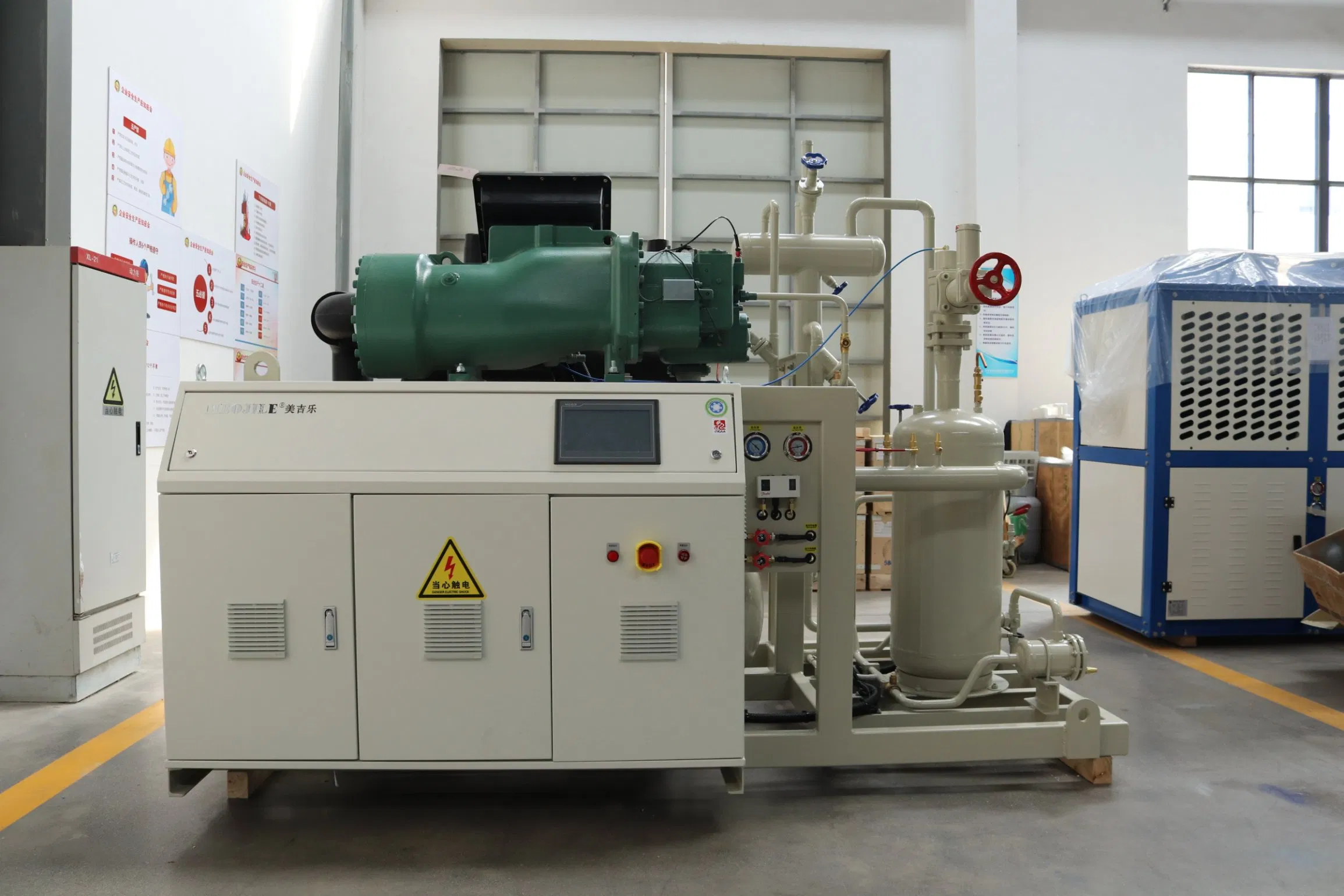

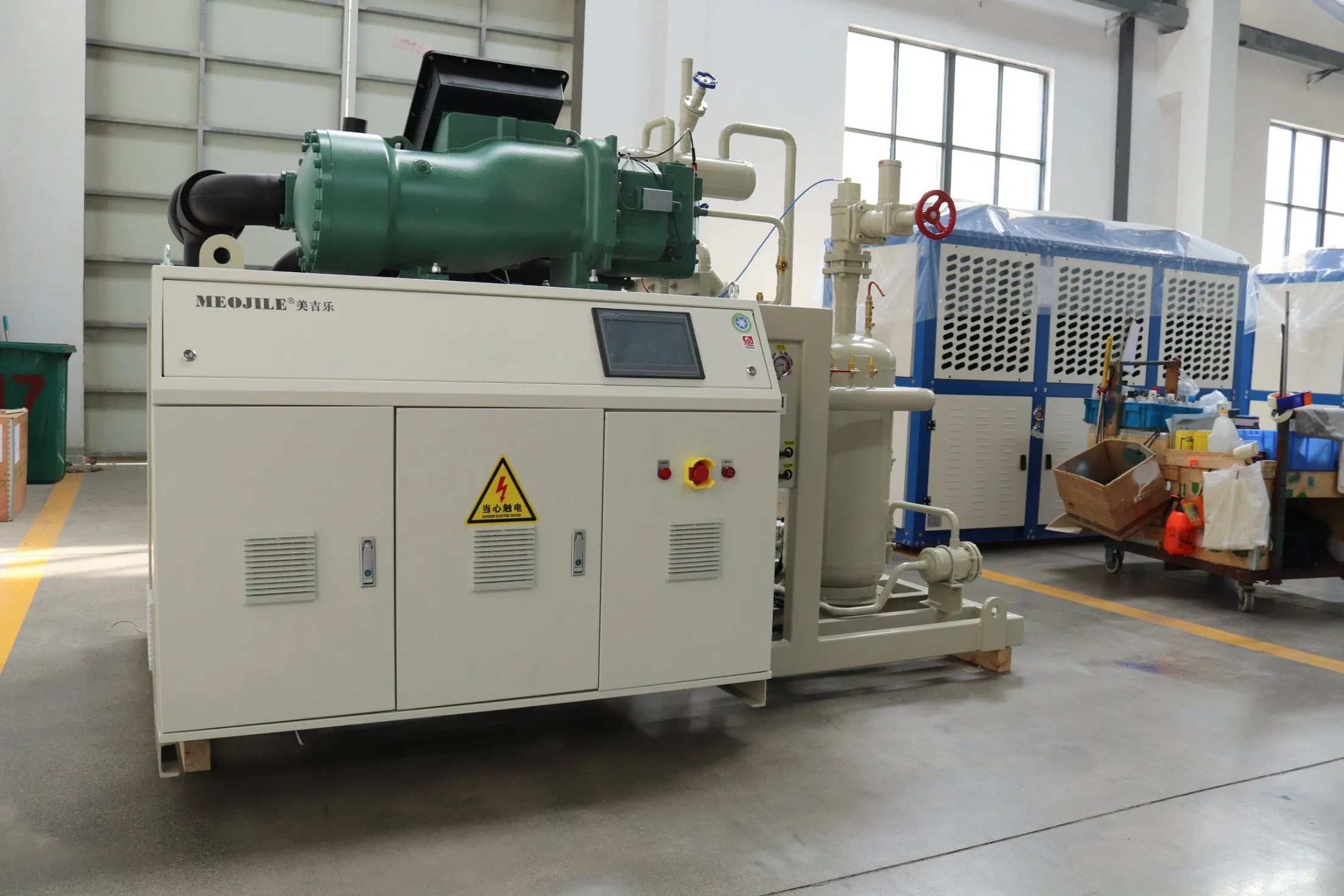

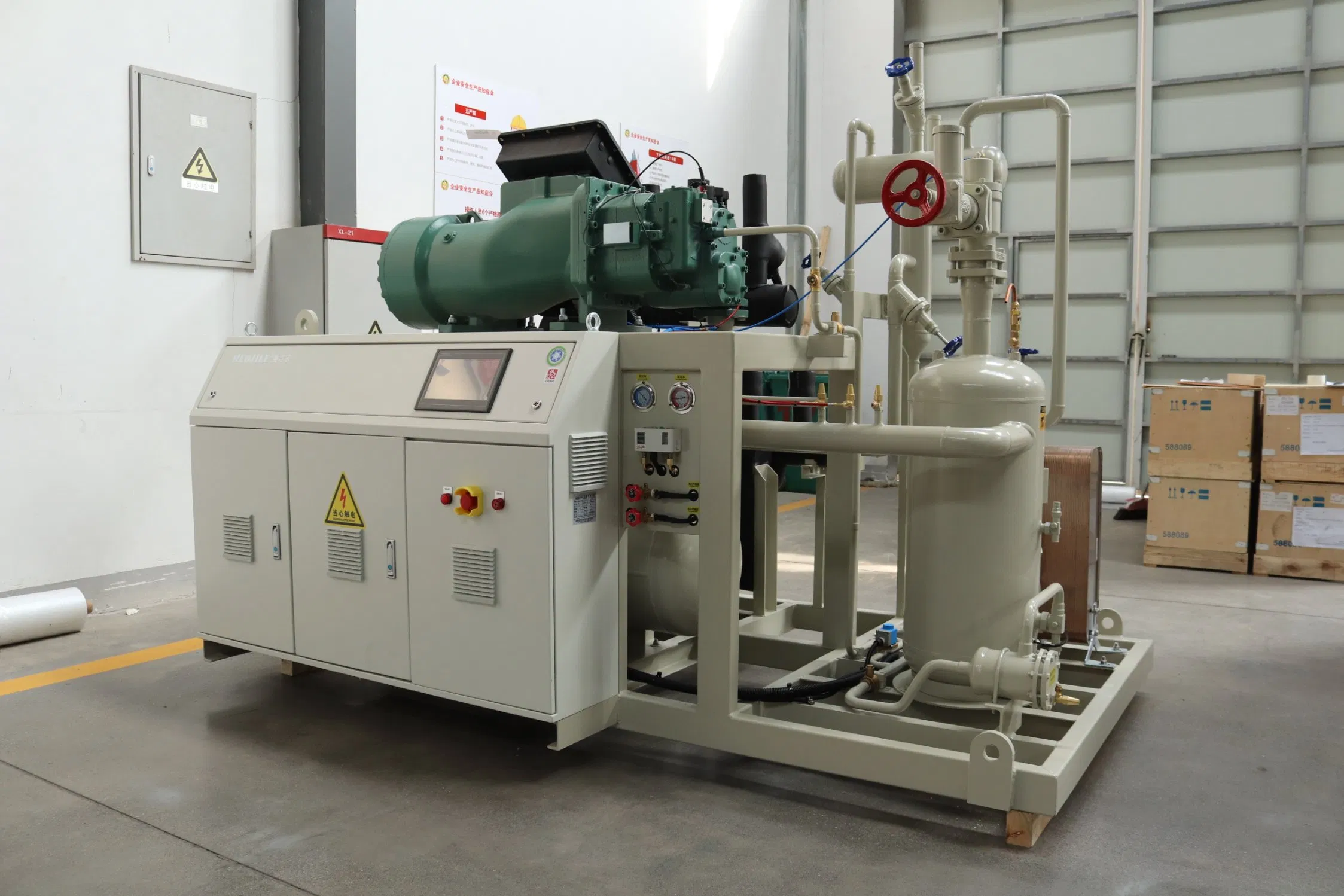

110HP Condensing Industrial Air Refrigeration Compressor Unit with Screw Compressor for Cold Room

Applicable to large size -30ºC~-50ºC low temperature refrigeration systems, such as large low temperature cold rooms, ice making, and blast freezing.

Main Components: Compressor, condenser, pressure controller, pressure oil gauge, pressure sensor, filter vat, liquid angle valve, accumulator, oil separator, oil cooler, solenoid valve, economizer, PLC controller, Siemens HMI.

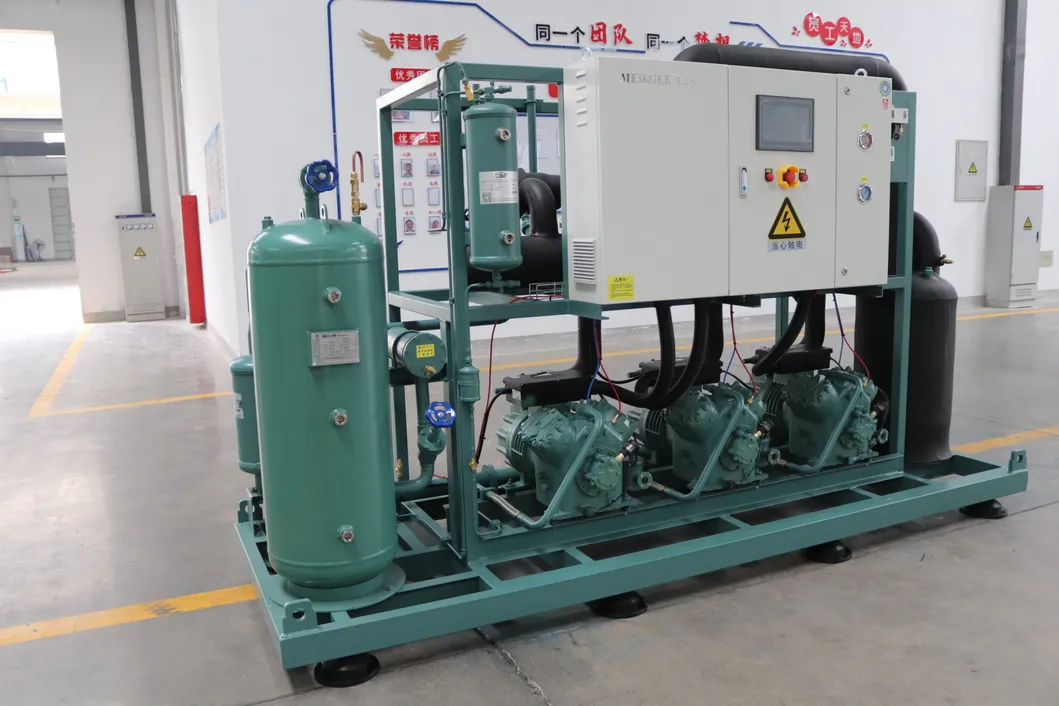

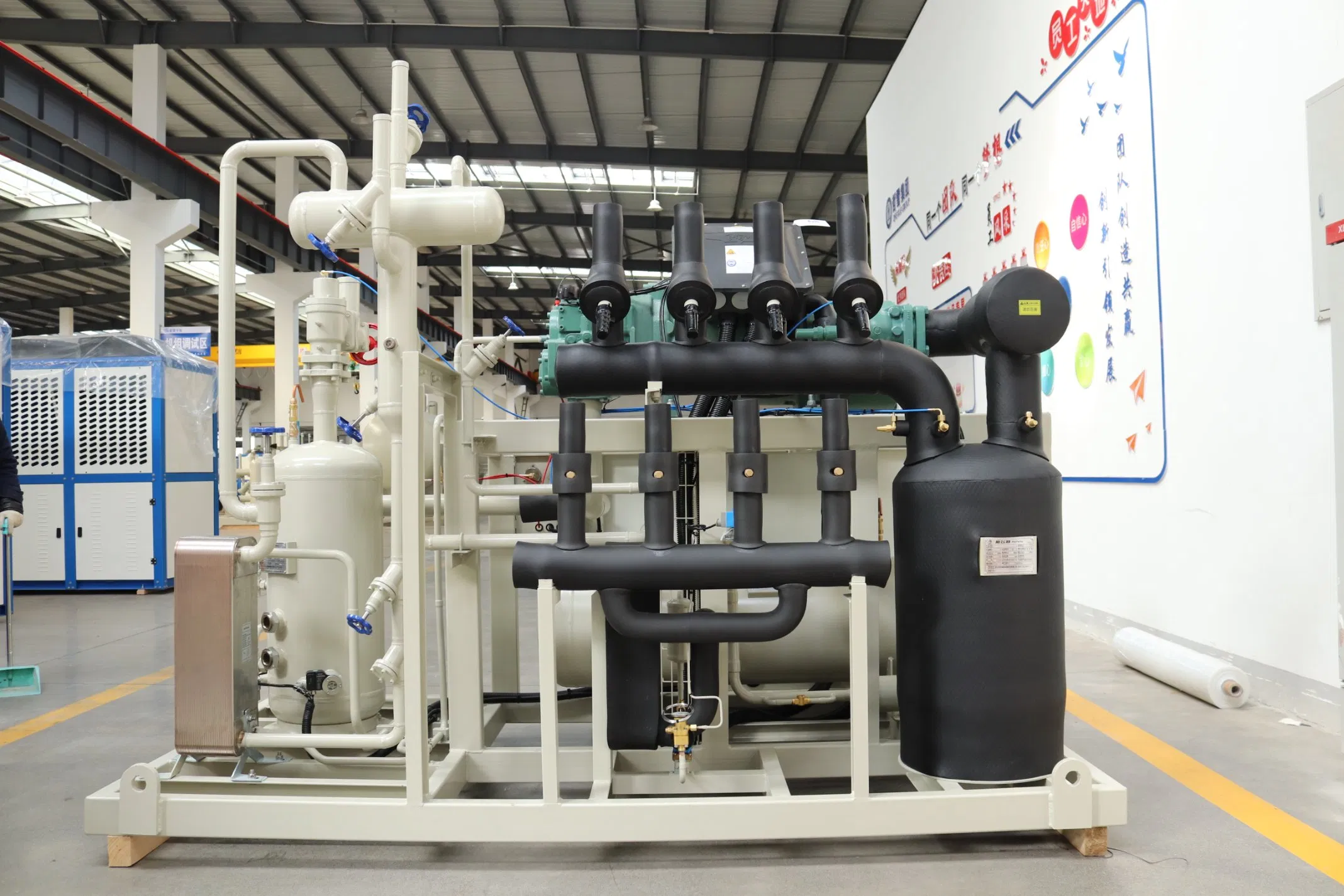

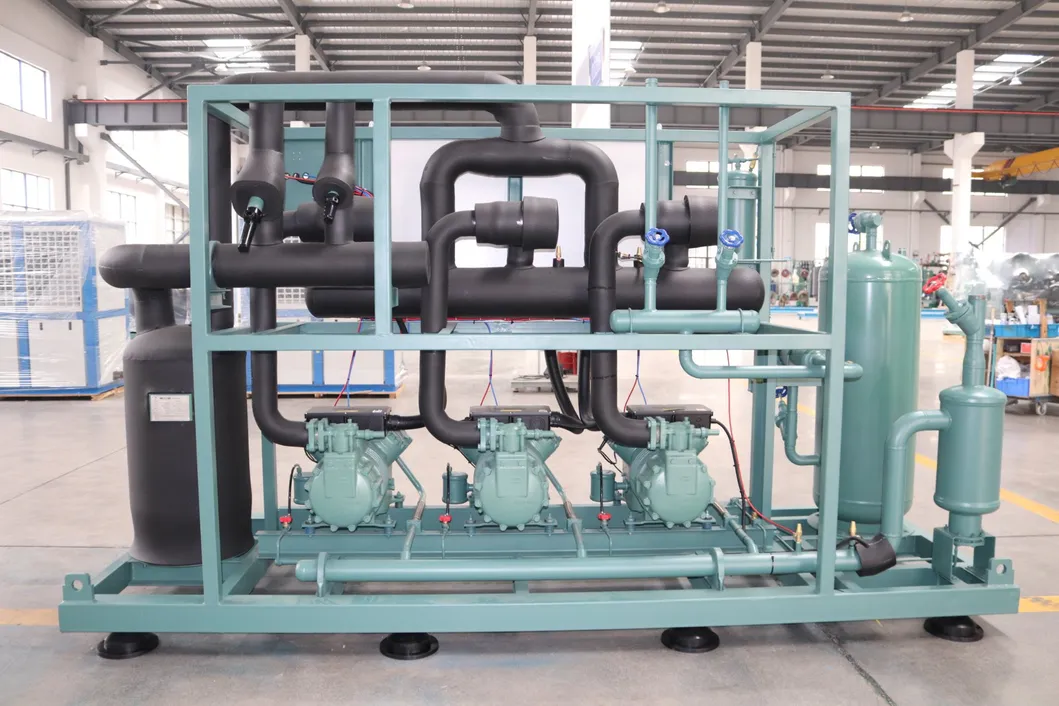

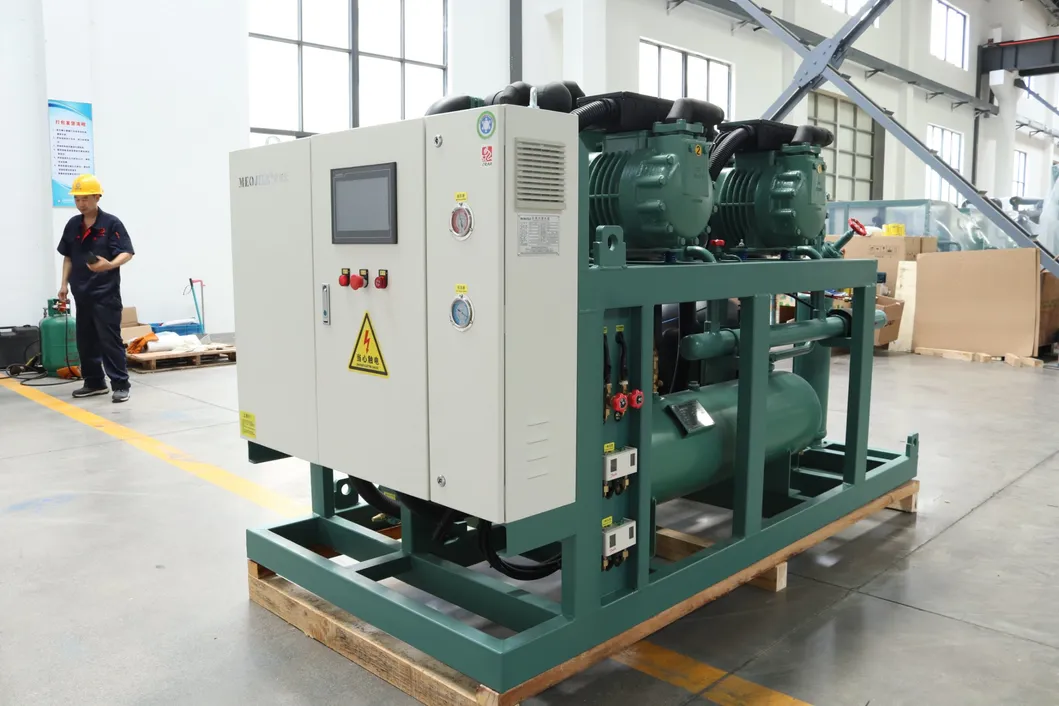

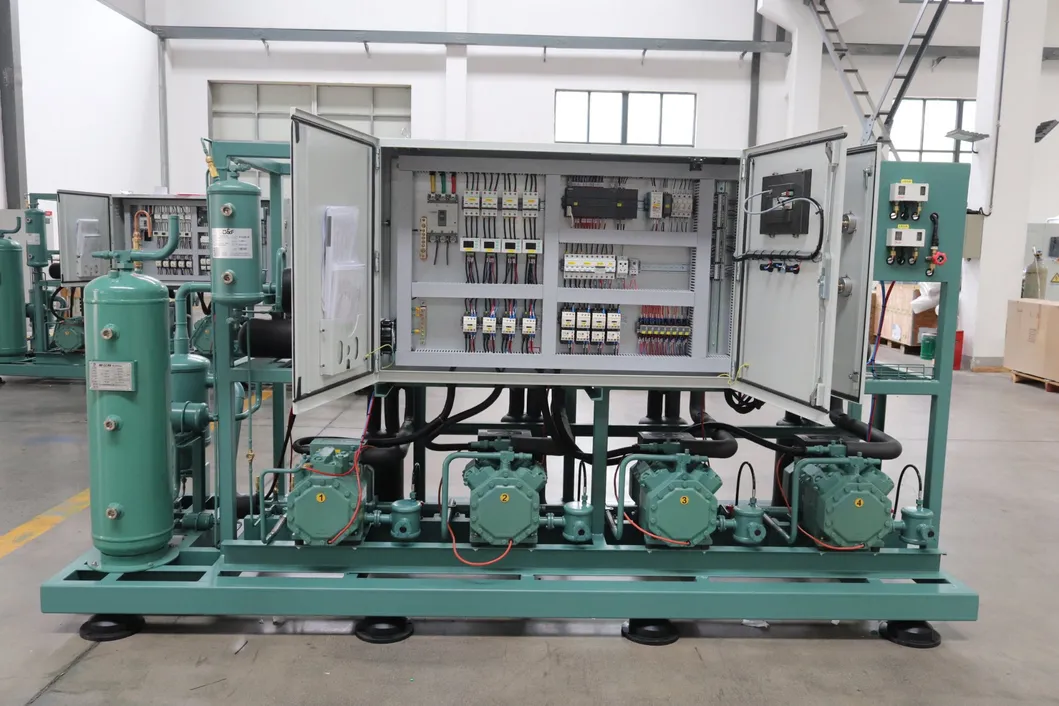

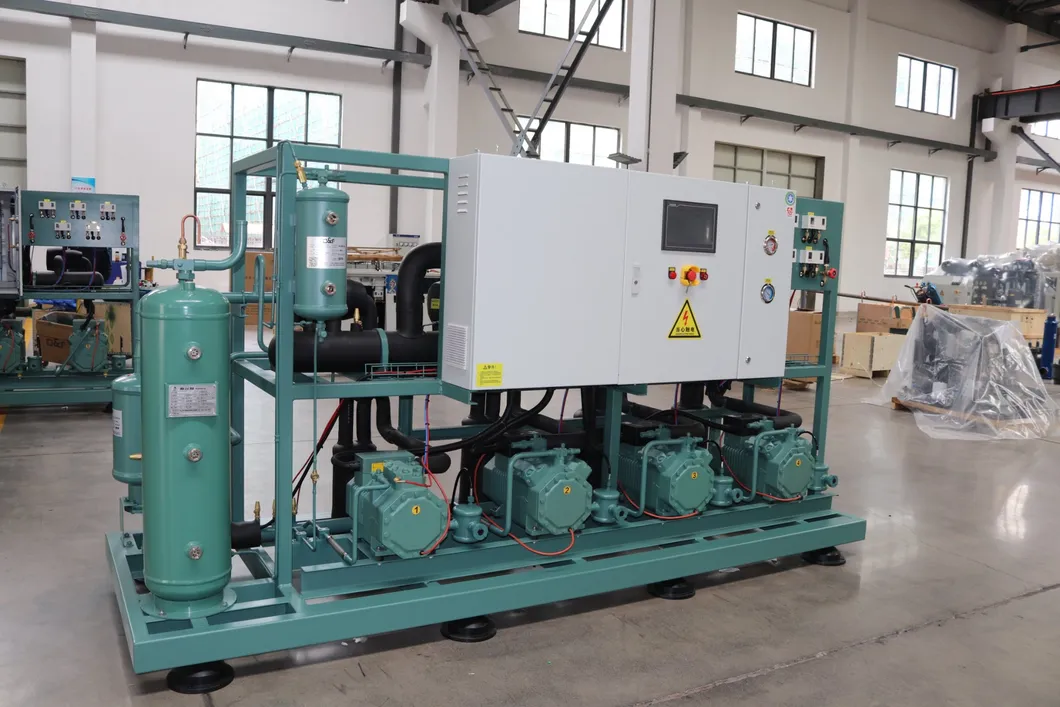

🖼️ Detailed Photos

🌟 Product Features

✅ Reliable System: Famous brand compressor, PLC controller, high efficient oil separating system.
✅ Screw Compressor: Features high efficiency, long service life, tiny vibration and low noise.
✅ Full Protection: Includes devices for wrong direction, over heat, over load, oil flow pressure safety, etc.
✅ Economizer Match: Effectively increases capacity for low temperature operations.

📋 Product Parameters

Unit Model		MBZLGF-75(L)JY	MBZLGF-110(L)JY	MBZLGF-125(L)JY	MBZLGF-160(L)JY	MBZLGF-280(L)JY
Refrigerant		R507(R404A)
Compressor	Model	HSN7471-75	HSN8561-110	HSN8571-125	HSN8591-160	HSN95103-280
Compressor	Qty	1	1	1	1	1
Cooling capacity (-25ºC)		108.3 KW	160.5 KW	179.1 KW	224 KW	471.7 KW
Power input		57 KW	81.5 KW	91.2 KW	111.8 KW	222.4 KW

🏭 Production Environment

❓ FAQ

What temperature range is this unit suitable for?

This condensing unit is designed for low-temperature applications ranging from -50ºC to -30ºC.

Which refrigerants are compatible with the screw compressor unit?

The unit is compatible with R404A, R507A, and R22 refrigerants.

What are the main advantages of using a screw compressor?

Screw compressors offer higher efficiency, longer service life, minimal vibration, and significantly lower noise levels compared to traditional piston types.

Is the control system easy to use?

Yes, the unit comes equipped with a PLC controller and a Siemens HMI touch screen for intuitive and precise operation.

What safety protections are built into the unit?

The system includes protection for wrong compressor direction, overheating, overloading, high/low oil flow pressure, and high discharge temperatures.

Can the unit be customized for specific power requirements?

While the standard is 380V/50Hz, we offer customization services to meet specific customer requirements.
