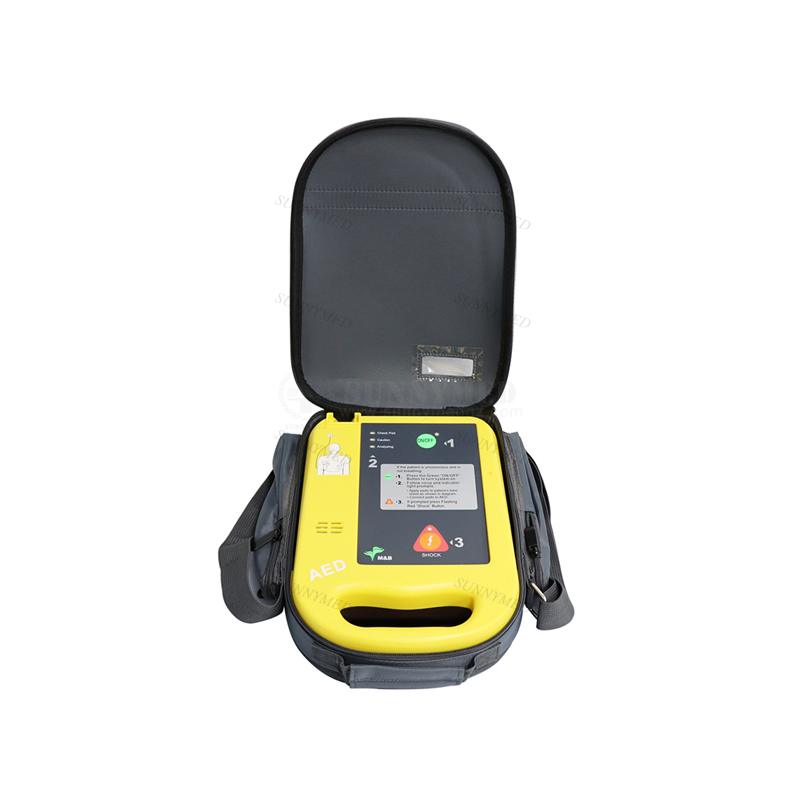

Sy-C025 Public Automated External Defibrillator Aed Defibrillator Monitor
Sy-C025 Public Automated External Defibrillator Aed Defibrillator Monitor
Sy-C025 Public Automated External Defibrillator Aed Defibrillator Monitor
Sy-C025 Public Automated External Defibrillator Aed Defibrillator Monitor
Sy-C025 Public Automated External Defibrillator Aed Defibrillator Monitor
1 / 5
Sy-C025 Public Automated External Defibrillator Aed Defibrillator Monitor
Sy-C025 Public Automated External Defibrillator Aed Defibrillator Monitor
Sy-C025 Public Automated External Defibrillator Aed Defibrillator Monitor
Sy-C025 Public Automated External Defibrillator Aed Defibrillator Monitor
Sy-C025 Public Automated External Defibrillator Aed Defibrillator Monitor

Sy-C025 Public Automated External Defibrillator Aed Defibrillator Monitor

Customization: Available
Application: Hospital, Factory, Office
Size: Medium
Send Inquiry

Product Description

📊 Basic Info.
Model NO.
SY-C025
Certification
CE
Hardness
Medium
Style
Simple
Warranty
1 Year
Material.
Plastic
Color
Yellow
Operation Temperature
0-50 Degree
Product Name
Aed Defibrillator Monitor
Analysis Time
9 Second
Audible Prompts
22 Audible Prompts
Transport Package
Carton Box
Origin
China
Production Capacity
200 Set/Month
📝 Product Description
SY-C025 Public Automated External Defibrillator AED Defibrillator Monitor

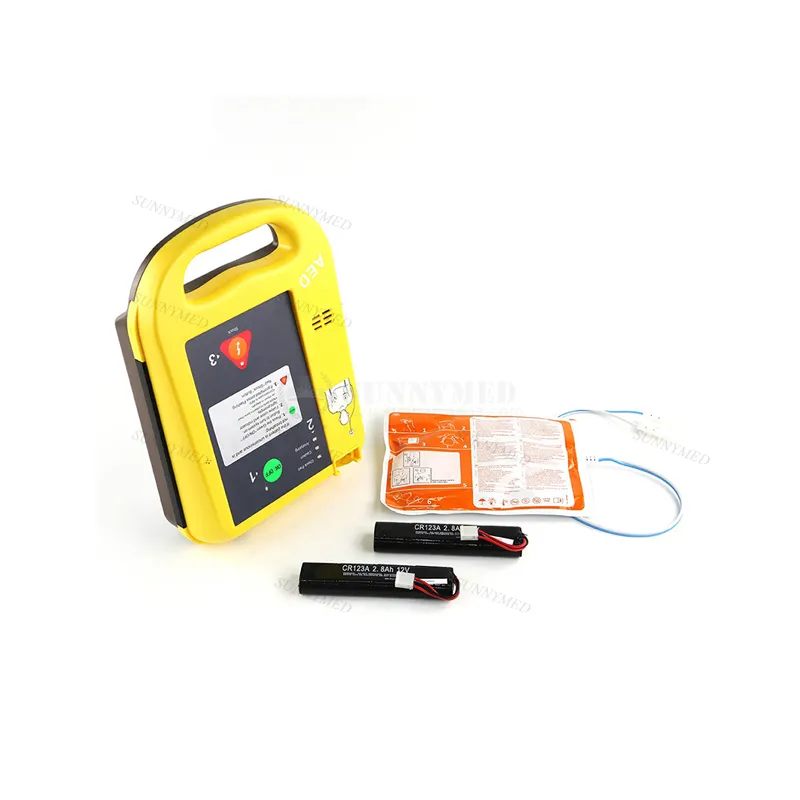

AED Defibrillator Monitor Main
OutputBiphasic Truncated Exponential
Energy Sequence150, 150, 200J
Charge Time8 sec. to 150J; 10 sec. to 200J (New Battery)
Analysis Time9 sec.
Maximum time from initiation of rhythm analysis to readiness for discharge (new battery)Less than 30 seconds
Maximum time from initiation of rhythm analysis to readiness for discharge (after 6 shocks)Less than 35 seconds
Maximum time from initially switching power on to readiness for dischargeLess than 25 seconds
Audible Prompts22 audible prompts
Visual PromptsLED prompts
ControlsTwo buttons - ON/Off, Shock
Output Energy Accuracy±15% into any impedance from 25 to 175Ω
The Maximum Voltage1200±50V
Output disabled patient impedance limits20Ω to 200Ω

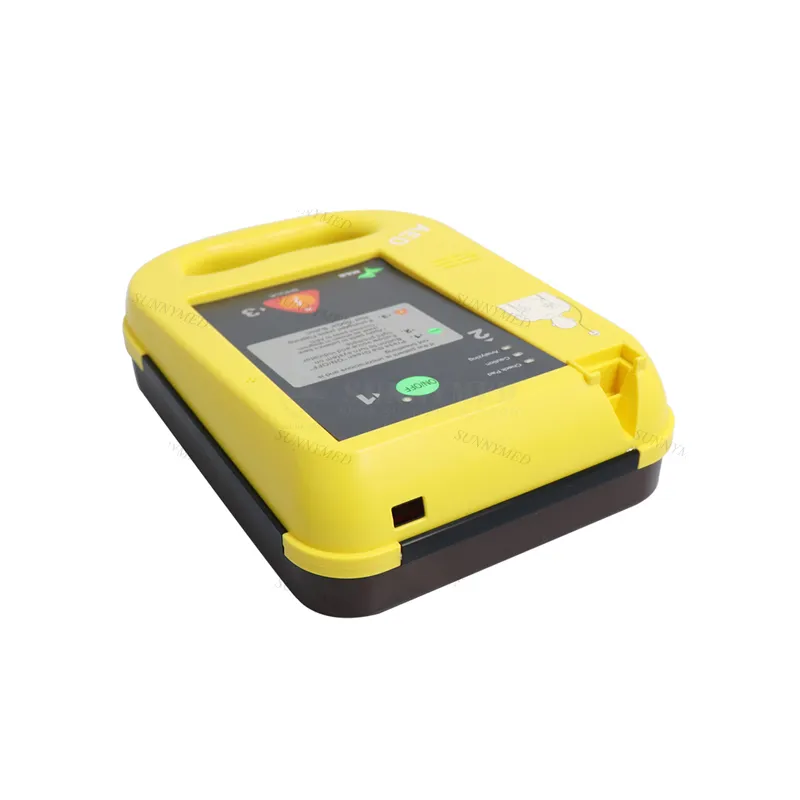

AED Detail 1

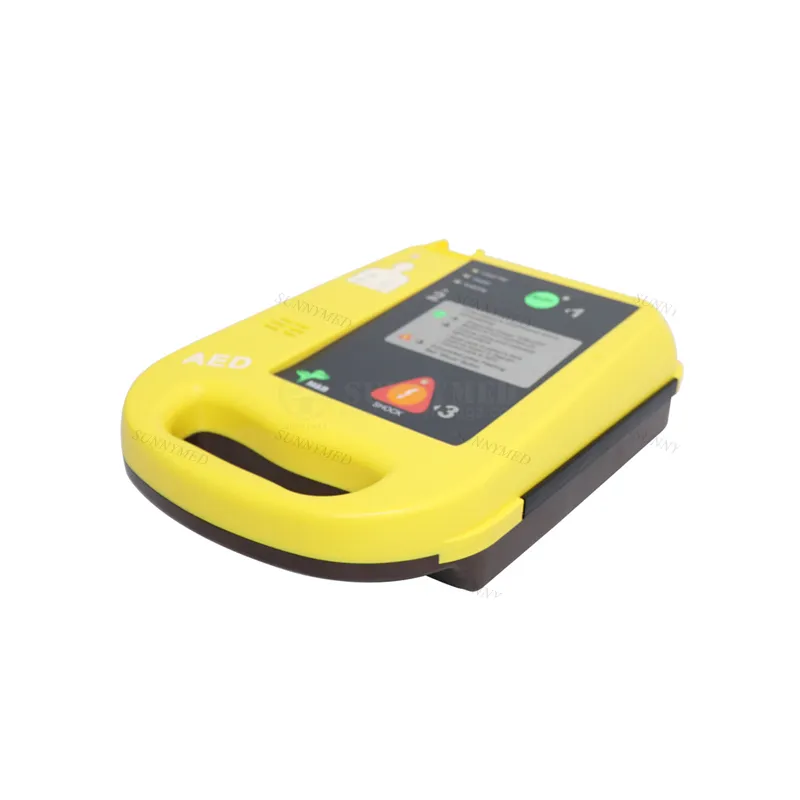

AED Detail 2

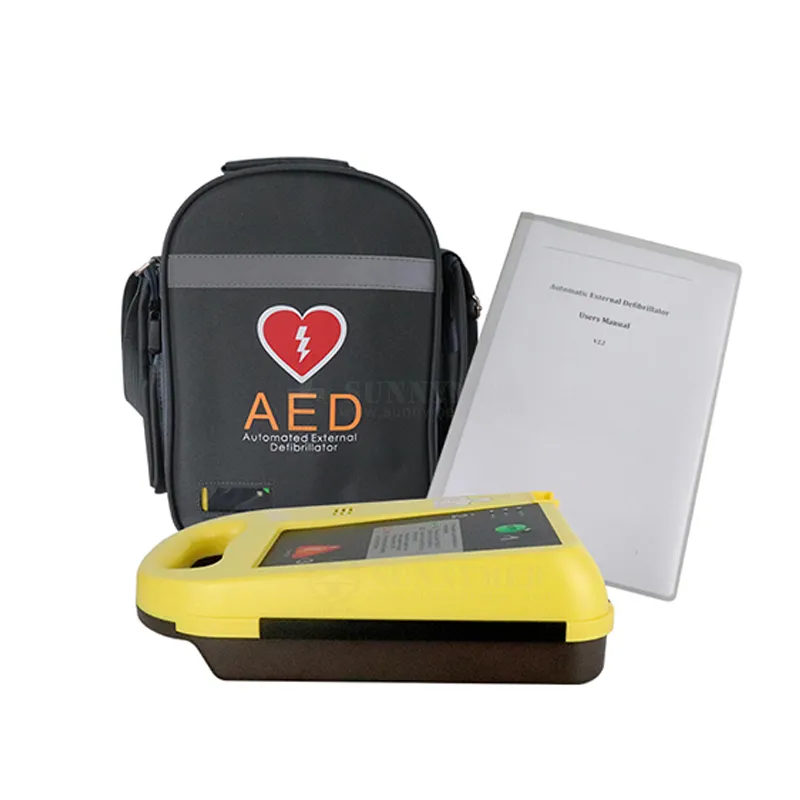

AED Detail 3

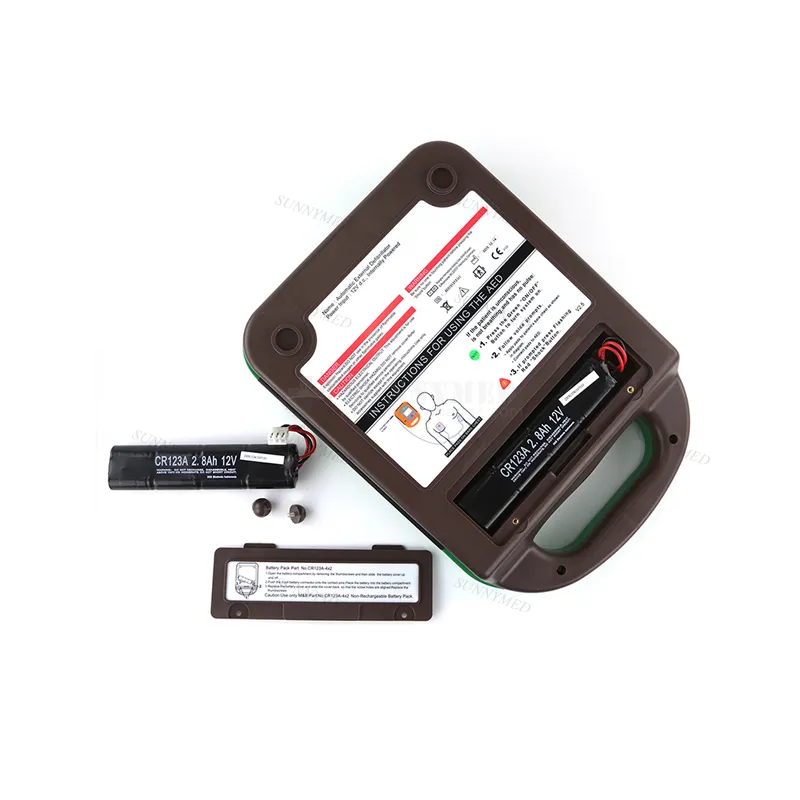

AED Detail 4

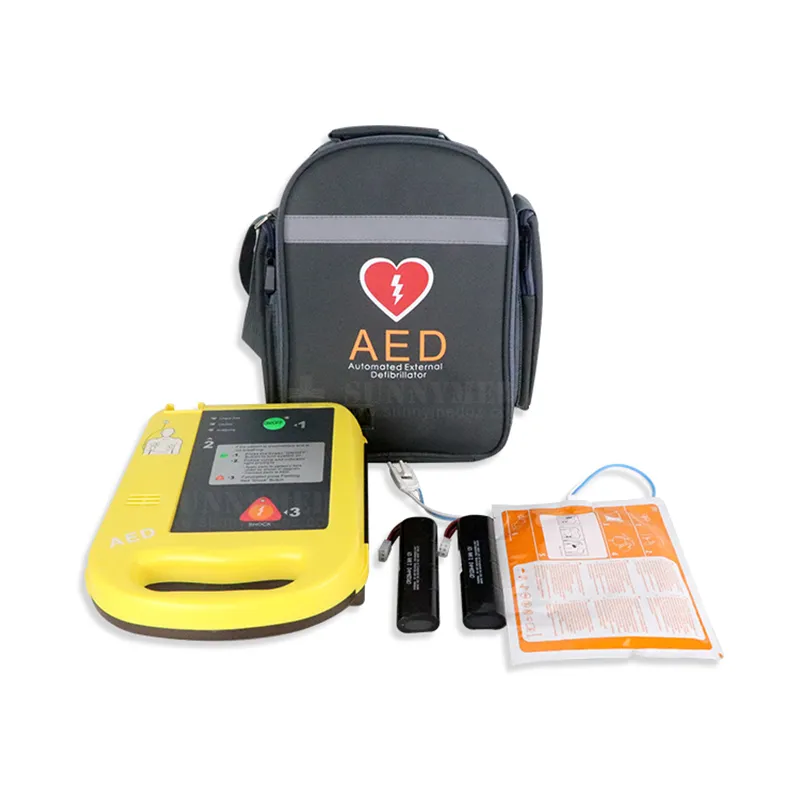

AED Detail 5

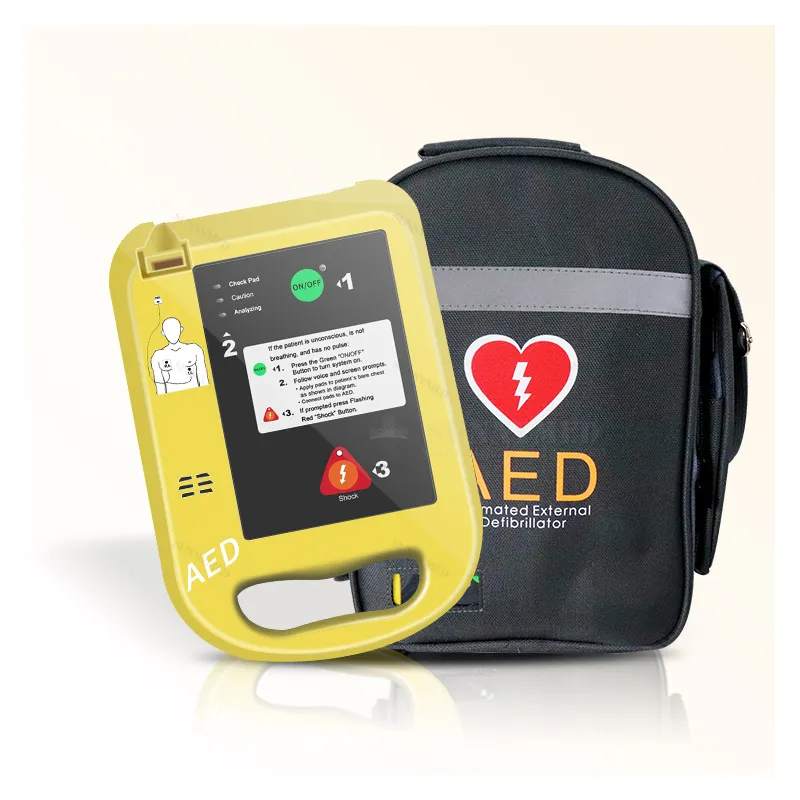

AED Detail 6
AED Detail 7

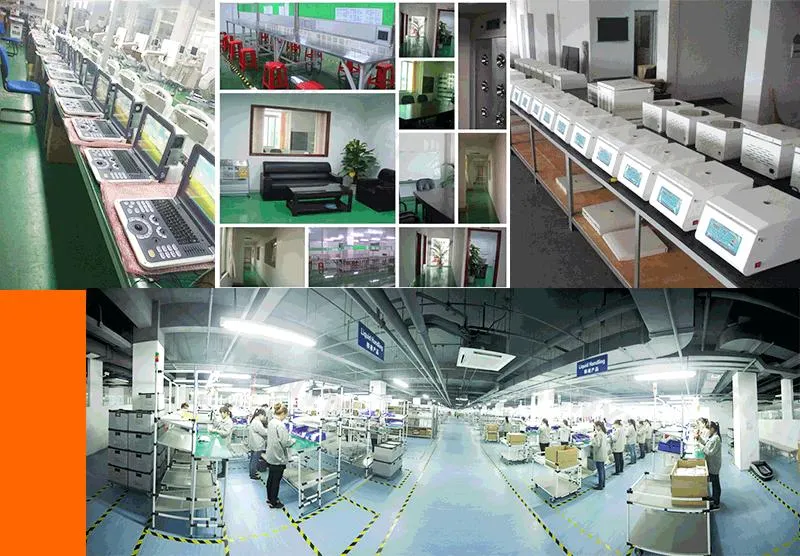

AED Detail 8

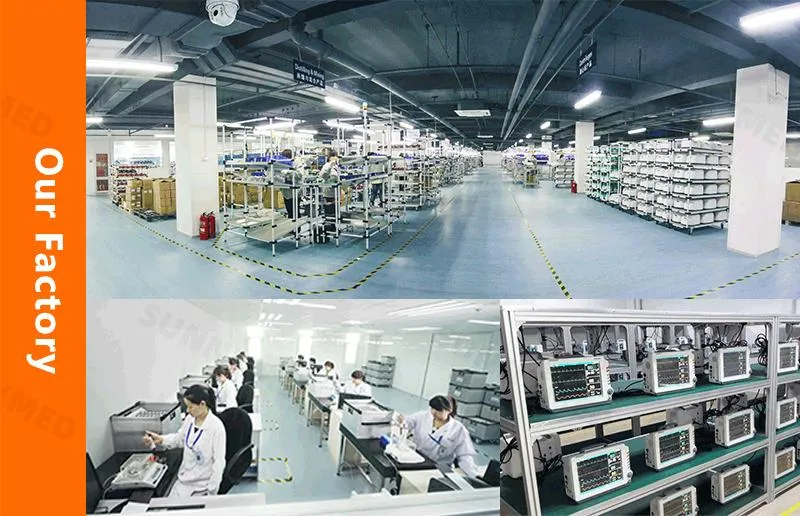

AED Detail 9
AED Detail 10
AED Detail 11
❓ FAQ
Q1: What is the energy sequence of the SY-C025 AED?
A: The device follows a biphasic energy sequence of 150J, 150J, and 200J to ensure effective defibrillation.
Q2: How long does it take for the device to analyze the heart rhythm?
A: The analysis time for the SY-C025 AED is approximately 9 seconds.
Q3: Are there any guidance features for users during an emergency?
A: Yes, it provides 22 audible prompts and LED visual prompts to guide the user through the rescue process.
Q4: What is the charging time for a 200J shock?
A: With a new battery, it takes about 10 seconds to charge to 200J.
Q5: What is the operating temperature range for this AED?
A: The device is designed to operate effectively between 0 and 50 degrees Celsius.
Q6: What is the warranty period for the AED?
A: The SY-C025 Public AED comes with a 1-year warranty.
