Basic Information
Logo Printing
With Logo Printing
Product Name
Defibrillator
Energy Sequence
150, 150, 200j
Controls
Two Buttons-on/off, Shock
Product Overview

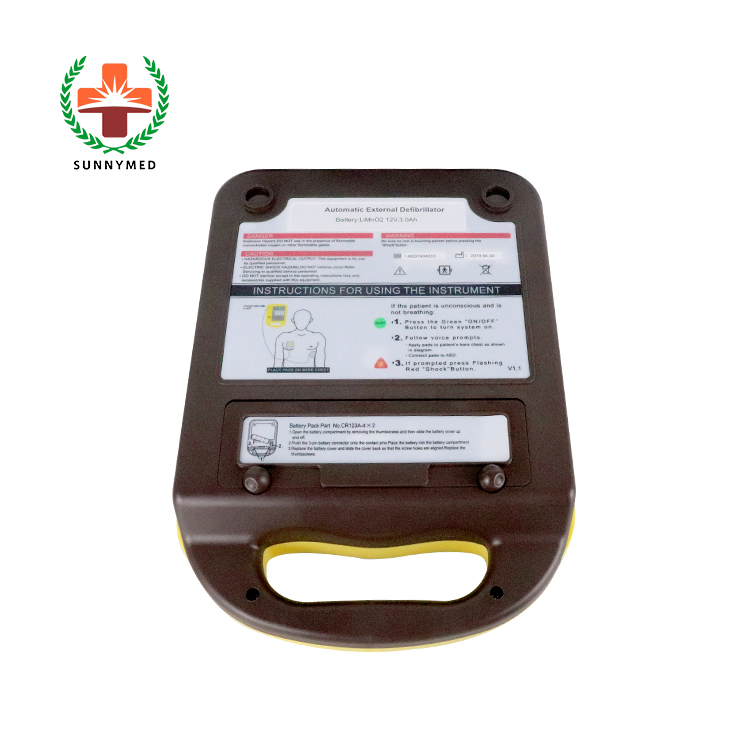

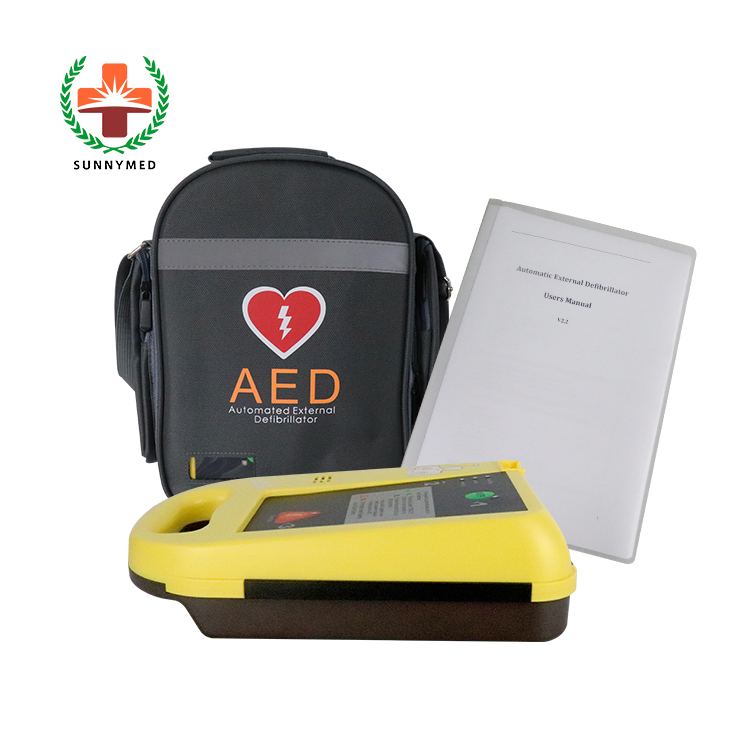

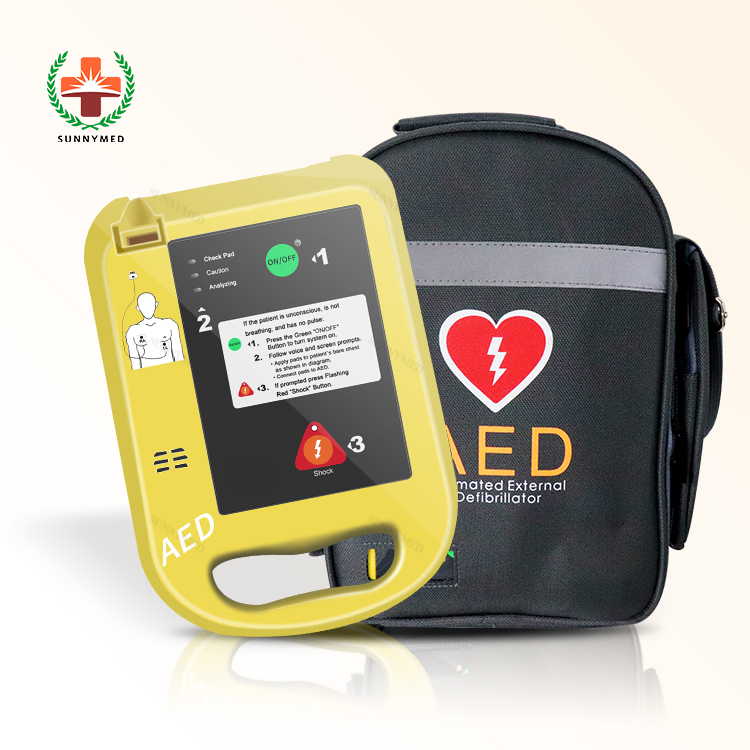

SY-C025 Easy control AED defibrillator with good quality
Technical Specifications
| Operational Parameters |
| Output | Biphasic Truncated Exponential |
| Energy Sequence | 150, 150, 200J |
| Charge Time | 8 sec. to 150J; 10 sec. to 200J (New Battery) |
| Analysis Time | 9 sec. |
| Readiness Time (New Battery) | Less than 30 seconds |
| Readiness Time (After 6 Shocks) | Less than 35 seconds |
| Power On to Readiness | Less than 25 seconds |
| Audible Prompts | 22 audible prompts |
| Visual Prompts | LED prompts |
| Controls | Two buttons - ON/Off, Shock |
| Output Energy Accuracy | ±15% into any impedance from 25 to 175Ω |
| Maximum Voltage | 1200±50V |
| Patient Impedance Limits | 20Ω to 200Ω |
| Battery System (CR123A-4*2) |
|---|
| Type | Non-rechargeable |
| Rating | 12V DC, 2.8Ah |
| Capacity | At 150 Joules |
| Physical & Environmental |
|---|
| Dimensions | 303*216*89mm |
| Weight | 2.0kg |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 30% to 95% (non-condensing) |
| Storage Temperature | -20°C to 55°C (without battery) |

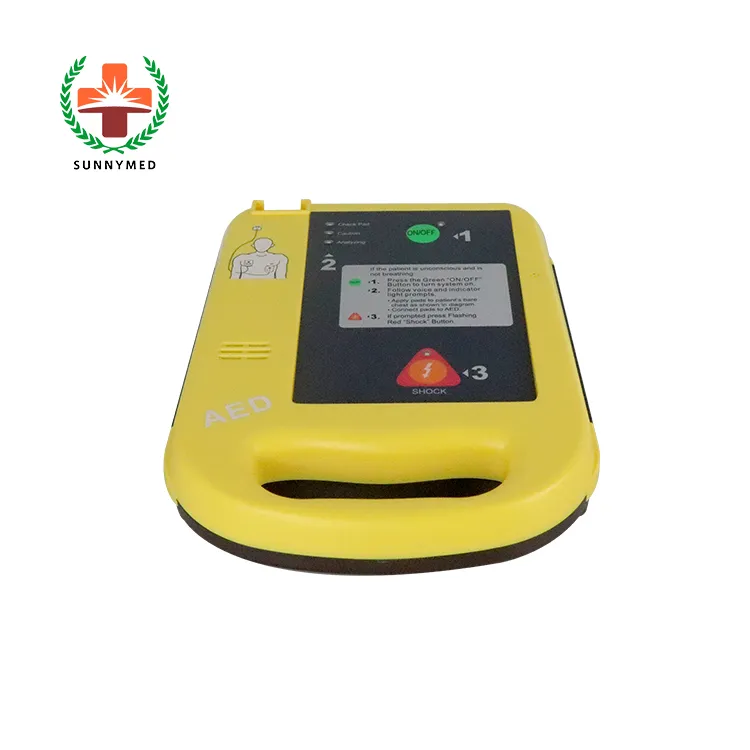

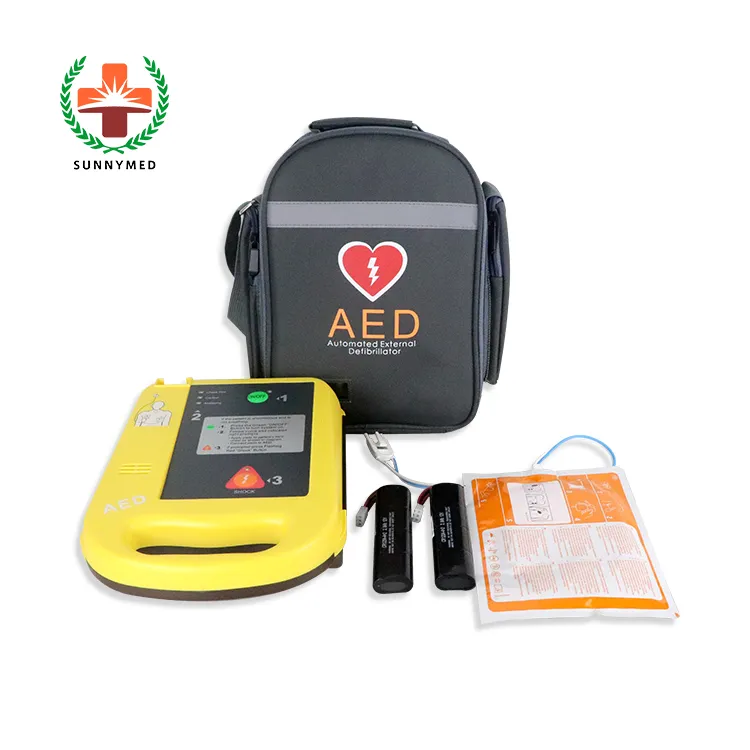

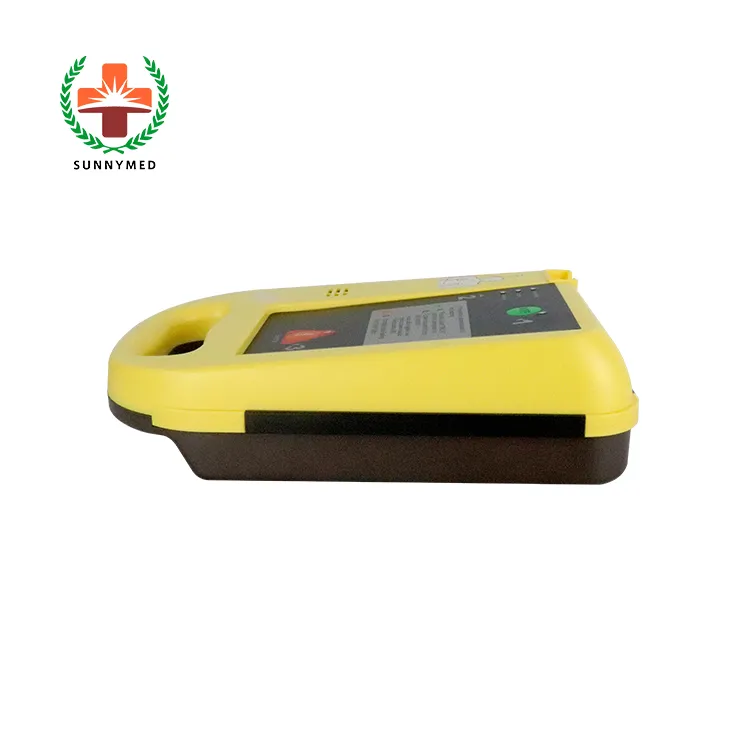

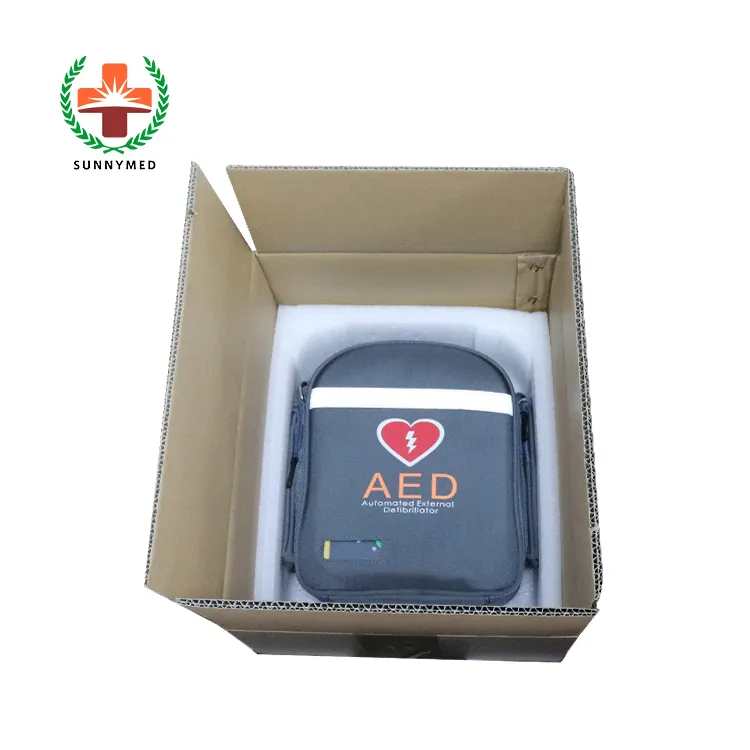

Product Gallery
Frequently Asked Questions
What is the energy sequence of the SY-C025 AED?
The device follows a biphasic truncated exponential energy sequence of 150J, 150J, and 200J.
How fast can the device analyze a heart rhythm?
The analysis time for the SY-C025 is approximately 9 seconds.
Is the battery rechargeable?
No, it uses a non-rechargeable 12V DC, 2.8Ah battery (CR123A-4*2).
What kind of prompts does the AED provide during use?
The device provides 22 audible prompts and clear LED visual prompts to guide the user through the rescue process.
What is the weight and size of the unit?
The unit is highly portable, weighing only 2.0kg with dimensions of 303*216*89mm.
What is the operating temperature range?
The AED is designed to operate in temperatures ranging from 0°C to 40°C.
