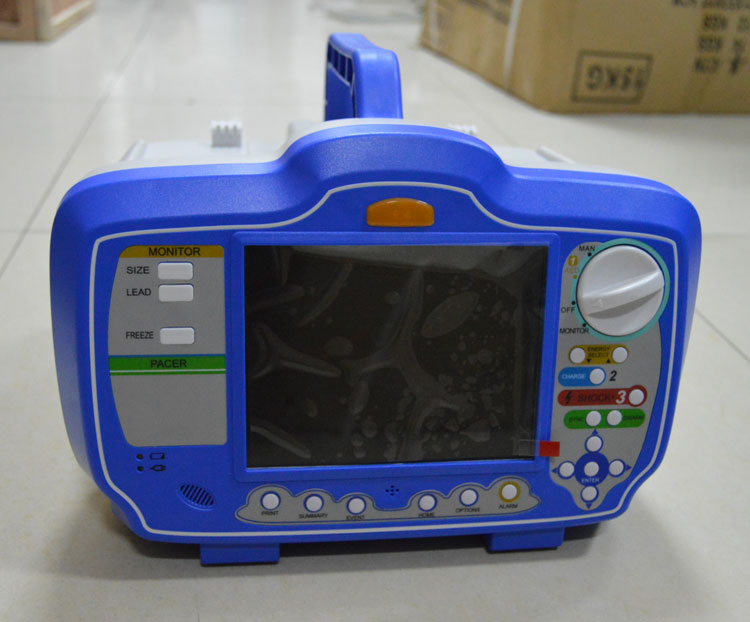

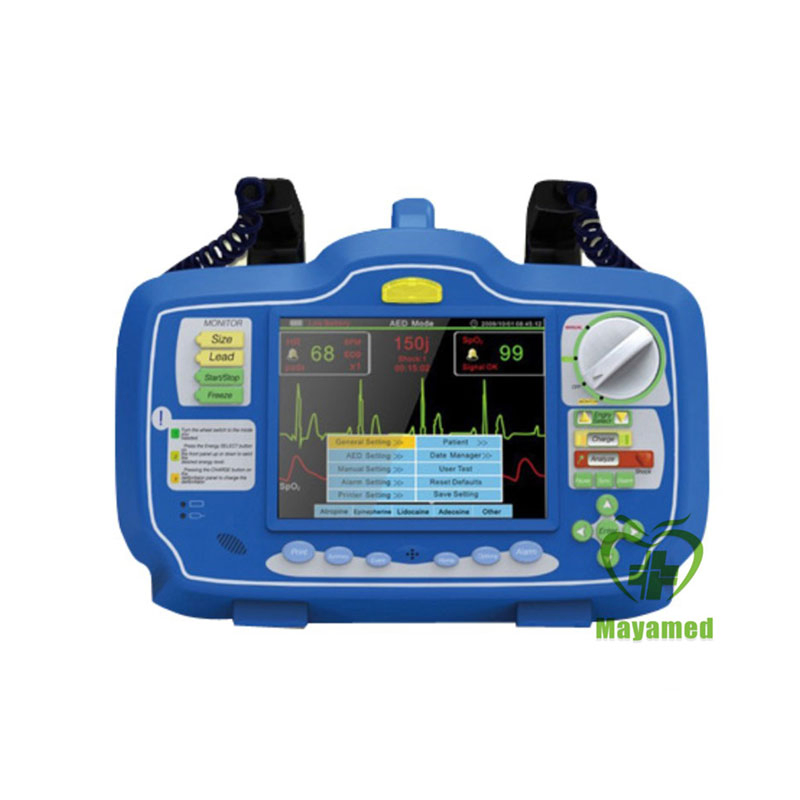

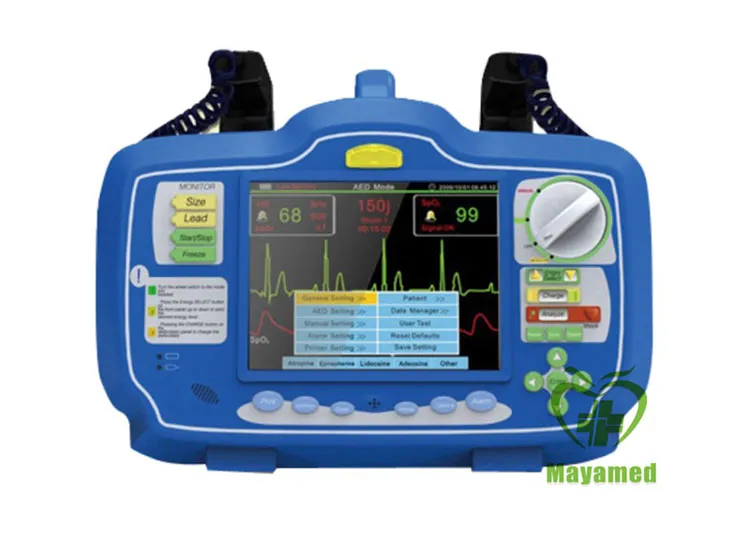

MY-C026 First-aid devices 7 inch screen portable AED automated external defibrillator medical
- Screen Type: High-resolution display
- Screen Size: 7 inches (17.7 cm) diagonally
- Sweep Speed: 25mm/sec
- Information: Heart Rate, Lead/Pads, Alarm On/Off, SpO2, AED Functions and Prompts, Alarm Selection and Limits, Delivered Energy.
- Waveform: Biphasic
- Charge Time: Less than 7 seconds with a new fully charged battery.
- Energy Display: Monitor display indicates both selected and delivered energy.
- Charge Prompt Type: Voice and visual prompts.
- Electrode Impedance Measurement Range: 0-250 ohms.

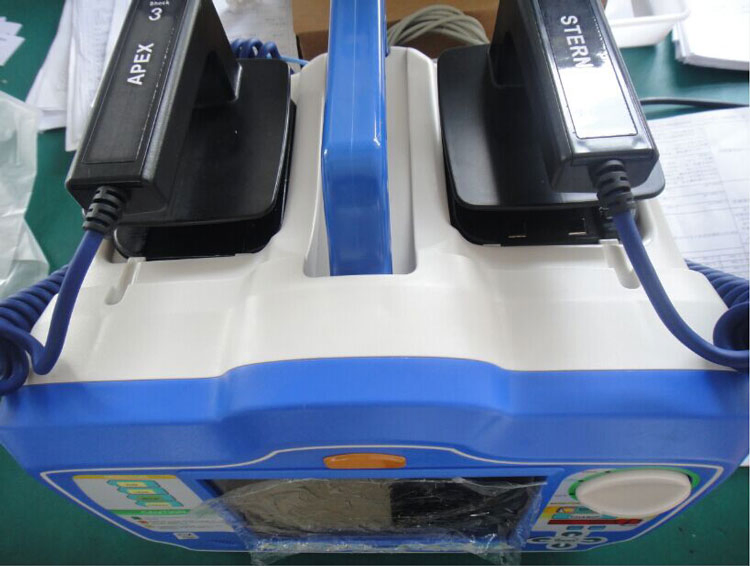

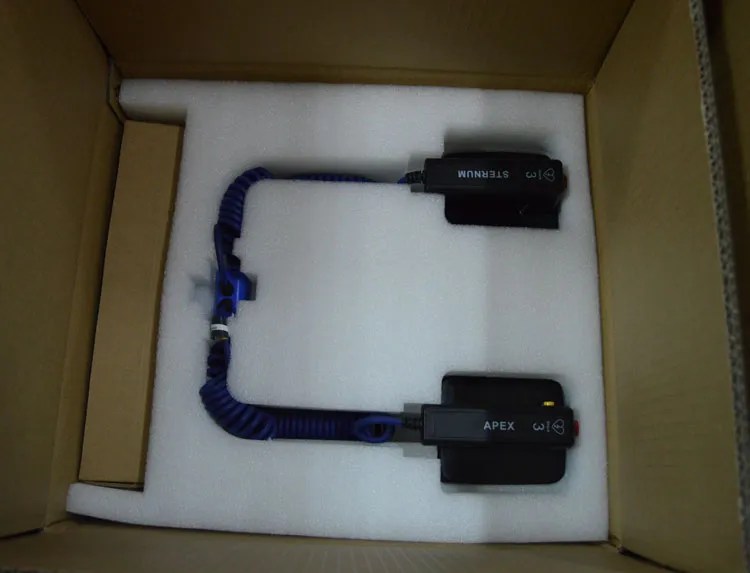

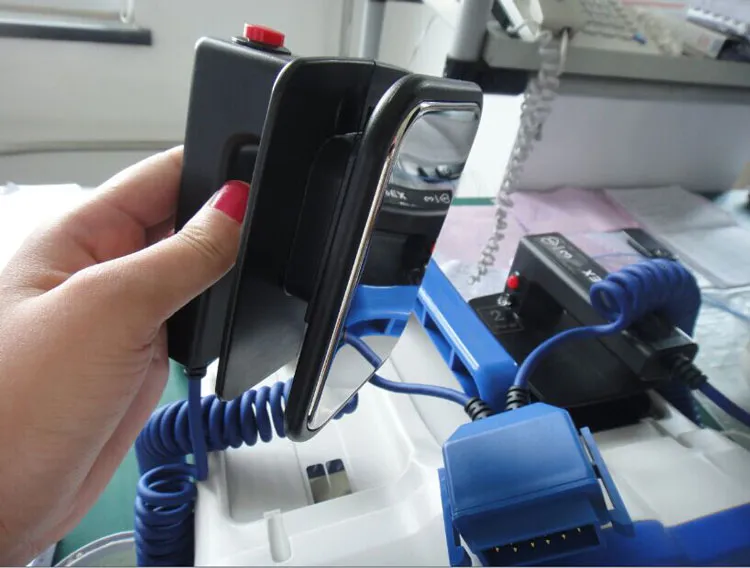

- Patient Connection: 3-lead ECG cable, or 5-lead ECG cable, paddles.
- Lead Selection: Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V.
- ECG Size: 0.25, 0.5, 1, 1.5, 2, 4 cm/mV display on monitor.
- Heart Rate: 20-300BPM.
- Smart Alarms: Beeper/voice prompts indicate shockable rhythm.
- Battery Type: Rechargeable, Ni-MH battery, 12V.
- Operating Time: 60 discharges at max energy or 3 hours minimum continuous ECG monitoring.
- SpO2 Range: 30~100%, ± 2% between 80%~90%.
- Alarm Time Accuracy: Less than 12 sec.
- Paper: 50mm thermal.
- Speed: 12.5mm/sec, 25mm/sec, 50mm/sec.
- Printing Method: High-resolution, thermal print head.
- Automatic Function: 9-seconds recording initiated by alarm or charge.
