📋 Basic Information
Feature
Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Safe, Thermal Insulation, Waterproof, Wind Resistance
Wall Material
PU /EPS/Rock Wool Sandwich Panel
Steel Frame
4mm Thickness Steel Pillar 3mm Steel
Wall Panel
50mm EPS/Rockwool/PU Sandwich Panel
Door
Steel Door/Sandwich Panel Door
Usage
Dormitories, Villa, Temporary Offices
Certification
CE, ISO, SGS
🏗️ Introduction

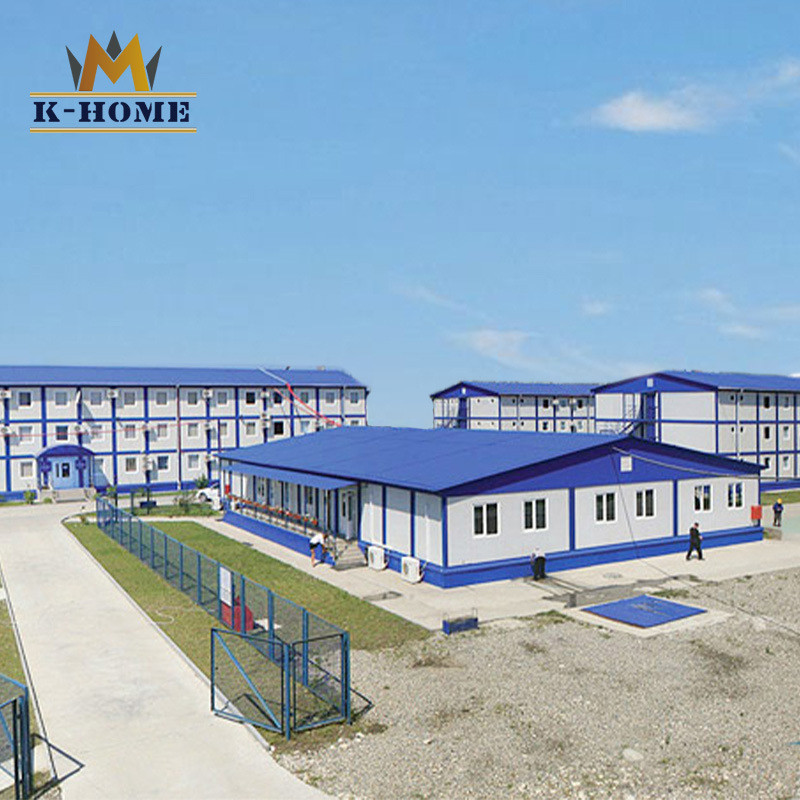

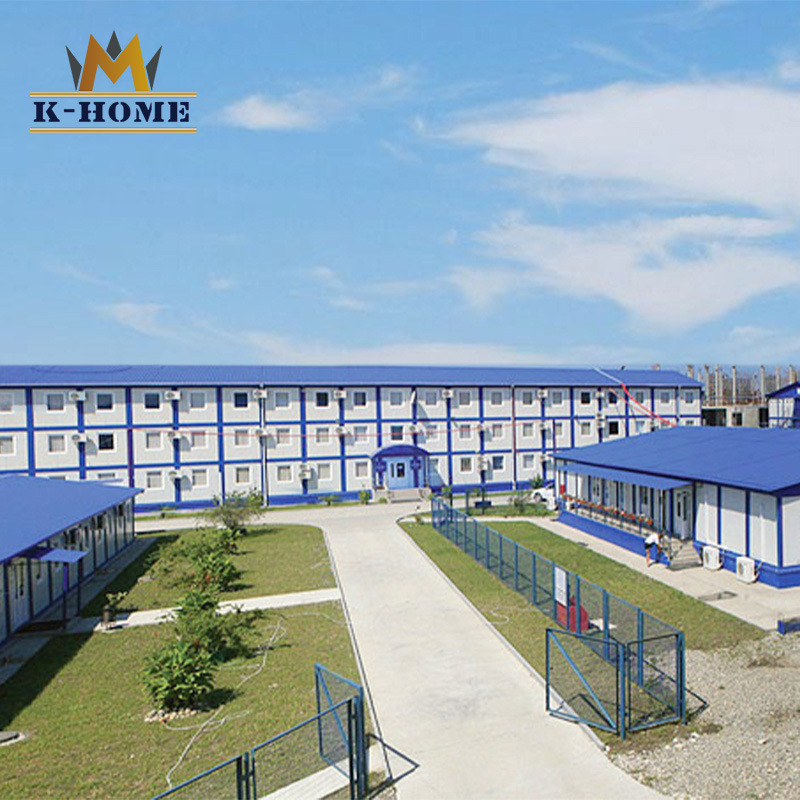

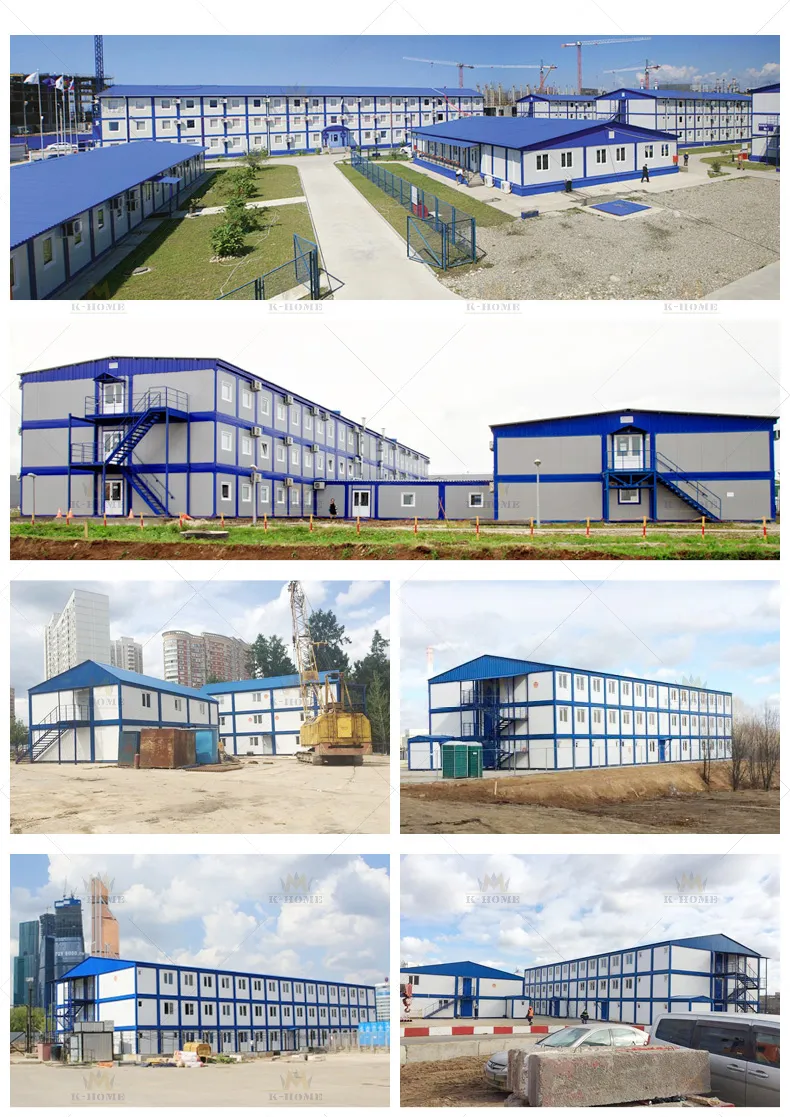

In order to allow children in poor areas to have a good education, a very low-cost modular container school solution has been developed. This measure addresses the problem of insufficient educational facilities by providing flexible, weather-resistant structures.

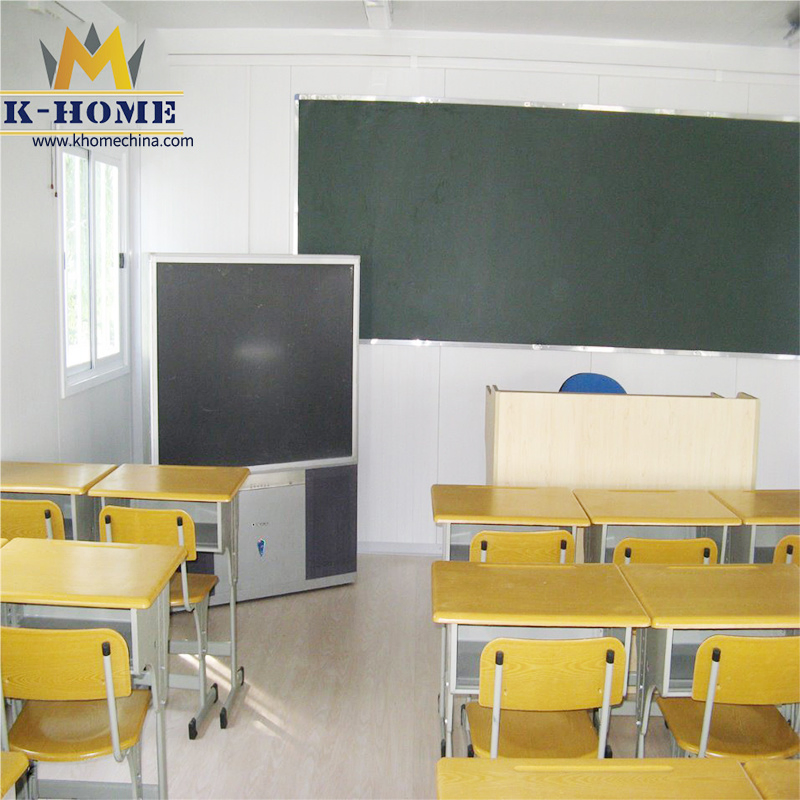

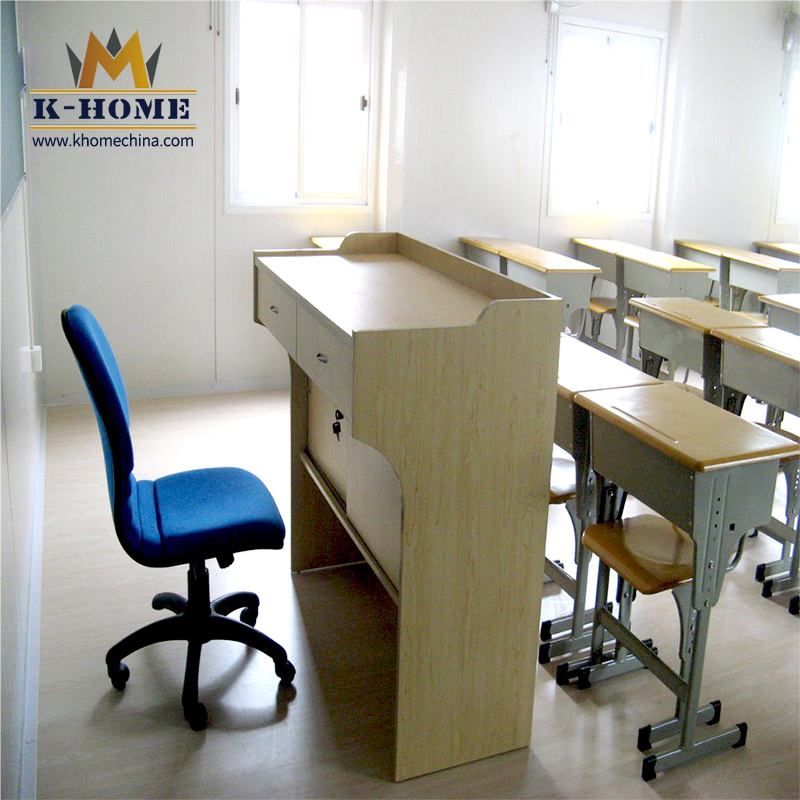

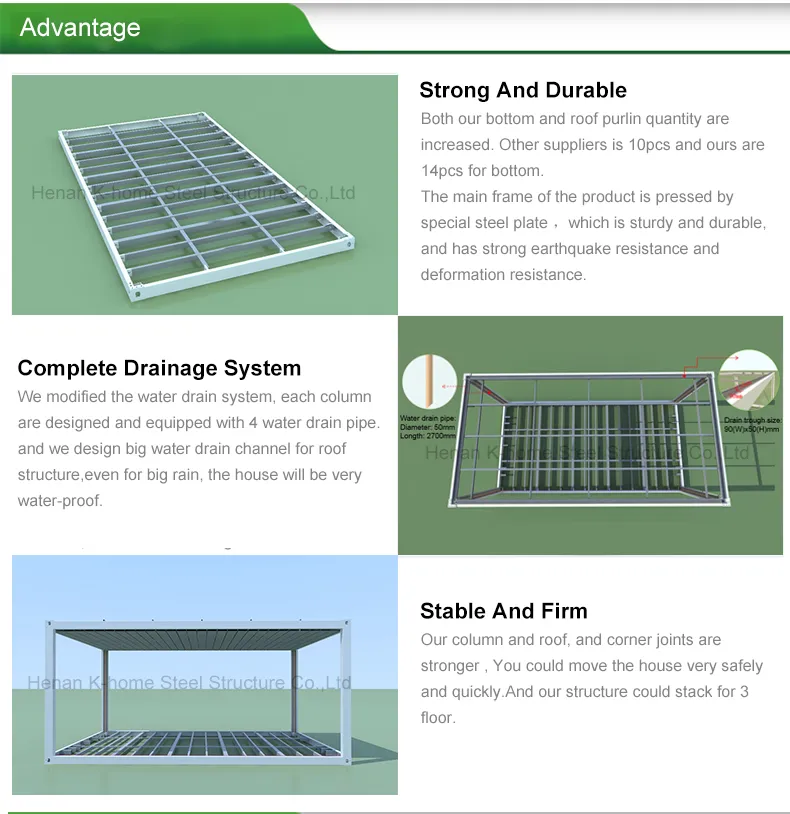

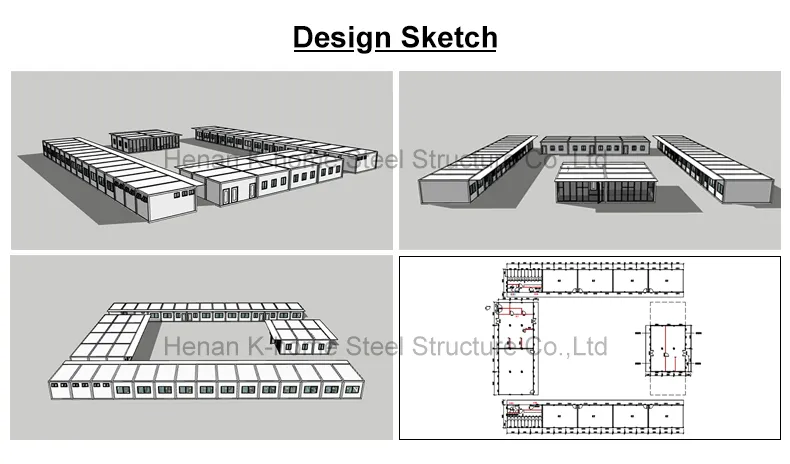

The design mainly includes educational facilities such as classrooms, offices, playgrounds, and libraries. The container classroom is the most important link, made up of two standard container houses. Modular components include frame steel, glass panels, solar energy saving systems, drains, filter ducts, cisterns, windows, and furniture. These components are transported to the site for quick installation, saving significant time.
🛠️ Detailed Specification
| Part |
Item |
Specification |
| Roof System |
Steel frame |
Q235 galvanized fitting |
| Roof System |
Insulation |
0.4mm steel sheet + 50mm glass wool |
| Floor System |
Steel frame |
3mm Galvanized Steel main structure + 1.5mm secondary beam |
| Floor System |
Floor |
15mm chipboard + PVC leather floor |
| Column |
Column |
2.5mm Shaped Galvanized Steel |
| Wall System |
Wall Panel |
50mm EPS Foam Sandwich Panel (0.35mm steel) |
| Openings |
Door & Window |
Steel door (2000*980mm); Aluminum alloy sliding window (1200*1000mm) |
| Electric |
System |
LED light, double sockets, air-switch, and safety protection box |

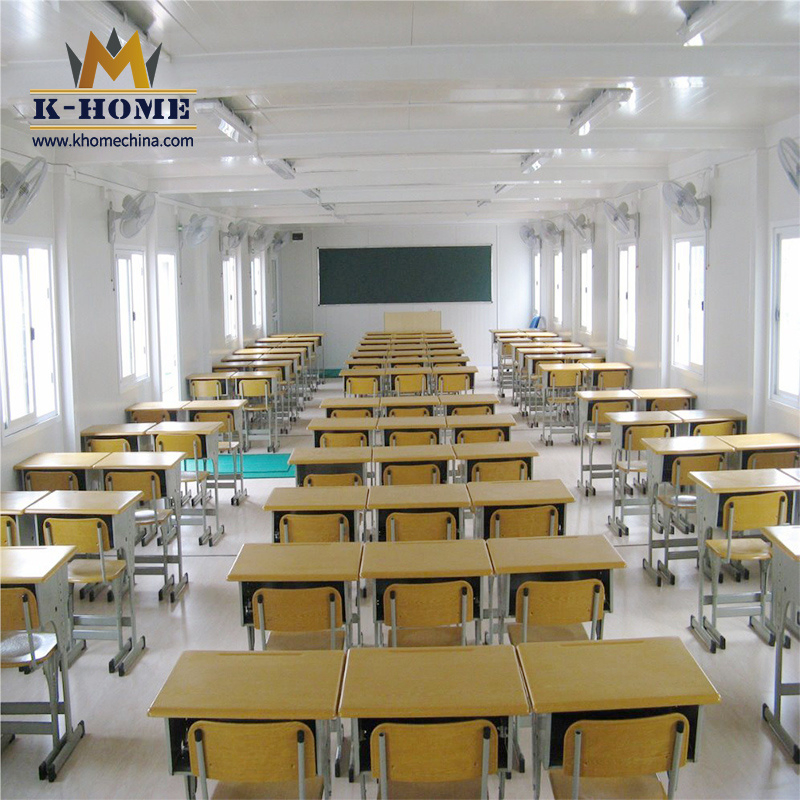

These modular components only need to be transported to the site for installation with the container. This project is a very flexible modular expansion system. Its combination depends on actual needs. A classroom consisting of two containers can accommodate 24 students simultaneously.
❓ Frequently Asked Questions
What is the monthly production capacity for container houses?
The production capacity is approximately 800 sets per month for container houses and 40,000 square meters per week for prefab houses.
How is the quality of the products controlled?
We adhere to ISO9001:2015 standards. Products undergo cutting, bending, welding, shot blasting, ultrasonic testing, and rigorous inspection to ensure zero defects.
Are third-party inspections supported?
Yes, inspections by SGS, BV, TUV, and other agencies are available according to client requirements.
What is the typical delivery time?
Generally, delivery is within 30 days depending on the order quantity. Partial shipments are allowed for large orders.
Do you provide assistance with installation?

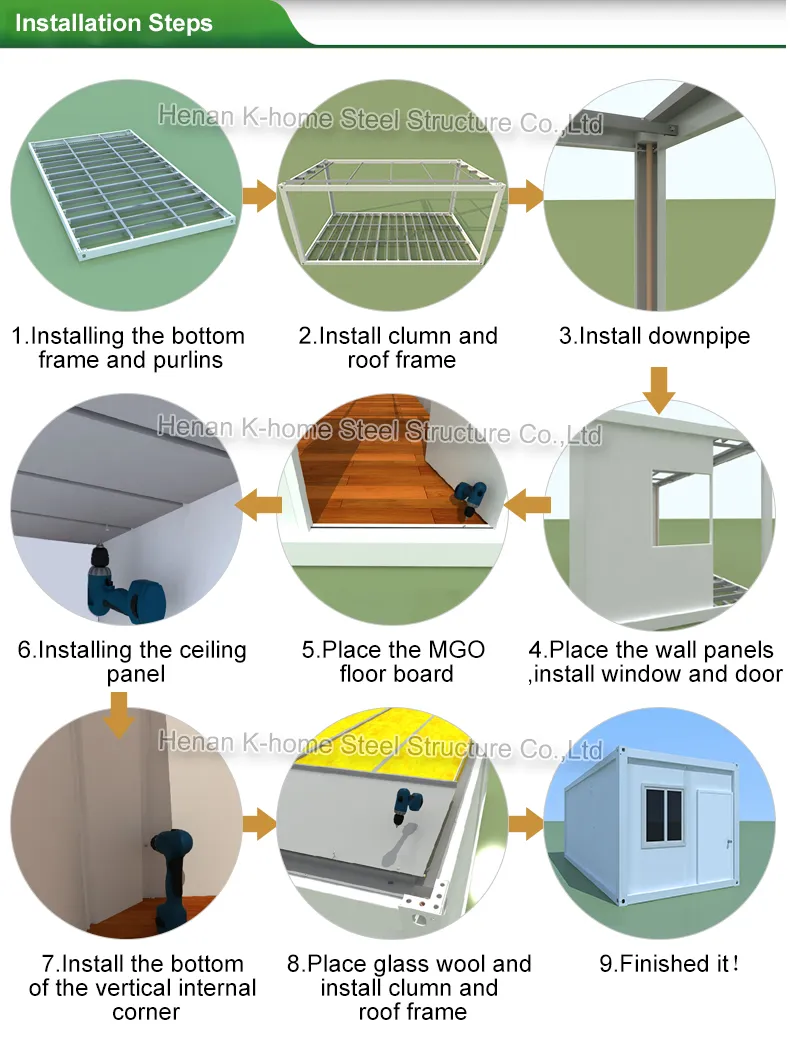

We provide detailed installation drawings. Supervisors for guiding the installation are also available, and we can perform turnkey jobs for specific projects.
How can I visualize the solution before ordering?
We provide CAD drawings, 3D renderings, material photos, and photos of finished projects to help you understand the proposed solution in detail.
