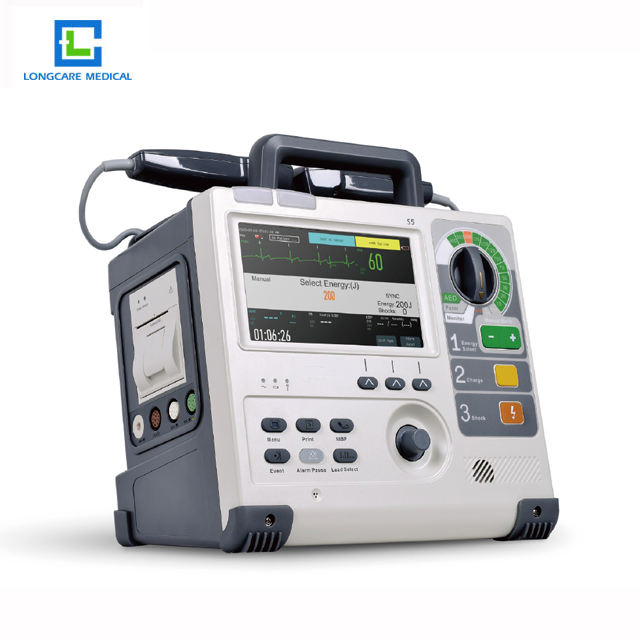

Hospital Clinic Use Aed Automated External Defibrillator with ECG Monitoring

1 / 1

Hospital Clinic Use Aed Automated External Defibrillator with ECG Monitoring

Material:	Metal, Plastic, Steel
Application:	Hospital
Type:	Cabinet

Send Inquiry

Product Description

Basic Information

Model NO.

YH-S5

Size

295mm*252mm*316mm

Certification

Hardness

Hard

Style

Simple

Feature

Reusable

Battery Type

Rechargeable Lithium-Ion Battery

Screen Size

7" TFT Screen

Power Source

Electric

Weight

6.5kg (Including 1 Battery)

Resolution

800 * 480

Energy Range

1J~360J, 25 Types

Product Overview

Standard Configuration:

Manual defibrillation, AED, 3/5-lead ECG, RESP, Thermal Recorder

Optional Features:

Pacer, NIBP, PR, EtCO2, SpO2

Technical Specifications

Defibrillation Performance

Operating mode: Manual Mode, AED Mode, Synchronous Defibrillation

Waveform: Biphasic truncated exponential waveform, with impedance compensation

Charge Time: Less than 3 seconds to 200 Joules; Less than 7 seconds to 360 Joules (Battery power)

Patient Impedance Range: 20~300Ω

AED Mode

Output Energy: Adjustable 100-360J

Electric Shocks: Adjustable once, twice, or 3 times

Analysis Types: VF & VT

Noninvasive Pacing

Waveform: Monophasic square wave pulse

Pacing Mode: On-demand or fixed

Frequency: 30 ppm to 210 ppm

Output: 0 mA to 200 mA

Power Source	100-240V~, 50/60Hz±3Hz
Battery	Rechargeable Lithium-ion
Display	7" TFT, 800 * 480 Resolution
Waveforms	Max 4 Waveforms
Interfaces	USB, RJ45, AC Power Input
Material	Metal, Plastic, Steel

Product Details

Frequently Asked Questions

How long does it take to charge for a 360J shock?

With a new, fully charged battery, it takes less than 7 seconds to reach 360 Joules.

What are the standard monitoring functions?

The standard configuration includes Manual defibrillation, AED, 3/5-lead ECG, Respiration, and a Thermal Recorder.

Is the battery rechargeable?

Yes, the device uses a high-performance rechargeable Lithium-ion battery.

What is the screen resolution and size?

It features a 7-inch TFT screen with a resolution of 800 * 480 pixels.

Does it support pacing?

Noninvasive pacing is available as an optional feature, supporting both on-demand and fixed modes.

What types of cardiac rhythms can the AED analyze?

The AED mode is designed to analyze and treat Ventricular Fibrillation (VF) and Ventricular Tachycardia (VT).
