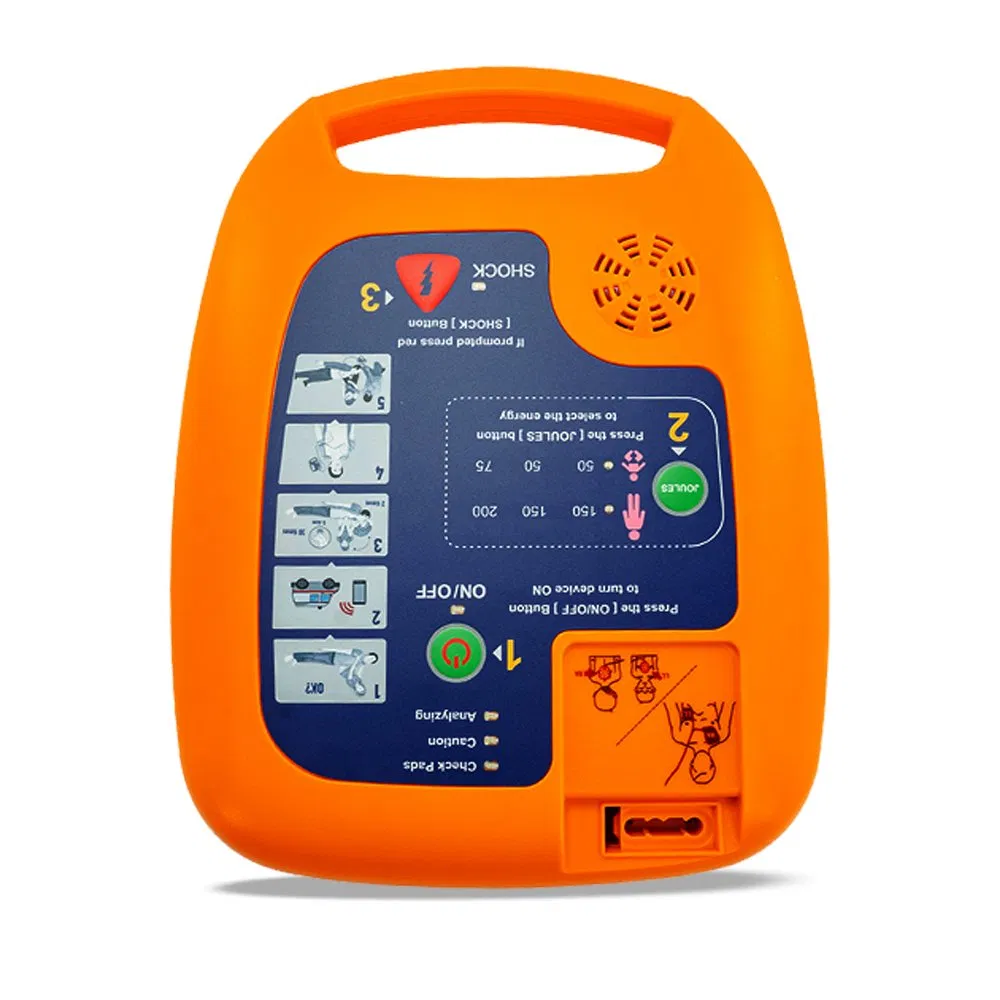

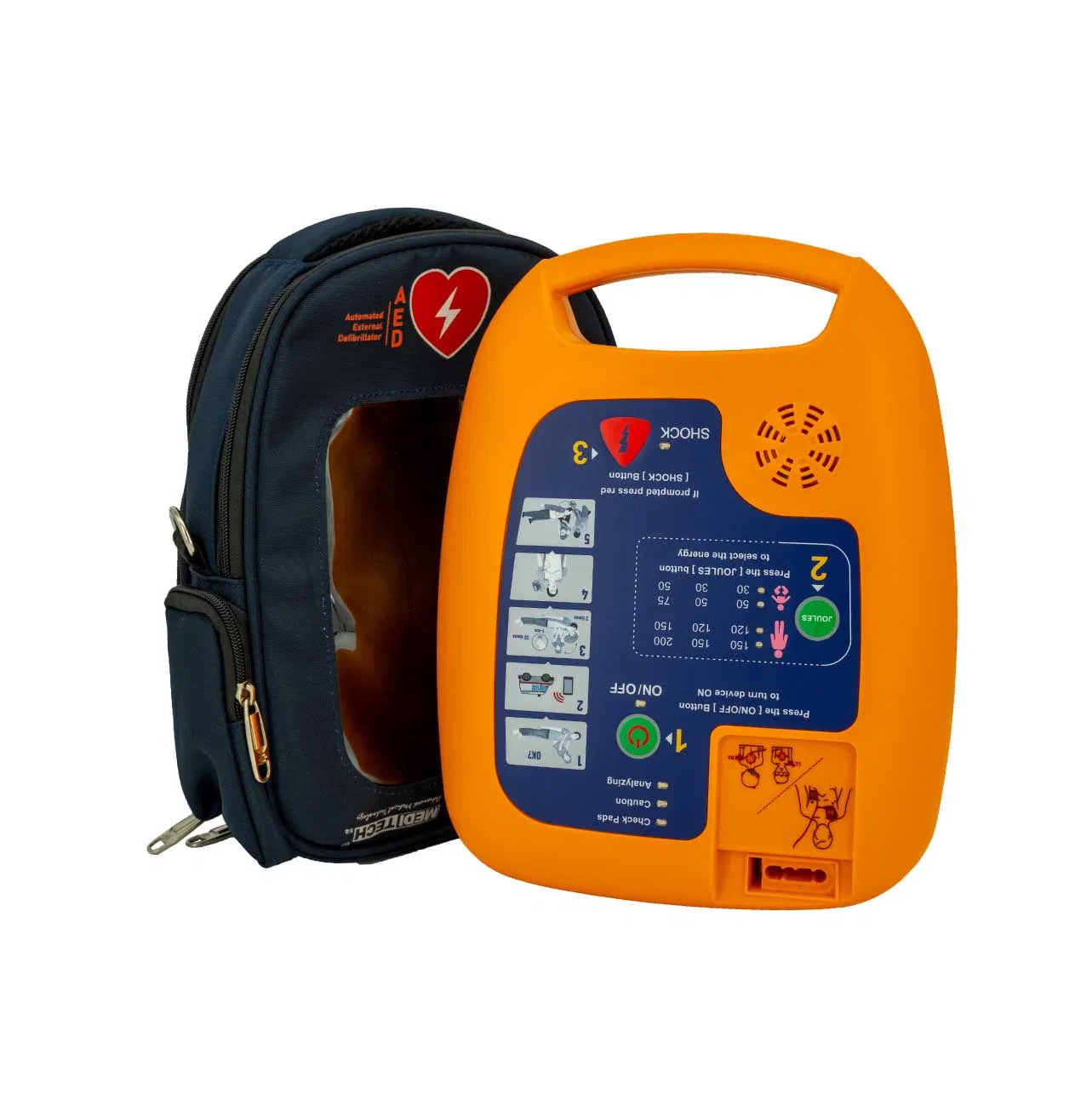

Compact Aed for Quick Emergency Response and Life-Saving Solutions

1 / 5

Compact Aed for Quick Emergency Response and Life-Saving Solutions

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Defibrillator Aed

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

AED2

Certification

CE, ISO13485

Product Name

Defibrillator Aed

Waveform

Biphasic Truncated Exponential

Energy

200-Joules Max.

ECG Storage

1800 Events

Battery

Li-MnO2 Cell

Weight

1.9Kg

Product Description

Case Management: AED storage software makes the selected data file a case record and stores cases in the database ACCESS. Case management supports importing and deleting data that can respond to the ECG waveform.

Memory Playback: The interface displays status information recorded during AED operation, including type, event time, description, and waves. Event types include: Power On, Self Test, Analysis, Charge, Discharge, CPR start/stop.

ECG Features: Waveform gain can be set to 5mm/mv, 10mm/mv, 20mm/mv; Waveform speed can be set to 12.5 mm/s, 25 mm/s, 50 mm/s.

Technical Parameters

Type	Automatic External Defibrillator (AED)
Self-test	Daily, Weekly, Monthly
Mode	Adult, Child
Energy Sequence	Adult: 150, 150, 200J \| Child: 50, 50, 75J
Charge Time	Less than 8 sec. to 200J

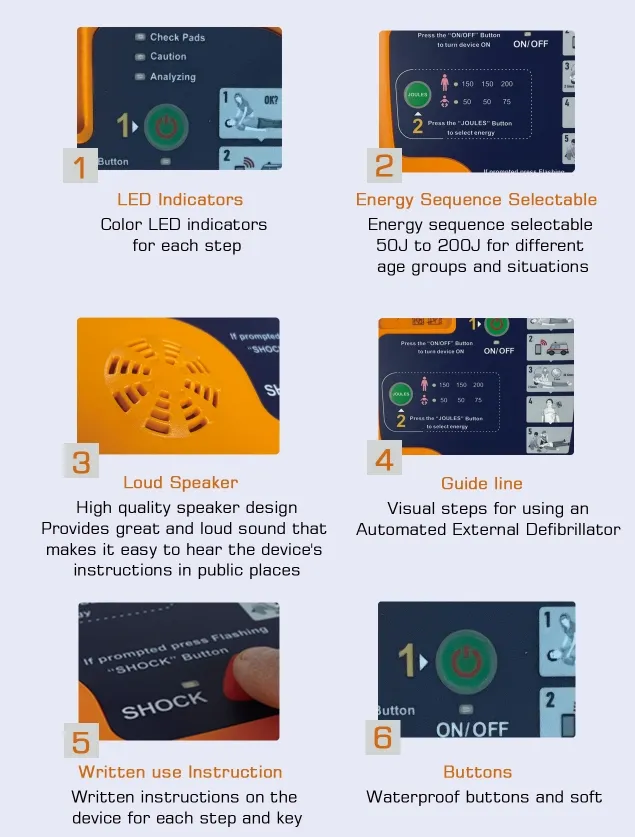

Voice Prompt	Extensive voice prompt with LED indicators
Battery Power	12V, 3000mAh (Non-rechargeable)
Operating Temp	0ºC to 40ºC

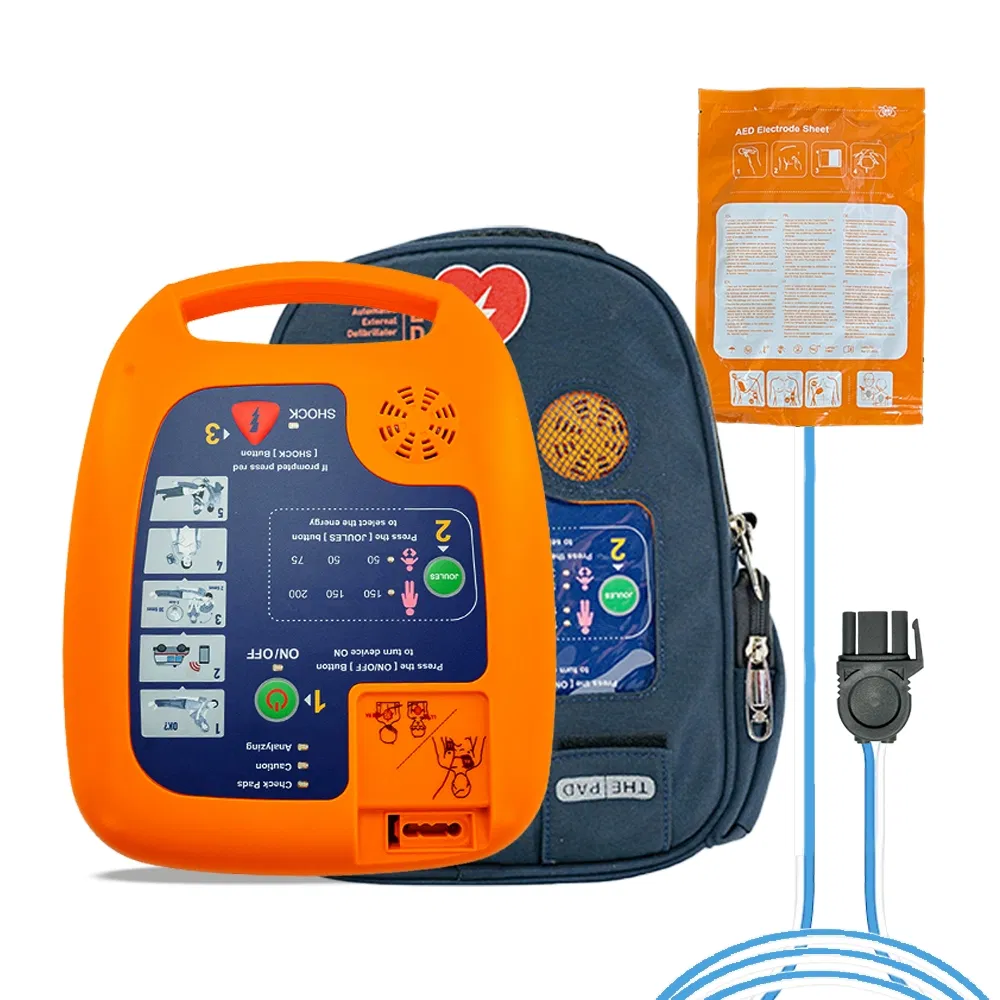

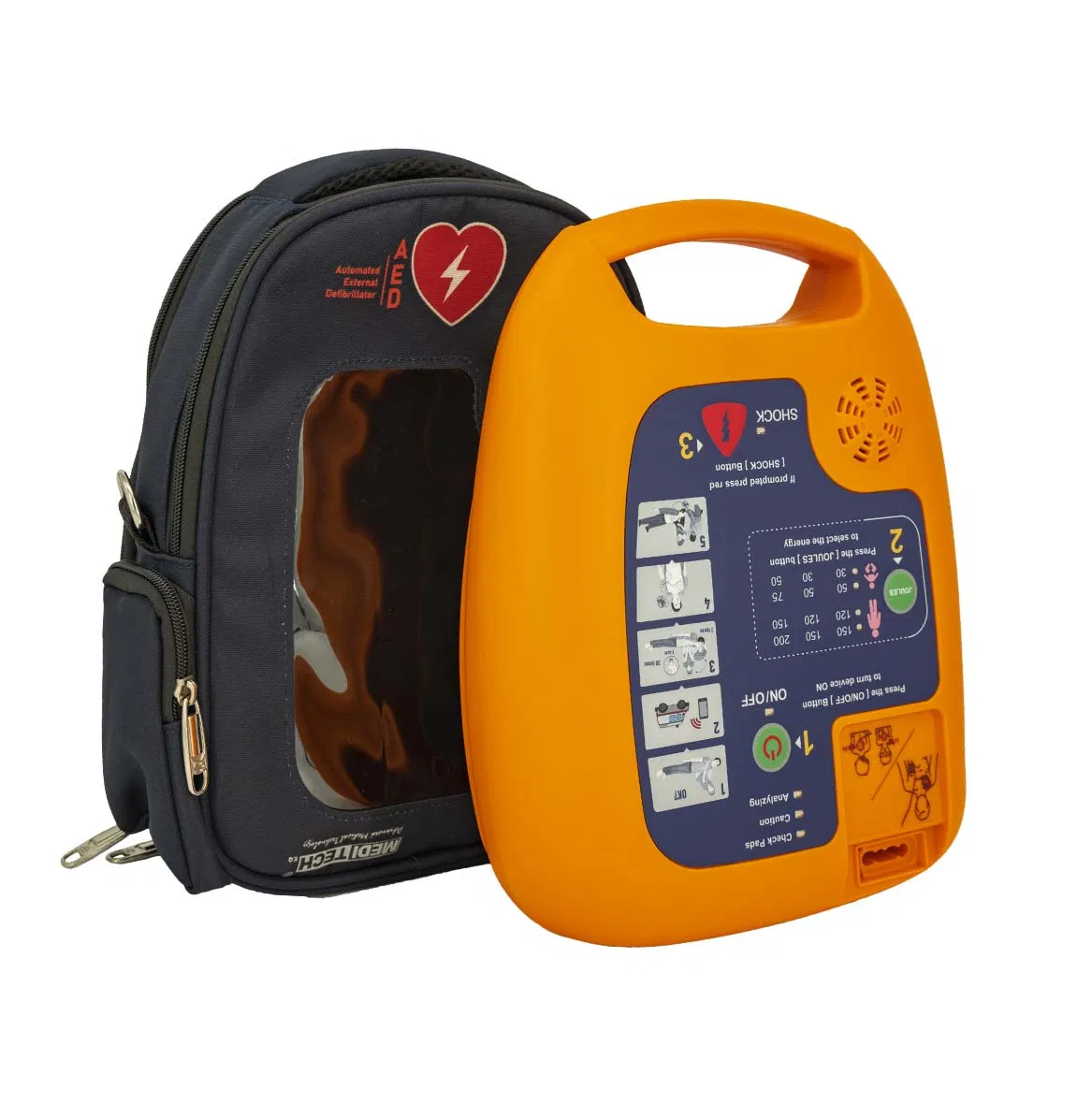

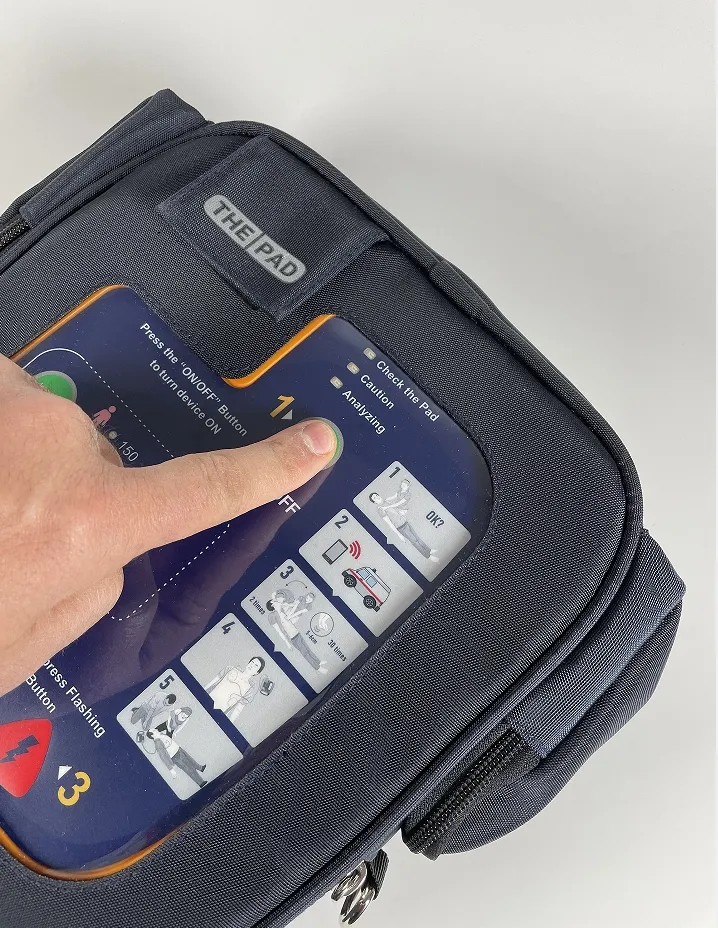

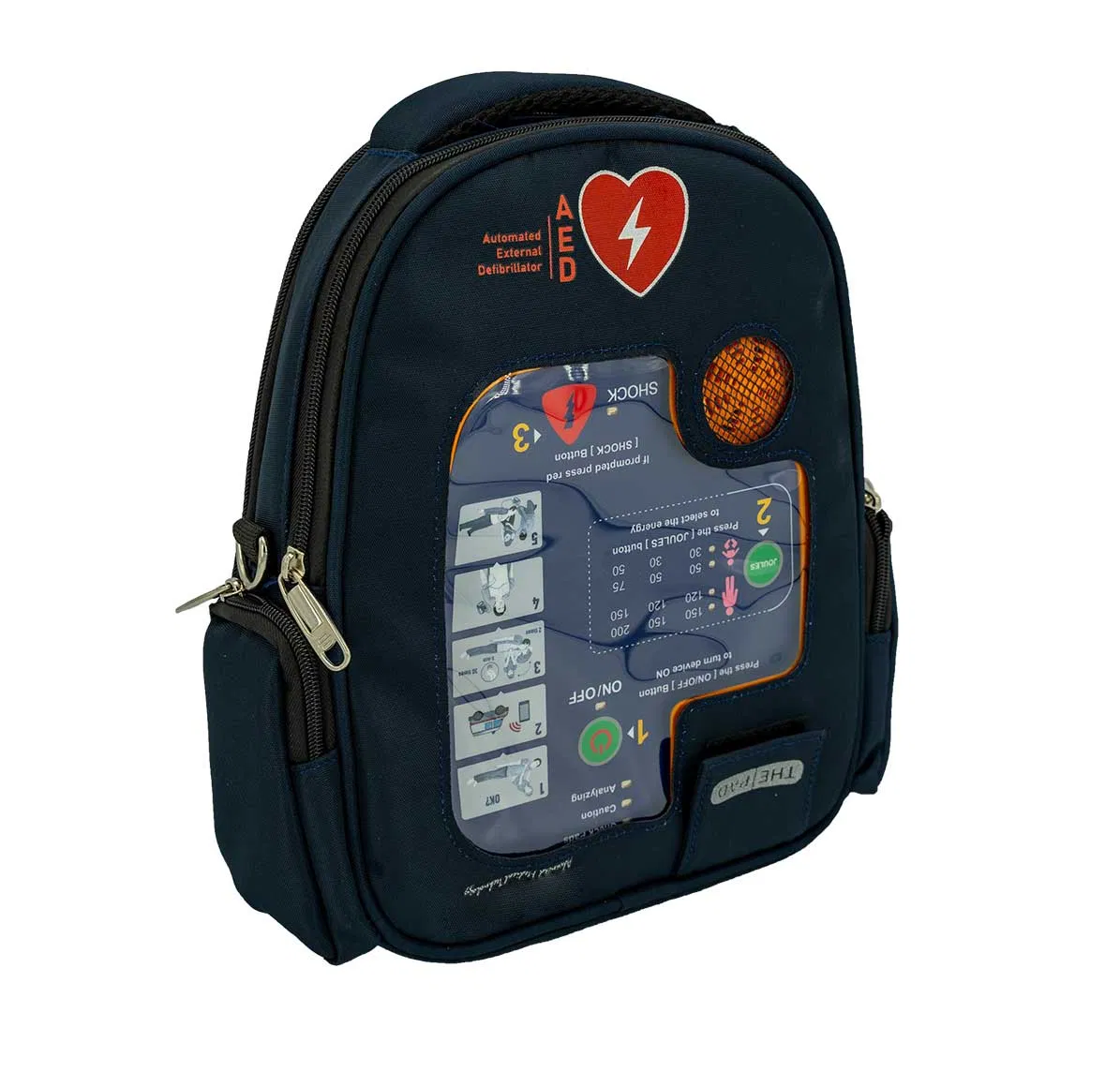

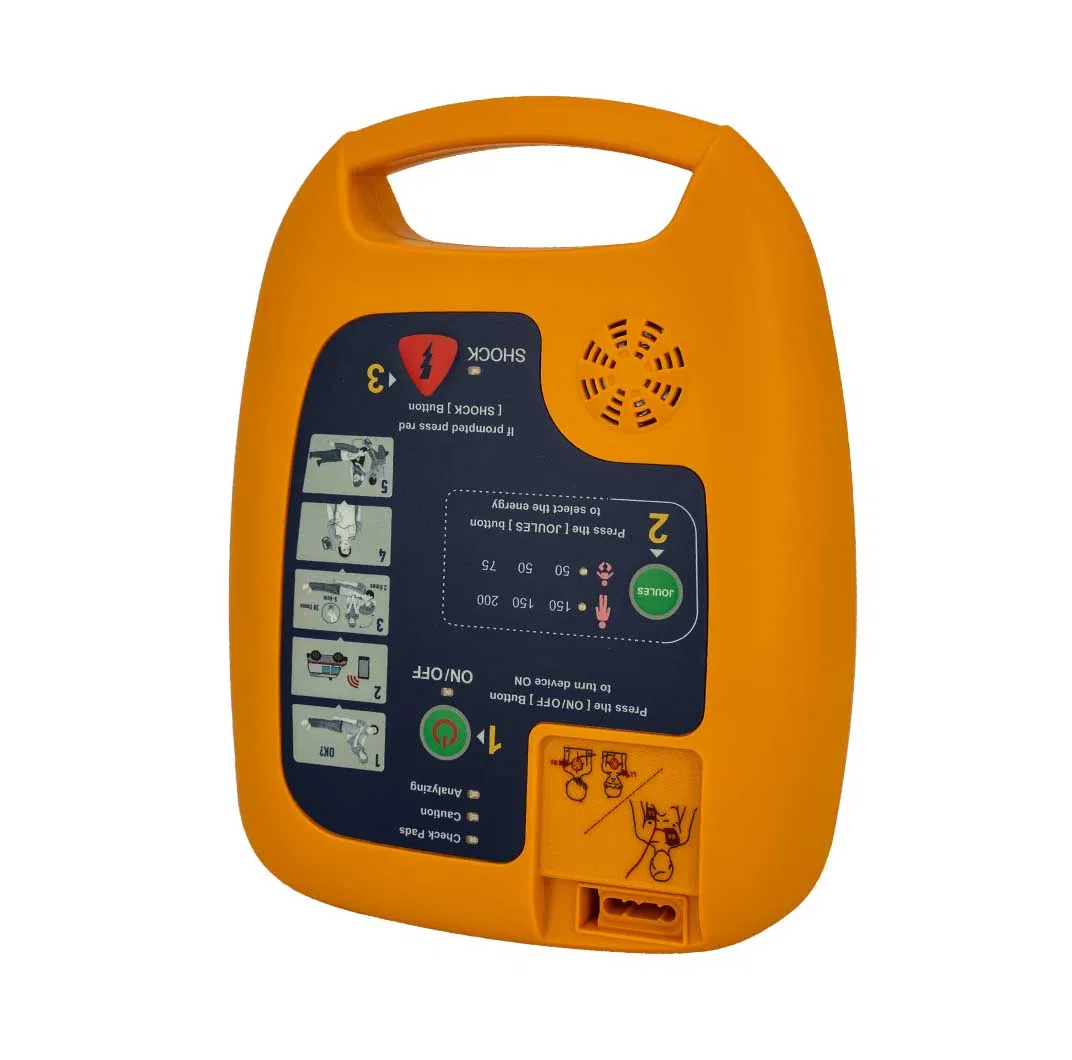

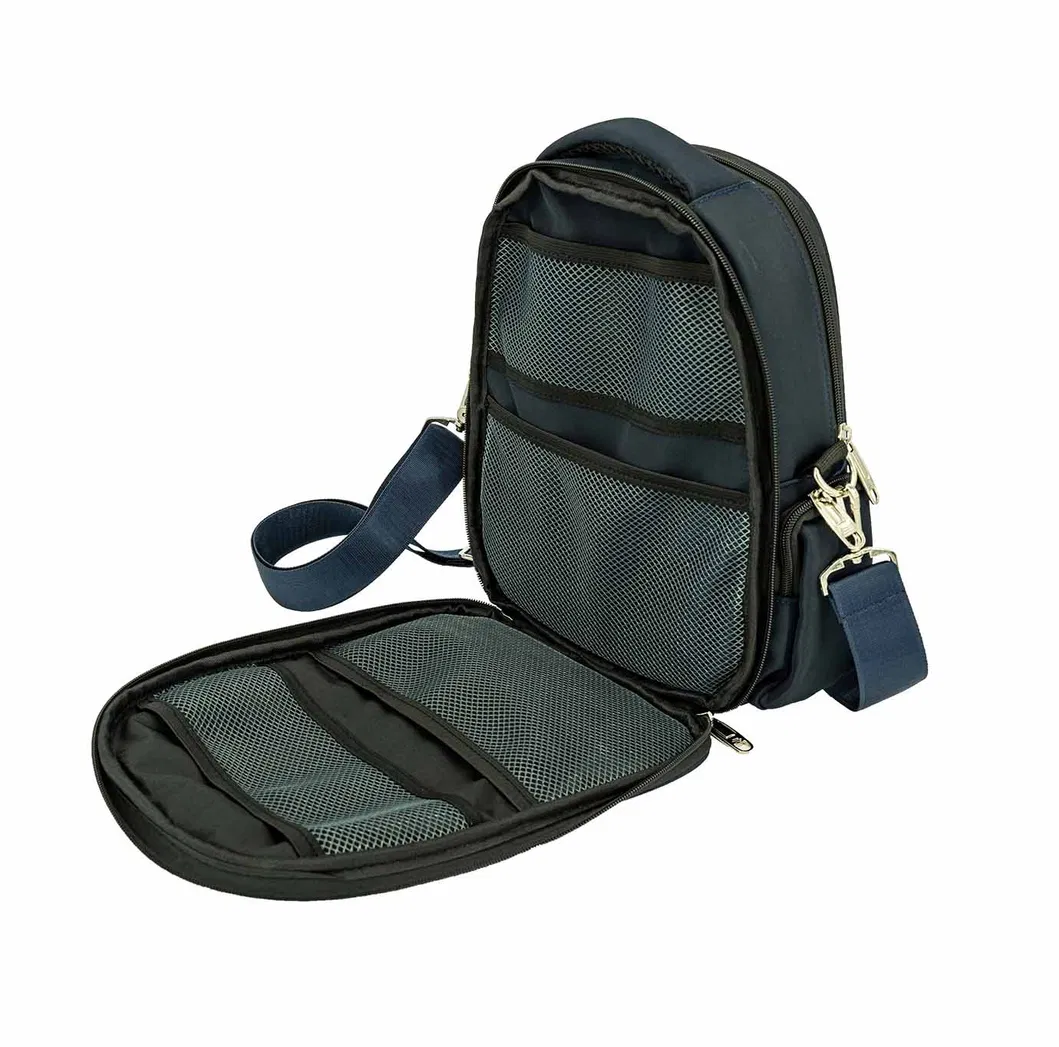

Detailed Photos

Factory & Production

Frequently Asked Questions

What waveform does this AED use?

The device utilizes a Biphasic Truncated Exponential waveform, which is the industry standard for effective defibrillation.

Can it be used on children?

Yes, the AED features dual modes for both Adult and Child patients, with adjustable energy sequences (up to 75J for children).

How long does the battery last?

It uses a high-capacity 12V 3000mAh Li-MnO2 non-rechargeable battery designed for long-term standby and emergency use.

Does the device perform self-tests?

Yes, the system is programmed to perform automatic daily, weekly, and monthly self-tests to ensure readiness.

How is the data transferred for case management?

Data transmission is handled via an Infrared port, allowing you to export ECG waveforms and event logs to a database.

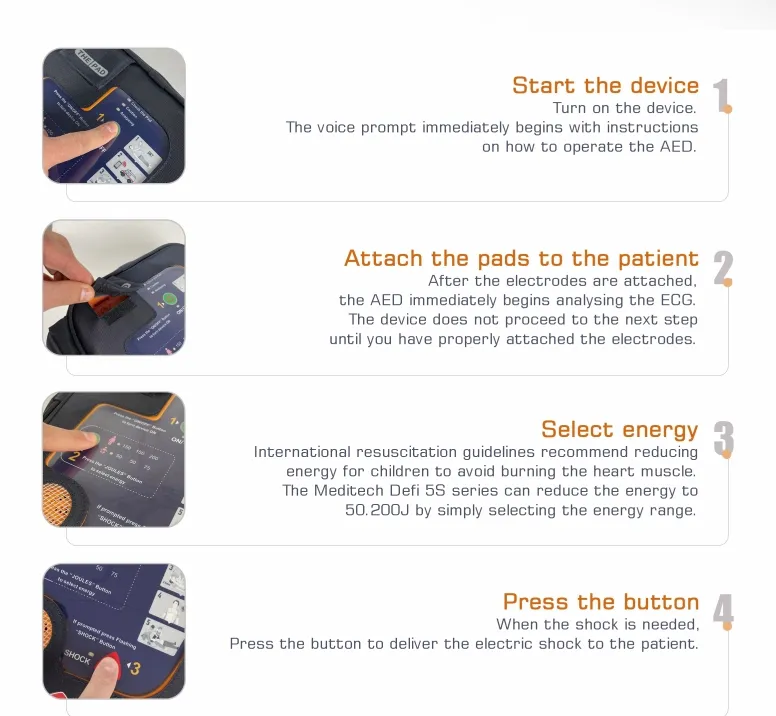

Is there visual guidance during use?

Yes, the device provides both extensive voice prompts and LED visual indicators to guide the user through the rescue process.
