Product Description

Technical Overview
Model NO.
YJ-9000D
Product Name
Aed Automated External Defibrillator
Application
First Aid
Certificate
CE
Screen Size
7 Inches (17.7 Cm)
Waveform
Biphasic / Monophasic
ECG
3/5-Lead ECG Cable
Origin
China

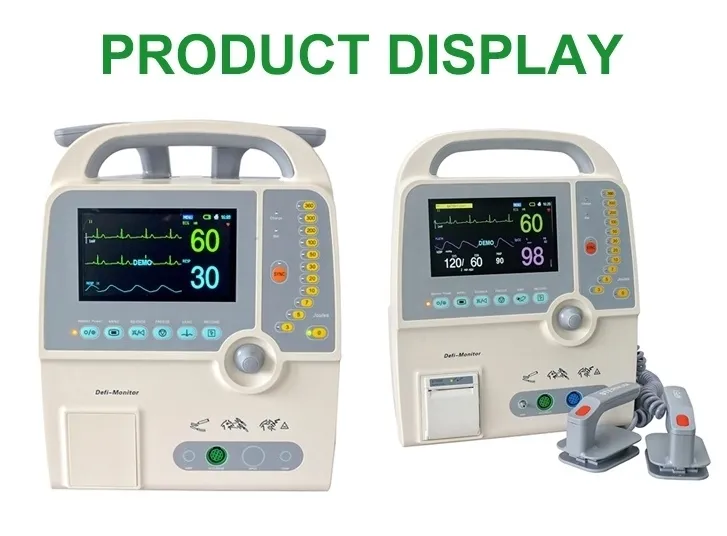

AED Defibrillator Unit
Product Description

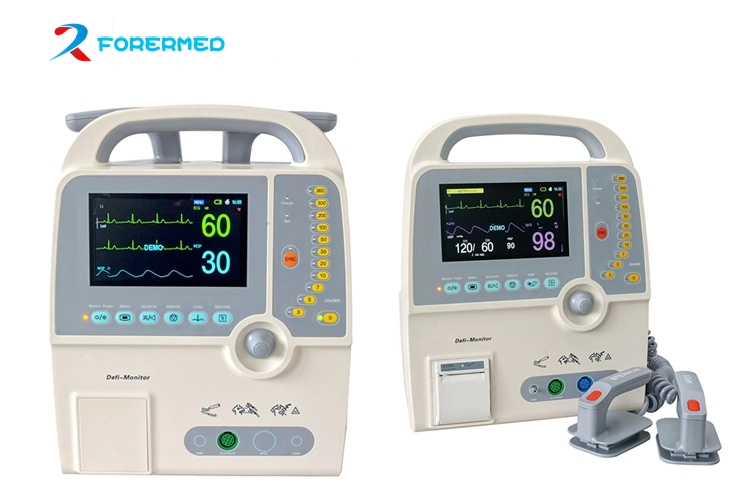

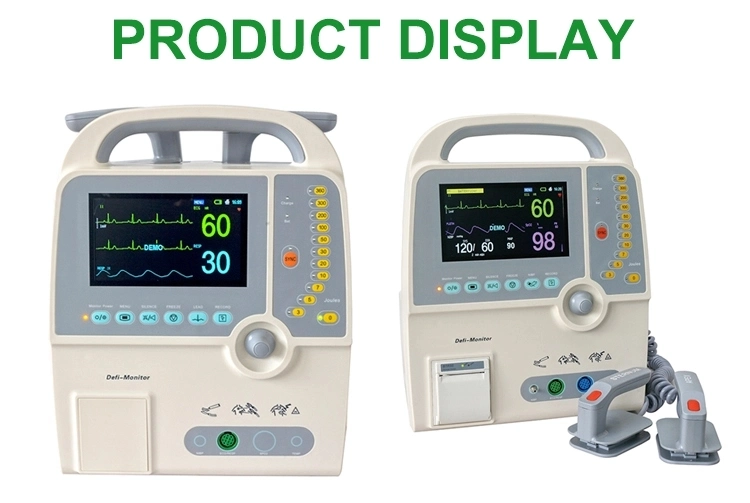

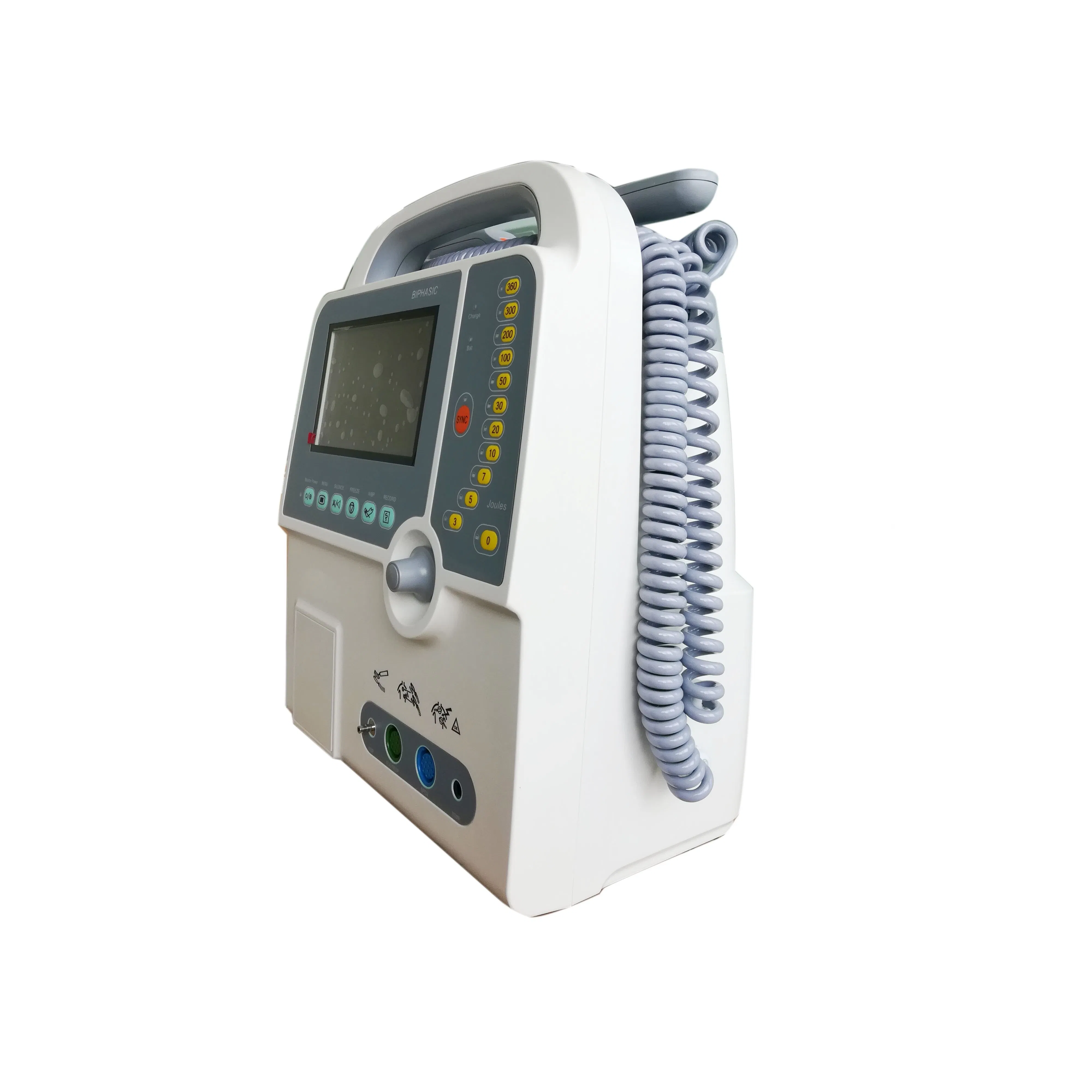

The YJ-9000D is a compact, durable, and lightweight defibrillator that integrates monitoring and manual defibrillation. It features a 6-parameter patient monitor, making it a professional biphasic defibrillator-monitor suitable for medical environments.

Physical & Technical Specifications
Main UnitPortable, L320xW205xH410, Weight: 9.8kg
Defibrillator TypeManual, Synchronized, Asynchronized
Energy Selection0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 Joule
Charging TimeMaximum 8 seconds to 360 Joules

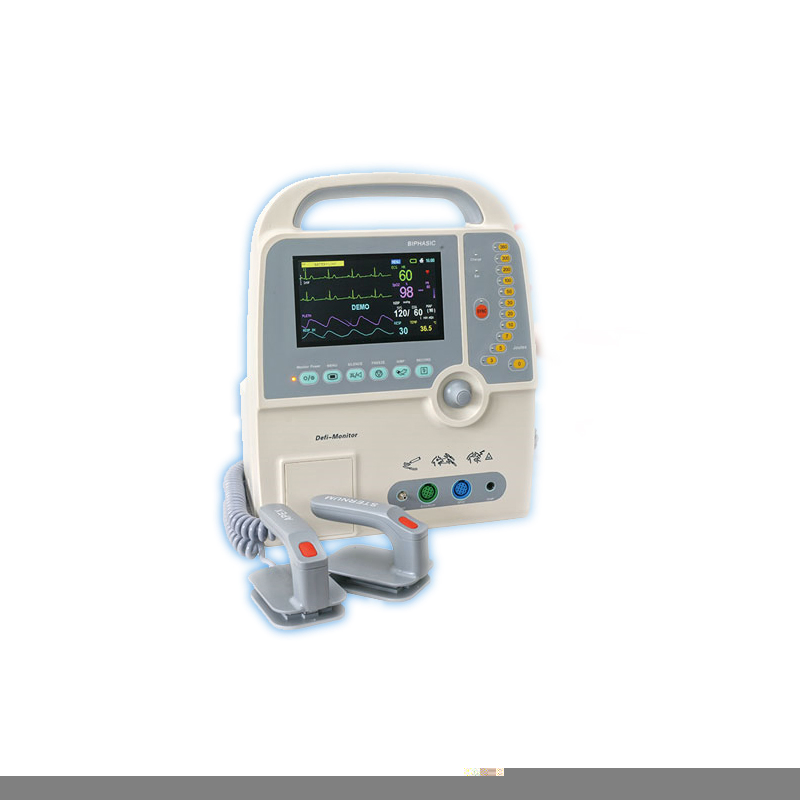

PaddlesStandard Adult/Pediatric Reusable External Paddles
BatteryRechargeable (Lead-acid/Lithium); 120 mins monitoring or 30 discharges
Advanced Monitoring Features
Display
7" High resolution true-color graphic LED (800x600)
ECG Analysis
S-T segment & Arrhythmia analysis, 4000vAc isolation
NIBP
Manual/Automatic oscillation; Adult/Pediatric/Neonatal
SpO2
0~99% range for all patient types
Operation Steps (Asynchronous DC Defibrillation)
  • Step 1: Turn on the defibrillator.
  • Step 2: Apply sufficient conductive gel on the electrode pads to ensure safe energy transmission.
  • Step 3: Select energy level based on patient weight (approx. 2 joule/kgs).
  • Step 4: Position pads firmly: Right chest (beneath clavicle) and Left chest (above apex). Press with approx. 10kg force.
Product Details & Gallery
Gallery 1
Gallery 2
Gallery 3
Gallery 4
Gallery 5
Frequently Asked Questions
Q1: What type of waveform does the YJ-9000D use? A: The unit supports Monophasic technology as standard, with Biphasic technology available as an optional configuration.
Q2: How long does it take to charge for a maximum energy discharge? A: The device takes a maximum of 8 seconds to charge to 360 Joules.
Q3: Is the device suitable for pediatric patients? A: Yes, it includes reusable external adult paddles with integrated pediatric paddles for versatile use.
Q4: What is the battery capacity of the unit? A: A full battery provides 120 minutes of continuous monitoring or 30 full discharges at 360 joules.
Q5: What parameters can the monitor track? A: The standard configuration includes ECG, RESP, SpO2, TEMP, PR, NIBP, and Defibrillator monitoring.
Q6: Can this be used in an ambulance? A: Yes, it supports DC 12V vehicle voltage in addition to standard AC 110V/220V power supplies.
