| Model NO. | Altai DP1 |
| Certification | CE, MSDS, ISO13485, FSC, Cfda |
| Product Name | Automatic External Defibrillator (AED) |
| ECG Analysis | 8.5 Second |
| Hi-Cap Charging | 8 Second |
| Shock Output | 150J (Adult), 50J (Pediatric) |
| Battery Pack | Non-rechargeable Li-Mn Battery (12V, 4.2 Ah) |
| Shock Frequency | Not Less Than 200 Times |
| Net Weight | 1.9 Kg |
| Dimensions | 320*230*85 mm |

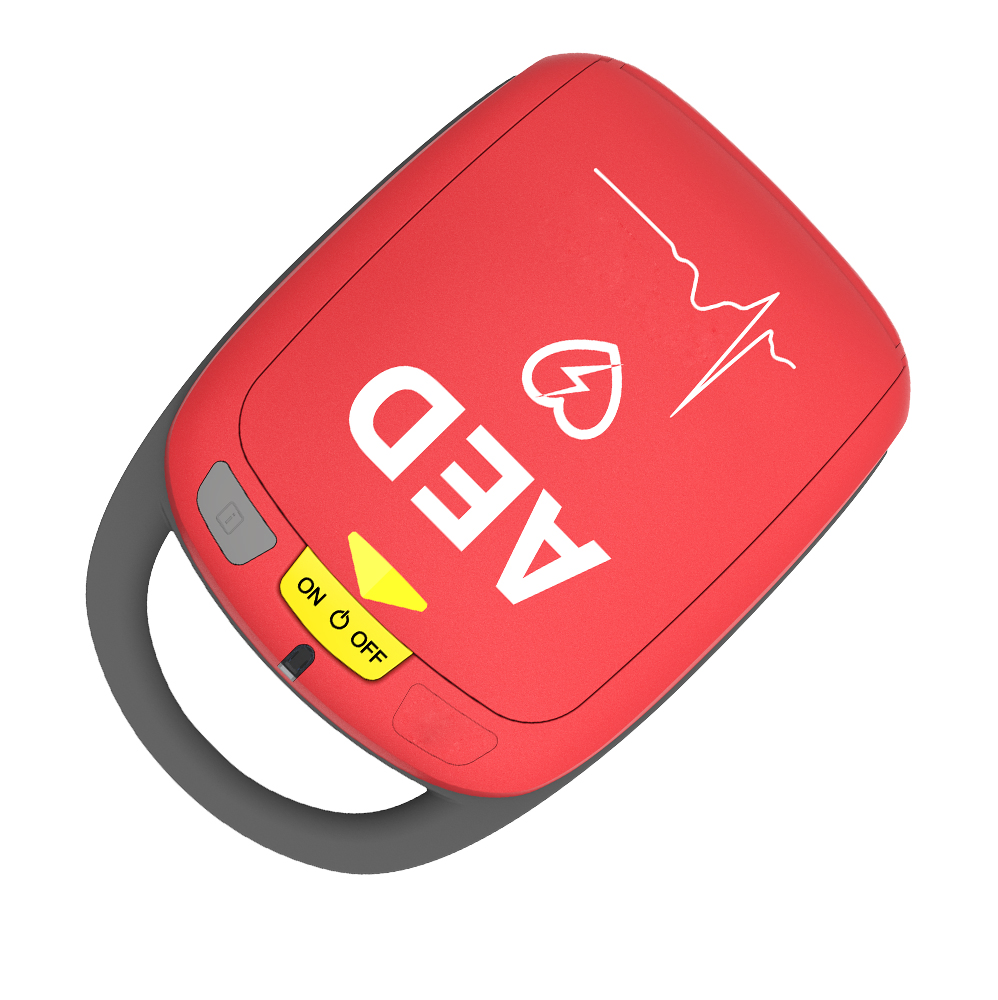

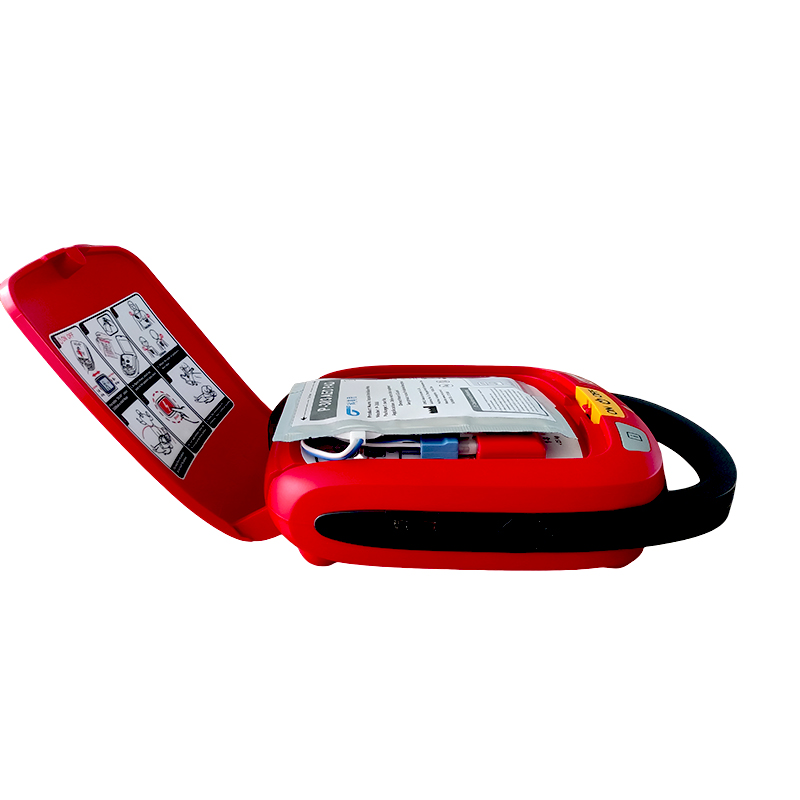

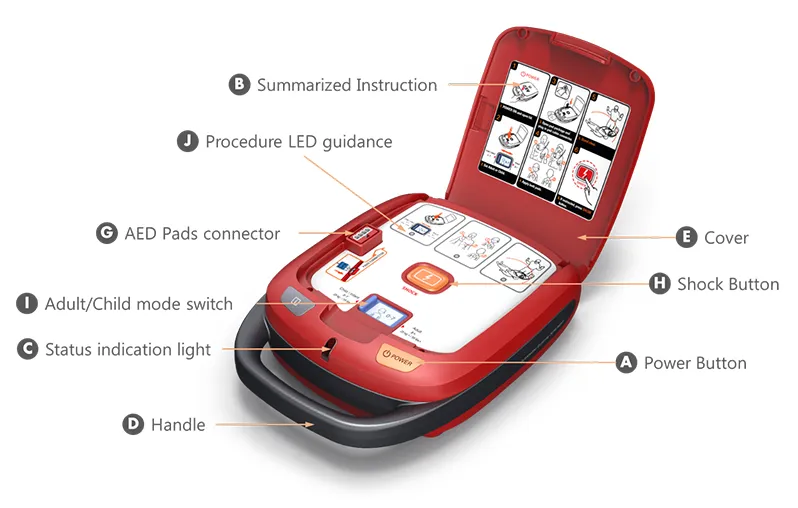

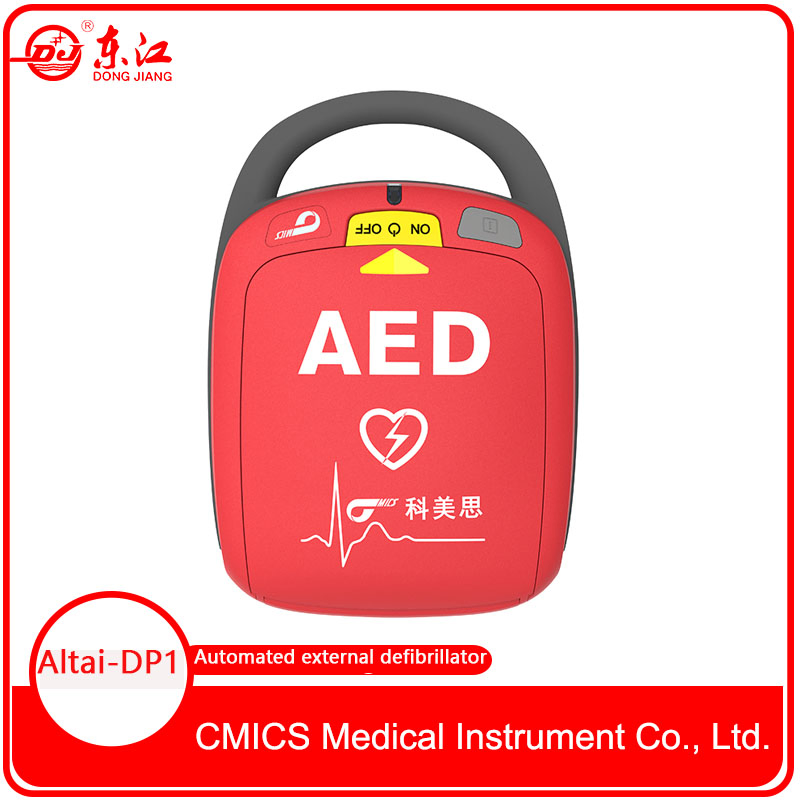

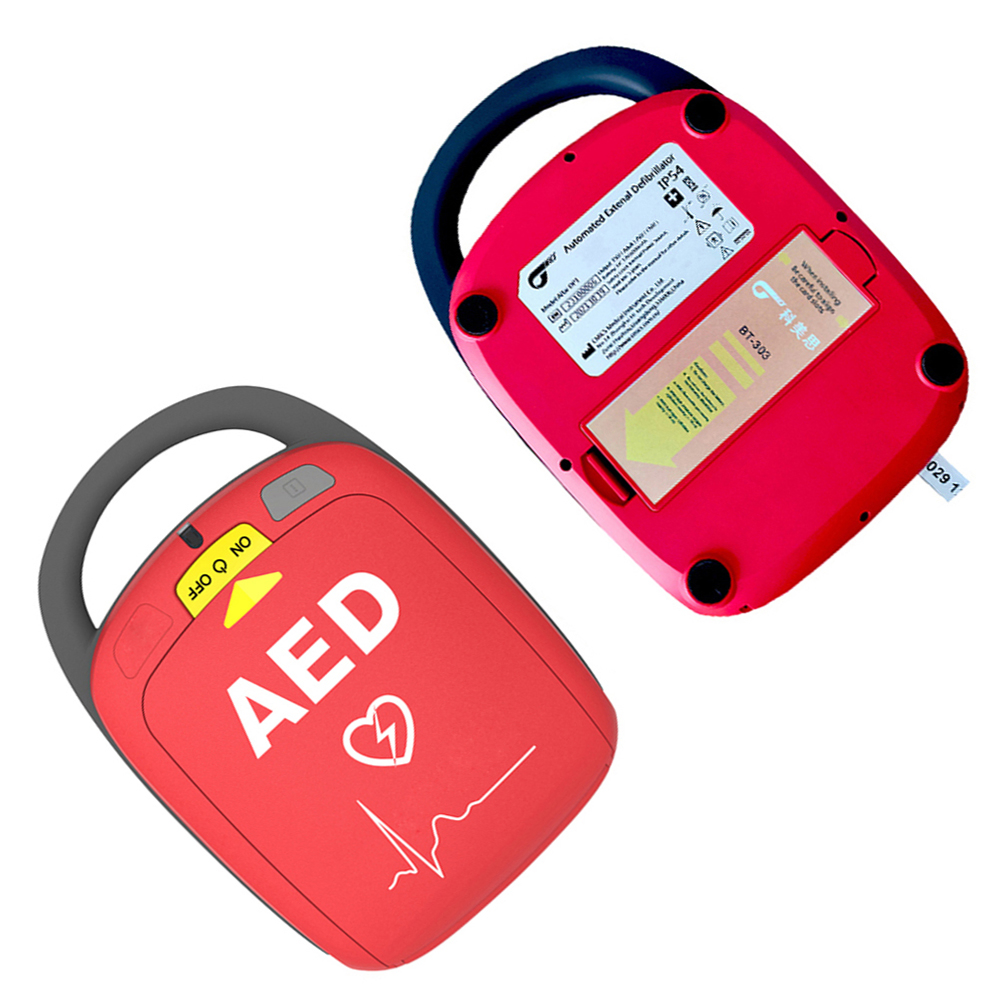

Altai DP1 Professional AED with Bluetooth & Low Energy BTE

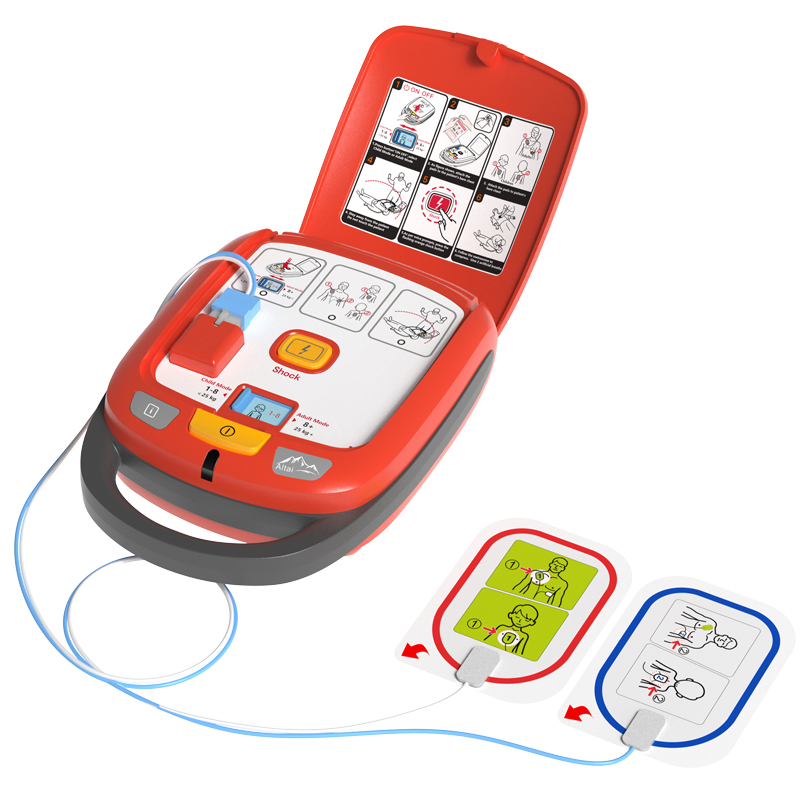

Yes, the Altai DP1 comes with preinstalled electrode pads that are compatible with both adult and pediatric patients. It features dedicated adult and child modes for safe operation.
The high-capacity non-rechargeable Li-MnO2 battery is designed to support not less than 200 shocks (up to 400 shocks depending on conditions).
The device provides a quick response with an ECG analysis time of approximately 8.5 seconds and high-cap charging in just 8 seconds.
Yes, it features automatic recording of ECG data and ambient sounds for up to 40 minutes in its built-in memory.
BTE technology uses lower energy levels to achieve successful defibrillation, which helps in minimizing myocardial injury and supports better patient rehabilitation.
The unit performs daily self-tests and an automatic self-test upon power on. It also features a low battery alarm to notify when a replacement is needed.
