| Model NO. | YJ-AED100 |
| Certification | CE, ISO13485, ISO |
| Group | Middle-aged and Old |
| Product Name | Automatic External Defibrillator |
| Power | 220V/50Hz |
| Warranty | One Year |
| Production Capacity | 65,000 pieces/Year |

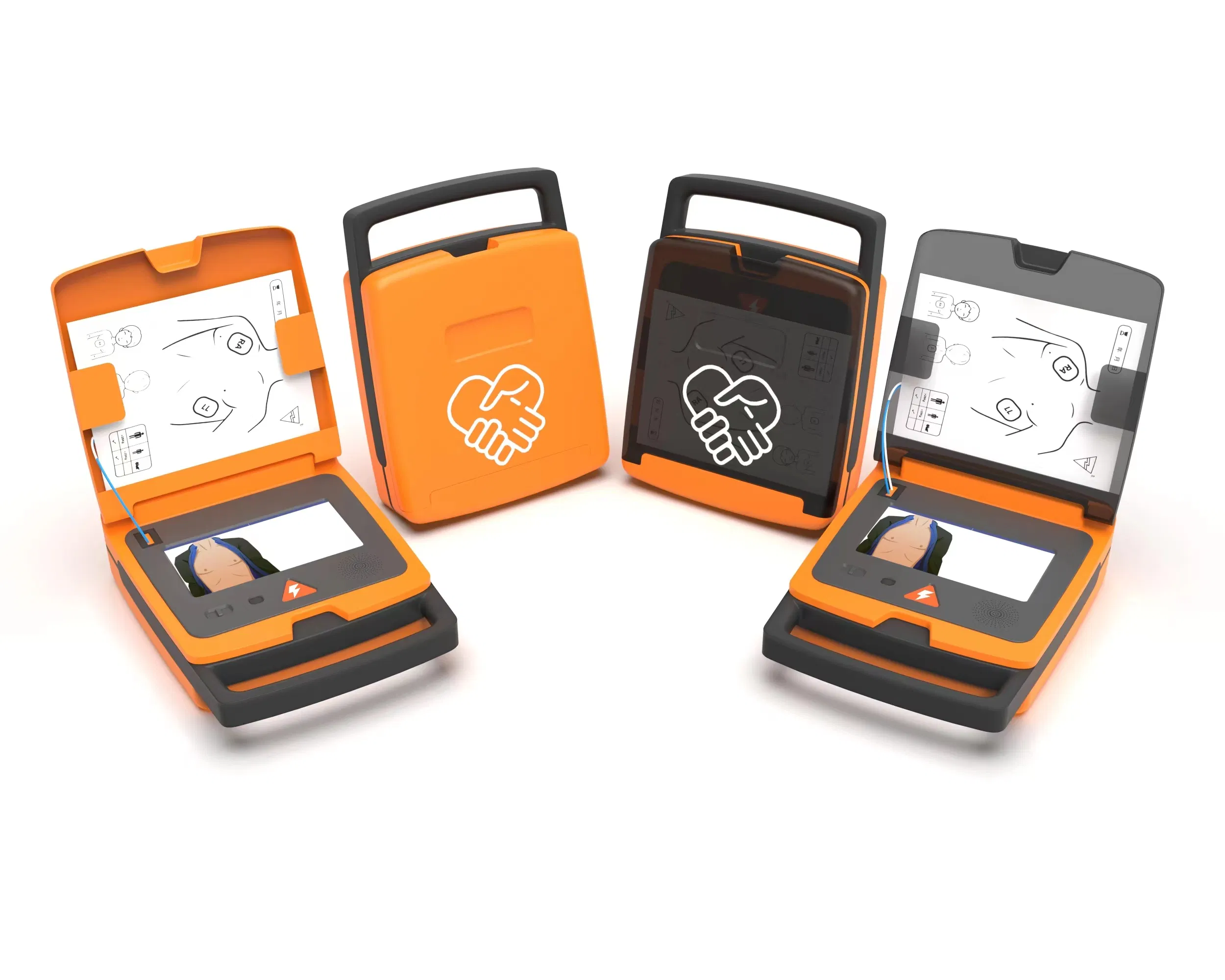

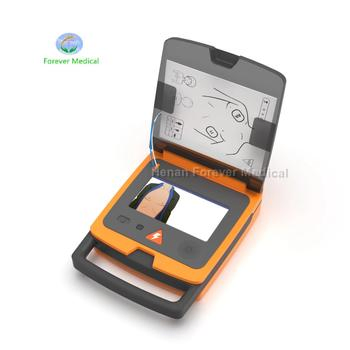

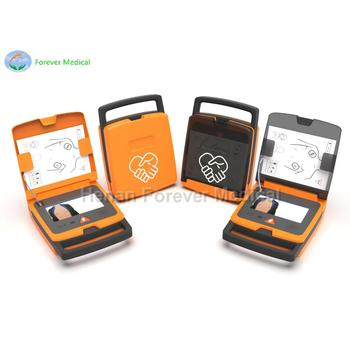

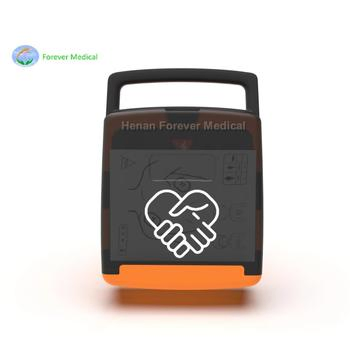

The YJ-AED100 is a compact, durable, and light-weighted defibrillator suitable for both adults and children. It is a professional biphasic defibrillator designed for hospitals, clinics, and emergency environments.
| Output Waveform | Biphasic Truncated Exponential |
| Energy Sequence (Child) | 50J, 50J, 50J |
| Energy Sequence (Adult) | 150J, 200J, 200J |
| Analysis Time | 6 seconds |
| Charge Time | Less than 10 seconds |
| Ready for Discharge | Less than 18 seconds (from power on) |
| Controls | On/Off, Shock, Adult/Child, CPR buttons |
| Impedance Range | 20Ω to 200Ω |
| Battery Capacity | 120 discharges at 200 Joules |
| Standby Life | 5 years (after installation) |
