Product Description

📋 Basic Specifications

Model NO.

Defi 5S / DM7000

Charge Prompt

Voice and Visual Prompts

Charge Time

Less Than 7 Seconds

Patient Connection

3/5 Leads / Paddles

Display

7 inch High-resolution

Heart Rate Range

20-300bpm

Energy Range

2 - 360 Joule

Waveform

Biphasic

🔍 Product Overview

The DM7000 is a professional Cardiac Monitor Defibrillator, designed to meet the rigorous needs of Basic through to Advanced Life Support Providers. With its integrated Automated External Defibrillator (AED) and Pulse Oximetry (SpO2) Module, it offers a compact, robust, and high-value solution for emergency medical care.

Key Features:

7-inch High-resolution screen for clear monitoring
Manual and Automated Defibrillation modes
Rechargeable battery: 3 hours monitoring or 100 shocks at 360J
Built-in 50mm Thermal Printer for instant documentation
User-friendly front panel with easy access buttons

🖼️ Product Display

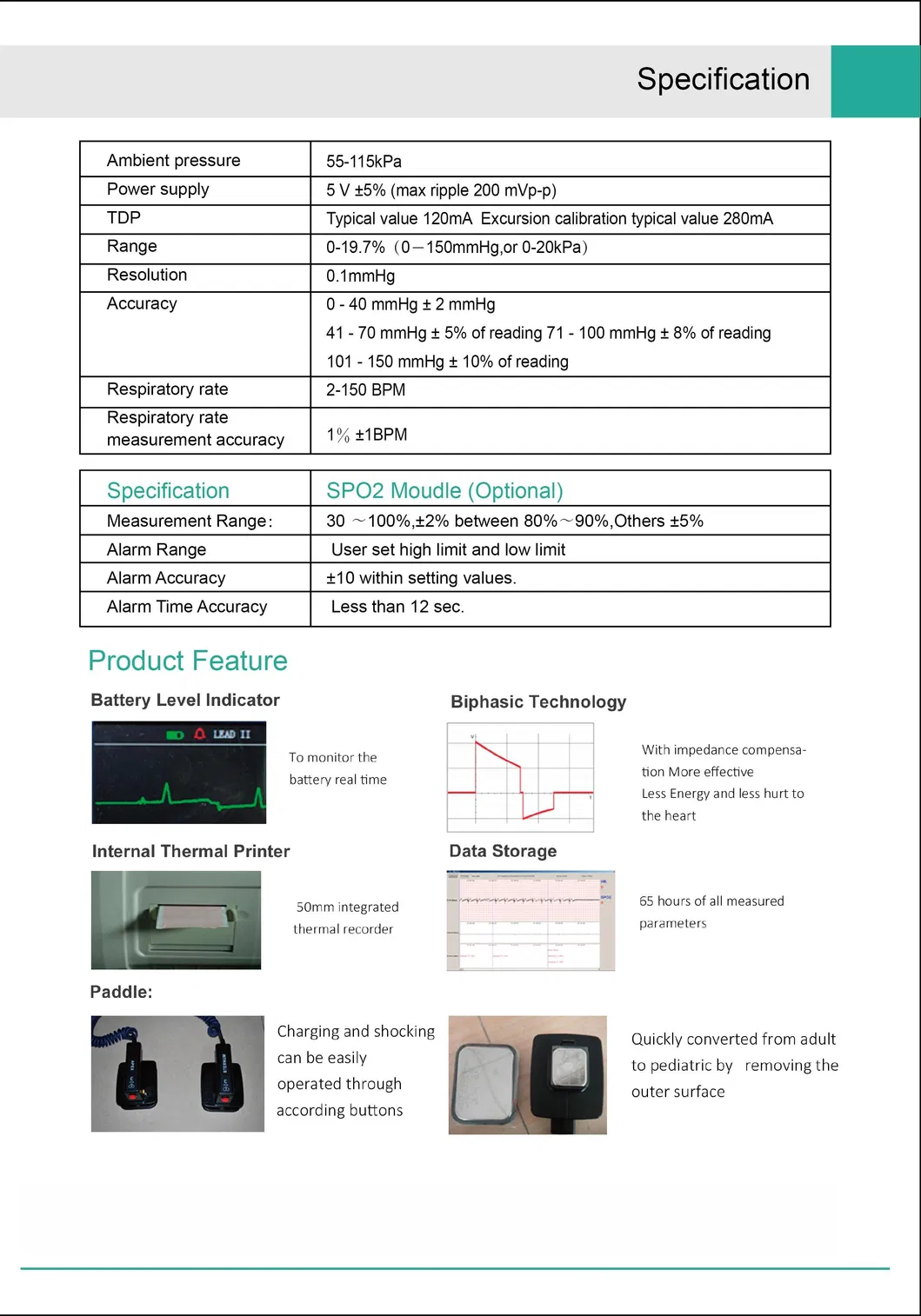

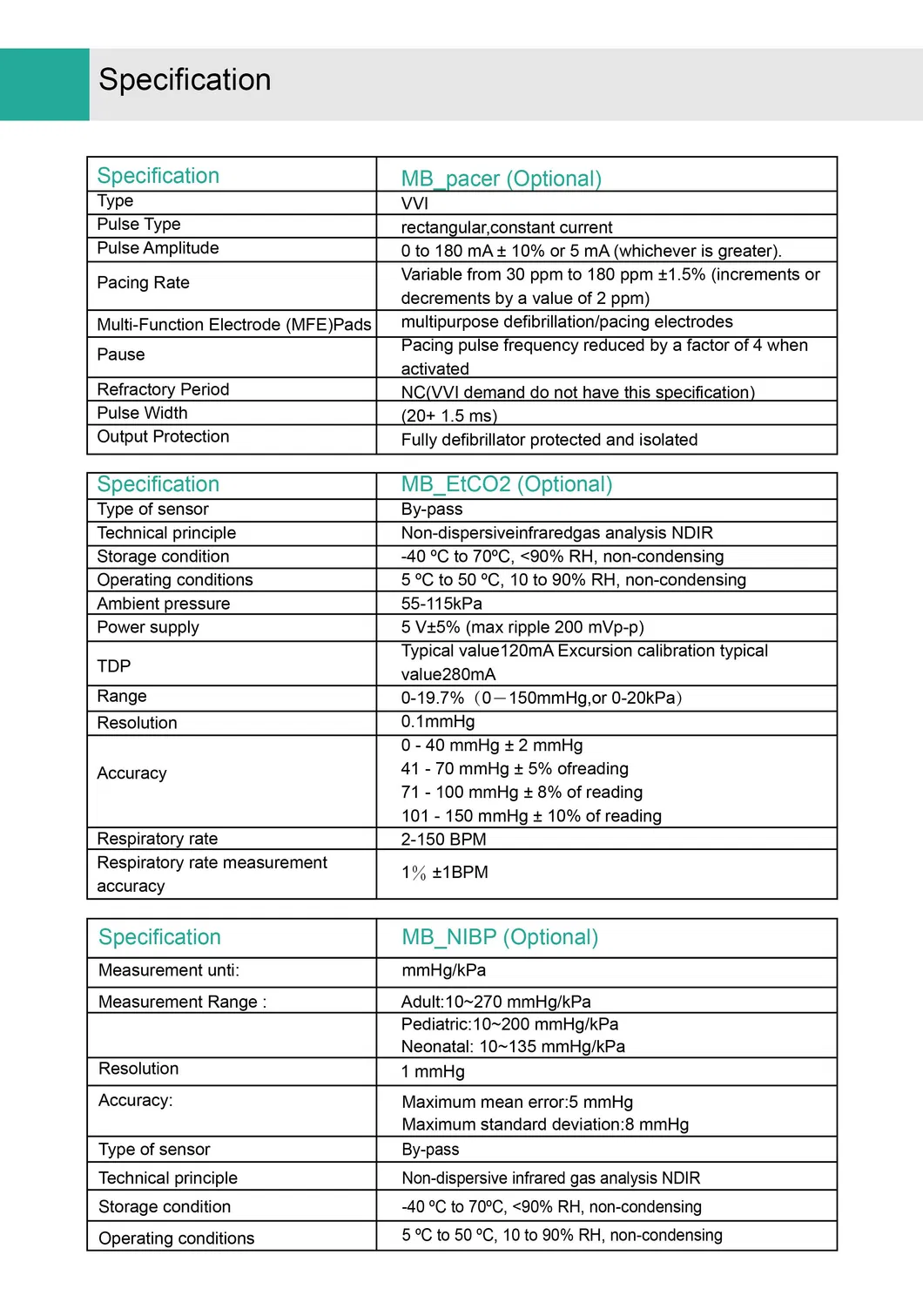

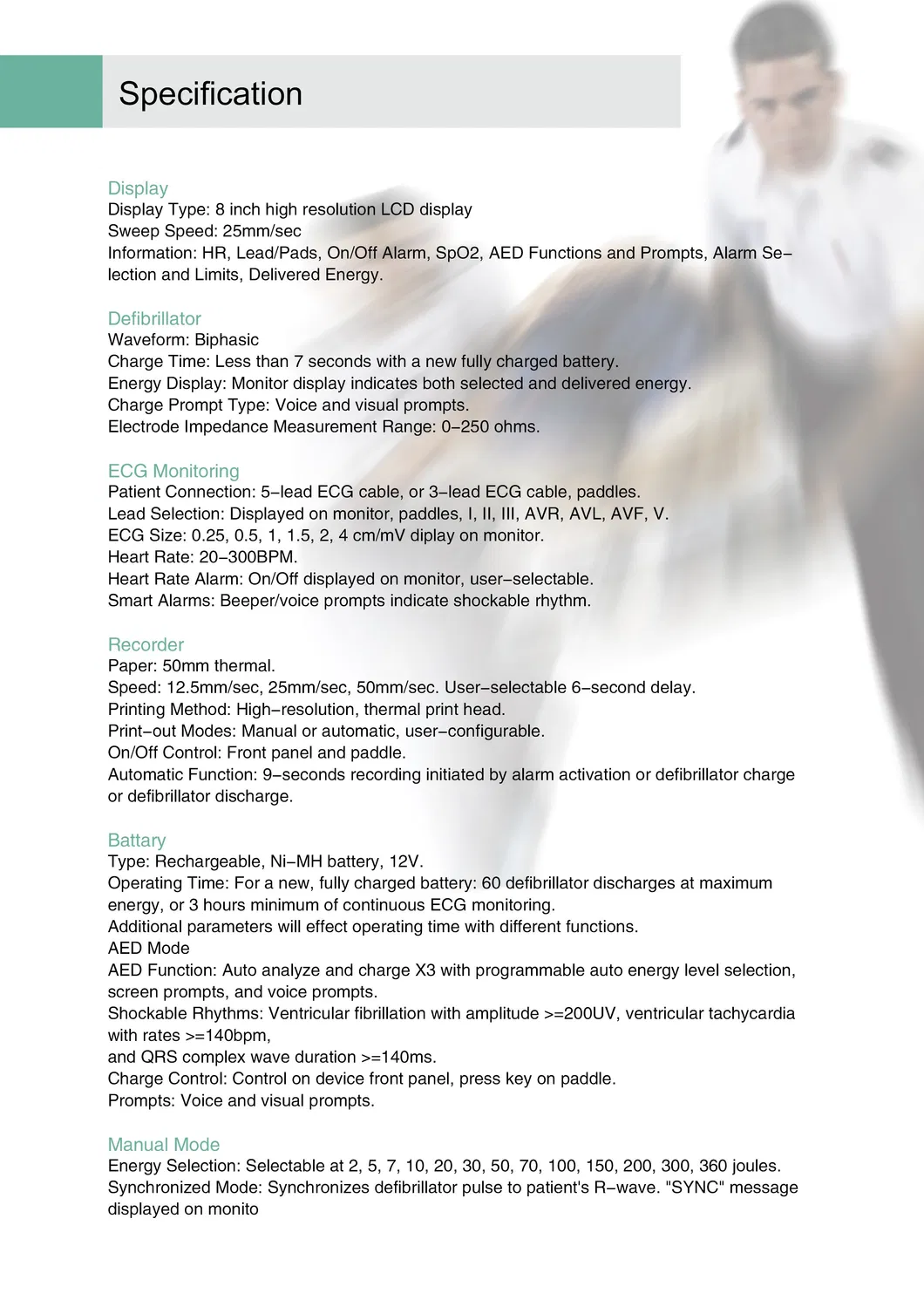

⚙️ Technical Parameters

Defibrillator: Biphasic waveform; Charge time < 7s; 0-250 ohms impedance range.

ECG Monitoring: I, II, III, AVR, AVL, AVF, V leads; Size: 0.25 to 4 cm/mV.

SpO2 Module: Range 30~100%; Accuracy ±2% (80%-90%).

Recorder: High-resolution thermal head; Speed up to 50mm/sec; Auto-record on alarm.

AED Mode: Auto analyze and charge x3; Programmable energy levels; Voice prompts.

Manual Mode: Energy selection from 2J to 360J; Synchronized R-wave delivery.

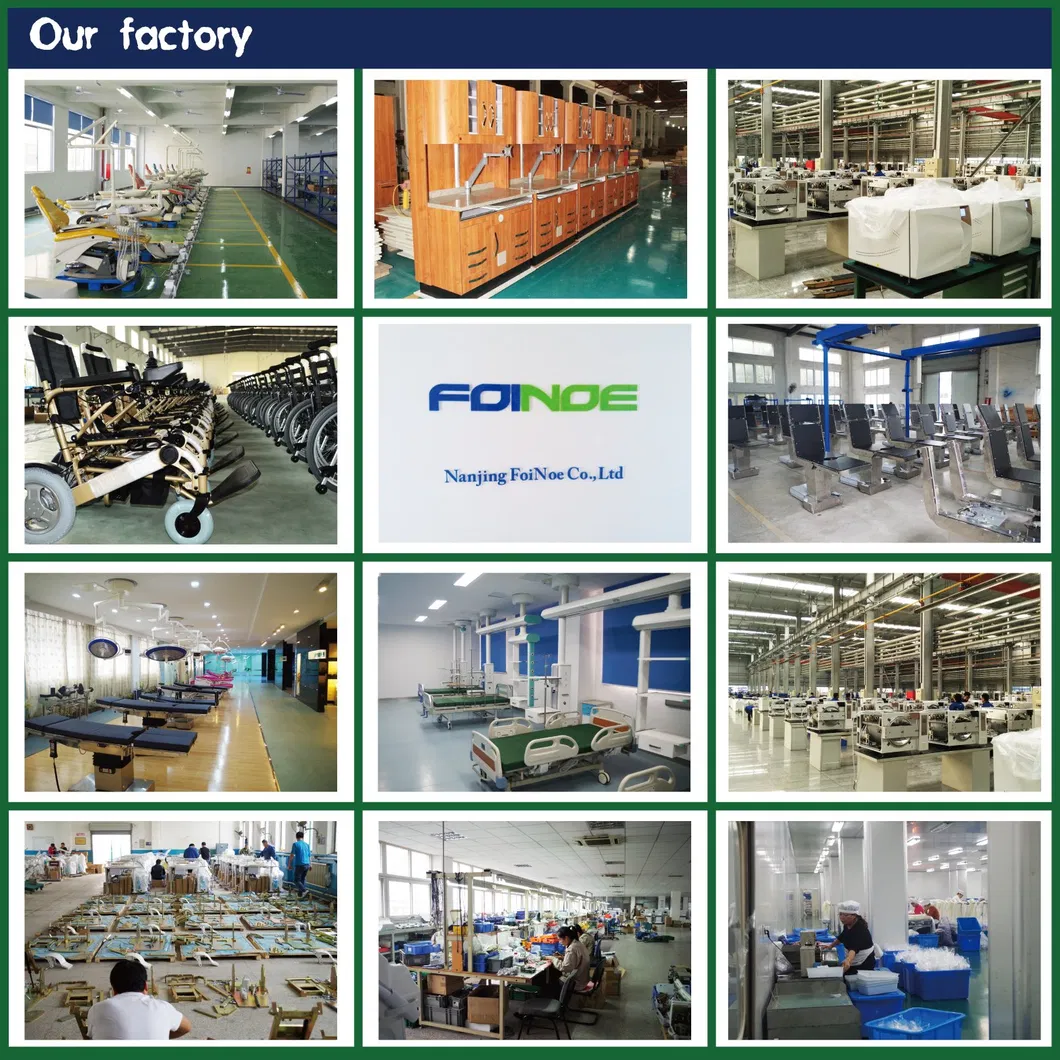

📜 Quality & Manufacturing

❓ Frequently Asked Questions

How long does the battery last?

A new, fully charged battery provides a minimum of 3 hours of continuous ECG monitoring or 100 defibrillator discharges at 360 Joules.

What types of ECG leads are supported?

The device supports both 3-lead and 5-lead ECG cables, as well as monitoring via defibrillation paddles.

Does the device support Synchronized Cardioversion?

Yes, the Manual Mode includes a "SYNC" function that synchronizes the defibrillator pulse with the patient's R-wave.

What information is shown on the 7-inch display?

It displays Heart Rate, Lead/Pads selection, SpO2 levels, AED prompts, Alarm limits, and Delivered Energy.

Can the device print records automatically?

Yes, the built-in recorder can be configured for automatic 9-second recordings initiated by alarm activation or shock delivery.

What is the energy range for defibrillation?

The manual energy selection ranges from 2 Joules up to a maximum of 360 Joules.
