| Model NO. | AED80 |
| Principle of Work | V/F Control, Vector Control |
| Switch Mode | Svpwm, 1~12kHz |
| Main Circuit Type | IGBT |
| Voltage Supply | 220~260VAC / 380~480VAC |
| Specification | 0.37~2.2Kw |
| Origin | China |

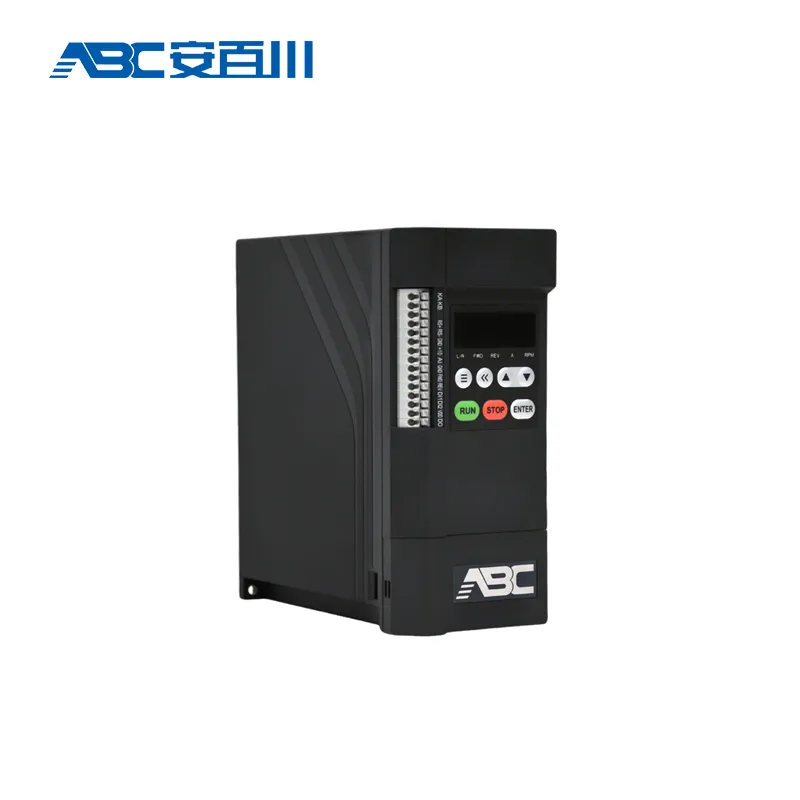

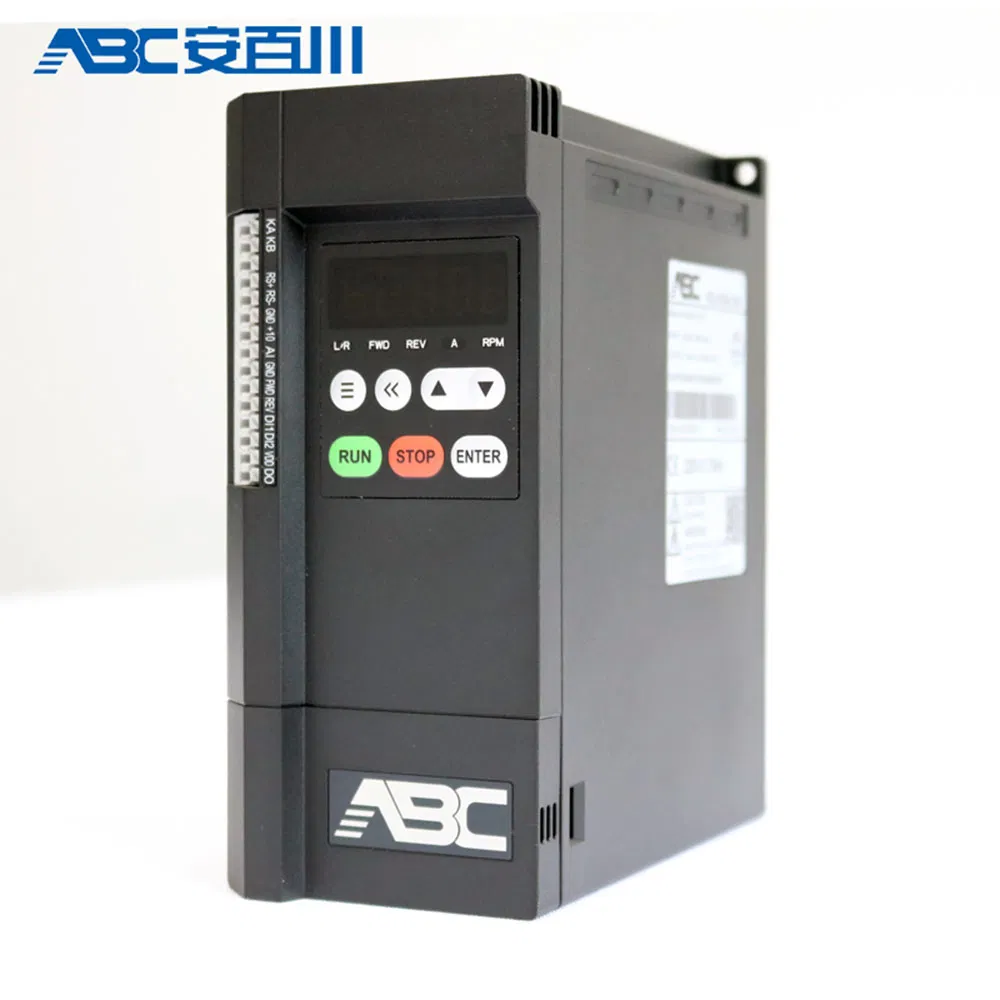

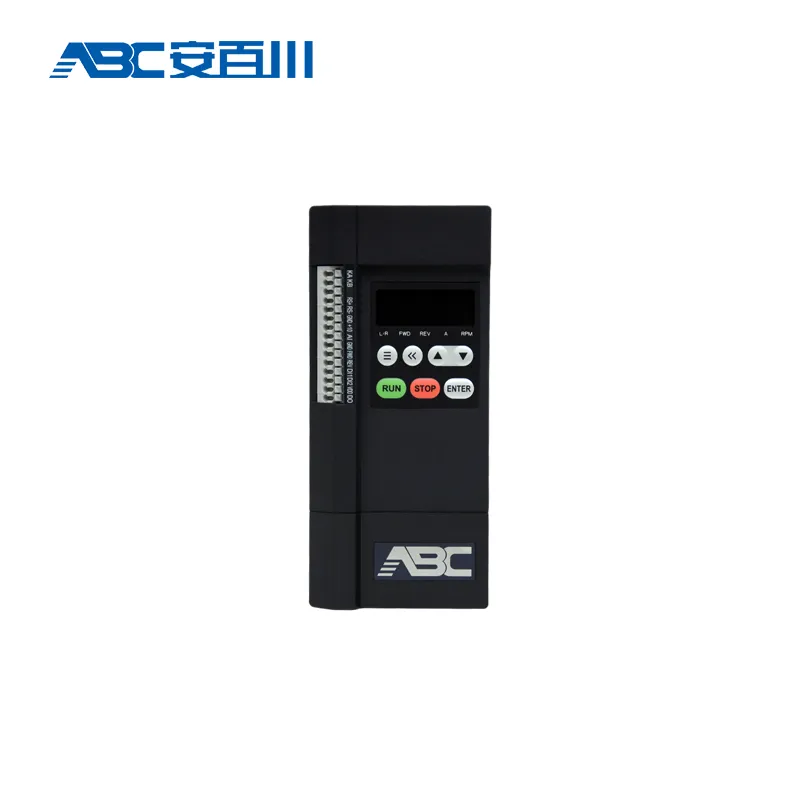

The AED80 series is a compact vector inverter designed for small-size applications where ease of use and high cost-effectiveness are paramount. Featuring a modern book-style design, it provides excellent control performance and high reliability for industrial automation.
| Item | Specification | |
|---|---|---|
| Power Input | Voltage | 1 Phase 200~240V / 3 Phase 380~480V |
| Frequency | 50/60Hz±5% | |
| Power Output | Voltage | 3 Phase 0~100% Input voltage |
| Frequency | 0~590Hz | |
| Control | Algorithm | V/F Control, Vector Control |
| Start Torque | 0.5Hz 150% | |
| Overload | 150% 60s, 180% 3s | |
| Communication | Built-in RS485 | |
| Environment | IP Rating | IP20 |
