| Model NO. | AED80 |
| Principle of Work | V/F Control, Vector Control |
| Switch Mode | Svpwm, 1~12kHz |
| Main Circuit Type | IGBT |
| Voltage Power Supply | 220~260VAC / 380~480VAC (-15%~+10%) |
| Function | Full Protections Terminal/Keypad |
| Specification | 0.37~2.2Kw |
| Origin | China |

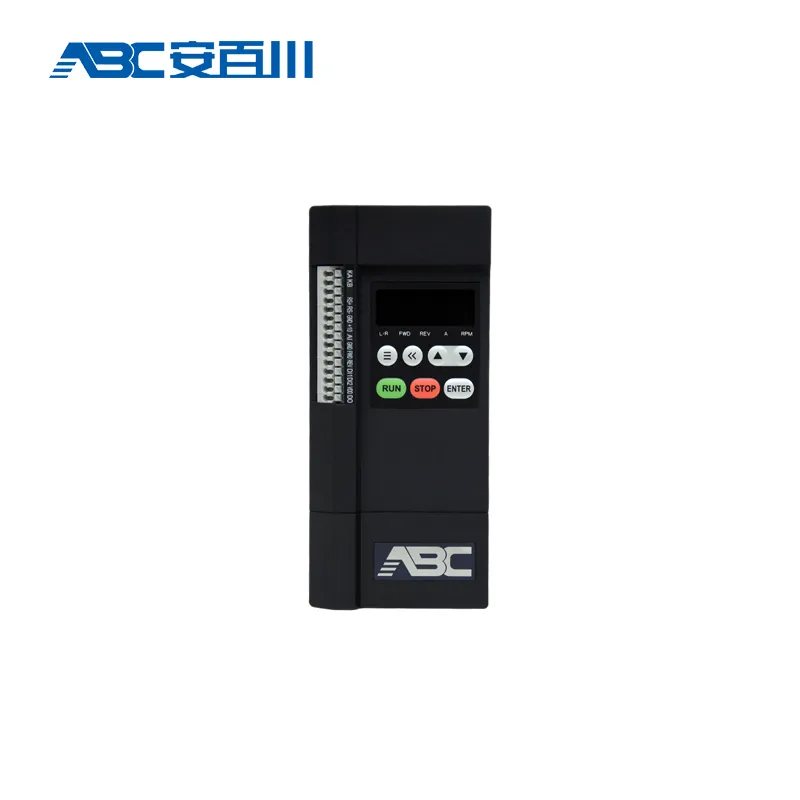

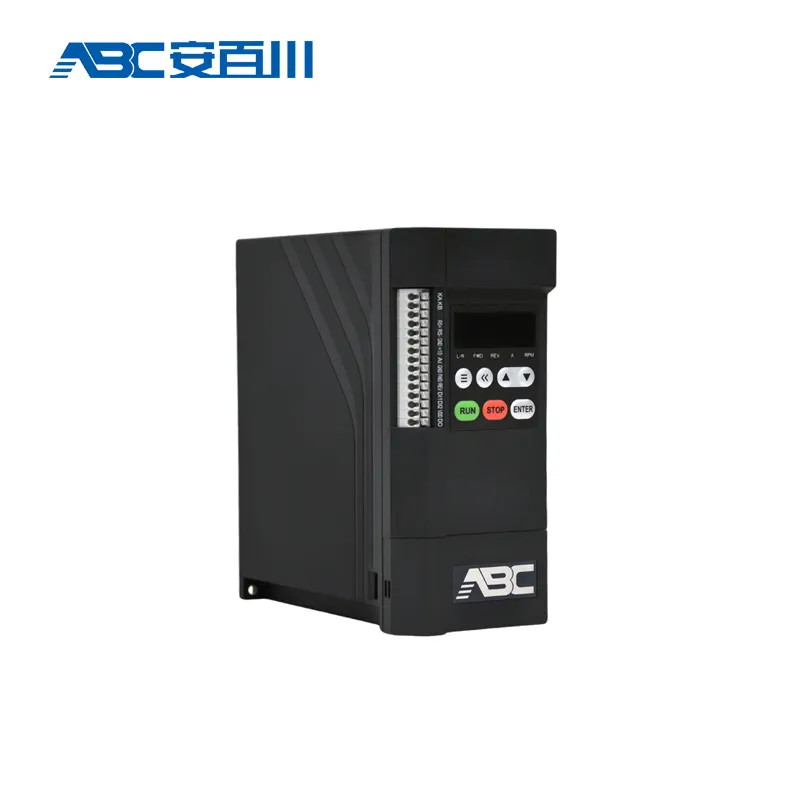

AED80 Compact Vector Inverter
The AED80 series of products is a compact vector inverter launched based on the market demand of small size, simple and easy to use, and high cost-effectiveness. It features a book-style design with a simple structure, friendly human-machine interaction, and high reliability.
| Category | Item | Specification |
| Line in | Voltage | Single Phase 200~240V; 3 Phase 380~480V (-15%~+10%) |
| Frequency | 50/60Hz±5% | |
| Output | Voltage | 3 Phase 0~100% Line in voltage |
| Frequency | 0~590Hz | |
| Control | Algorithm | V/F control, Vector Control |
| Overload | 150% 60s, 180% 3s | |
| Switching Freq | 0.37~2.2kW: 2k~16kHz | |
| Protection | Short circuit, Ground fault, Phase loss, Over temperature, etc. | |
| Environment | Protection Level | IP20 |
Focusing on the research and development, production and sales of industrial automation control products. The company focuses on automation, digitization and intelligence in the industrial field, devoting itself to the continuous innovation of industrial technology.
