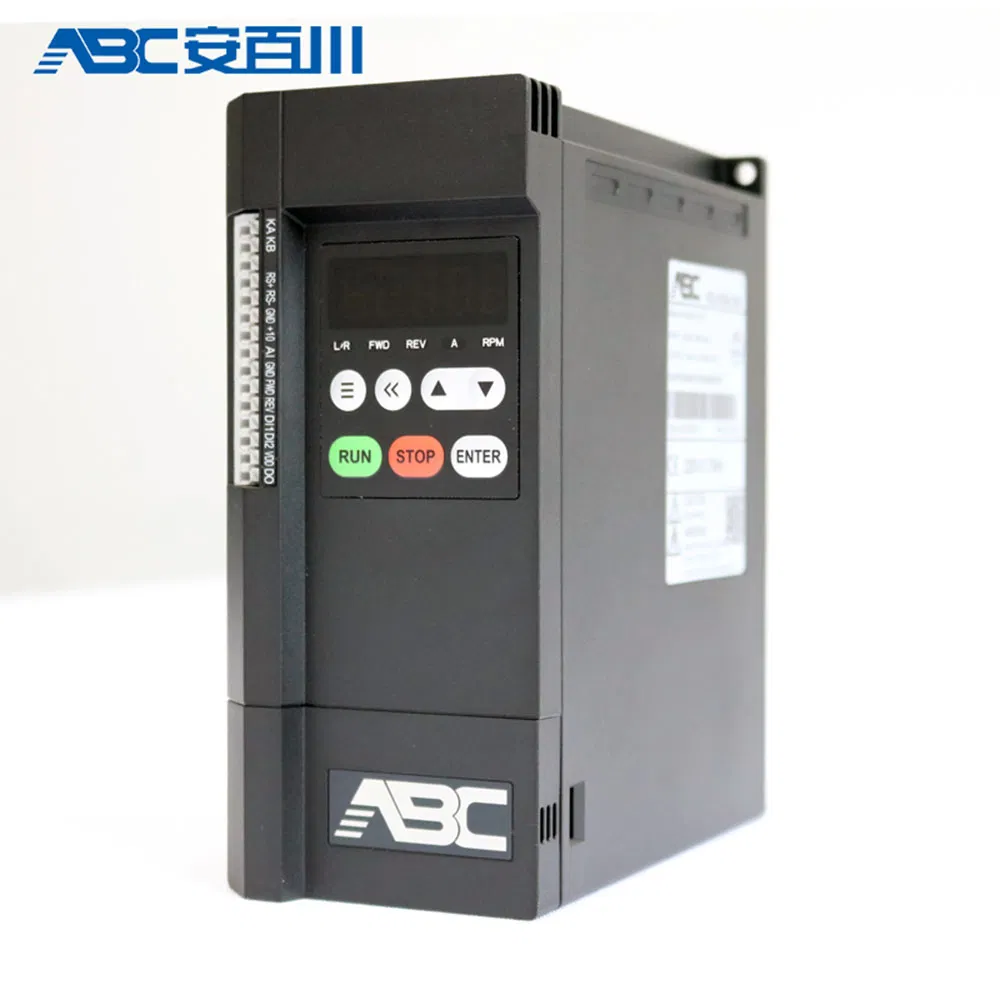

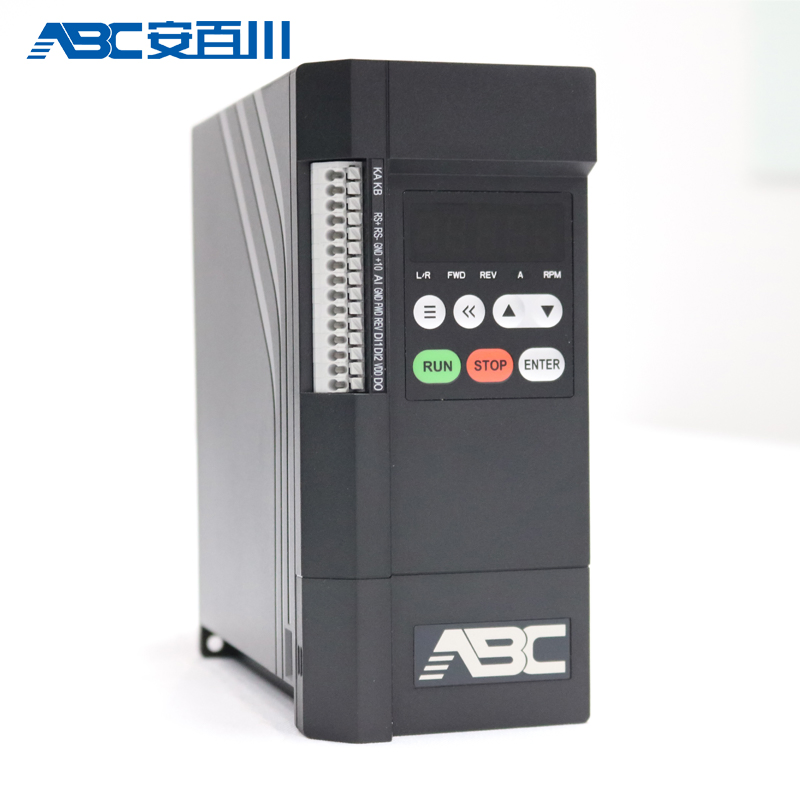

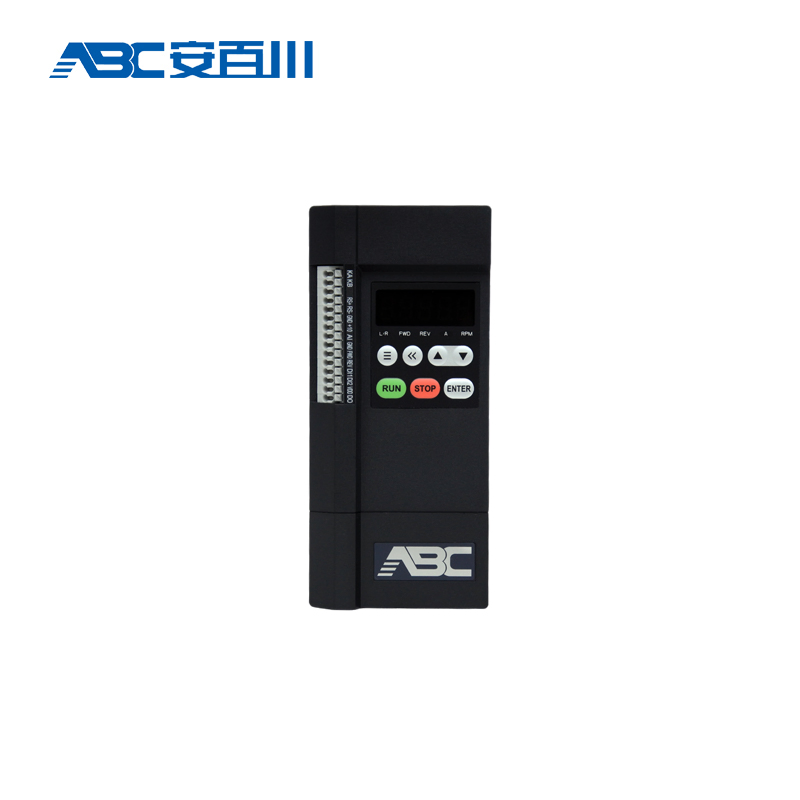

AED80 Compact Vector Inverter

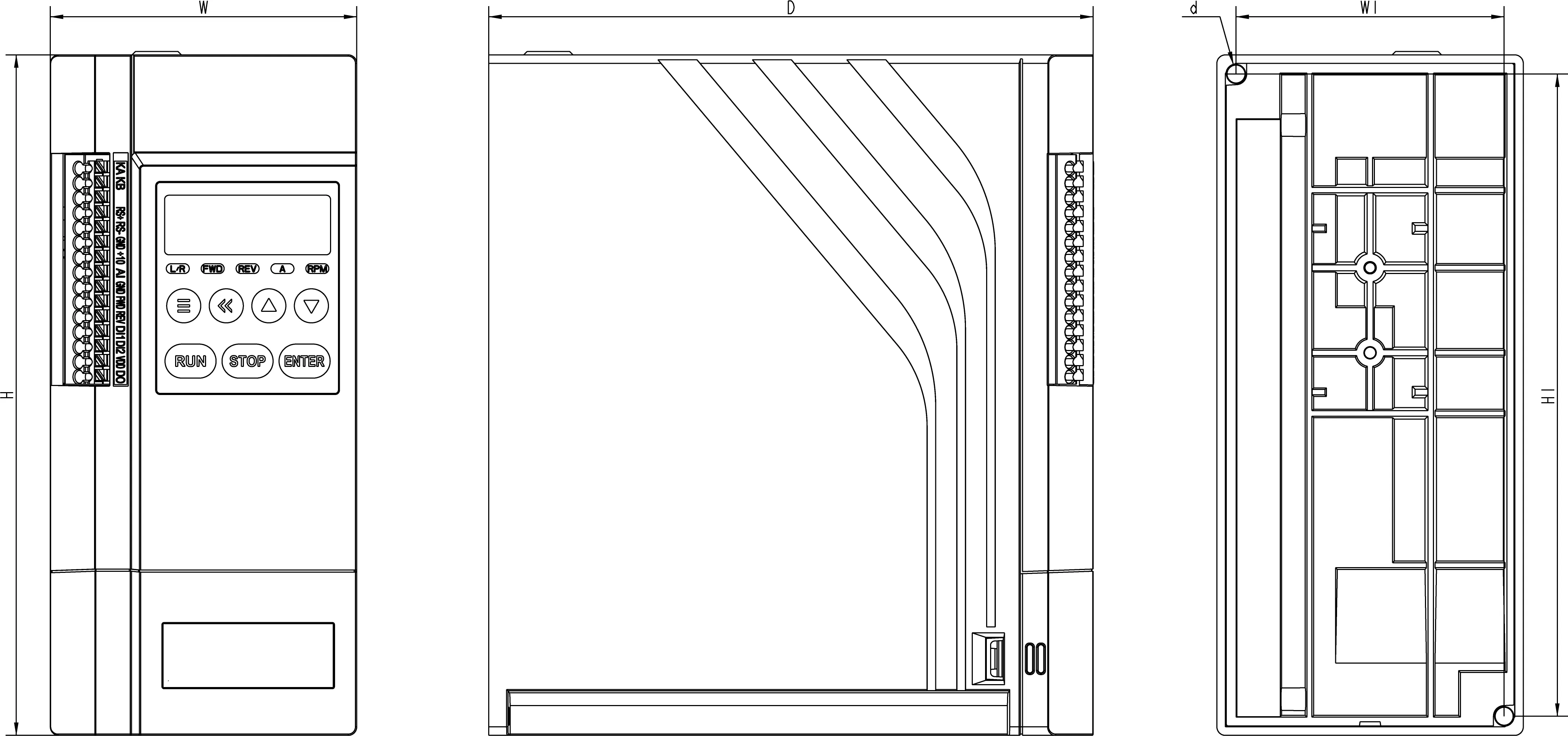

The AED80 series is a compact vector inverter designed based on market demands for small size, simplicity, and high cost-effectiveness. It features a book-style design with a user-friendly interface and robust control performance.
| Item | Specification | |
|---|---|---|
| Line In | Voltage | Single Phase 200~240V / 3 Phase 380~480V (-15%~+10%) |
| Frequency | 50/60Hz±5% | |
| Output | Voltage | 3 Phase 0~100% Line in voltage |
| Frequency | 0~590Hz | |
| Control | Algorithm | V/F control, Vector Control |
| Overload | 150% 60s, 180% 3s | |
| Speed Accuracy | ±0.5% of Nominal speed (Open Loop) | |
| Protections | Short circuit, Ground fault, Over voltage, Over temperature, etc. | |

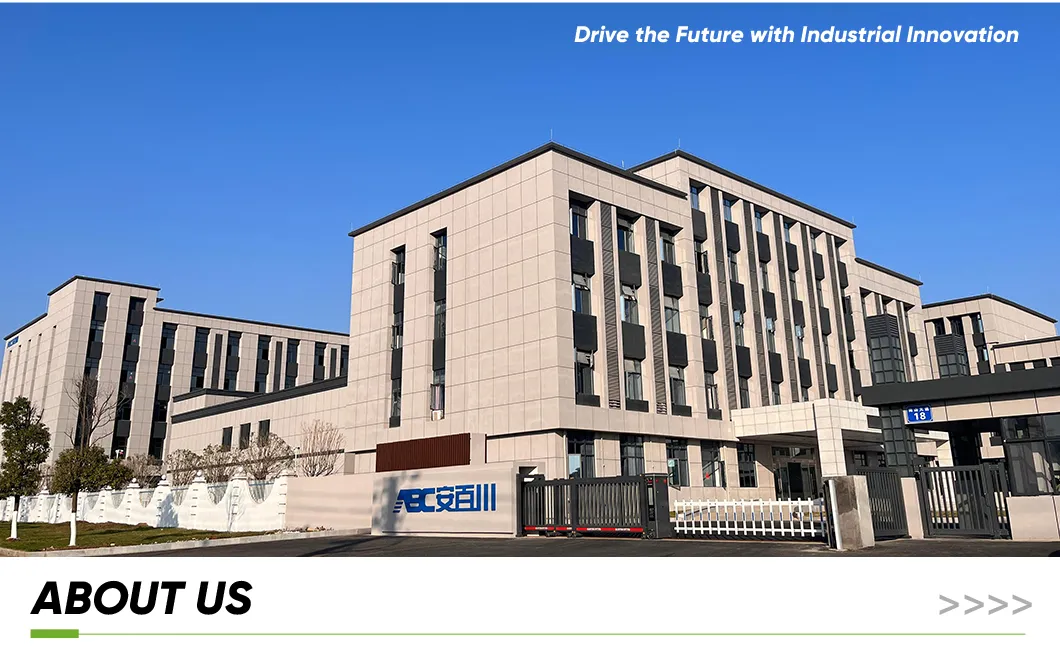

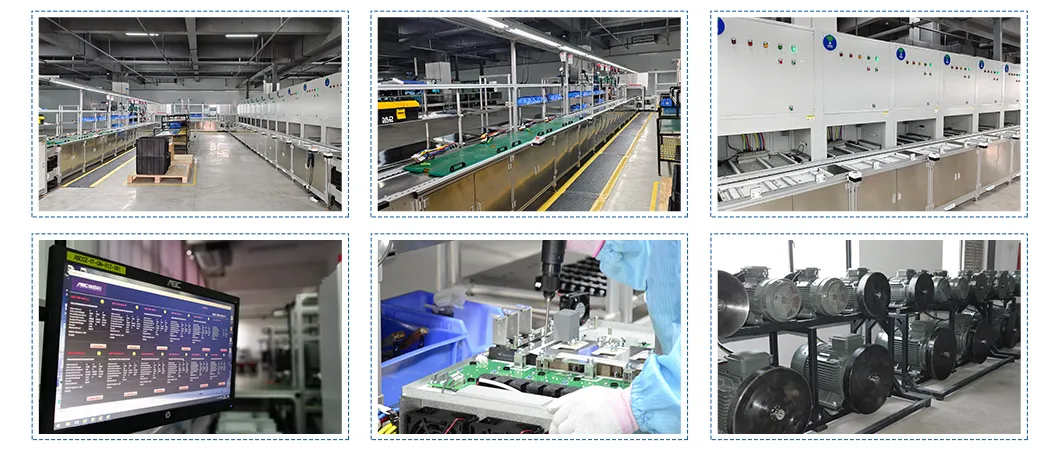

A high-tech enterprise based on power electronics, automatic control, and IoT technology. The focus is on research, development, and sales of industrial automation control products. Established with R&D facilities to focus on automation, digitization, and intelligence, providing high-performance products and personalized solutions.
