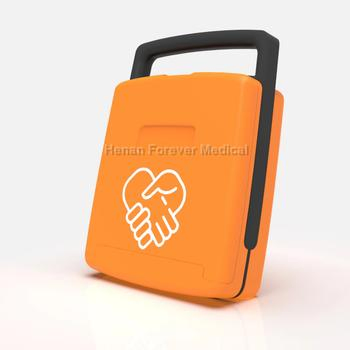

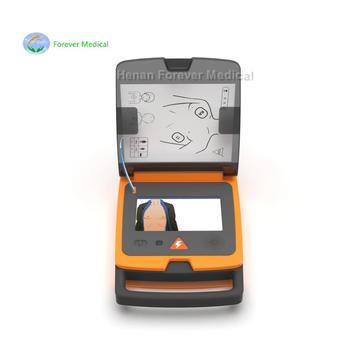

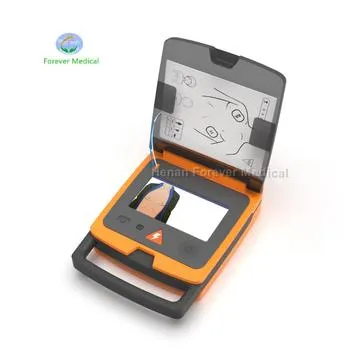

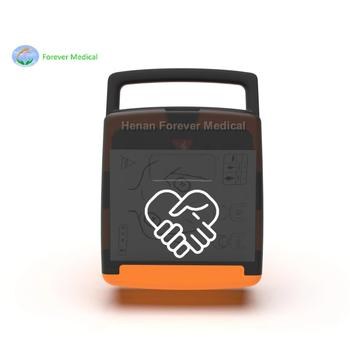

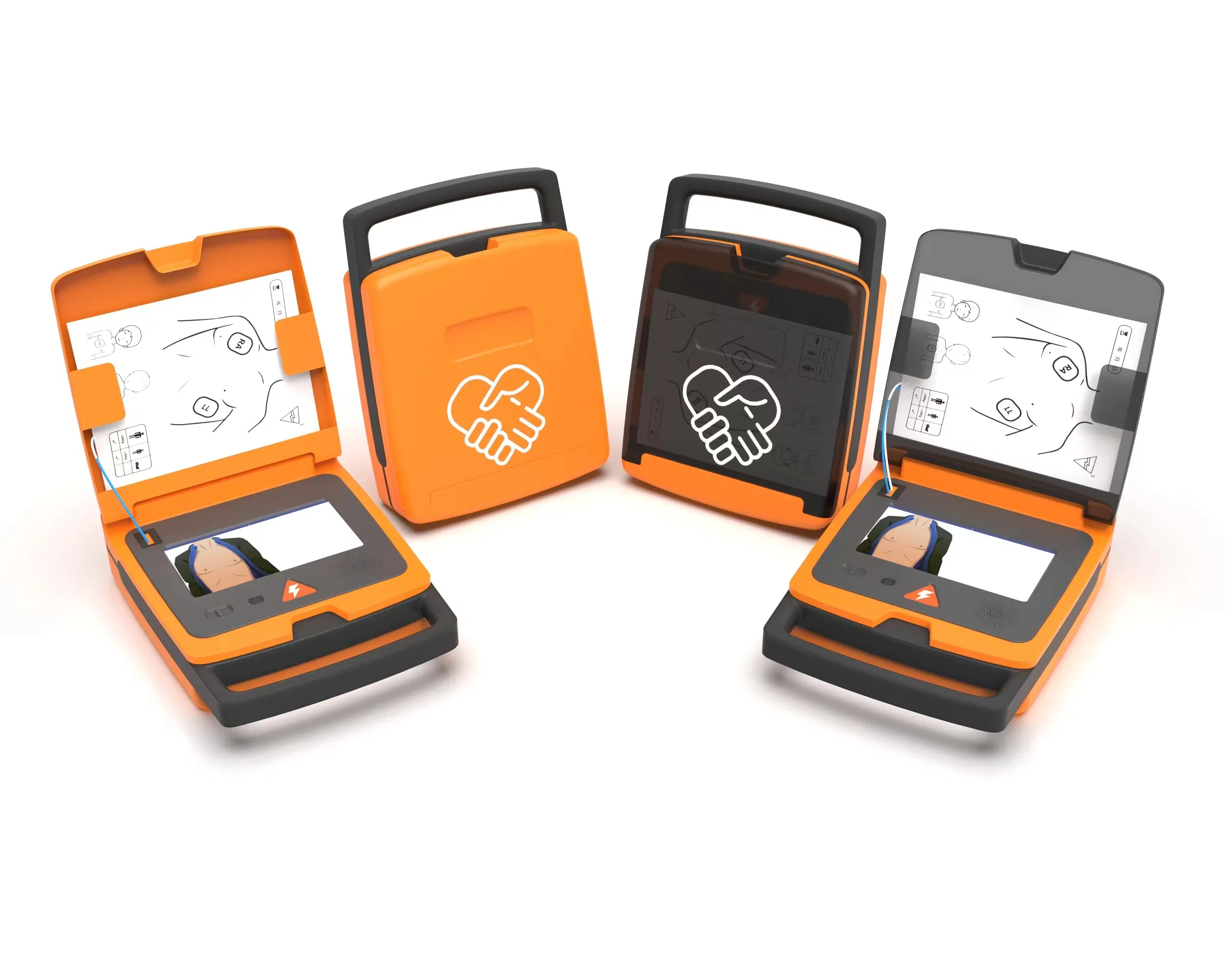

The YJ-AED100 is a compact, durable, and lightweight defibrillator suitable for both adults and children. As a professional biphasic defibrillator, it is ideally designed for use in hospitals, clinics, and emergency training scenarios.
| Defibrillator Performance | |
| Output | Biphasic Truncated exponential |
| Energy Sequence (Adult/Child) | Adult: 150J-200J-200J | Child: 50J-50J-50J |
| Analysis Time | 6 seconds |
| Charge Time | 6 sec. to 150J / 8 sec. to 200J (New battery) |
| Ready for Discharge | Less than 10 seconds |
| Controls | Four buttons: On/Off, Shock, Adult/child, CPR |
| Battery System | |
| Battery Type | Non-rechargeable (CR123A-4x2), 2.8 Ah |
| Capacity | 120 discharges at 200 Joules |
| Standby Life | 5 years (after installation at 25°C) |
| Physical Specifications | |
| Dimensions | 280 × 209 × 80 mm |
| Weight | 2.5 kg |
| Operating Environment | 0ºC to 40ºC; 30% to 95% Humidity (non-condensing) |
