Aed Automated External First Aid Defibrillator Monitor (DM7000)

1 / 5

Aed Automated External First Aid Defibrillator Monitor (DM7000)

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

DM7000

Certification

CE, EEC, MSDS, ISO13485

Product Name

Defibrillator / AED Defibrillator

Application

First-Aid Devices

Display

7'' Color Display

Waveform

Biphasic

Charge Time

Less Than 7 Seconds

Warranty

12 Months

Production

6000 Units/Month

Origin

China

💡 Product Overview

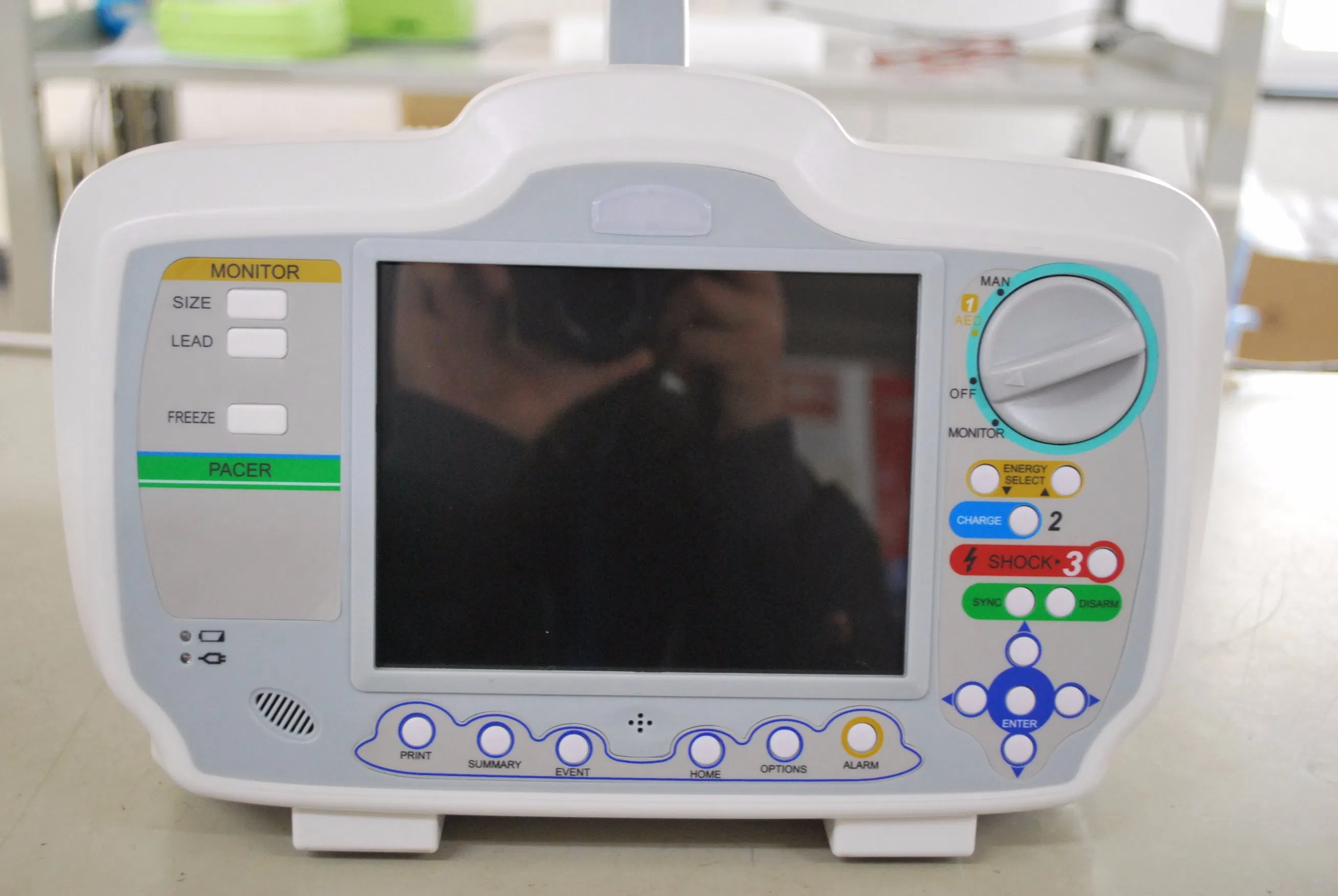

AED Automated External First Aid Defibrillator Monitor (DM7000)

DM7000 is a professional defibrillation device designed to meet clinical needs ranging from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).

✅ 7" Color Display with Biphasic Waveform
✅ Fast Charging: Less than 7 seconds
✅ Power: Rechargeable Battery (60 discharges at max energy)
✅ Integrated: Includes SPO2 module

📷 Product Gallery

⚙️ Technical Parameters

System Specification Details
Display
Screen Type	High-resolution 7 inches(17.7 cm) diagonally
Sweep Speed	25mm/sec
Information	Heart Rate, Lead/Pads, Alarm On/Off, SpO2, AED Functions, Delivered Energy.
Defibrillator
Waveform	Biphasic
Charge Time	Less than 7 seconds with new battery
Impedance Range	0-250 ohms
ECG Monitoring
Connection	3-lead or 5-lead ECG cable, paddles
Heart Rate	20-300 BPM with Smart Alarms
AED Mode
Function	Auto analyze and charge x3 with programmable energy selection
Shockable Rhythms	VF >=200uV, VT >=140bpm
Manual Mode
Energy Selection	2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 Joules
Synchronized Mode	Synchronizes pulse to patient's R-wave (SYNC)

❓ Frequently Asked Questions

Q1: What waveform does the DM7000 use for defibrillation?

The DM7000 utilizes a Biphasic waveform, which is the current clinical standard for effective defibrillation.

Q2: How fast can the device charge to maximum energy?

The device features a rapid charge time of less than 7 seconds when using a fully charged battery.

Q3: Does the device support both AED and Manual modes?

Yes, it supports AED mode with voice prompts for automated use, as well as a Manual mode with energy selection up to 360 Joules for clinical professionals.

Q4: What is the battery life during continuous monitoring?

A new, fully charged battery provides at least 3 hours of continuous ECG monitoring or up to 60 discharges at maximum energy.

Q5: Can the device print out patient heart rhythm data?

Yes, it includes a high-resolution thermal recorder that supports manual or automatic printing (50mm paper).

Q6: What certifications does the DM7000 hold?

The product is certified by CE, ISO13485, and meets EEC and MSDS requirements for medical safety.
