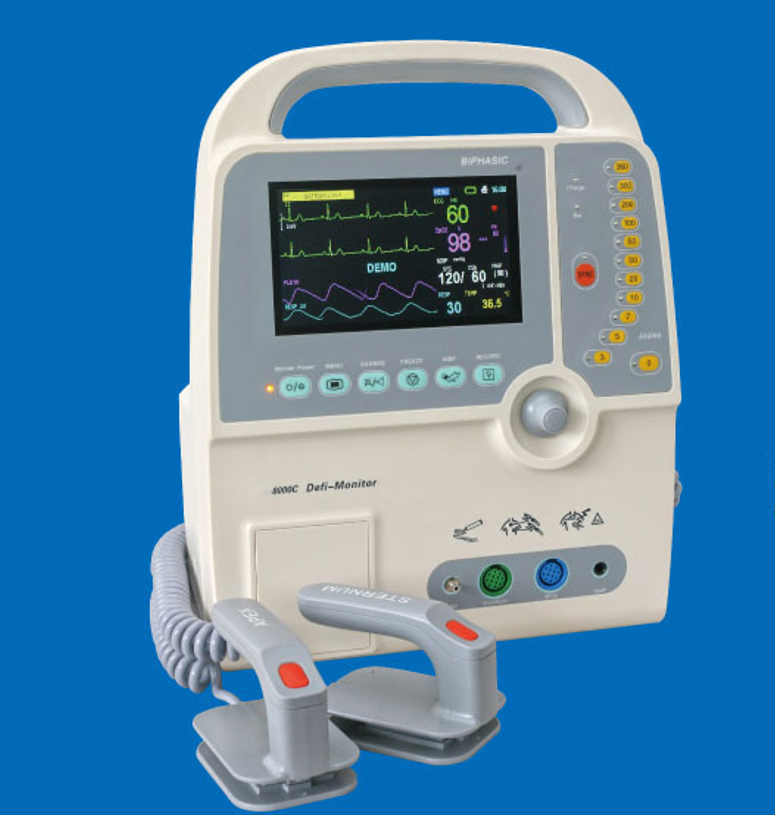

Product Name

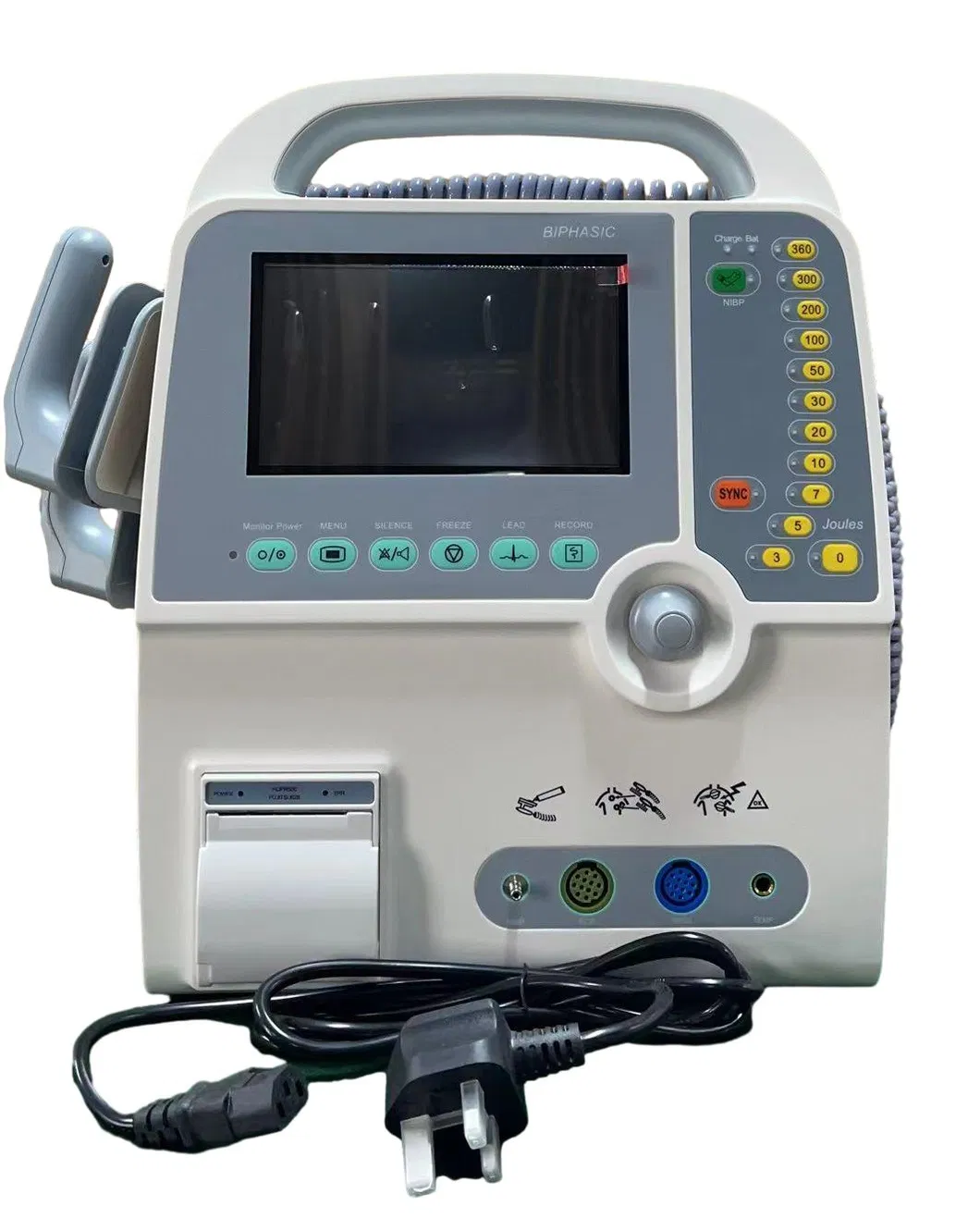

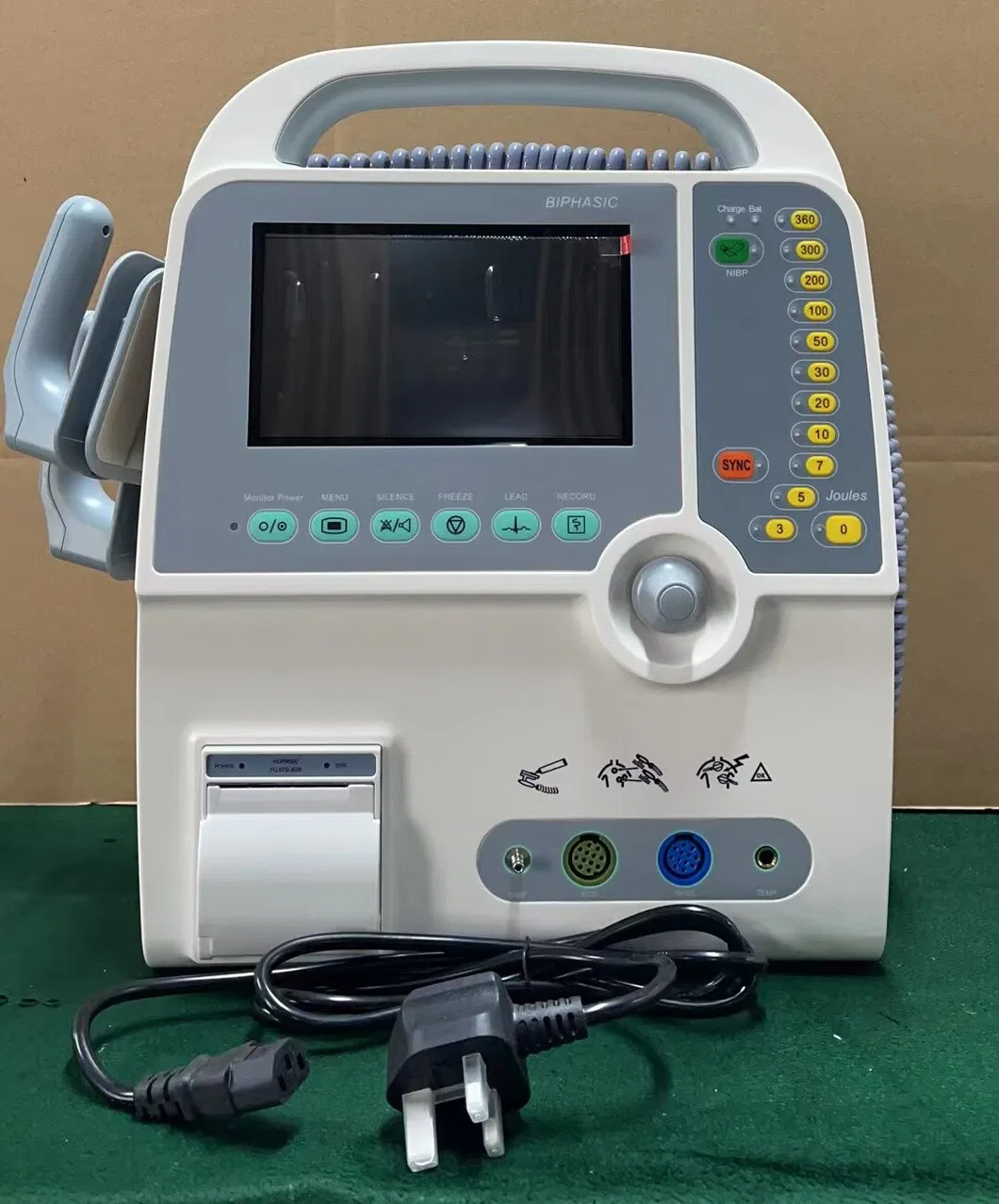

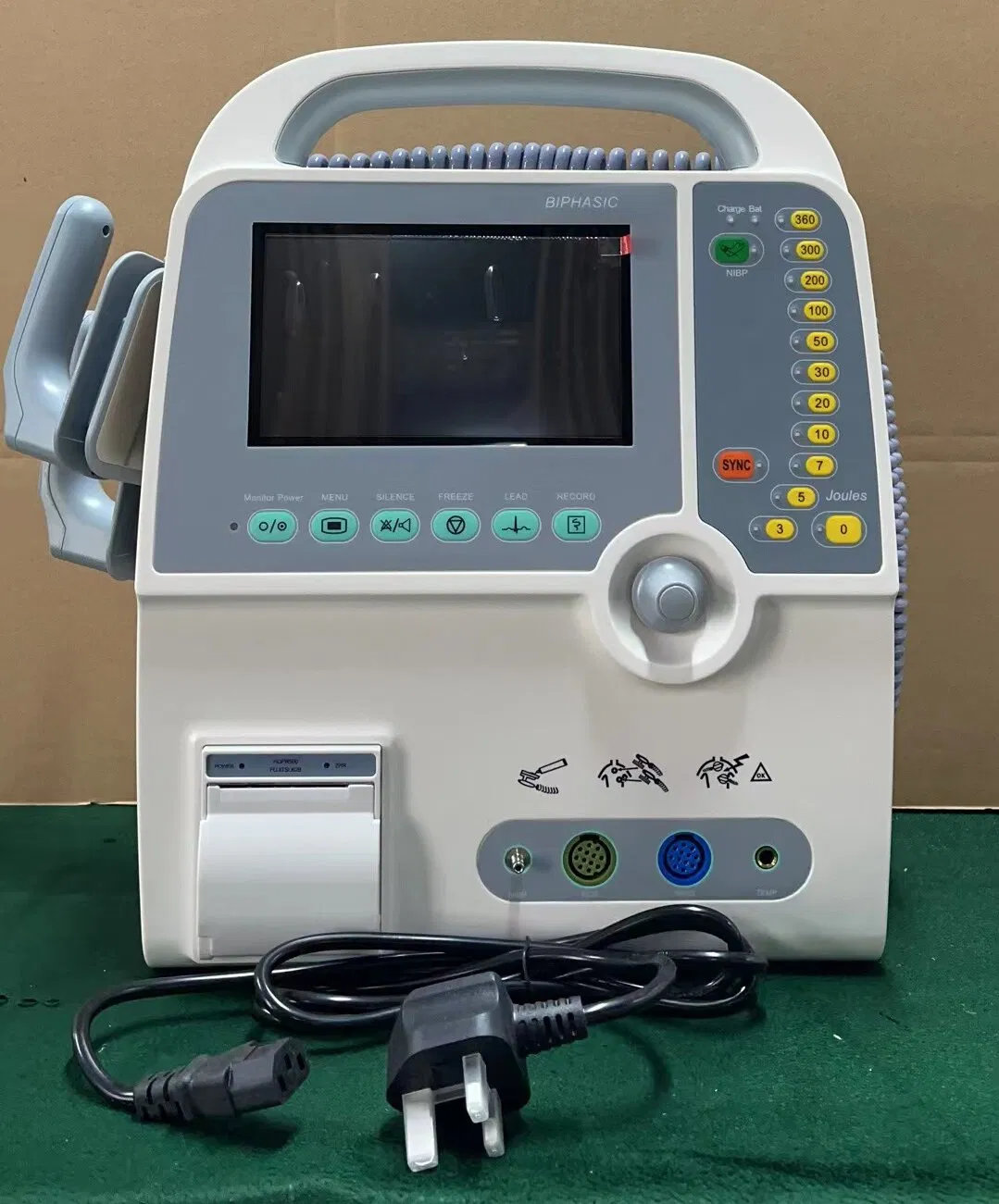

Defibrillator Machine
Energy
0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360j
Monitoring
ECG, NIBP, TEMP, SpO2, Pulse
Capacity
3000 Sets Per Month
Standard built-in Recorder with discharge trigger recording
Standard Li-ion battery for portable use
7-inch TFT color display (17.7cm diagonal)

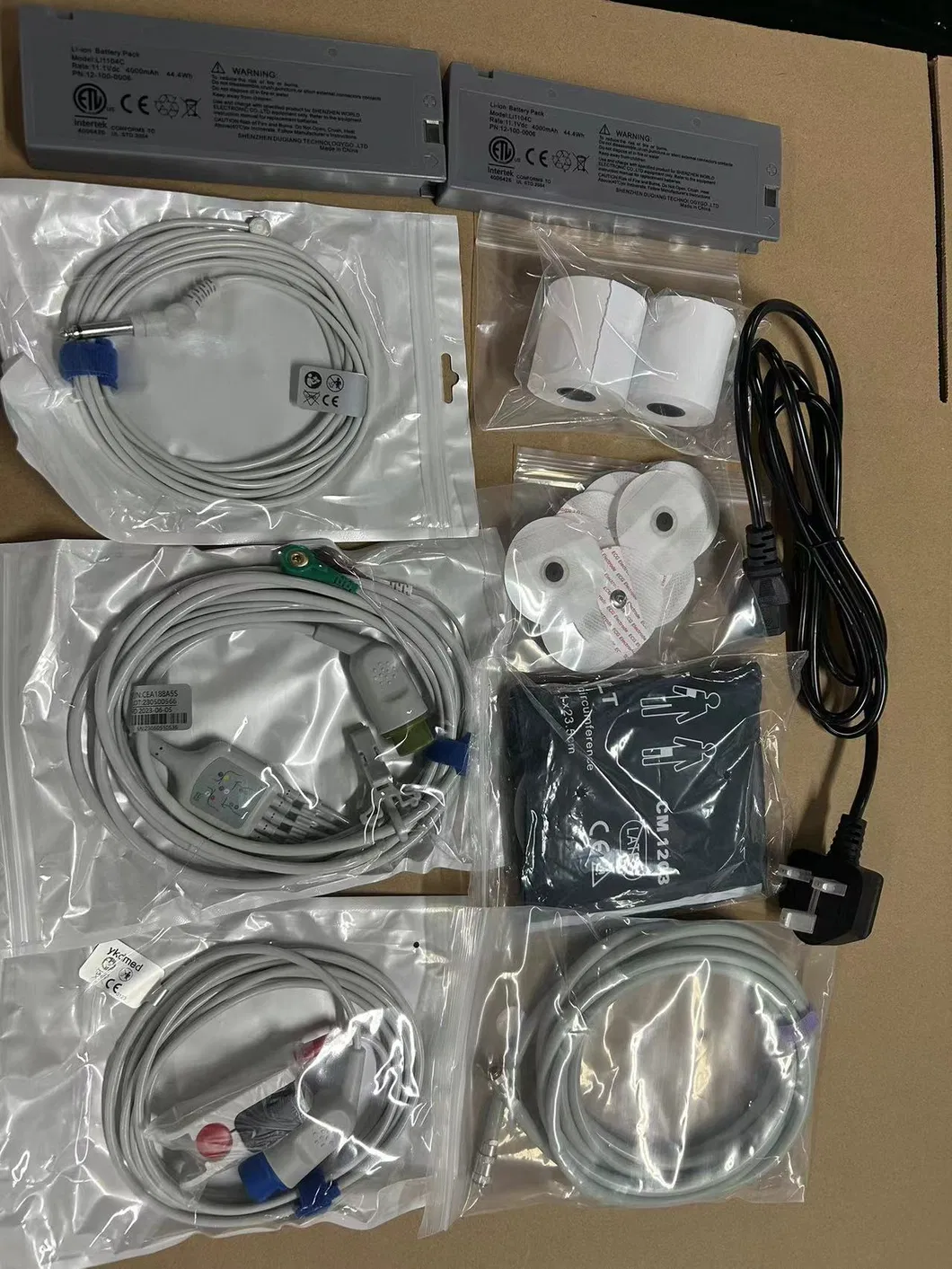

Advanced ECG Monitoring: 3-lead/5-lead cables and paddles (I, II, III, AVR, AVL, AVF, V)
NIBP: Automatic oscillation method (Manual/Automatic modes)
TEMP: Measurement range 20-45ºC
SpO2: Values, pulse histogram, waveform display
Defibrillator: Biphasic Manual with External Sync/Async modes
Charge Time: Less than 10 seconds to 360 Joules
AED Optional: Adult (up to 200J) and Children (up to 75J) modes
Frequently Asked Questions
What is the charging time for this defibrillator?
The device features rapid charging, taking less than 10 seconds to reach the maximum energy of 360 Joules.
Can this device be used for both adults and children?
Yes, it includes reusable external adult paddles with integrated pediatric paddles. The AED mode also supports specific energy settings for children.
What parameters can be monitored simultaneously?

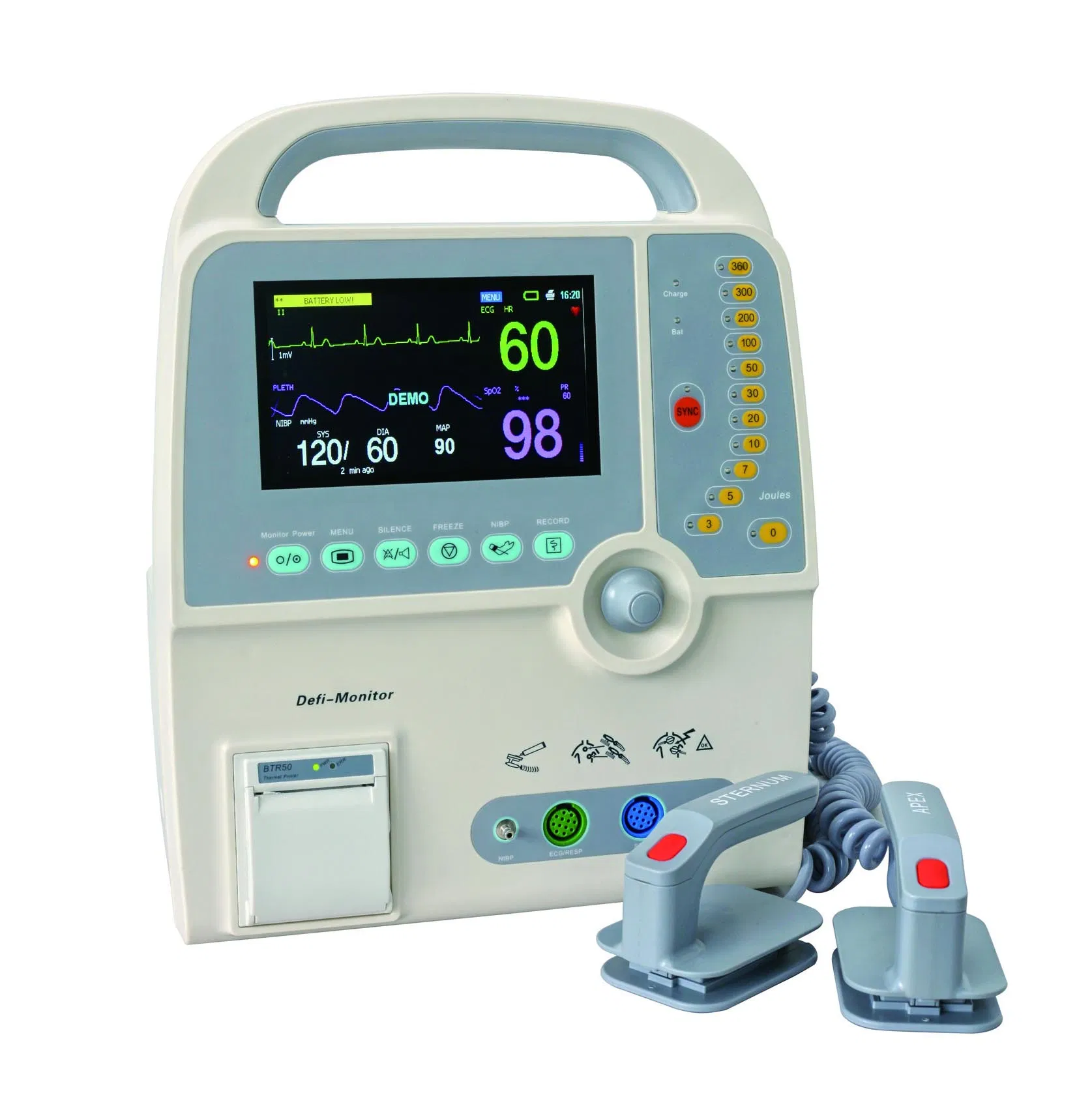

The CK-8000C is a multi-parameter monitor that tracks ECG, NIBP, TEMP, SpO2, and Pulse rate.
Does the machine include a recorder?
Yes, a standard built-in thermal recorder is included, which supports automatic recording triggered by defibrillation discharge.
What type of battery does the device use?
The device is equipped with a high-performance standard Li-ion battery for reliable portable operation.
What is the energy range available for defibrillation?
The selectable energy levels include 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, and 360 Joules.
