Product Description

📋

Basic Specifications

Model NO.
DR832X
Ms Range
1ms~6300 Ms
Flat Panel Detector
Venu1717X (Wired)
Kv Range
40kv-150kv
Output Power
32kw
Ma Range
10mA-400mA
Input Voltage
220VAC, ±10%, 50Hz
Digital Network
Support Dicom 3.0 and Pacs
⭐

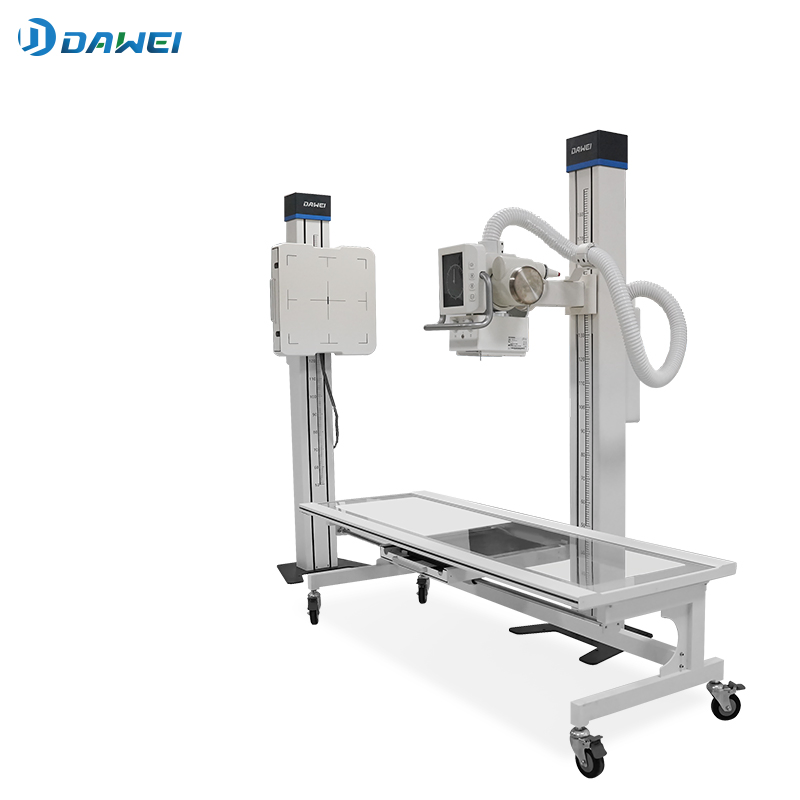

RD-832X Digital X-ray Radiography System

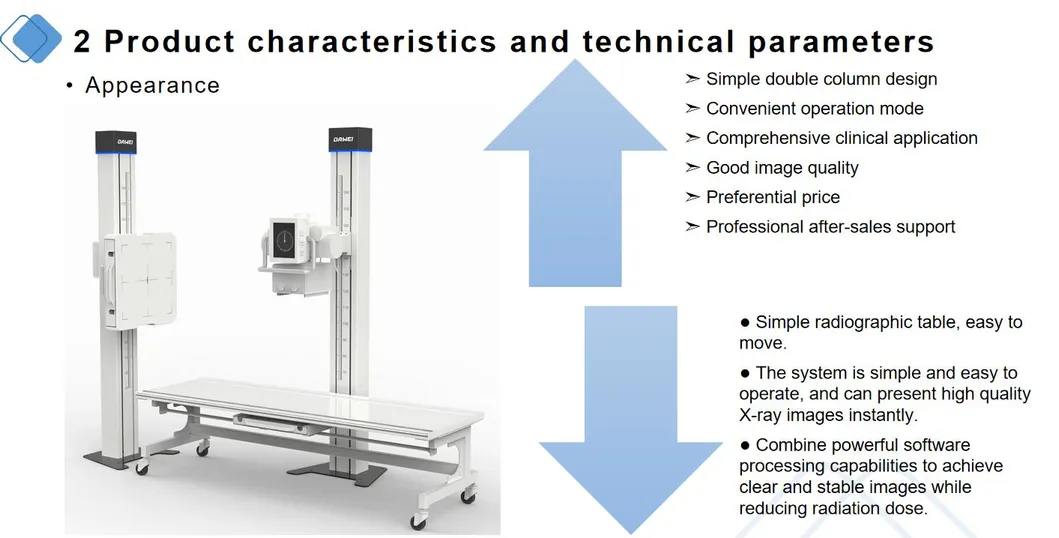

Digital X-ray Radiography System
⚙️

Technical Parameters

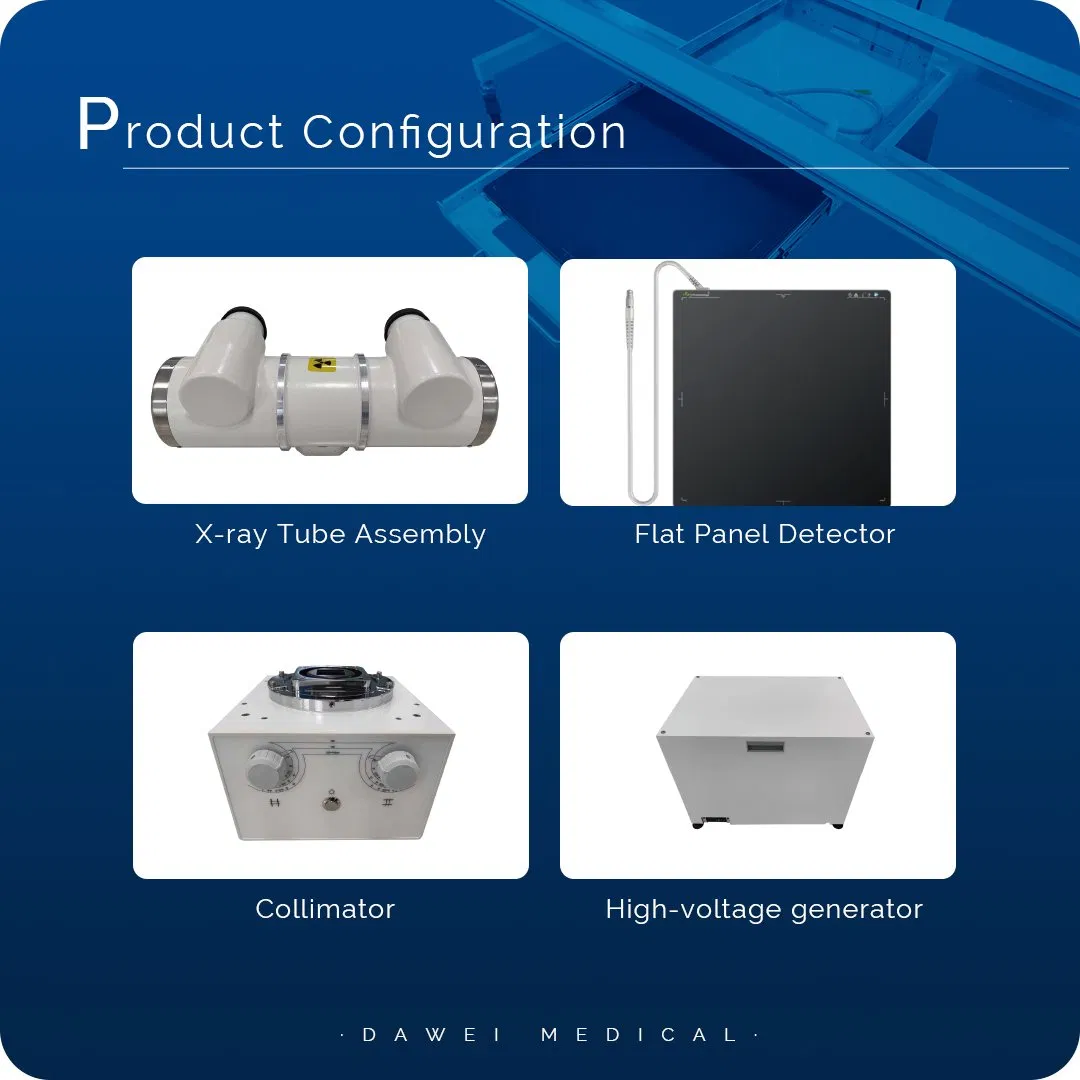

Component Performance Parameters
High-voltage Generator Output: 32kW, 40-150kV, 10-400mA, Inverter: 25kHz
X-ray Tube Assembly Focus: 0.6mm / 1.2mm, Heat Content: 150KHu, Range: 40-125kV
Flat Panel Detector a-Si TFT, Scintillator: CsI:Tl, Area: 427x427mm, 16 bit ADC
Image Performance Pixel: 139um, Resolution: 3.6 lp/mm, Preview Time: 3s

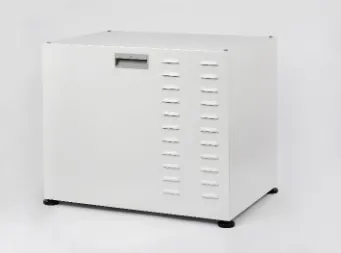

📍 High-voltage Generator Generator

Accurate radiation dose output with self-diagnosis and modular design for easy maintenance.

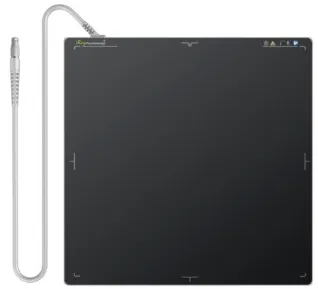

📍 Flat Panel Detector Detector

17x17 inch large imaging area, high-performance cesium iodide for low dose exposure.

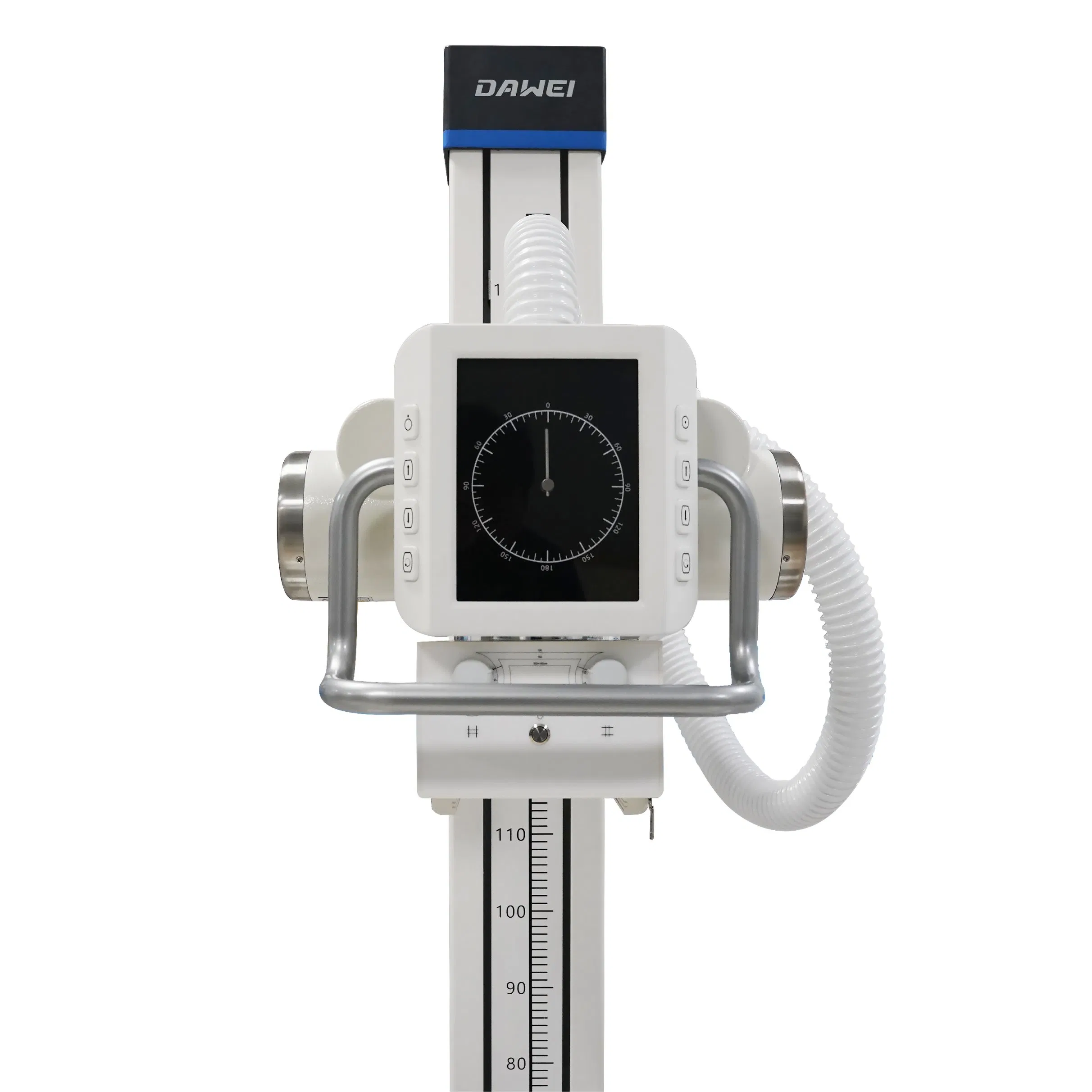

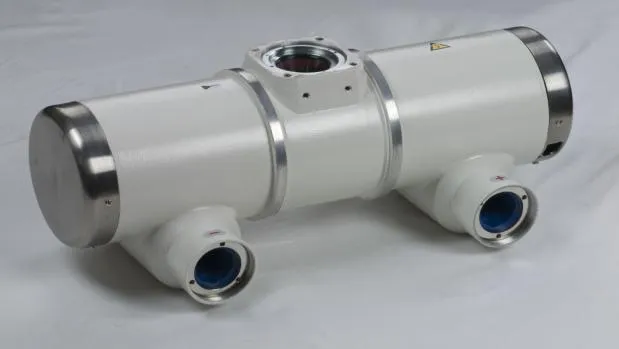

📍 X-ray Tube Assembly Tube

Double focus balance for image resolution and 150kHU heat capacity for stable work.

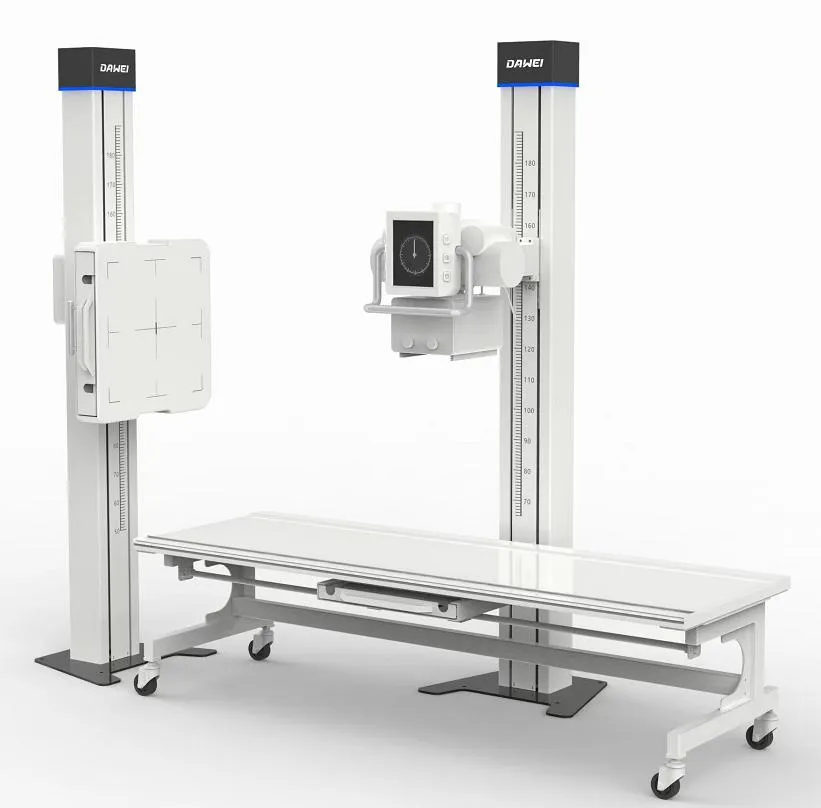

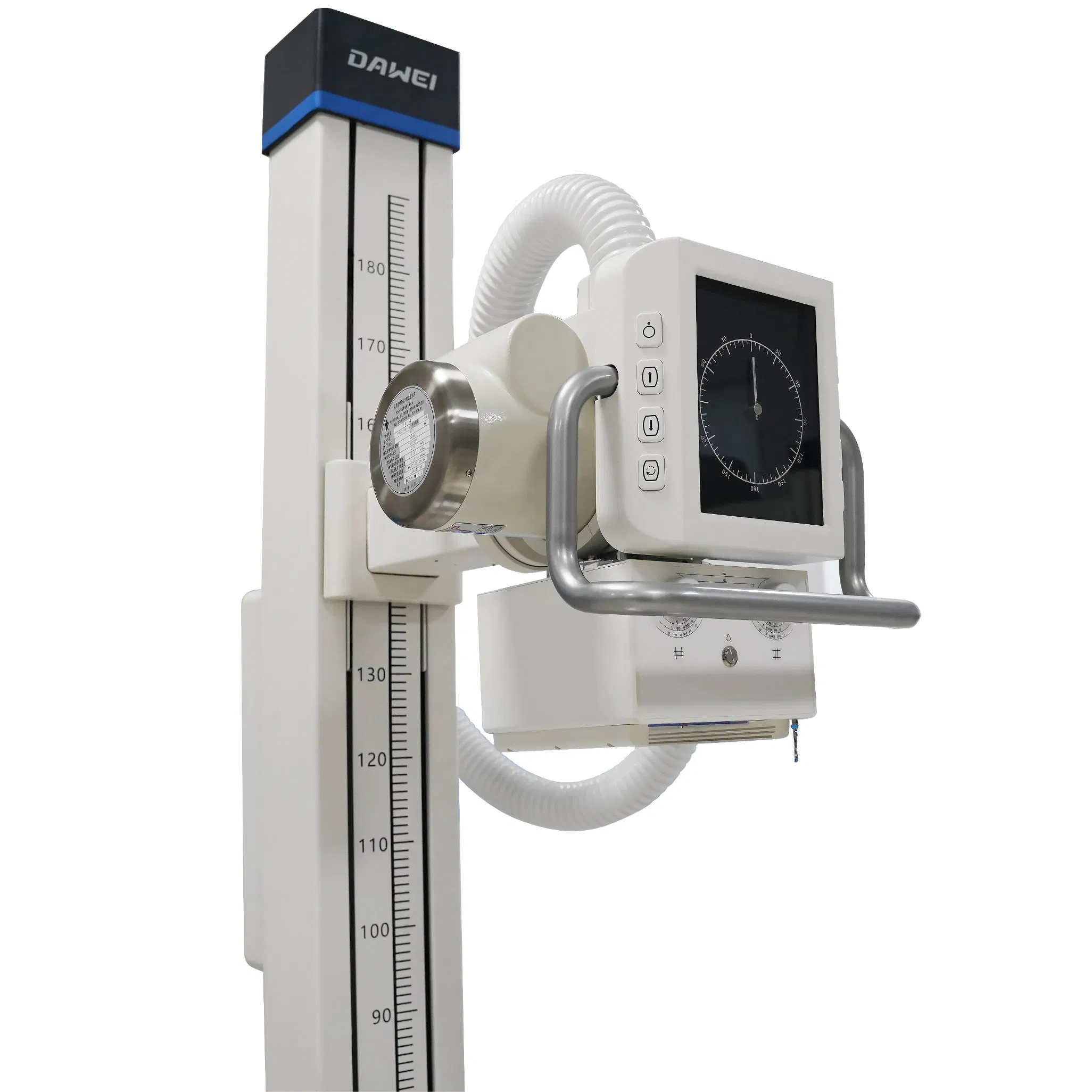

📍 Photography Stand Stand

High strength aluminum alloy column with manual movement and rotation flexibility.

💻

Software & Integration

  • DICOM 3.0: Seamless integration into PACS or RIS systems.

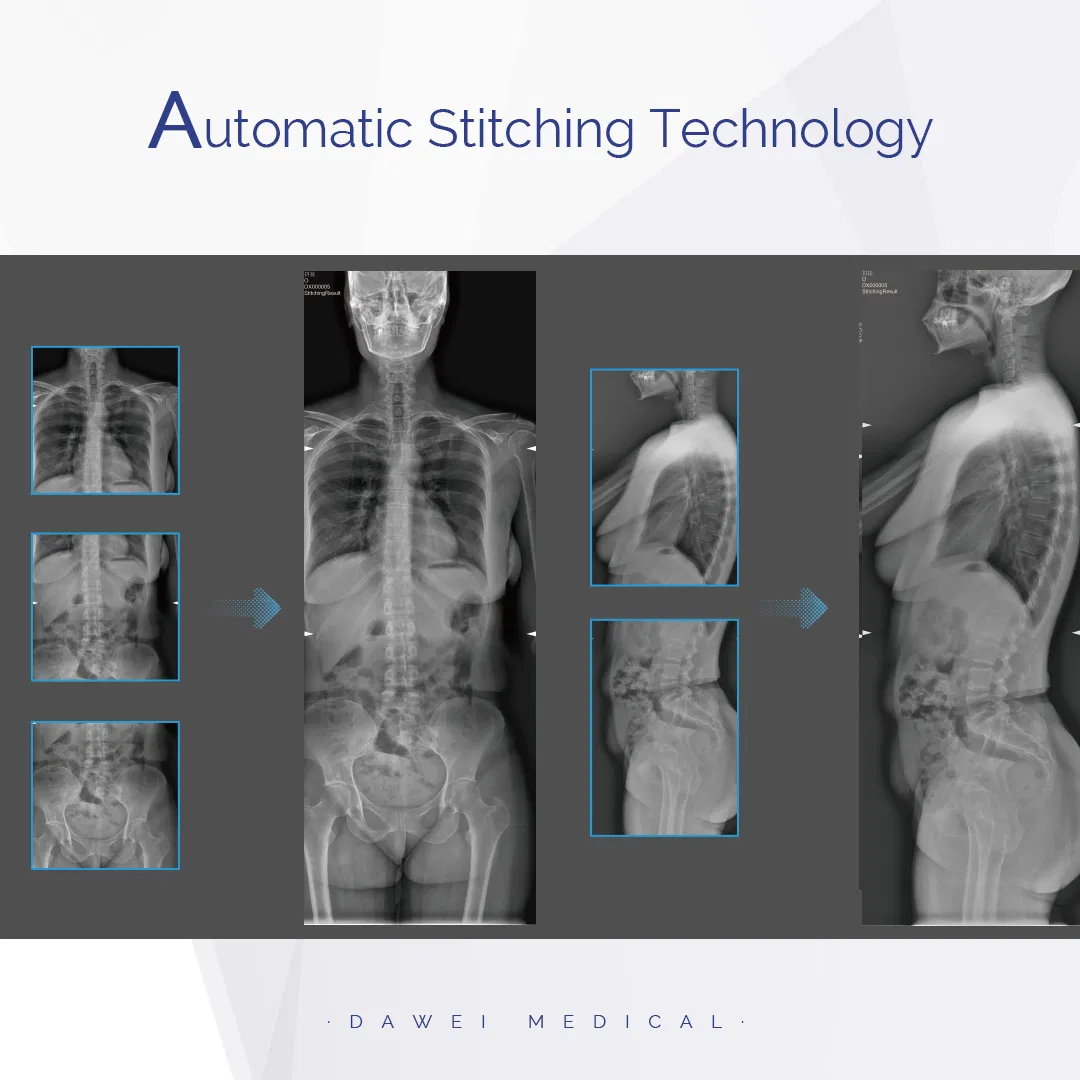

  • Image Processing: Multi-grade denoise, LIH, negative/positive reverse.
  • Management: Database for history, graphic reports, and Worklist support.
  • Network: Digital networking for hospital-wide film access.

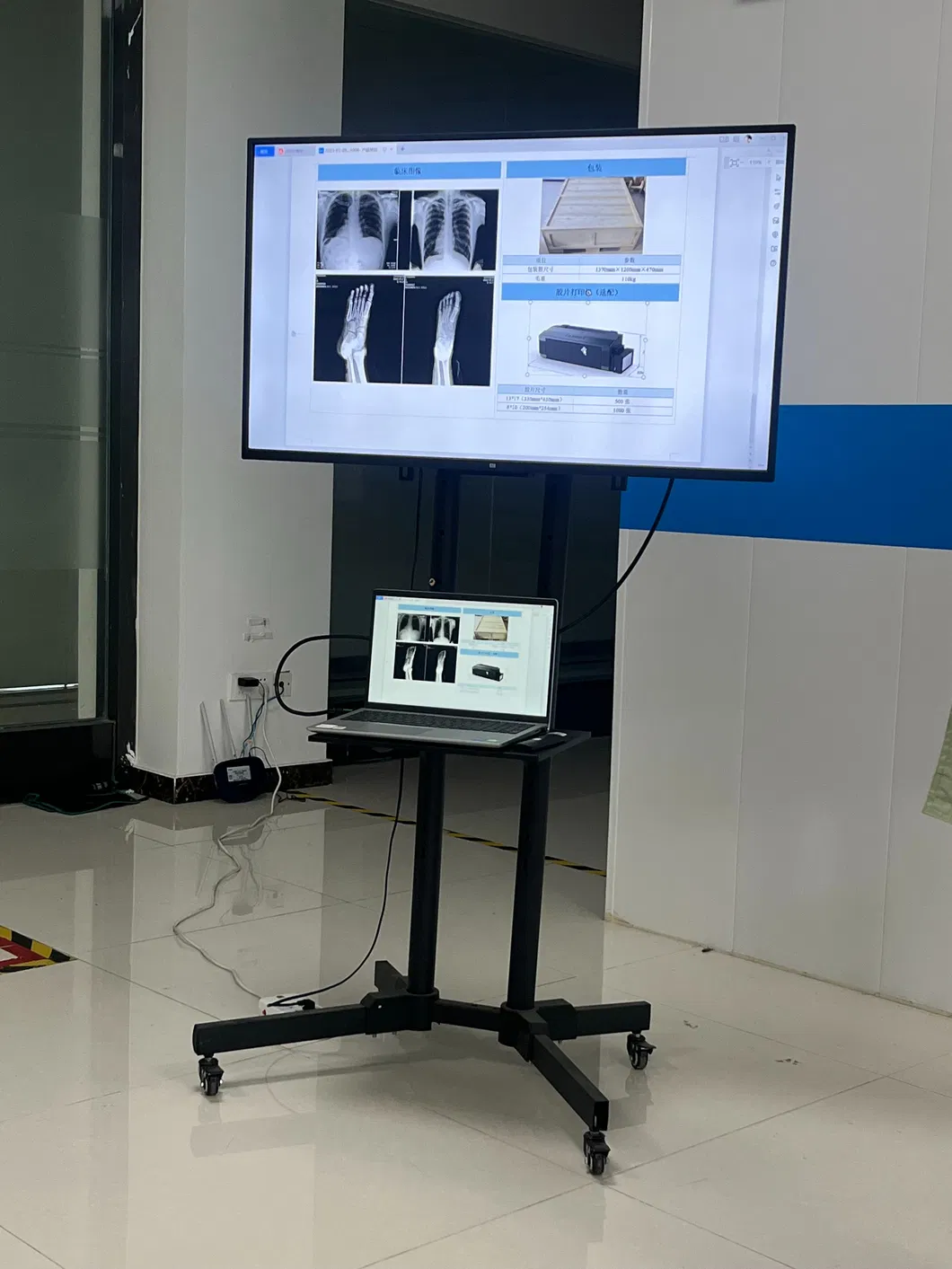

Software Interface
💬

Feedback & Trust

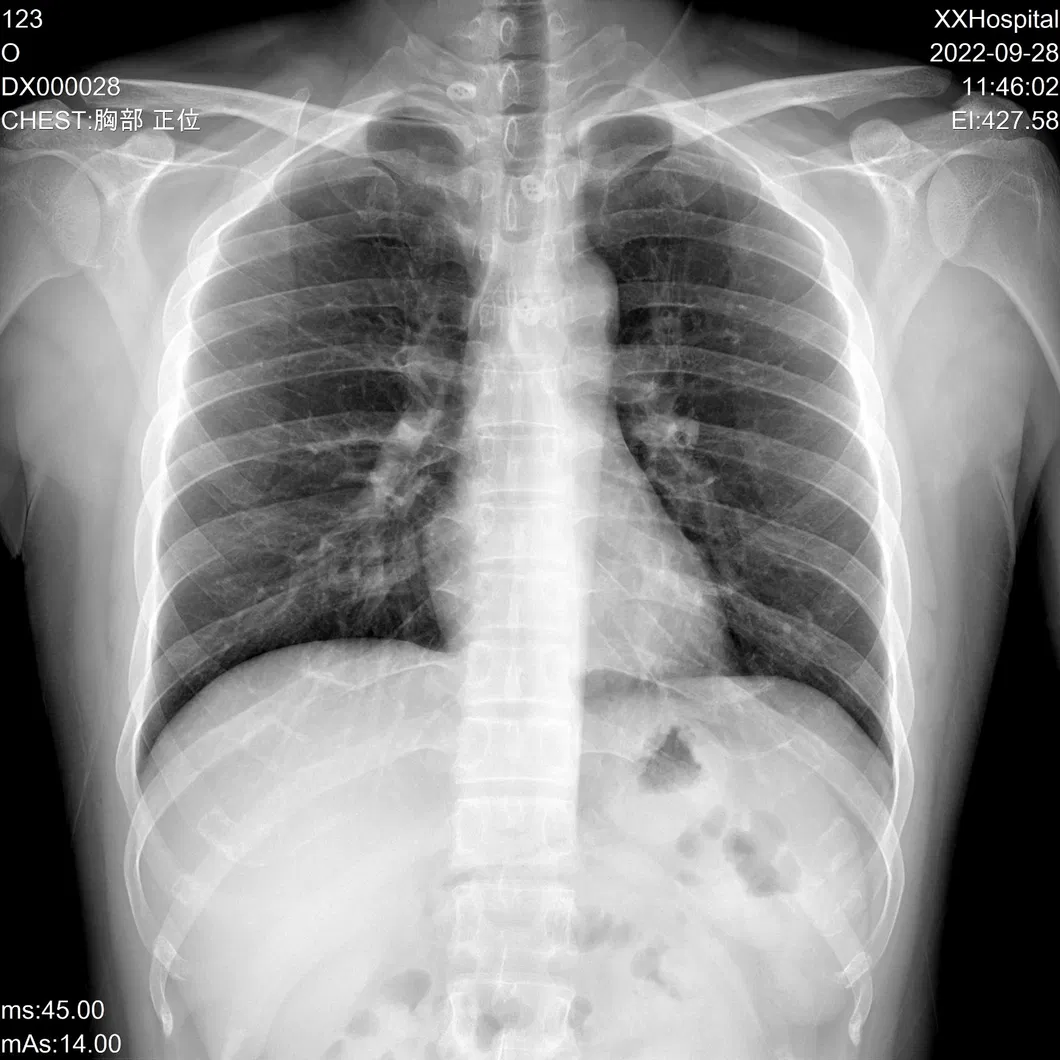

Customer Feedback 1
Customer Feedback 2

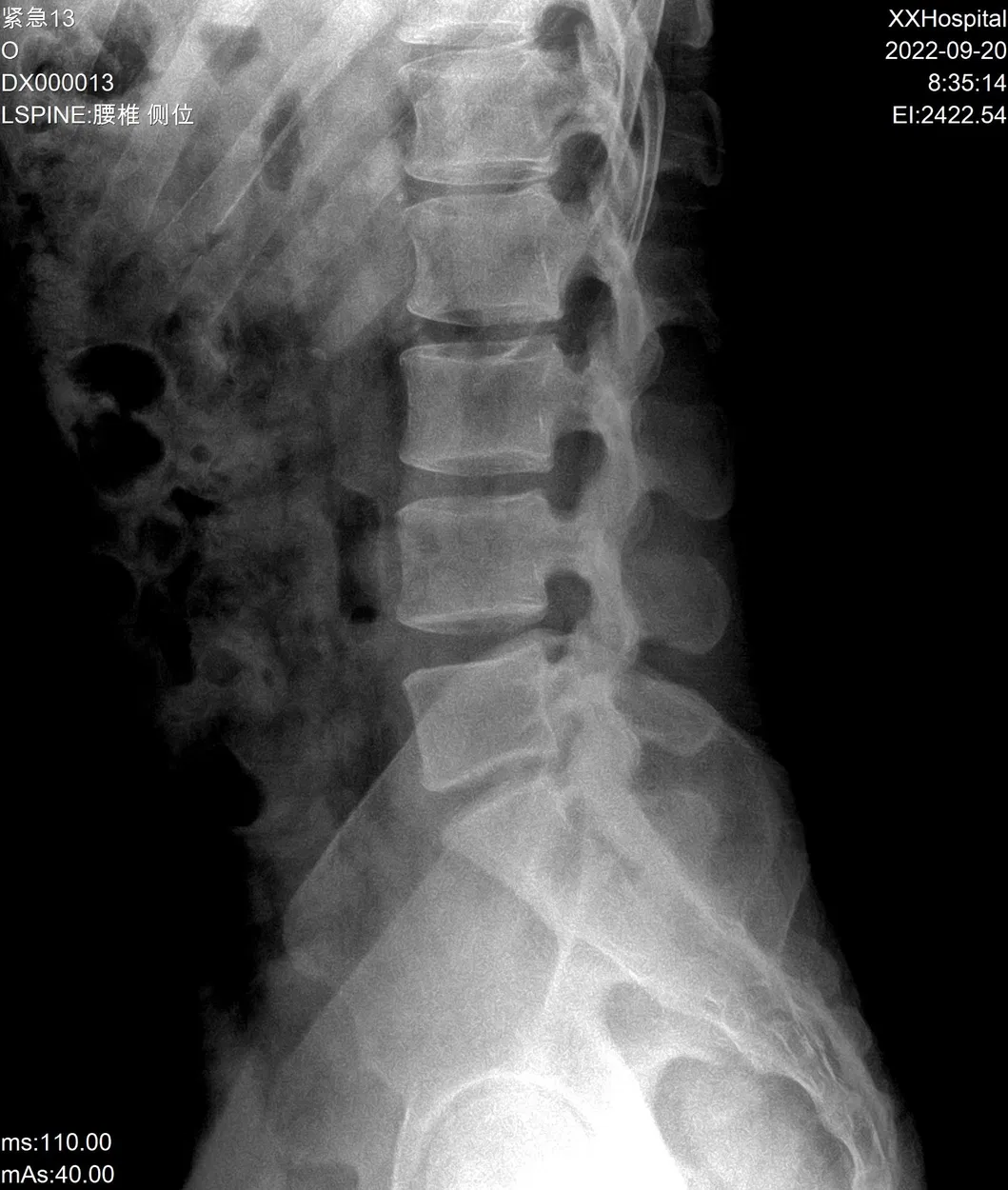

Customer Feedback 3
Customer Feedback 4
Customer Feedback 5
Customer Feedback 6
📜

Quality Certification

Certification

Frequently Asked Questions

Q1: What is the power output of the DR832X system? A: The system provides a high-frequency output power of 32kW, suitable for various clinical radiography needs.
Q2: Does the system support digital networking? A: Yes, it fully supports DICOM 3.0 and can be seamlessly integrated into hospital PACS or RIS networks.
Q3: What are the advantages of the Flat Panel Detector used? A: It features a large 17x17 inch imaging area with a 139μm pixel size and Cesium Iodide scintillator for high-definition images at lower radiation doses.
Q4: Can the X-ray tube be adjusted easily? A: Yes, the photography stand allows the tube to move up and down manually and rotate, providing flexibility for different patient positions.
Q5: What is the cooling capacity of the X-ray tube? A: The tube has an anode heat content of 150kHU, ensuring stable performance during continuous clinical workflows.
Q6: Is the system compatible with medical printers? A: Absolutely. The system can be connected to laser printers via the digital network to print high-quality medical films.
